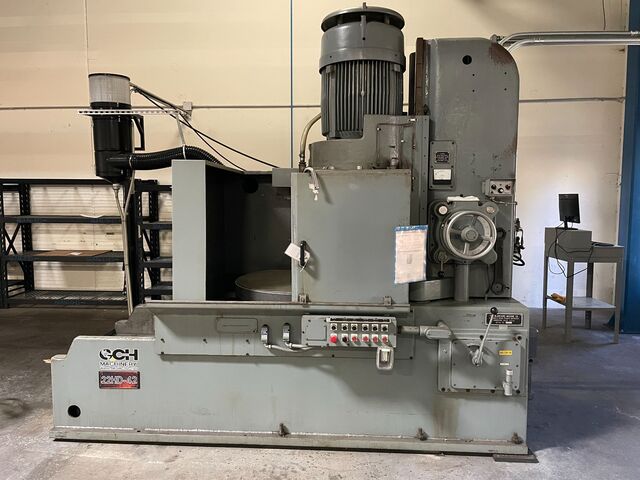

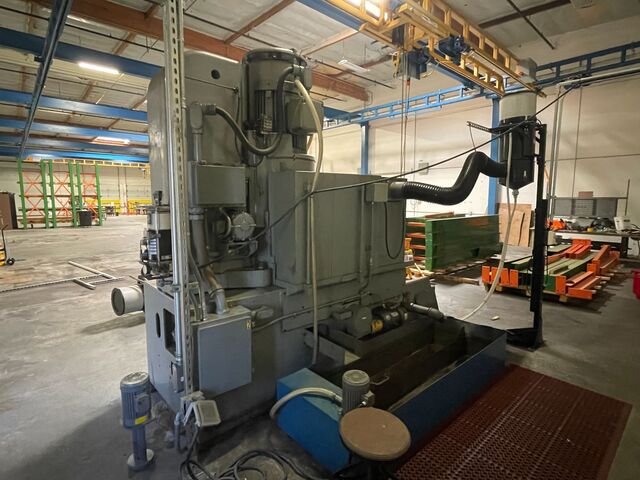

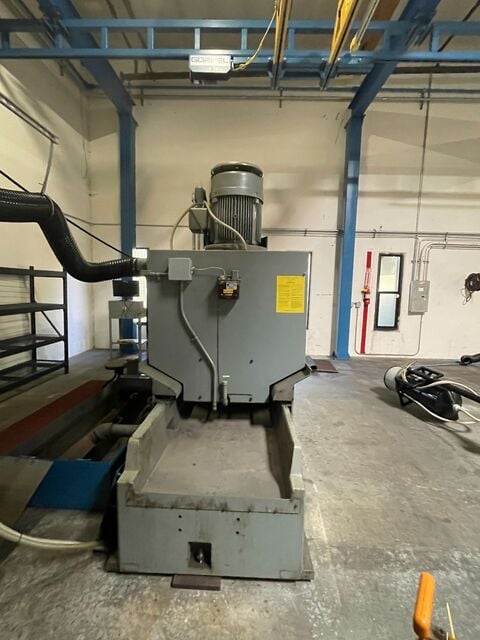

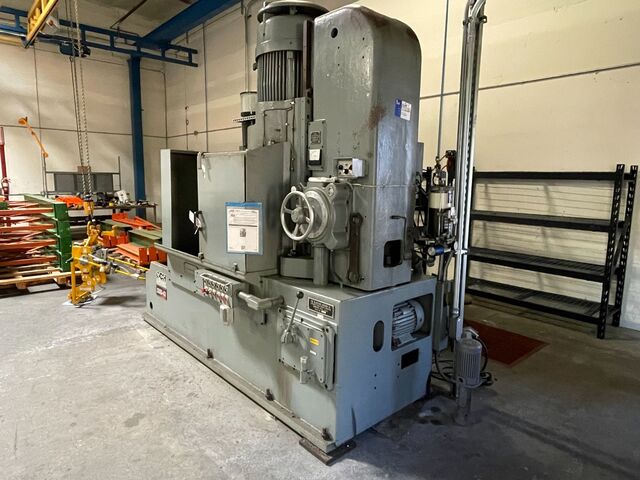

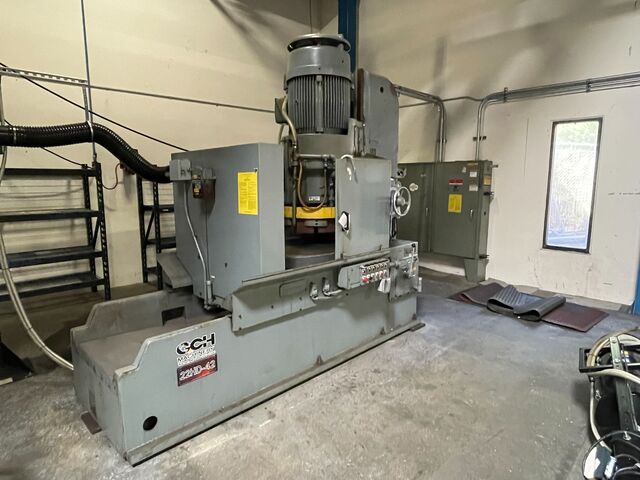

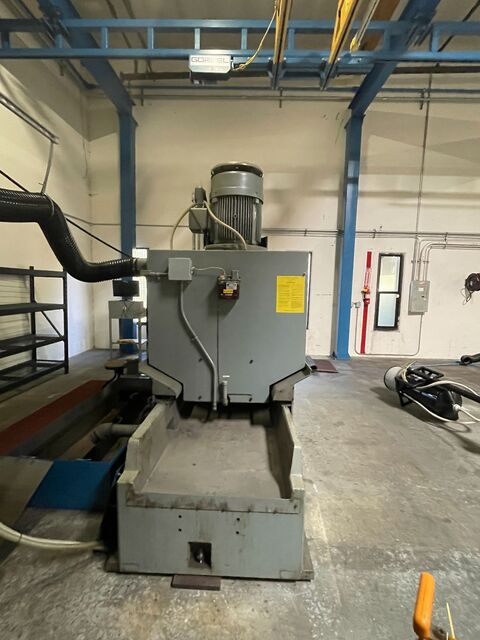

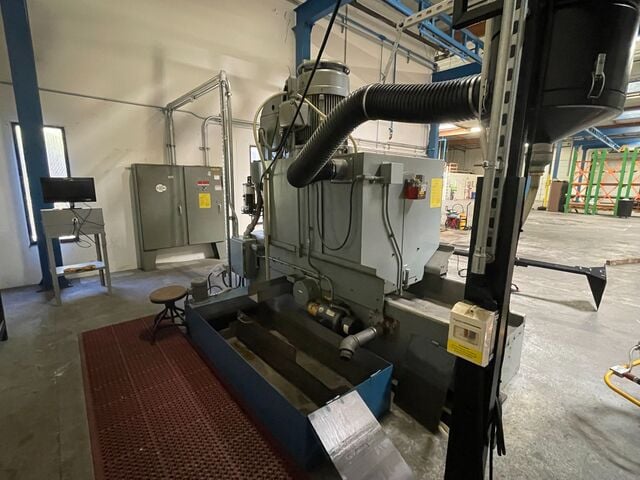

Blanchard #22HD-42 vertical rotary surface grinder, 42" chuck, 48" swing, 21" under wheel, 1973

BLANCHARD 22HD-42 vertical rotary surface grinder, 1973. Used equipment with a 42-inch chuck, 48-inch swing, 21-inch under-wheel capacity, 48 x 21-inch size capacity, and 40 power.
#22HD-42 BLANCHARD VERTICAL
ROTARY SURFACE GRINDER
S/N 13987 Year: 1973
STANDARD SPECIFICATIONS
RANGE
48" Swing diameter x 21" high over 42" diameter chuck with new segments.
WORKTABLE
One piece 42" diameter magnetic chuck. 1200 watts, 230 volts (standard), 115 volts (special), D.C. 3,000 pounds maximum load.
Five CD-22L 22" Cortland chuck segments, each 11 1/4" x 2 1/4" x 6" long.
WHEEL
40 H.P. Spindle motor, 100 HP Heavy Duty Geared Head
OTHER MOTORS
Chuck rotation – 1200 R.P.M. (60 cycles); table traverse and head raising – 900 R.P.M. (60 cycles).
Wet – 125 gallon tank in base.
FLOOR SPACE AND HEIGHT
11’ 11" X 8’ 4"
Maximum height…………………………………………… 9’ 1"
Minimum height……………………………………………. 8’ 7"
WEIGHT
Domestic shipping weight………………………………….. 19,000 pounds
EQUIPMENT AND FEATURES
42" One piece magnetic chuck 1/4” top plate.
100 HP Heavy Duty Geared Head
Wheel dresser.
Load meter.
Guards.
dry base.
21” Vertical height.
Specifications are deemed accurate, however, subject to verification or prior sale.
