For Sale by F P Miller Company
Surplus Record Dealer Since 1955
Location: Jackson, MI
Contact Sales Dept.
Phone Number: 517...> Show Phone Number 517-787-3100
Let the seller know you found their listing on Surplus Record!
Description
Specifications Chuck Dia.: No Specs Attached inches
Spindle (Horz/Vert): No Specs Attached
Power: No Specs Attached horsepower
Swing: No Specs Attached inches
Under Wheel: No Specs Attached inches
Grinding Wheel Width: No Specs Attached inches
Grinding Wheel Dia.: No Specs Attached inches
CNC Control: No Specs Attached
Type of CNC Control: No Specs Attached
Dimensions: No Specs Attached
Weight: No Specs Attached ounces
Table Speeds: No Specs Attached
Table Motor Horsepower: No Specs Attached horsepower

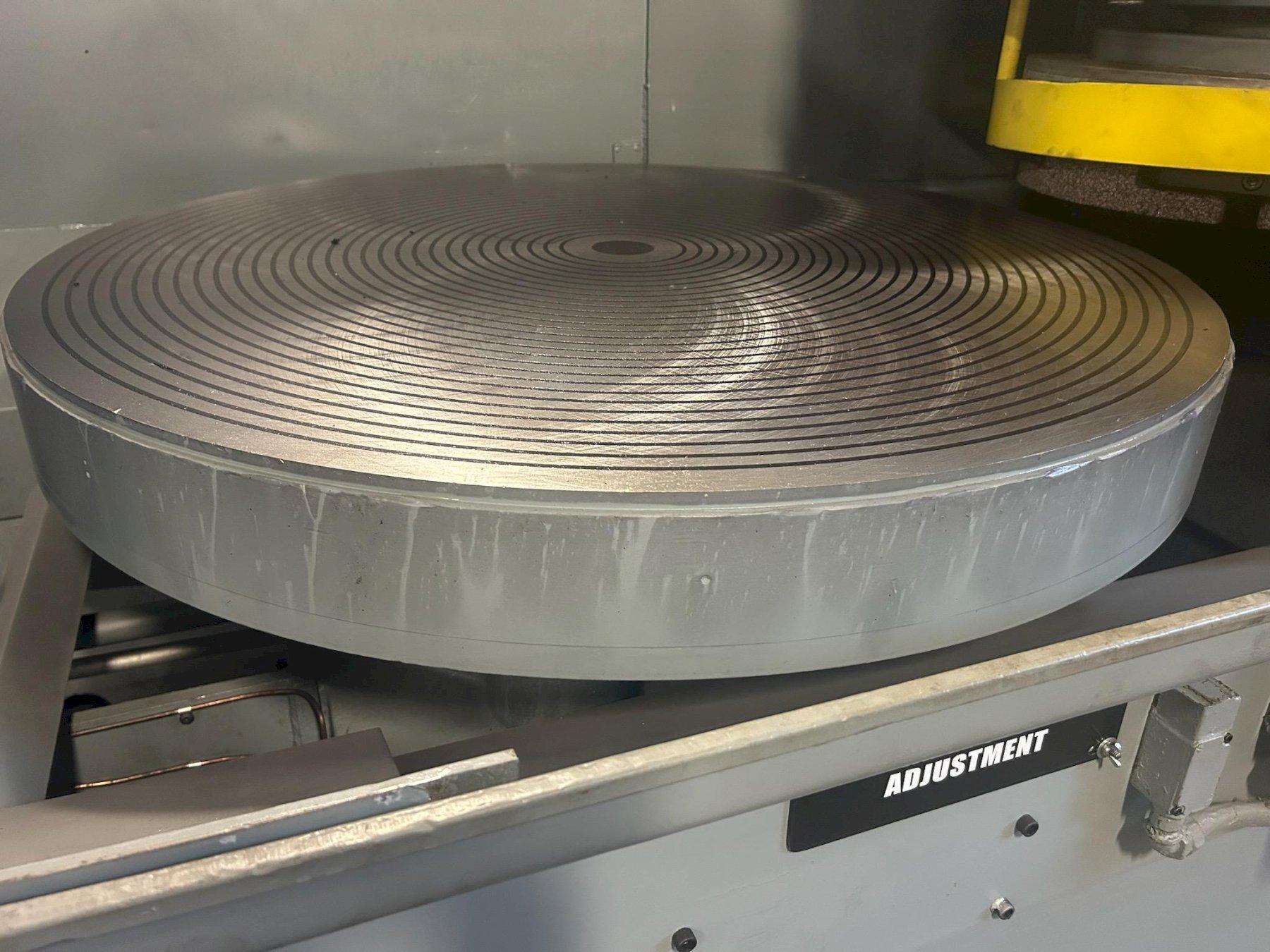

42" Magnetic Chuck Diameter, approx. 1/2" Chuck Life
22" Diameter of Wheel Chuck, Segmented Style
18" Vertical Travel
(6) Ranges of Chuck Speeds 6, 9, 12, 18, 25, 33 RPM
Feed .004 - .080 IPM
50 HP - 3 Phase , 60 Cycle, 480V
Floor Space: 129"L x 60"W
Height: 7'1" Min., 8'2" Approx. Max
Appr0x. 14,500 lbs.
Scope of Work:
Spindle (Horz/Vert): No Specs Attached
Power: No Specs Attached horsepower
Swing: No Specs Attached inches
Under Wheel: No Specs Attached inches
Grinding Wheel Width: No Specs Attached inches
Grinding Wheel Dia.: No Specs Attached inches
CNC Control: No Specs Attached
Type of CNC Control: No Specs Attached
Dimensions: No Specs Attached
Weight: No Specs Attached ounces
Table Speeds: No Specs Attached
Table Motor Horsepower: No Specs Attached horsepower
42" Magnetic Chuck Diameter, approx. 1/2" Chuck Life
22" Diameter of Wheel Chuck, Segmented Style
18" Vertical Travel
(6) Ranges of Chuck Speeds 6, 9, 12, 18, 25, 33 RPM
Feed .004 - .080 IPM
50 HP - 3 Phase , 60 Cycle, 480V
Floor Space: 129"L x 60"W
Height: 7'1" Min., 8'2" Approx. Max
Appr0x. 14,500 lbs.
Scope of Work:
Installed New Grease Lune Pump
Upgrade Electrical Panel for Lube System
Added Light to the Hood
New Load Meter
Replaced Electrical Conduit
Upgraded Electrical Boxes for Conduit
All New Lube Lines
Rebuilt Main Spindle Complete
Remove & Adjust Upper Feed Box
Inspected and Cleaned Saddle Transmission
All New Coolant Lines and Ross Valve
New Coolant Pump
New Lube Pump for Saddle
New Machine Ways
Hand Scrape Saddle to Ways
Hand Scrape Table to Magnet
Rebuilt Pinion & Bevel Gear Set for Saddle
Reworked & Replaced Some Water Guards
Repaired Dresser Arm Assembly
New Leveling Pads
Cleaned & Paint
Tram Head to Table
8 Hour Test Run
Grind Flat Parts
