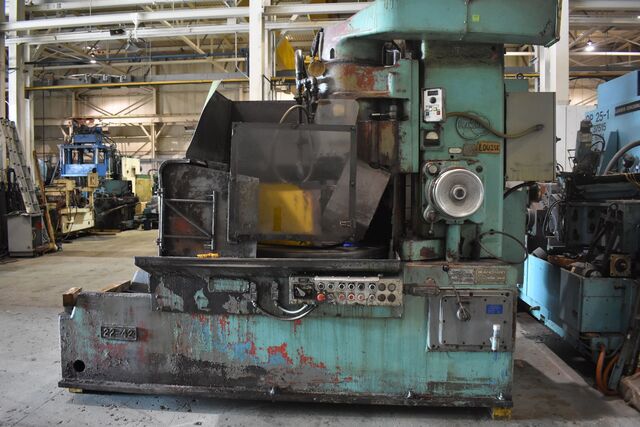

Blanchard #22-42, vertical rotary surface grinder, 48" swing, 42" chkl, 22" wheel diameter, 23" under wheel, 4-segment wheel, 1976

BLANCHARD 22-42 rotary vertical surface grinder, 1976 model, Features 42" chuck size, 50 HP power, 48" swing, 23" under wheel, 2.25" grinding wheel width, and 22" wheel diameter. Ideal for precision tasks.
#22-42 BLANCHARD EXTENDED VERTICAL
ROTARY SURFACE GRINDER

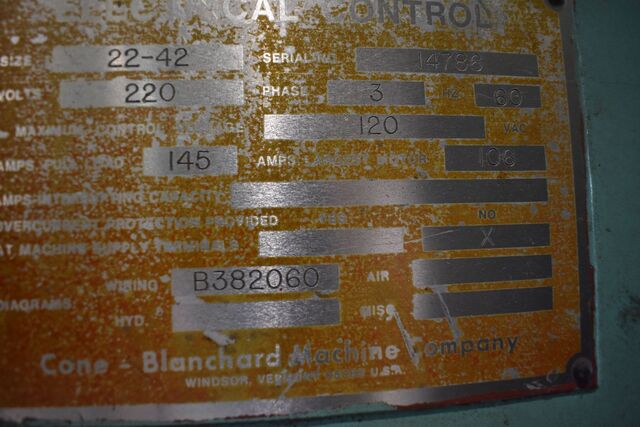

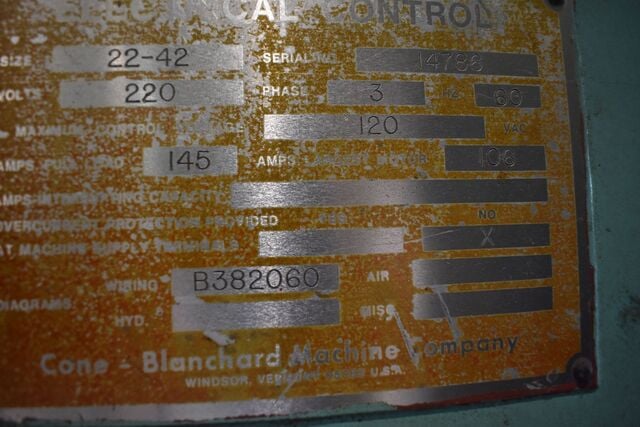

S/N 14786 Year: 1976
STANDARD SPECIFICATIONS
RANGE
48" Swing diameter x 23" high over 42" diameter chuck with new segments.
WORKTABLE

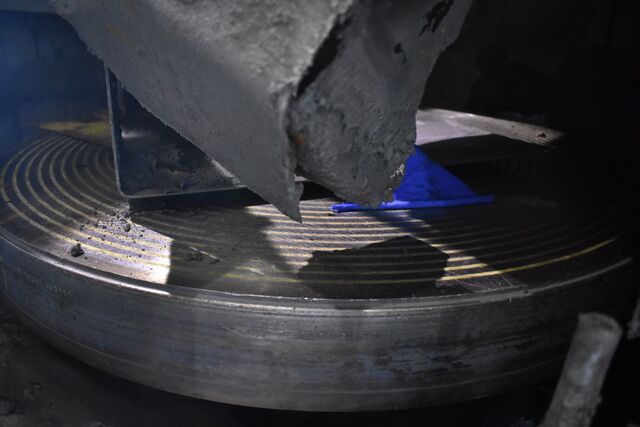

One piece 42" diameter magnetic chuck. 1200 watts, 230 volts (standard), 115 volts (special), D.C. 3,000 pounds maximum load.
Five CD-22L 22" Cortland chuck segments, each 11 1/4" x 2 1/4" x 6" long.
WHEEL
50 H.P. Spindle motor, 720 R.P.M. on 60 cycles, 750 R.P.M., 60 cycles 5,7, 10, 15, 20 and 27 R.P.M. on 50 cycles.
OTHER MOTORS
Chuck rotation – 1200 R.P.M. (60 cycles); table traverse and head raising – 900 R.P.M. (60 cycles).
Wet – 125 gallon tank in base.
FLOOR SPACE AND HEIGHT
11’ 11" X 8’ 4"
Maximum height…………………………………………… 9’ 1"
Minimum height……………………………………………. 8’ 7"
WEIGHT
Domestic shipping weight………………………………….. 19,000 pounds
EQUIPMENT AND FEATURES
42" One piece magnetic chuck. 3/8”
40 H.P. 220/440 volt.
Wheel dresser.
Load meter.
Guards.
18” Vertical.
Trabon lube.

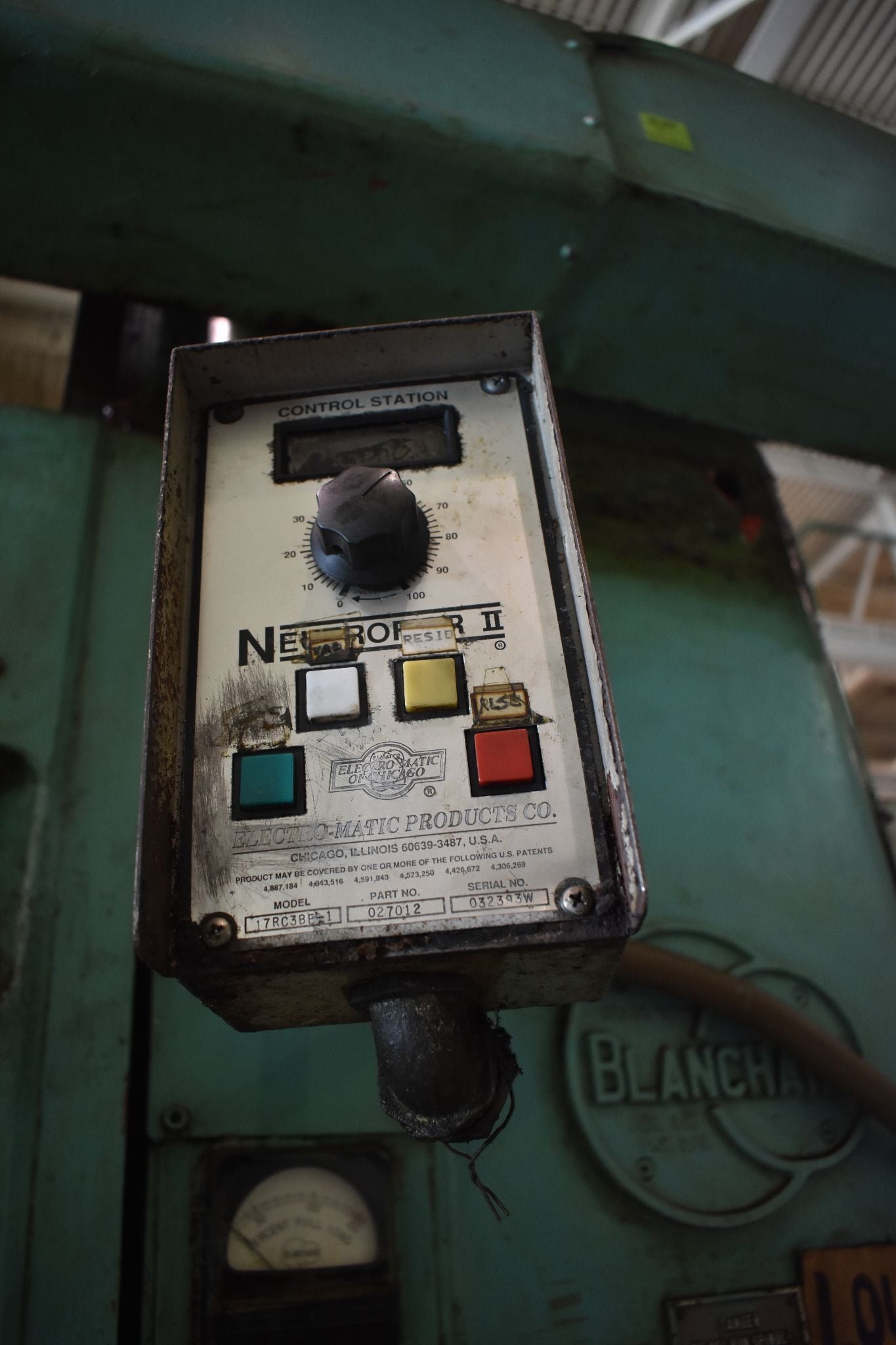

Neutrofier variable control.
Dresser.

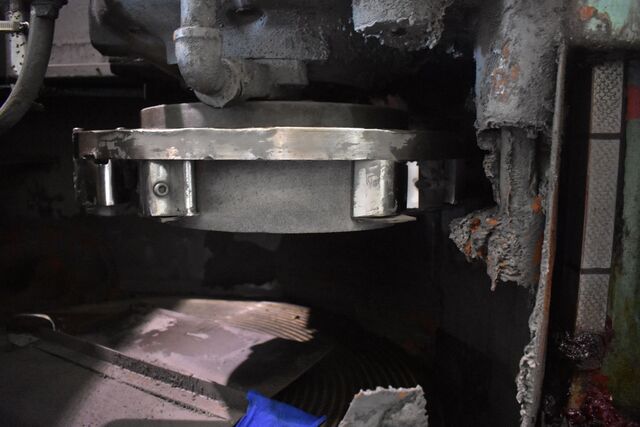

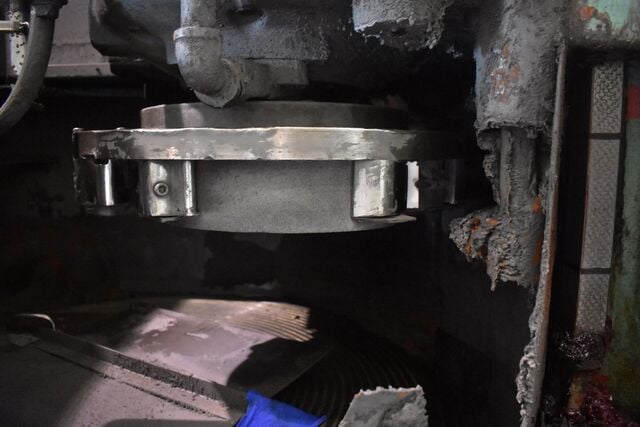

4-Segment wheel.
48” Table swing.
Wet base with pump.

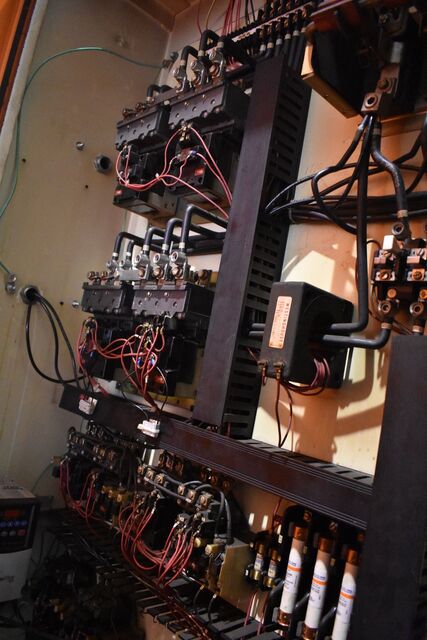

Attached electrical.
Specifications are deemed accurate, however, subject to verification or prior sale.
