For Sale by T R Wigglesworth Machinery
Surplus Record Dealer Since 1940
Location: Bedford, OH
Contact T. Wigglesworth
Phone Number: 440...> Show Phone Number 440-359-2655
Let the seller know you found their listing on Surplus Record!
Description
Description
Specifications
Overview

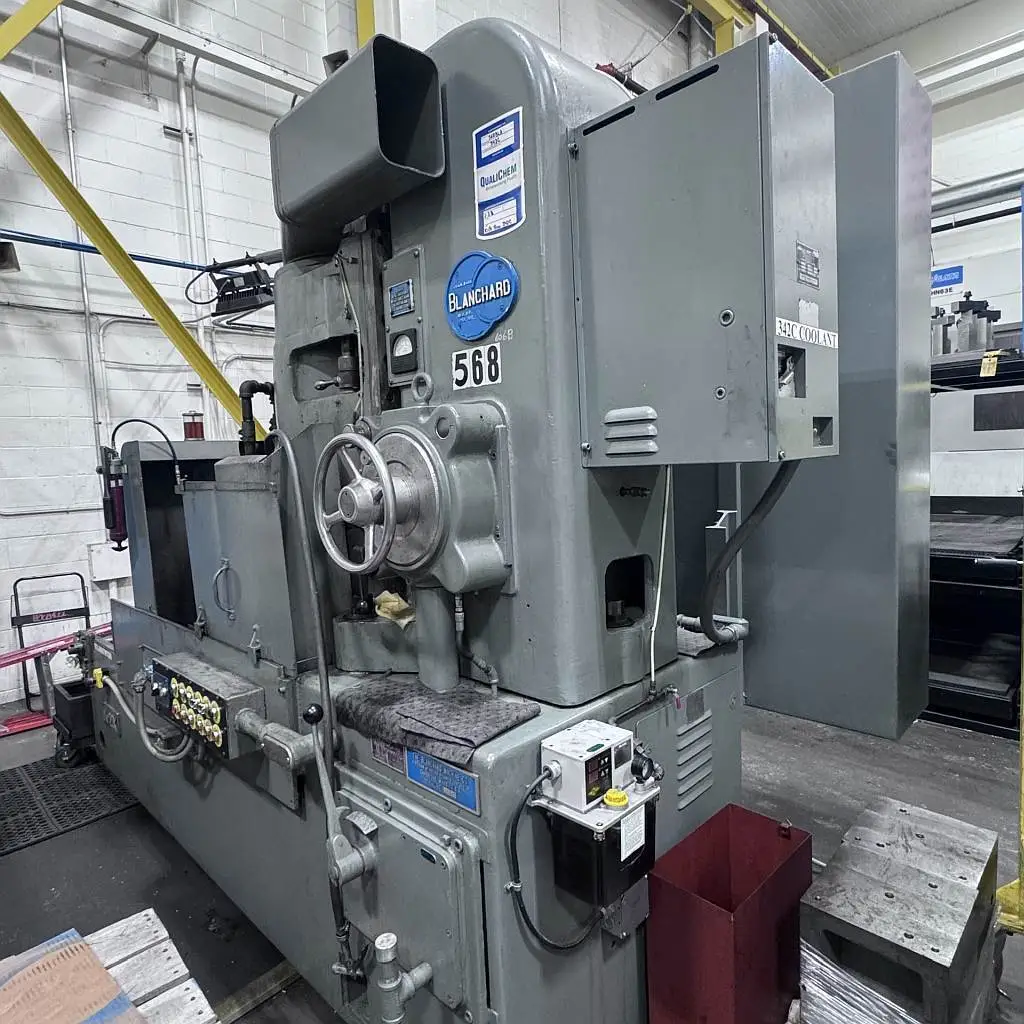

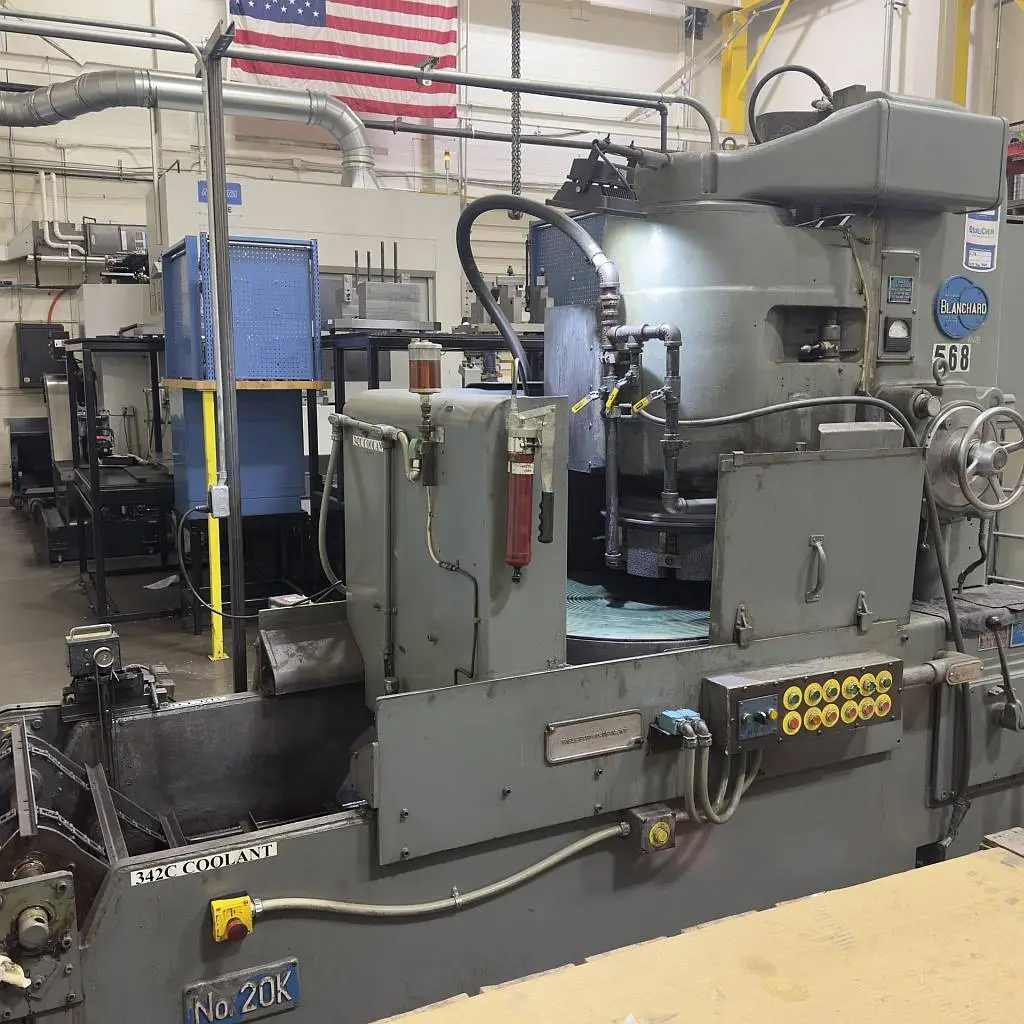

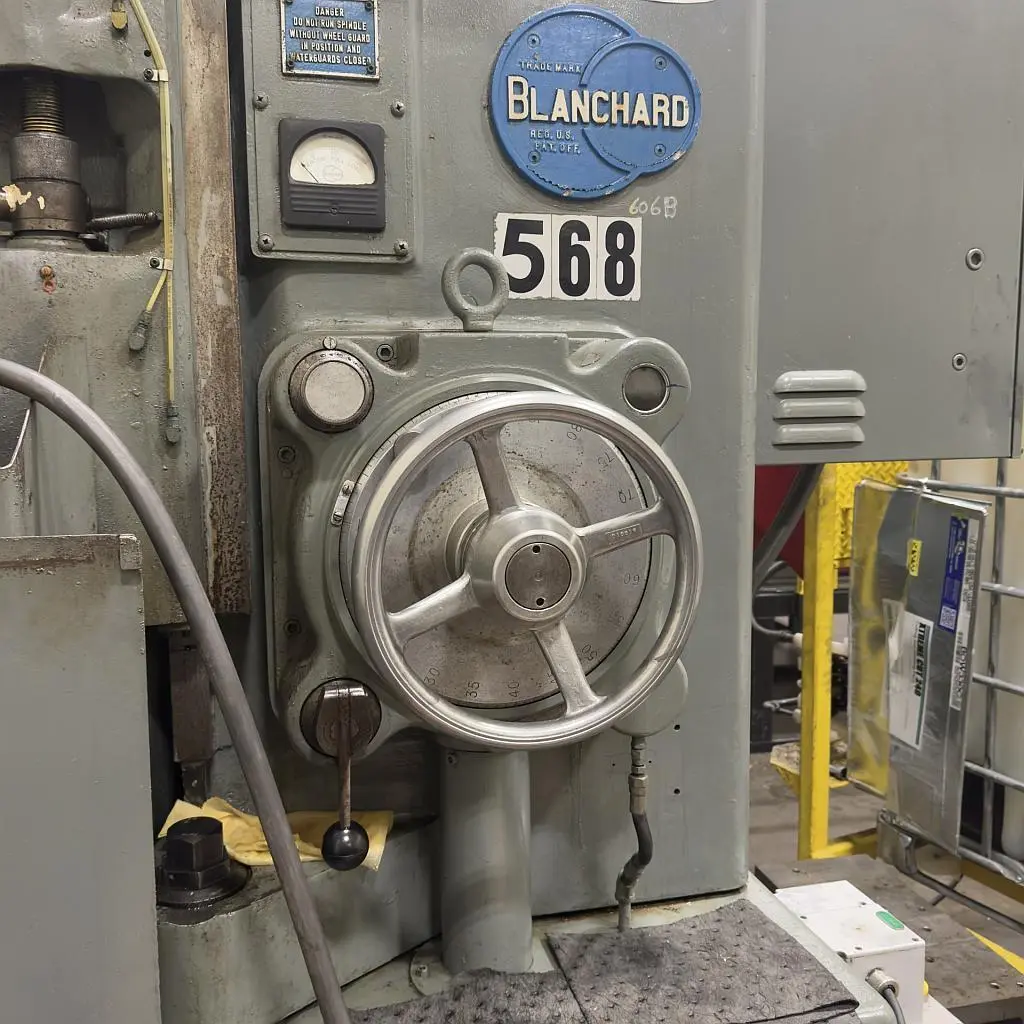

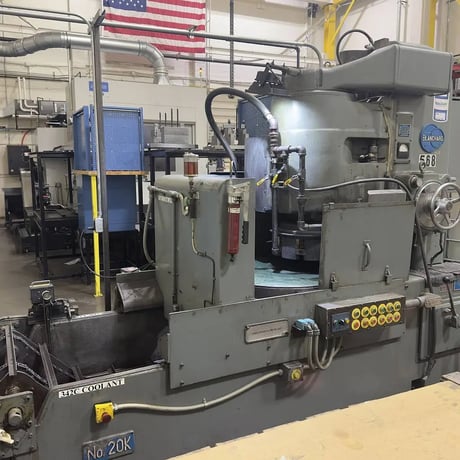

Used BLANCHARD 20K-36 Rotary Surface Grinder features a 36" magnetic chuck, 40 hp power, and a 42" swing. Equipped with auto lubrication, oil skimmer, and conveyor base option. Compact with a 20" grinding wheel and multiple chuck speeds. The machine is equipped with the conveyor base option, and a sludge tote box for heavy duty grinding.
Specifications
| Chuck Size | 36" | 914.4 mm |
| Horz/Vert | Vert | Vert |
| Power | 40 hp | 29.8 kW |
| Swing | 42" | 1,066.8 mm |
| Under Wheel | 16" | 406.4 mm |
| Grinding Wheel Dia. | 20" | 508 mm |
| Dimensions | 11' 8" L x 8' 4" W x 9'1" H | 11' 8" L x 8' 4" W x 9'1" H |
| Weight | 13500 lbs | 13500 lbs |
Specifications

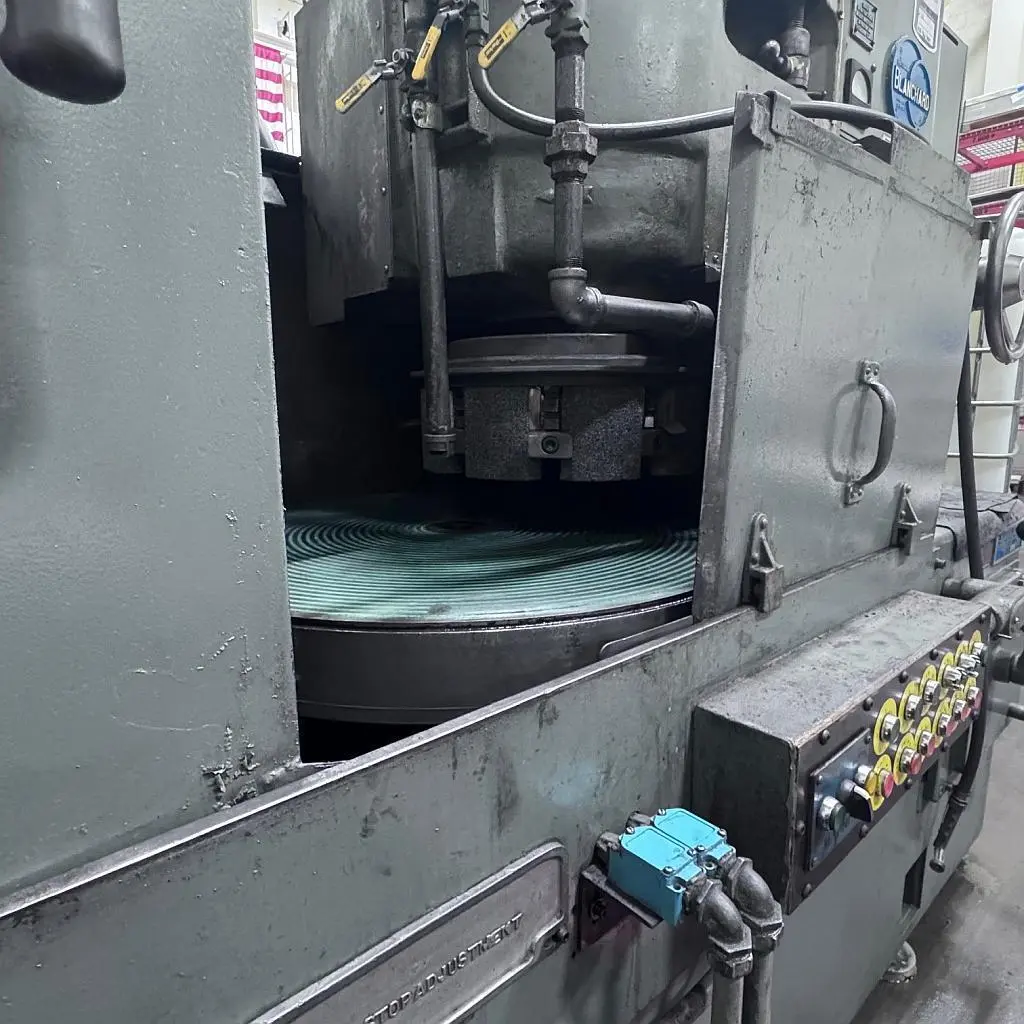

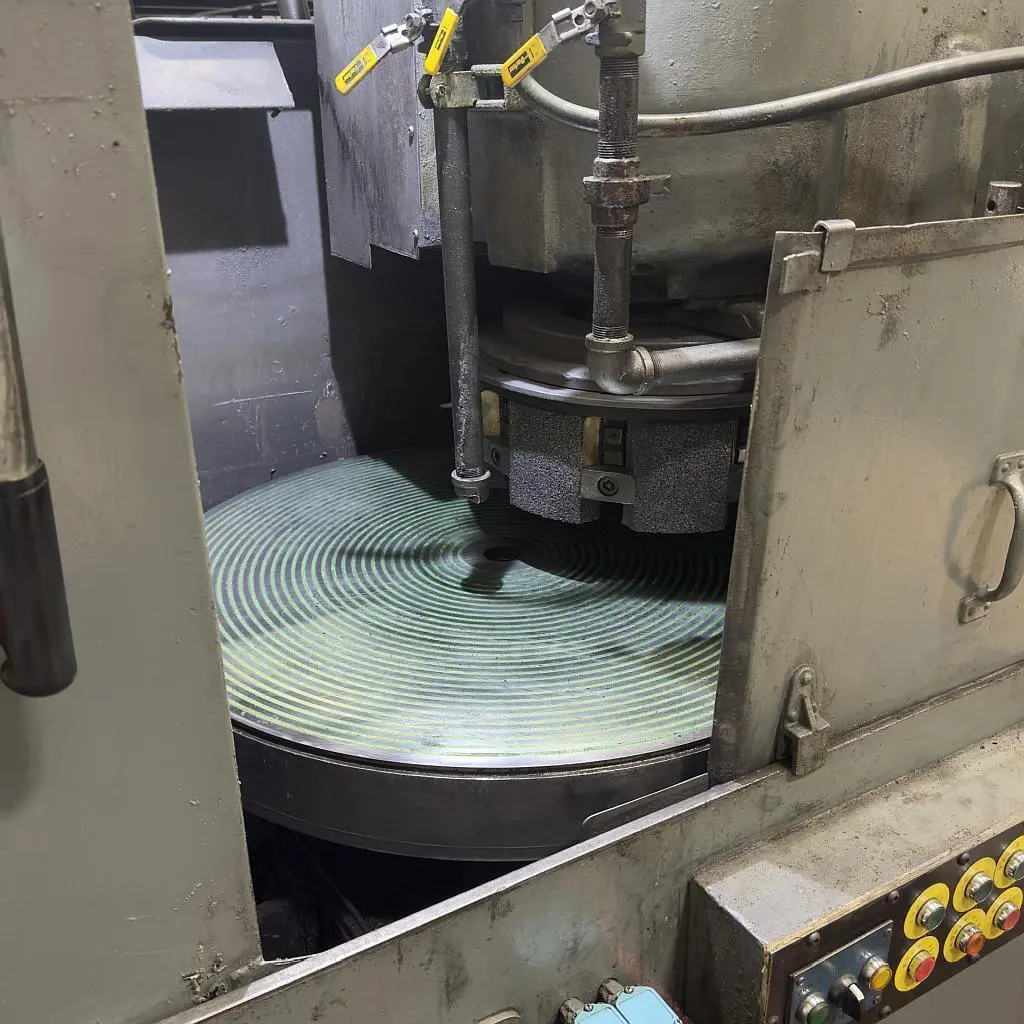

• 36" Magnetic Chuck Diameter
• 18" Vertical Range
• 20" Diameter of Wheel Chuck, Solid Wheel Style

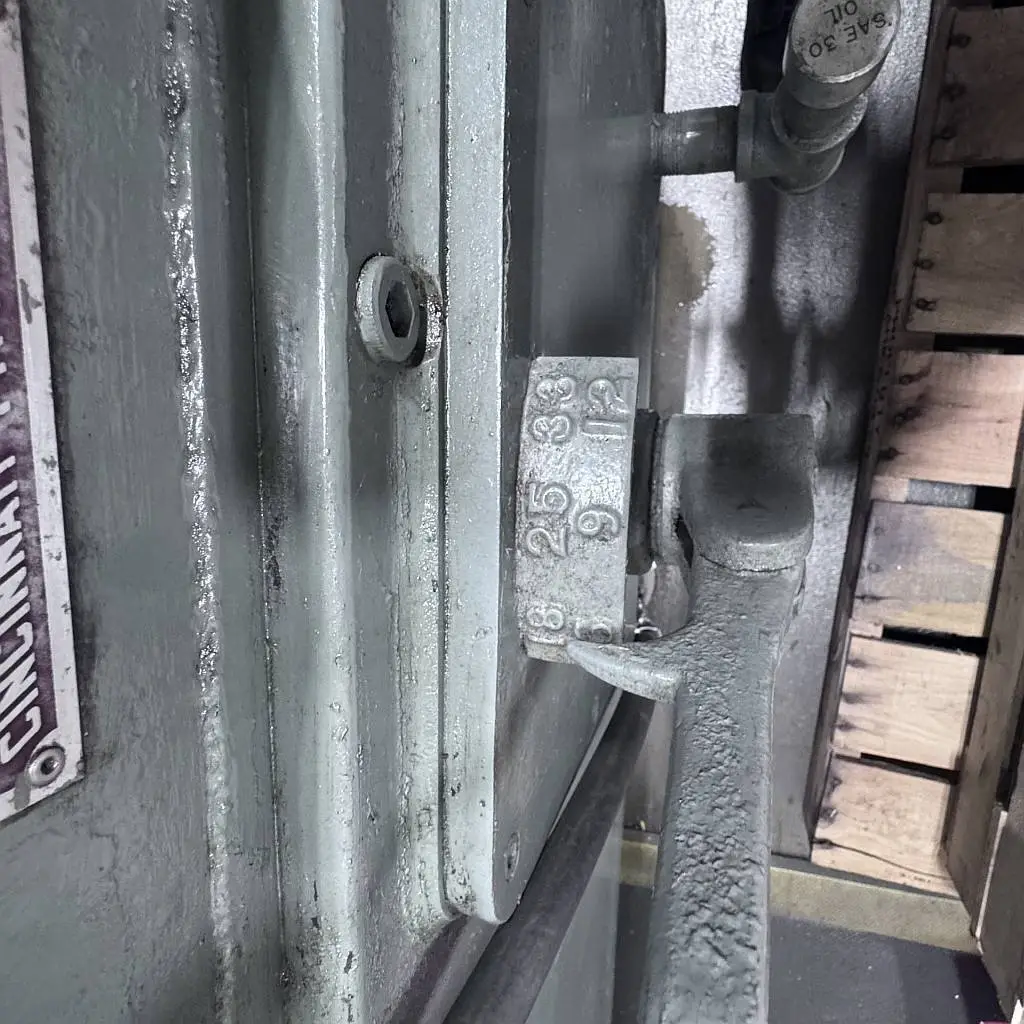

• (6) Ranges of Chuck Speeds, 6, 9, 12, 18, 25, 33 RPM
• Feed 0.004 - 0.080 IPM
• 720 RPM Wheel Speed
• 40 HP, 3 Phase, 60 Cycle, 440 Volt,
• Floor Space 11'8"L x 8'4"W x 9'1"Max./8'8"Min. Height
• Approx. Weight 13,500 lbs.

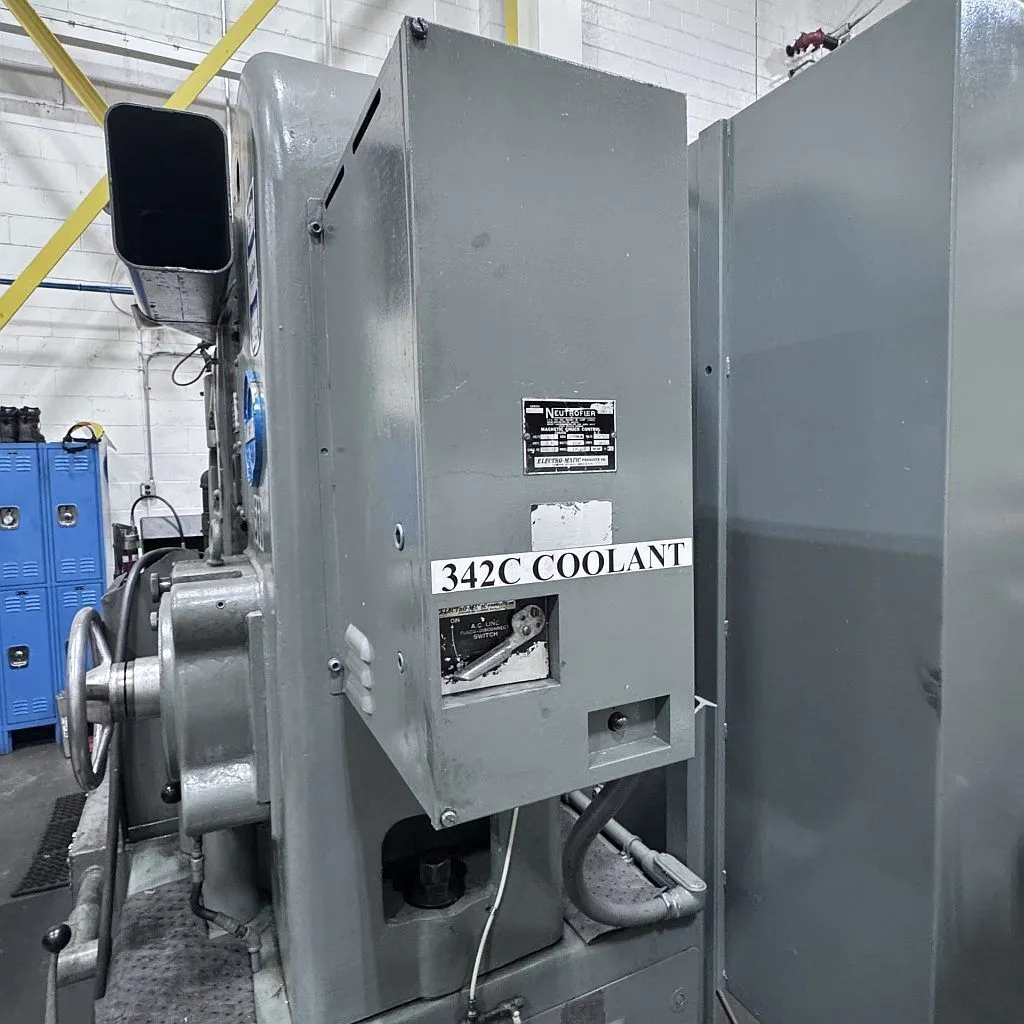

• Wet base (coolant in base)
Machine Features and Equipped with:
• Original full guarding system.

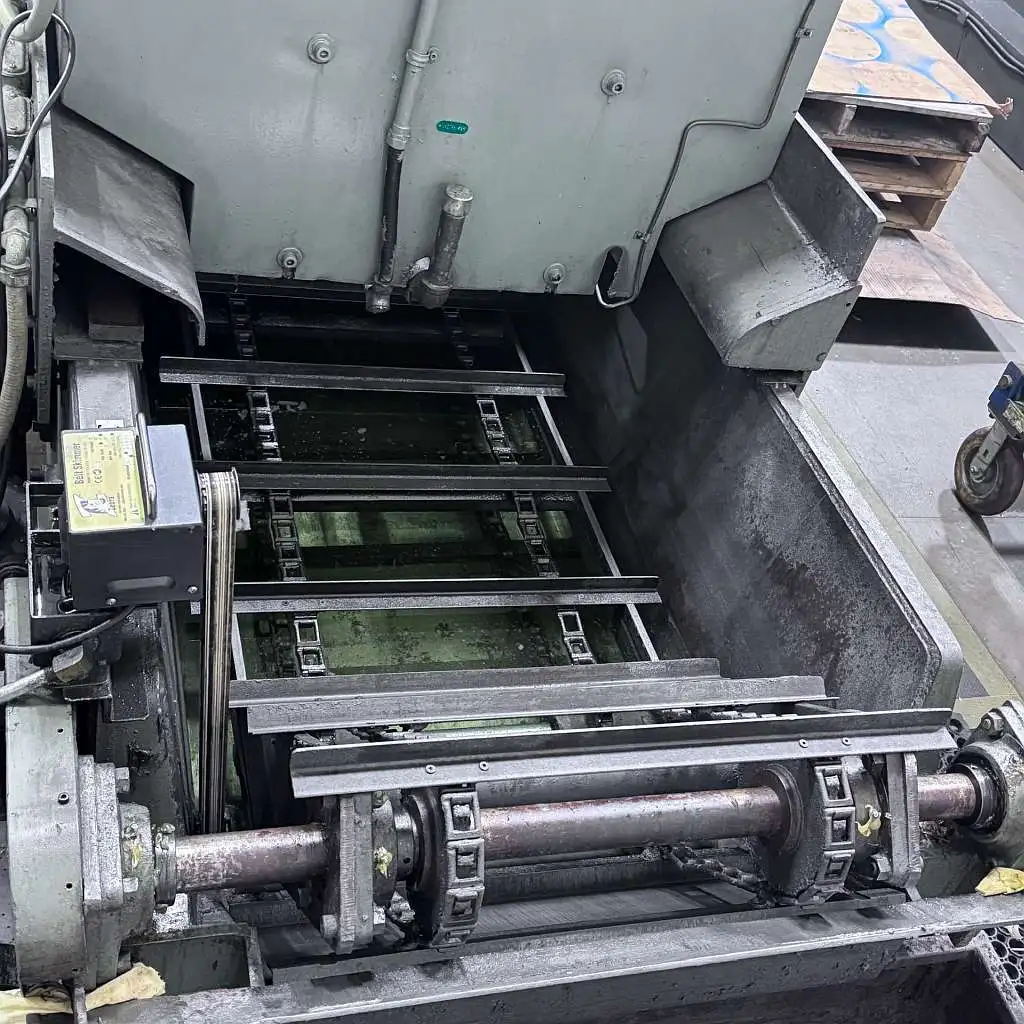

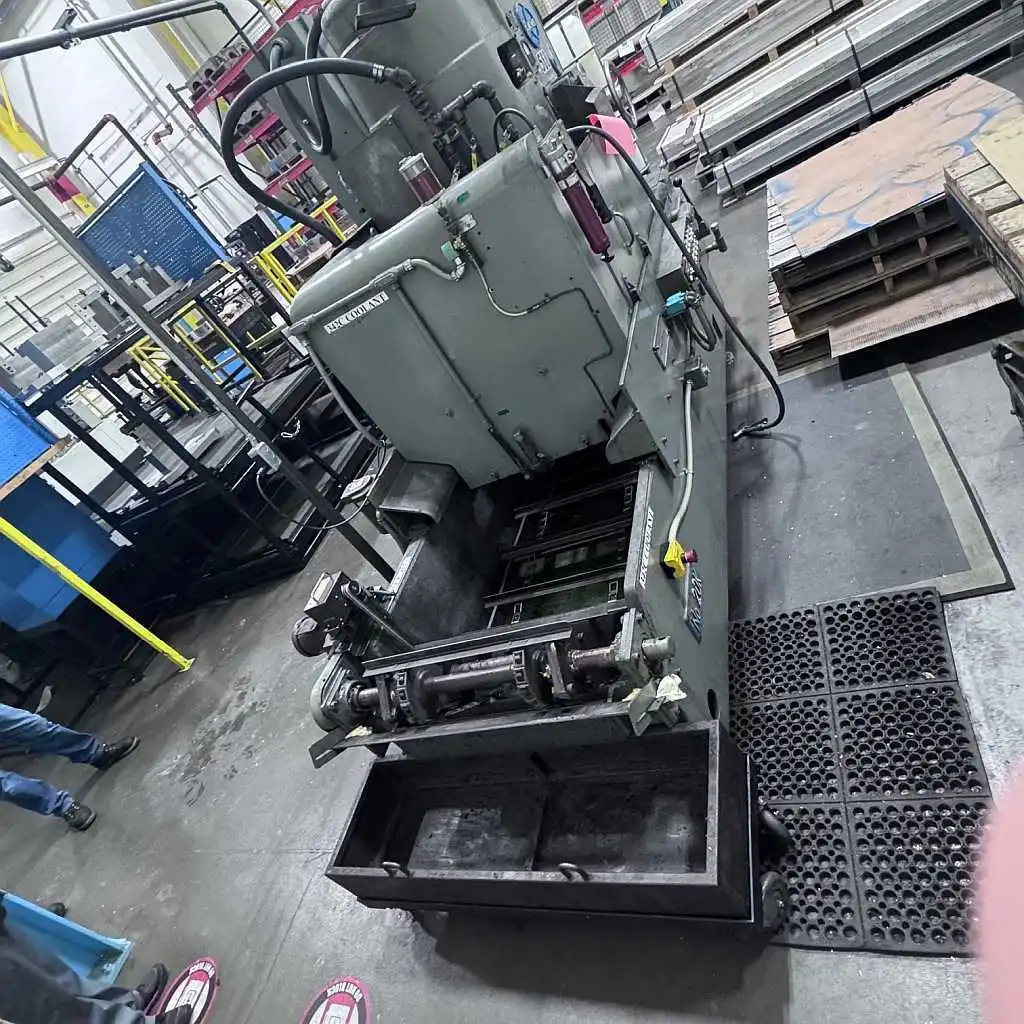

• Conveyor base option, and a sludge tote box for heavy duty grinding.
• Automatic lubrication system.
• Oil skimmer.
• ½ HP Gusher Pump, Coolant Pump Motor.
• Currently wired 480V originally 220V.
This machine is available for inspection under power.
Offered "As-is, Where-is".
Overview
Type:
GRINDERS, SURFACE, ROTARY TYPE (VERT. SPDL.)
Manufacturer:
BLANCHARDModel:
20K-36
Stock #:
13565
Status:
For Sale
Get Your Price from T R Wigglesworth Machinery!
