Description

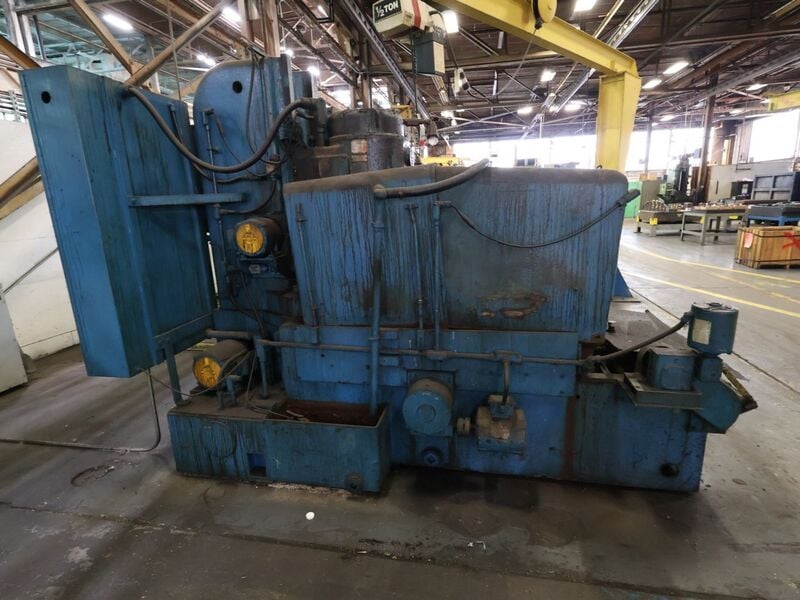

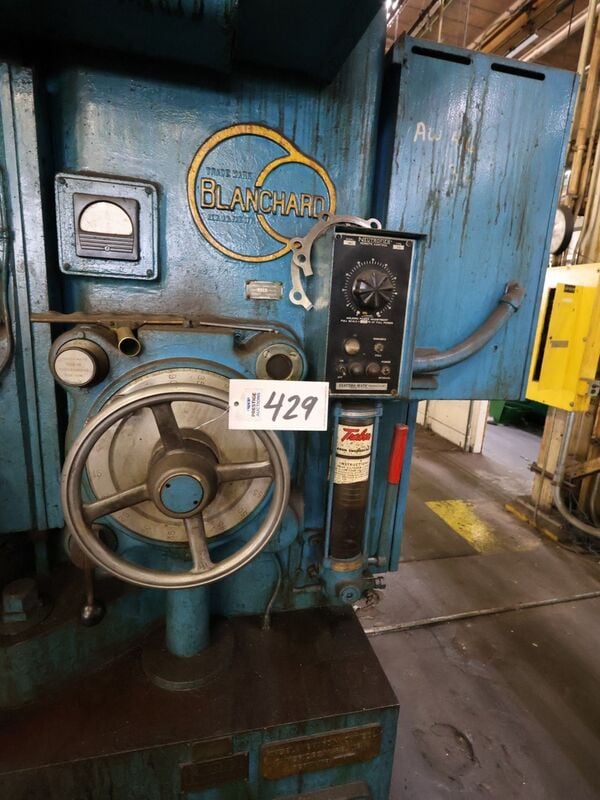

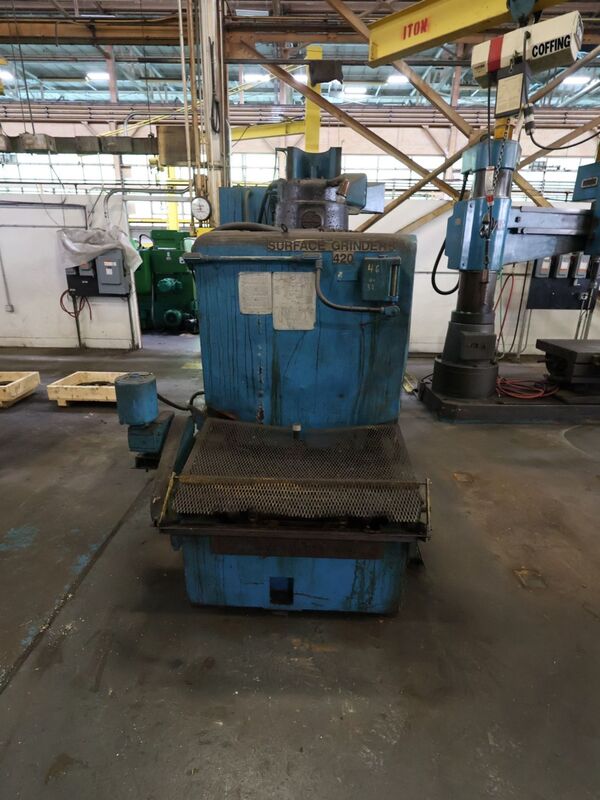

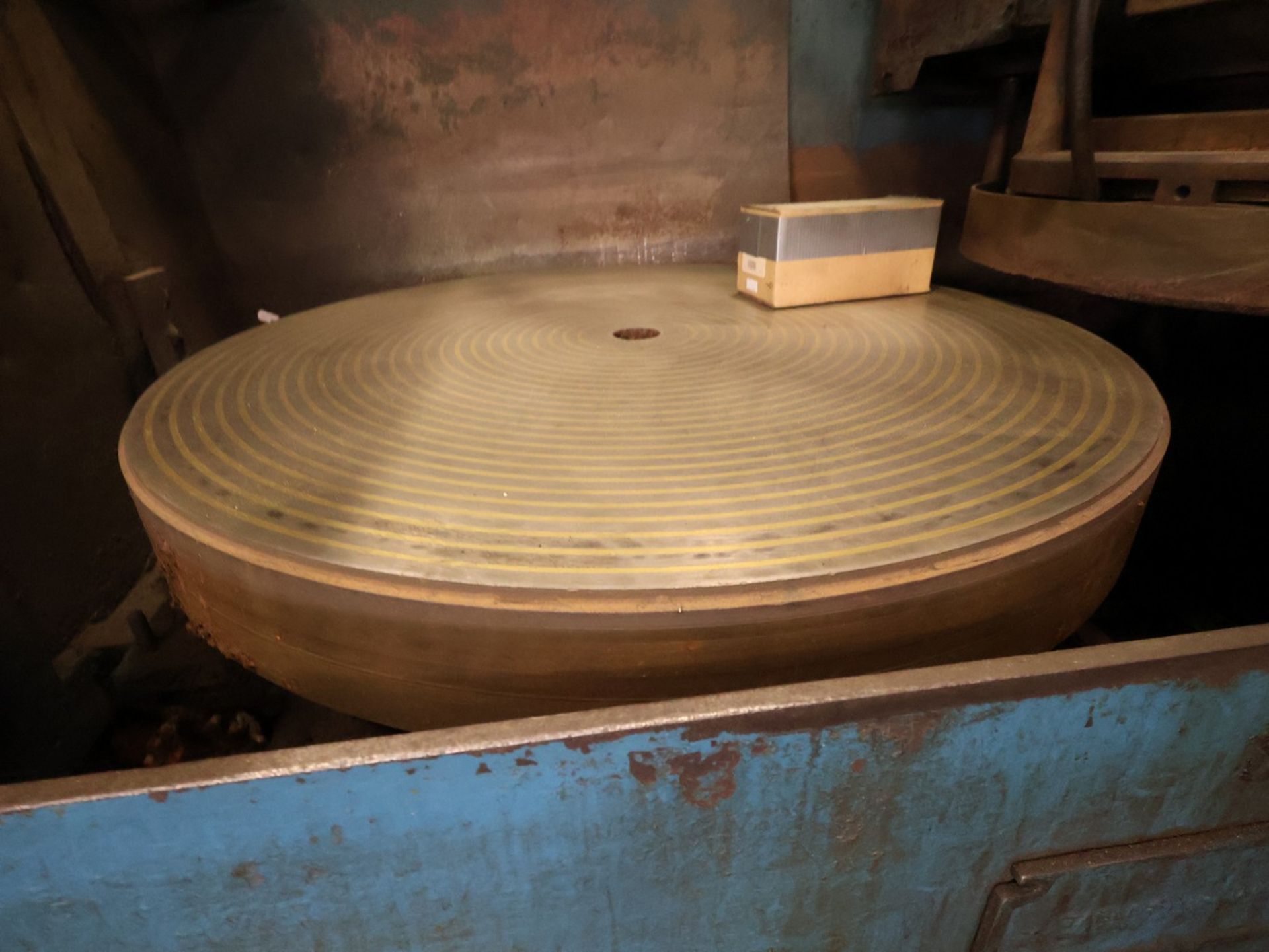

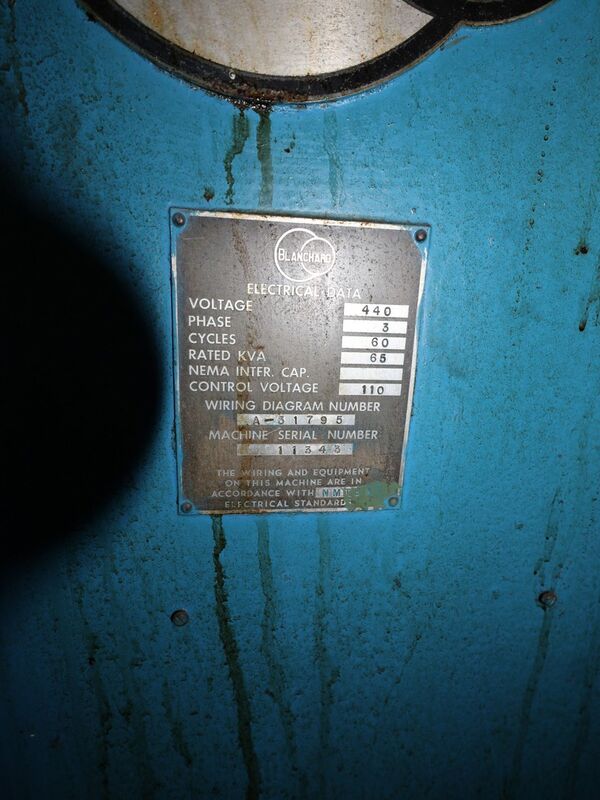

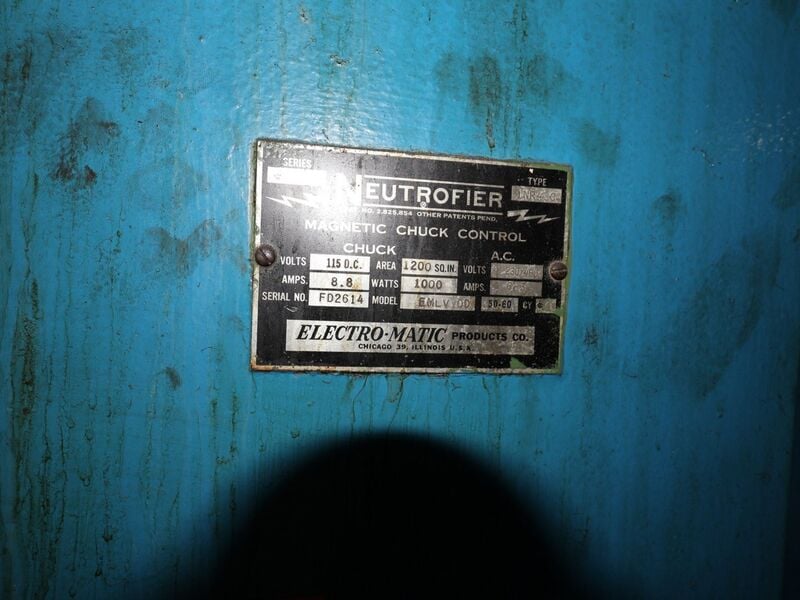

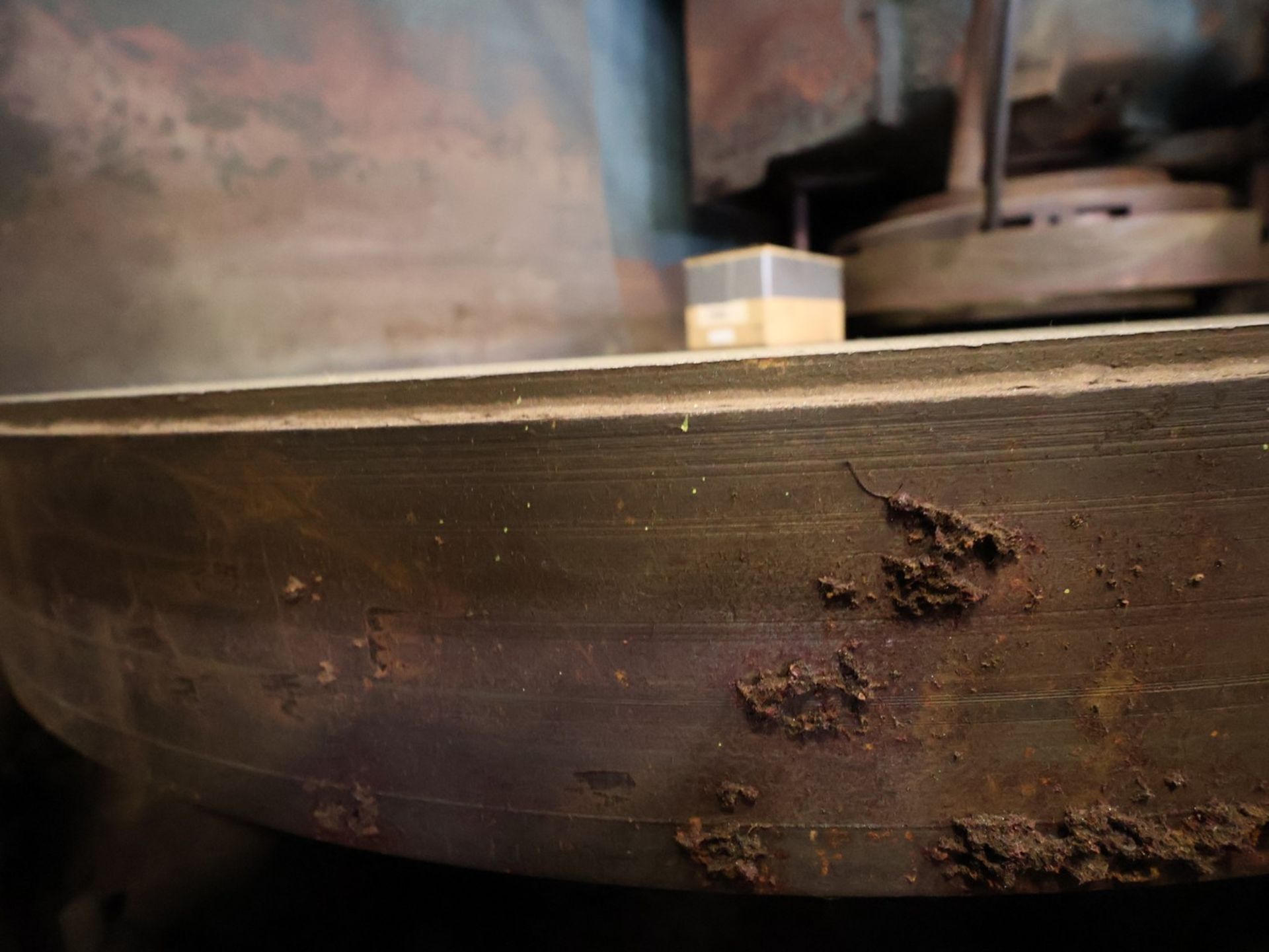

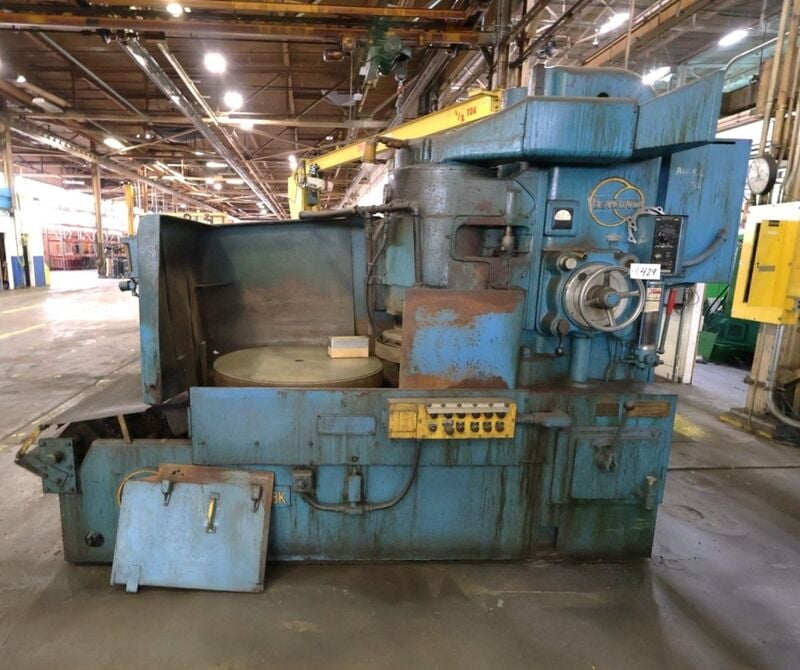

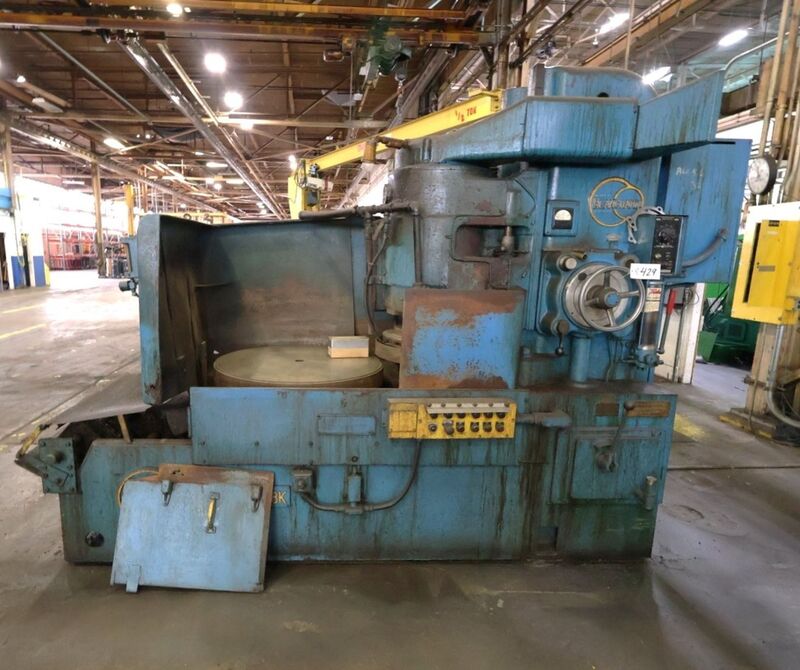

36" BLANCHARD "18K-36" EXTRA-HIGH VERTICAL-SPINDLE ROTARY SUYRFACE GRINDER - Cylindrical Wheel - 18 Vertical Range - 40 HP - Coolant System w/Automatic Conveyor Base 36" BLANCHARD EXTRA-HIGH VERTICAL-SPINDLE ROTARY SURFACE GRINDER Serial No 11343, Model 18K-36 EQUIPPED WITH: Vertical-Spindle Machine Design 36" Diameter Electro-Magnetic Chuck w/Neutrofier 18 Vertical Range - Percentage Load Meter Cylindrical Grinding Wheel - Trabon Lube System Coolant System w/Automatic Conveyor Base For Sludge Removal CATALOGUE SPECIFICATIONS: Magnetic Chuck, Diameter 36" Magnetic Chuck Work Load Capacity 3000 LBS Grinding Wheel Vertical Range, Maximum 18" Grinding Wheel Diameter, Maximum 18" Grinding Wheel Speeds, Range 720 RPM (6) Chuck Speeds, Range 6 to 33 RPM Power Down Feeds, Range .004 to .080 IPM Spindle Motor, Horsepower 40 HP Electrical System 220-440/3/60 Overall Dimensions, W x D 9'4" x 5'5" Weight, Approximately 12900 LBS F.O.B. OUR WAREHOUSE
