Click to zoom in
For Sale by F P Miller Company
Surplus Record Dealer Since 1955
Location: Jackson, MI
Contact Sales Dept.
Phone Number: 517...> Show Phone Number 517-787-3100
Let the seller know you found their listing on Surplus Record!
Description
Specifications

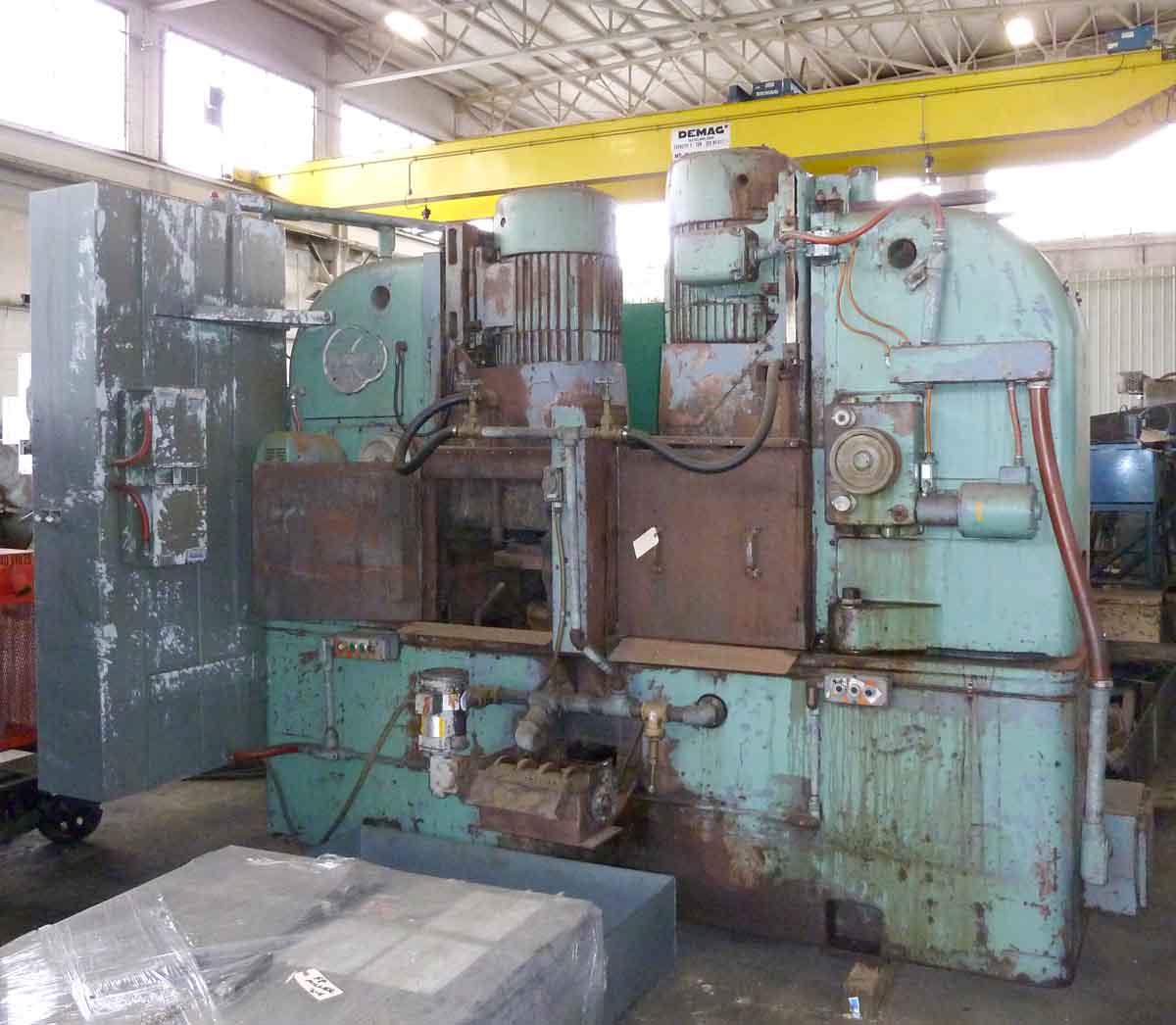

STANDARD SPECIFICATIONS
Range
8" Diameter x up to 12" high on plain table.
Work Table
A plain cast-iron table, 43" outside diameter, 26" inside diameter.
Grinding Wheel
18" Diameter x 5" deep x 10" hole (18" x 5" x 10") or 18" diameter x 5" deep, x 12" hole (18" x 5" x 12"), usable depth 4".
Speeds
Wheel………………………………… 1200 RPM on 60 cycle 1000 RPM on 50 cycle
Chuck: Fixed speed, easily changed with pick-off gears, from .42 to .88 RPM. Higher and lower ranges are available when required. Also available is a continuously variable drive between .28 and 2.2 RPM.
Feed
Each wheel head has vertical down feed by hand or power, with power down feed controlled by a separate wheel control caliper for each grinding head. Each wheel head has motor-driven raising and lowering with push-button control.
Standard Equipment
Two 30 HP foot-type spindle motors mounted on wheel heads; one 2 HP motor mounted on base for table rotation; two 3/4 HP traverse motors, two 1/4 HP feed motors. 43" plain table. Water-guards, piping, coolant discharge chute. Two wheel control calipers, two ammeters wired in wheel motor circuits. Control panel containing line start contactors with thermal overload protection for all motors, with 115 volt control circuit.
STANDARD SPECIFICATIONS
Range
8" Diameter x up to 12" high on plain table.
Work Table
A plain cast-iron table, 43" outside diameter, 26" inside diameter.
Grinding Wheel
18" Diameter x 5" deep x 10" hole (18" x 5" x 10") or 18" diameter x 5" deep, x 12" hole (18" x 5" x 12"), usable depth 4".
Speeds
Wheel………………………………… 1200 RPM on 60 cycle 1000 RPM on 50 cycle
Chuck: Fixed speed, easily changed with pick-off gears, from .42 to .88 RPM. Higher and lower ranges are available when required. Also available is a continuously variable drive between .28 and 2.2 RPM.
Feed
Each wheel head has vertical down feed by hand or power, with power down feed controlled by a separate wheel control caliper for each grinding head. Each wheel head has motor-driven raising and lowering with push-button control.
Standard Equipment
Two 30 HP foot-type spindle motors mounted on wheel heads; one 2 HP motor mounted on base for table rotation; two 3/4 HP traverse motors, two 1/4 HP feed motors. 43" plain table. Water-guards, piping, coolant discharge chute. Two wheel control calipers, two ammeters wired in wheel motor circuits. Control panel containing line start contactors with thermal overload protection for all motors, with 115 volt control circuit.
Get Your Price from F P Miller Company!
