Description

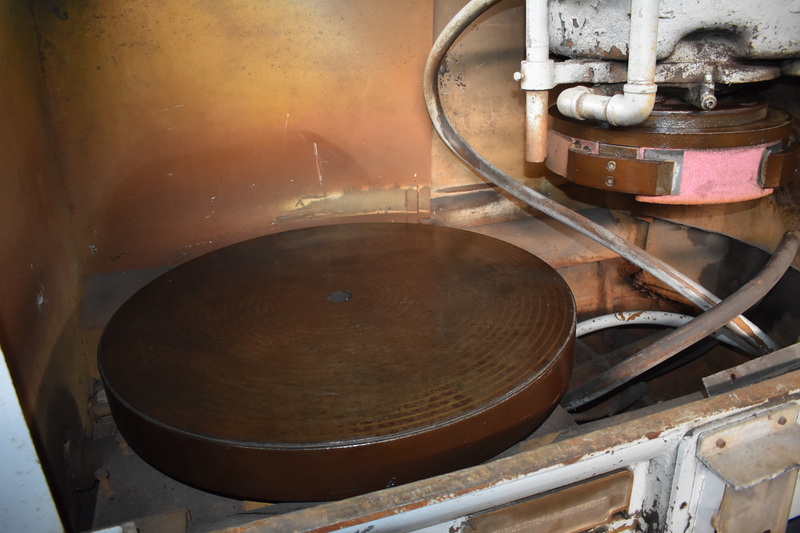

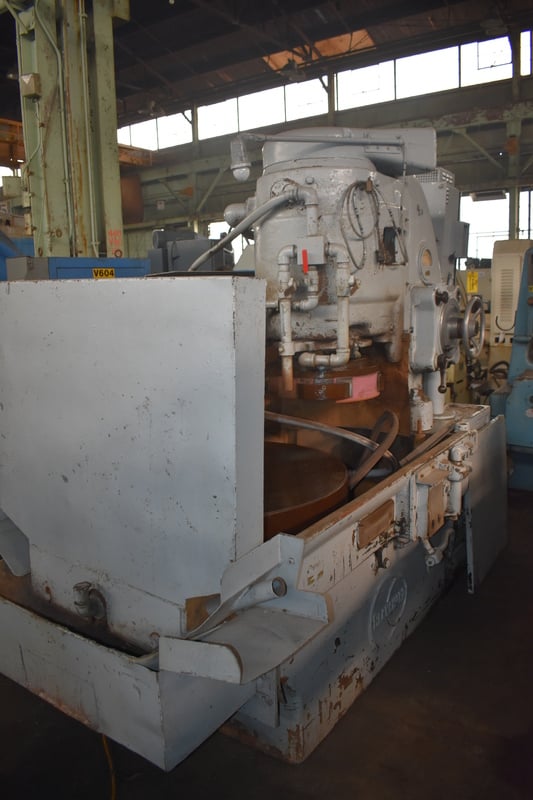

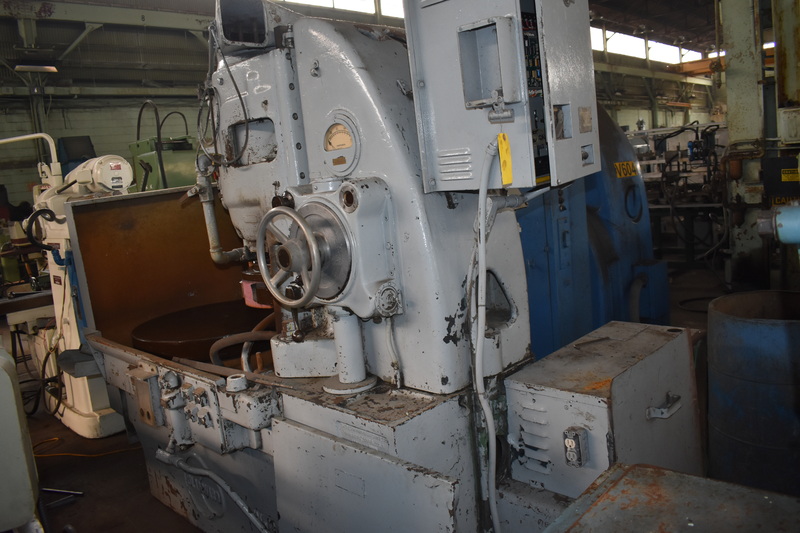

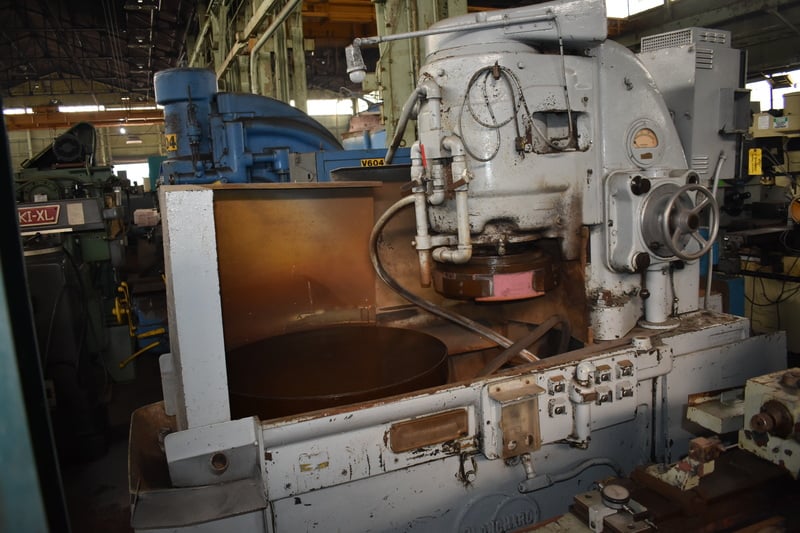

36" BLANCHARD VERTICAL-SPINDLE ROTARY SURFACE GRINDER SERIAL NO 8076, MODEL 18-36 36" BLANCHARD VERTICAL-SPINDLE ROTARY SURFACE GRINDER SERIAL NO 8076, MODEL 18-36 EQUIPPED WITH: Vertical-Spindle Machine Design 36" Diameter Magnetic Chuck Segmented Grinding Wheel Coolant System (Built-In) CATALOG SPECIFICATIONS: Magnetic Chuck, Diameter 36" Magnetic Chuck, Work Load Capacity 3000 LBS Height Under Grinding Wheel, Maximum 12" Grinding Wheel Diameter, Maximum 18" Grinding Wheel Speed 720 RPM (6) Chuck Speeds, Range 6 to 33 RPM Power Down Feed, Range .005 to .080 IPM Electrical System 220-440/3/60 Overall Dimensions, W x D 112" x 65" Weight Approximately 12900 LBS F.O.B. OUR WAREHOUSE Magnetic chuck, diameter: 36" Magnetic chuck work load capacity: 3000 LBS Height under grinding wheel, maximum: 12" Grinding wheel diameter, maximum: 18" (6) chuck speeds, range: 6 TO 33 RPM Power down feeds, range: .004 TO .080 IPM Electrical system: 220-440/3/60 Overall dimensions, w x d: 9'4" X 5'5" Weight, approximately: 12900 LBS
36 Inch Blanchard Grinder, Model 18-36, New in 1960, Spindle Drive Motor 30 HP, 220/440 Volt, 3 phase, 18 Inches of Vertical Clearance, Coolant Reservoir in Base, $34,500.00 Refurbished and Loaded Out, Tom Hale Equipment Company, Inc., Best source of Blanchard Grinders, Since 1981, Crossville, Tennessee Tom Hale - ...more
