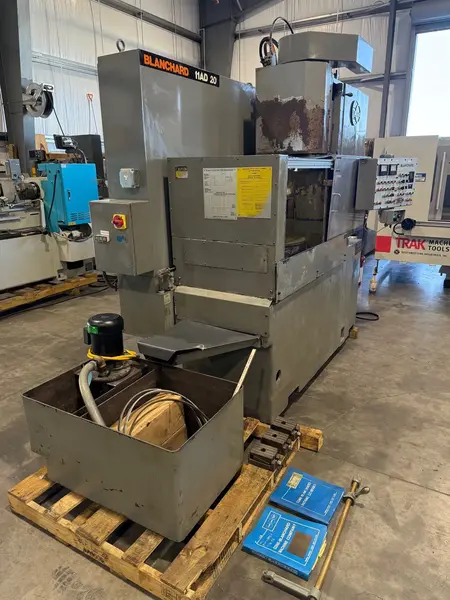

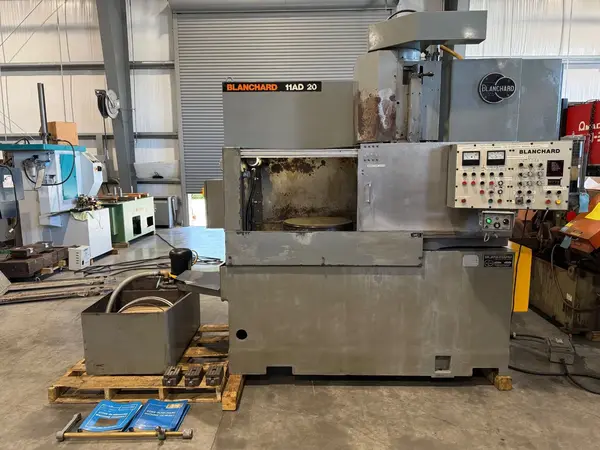

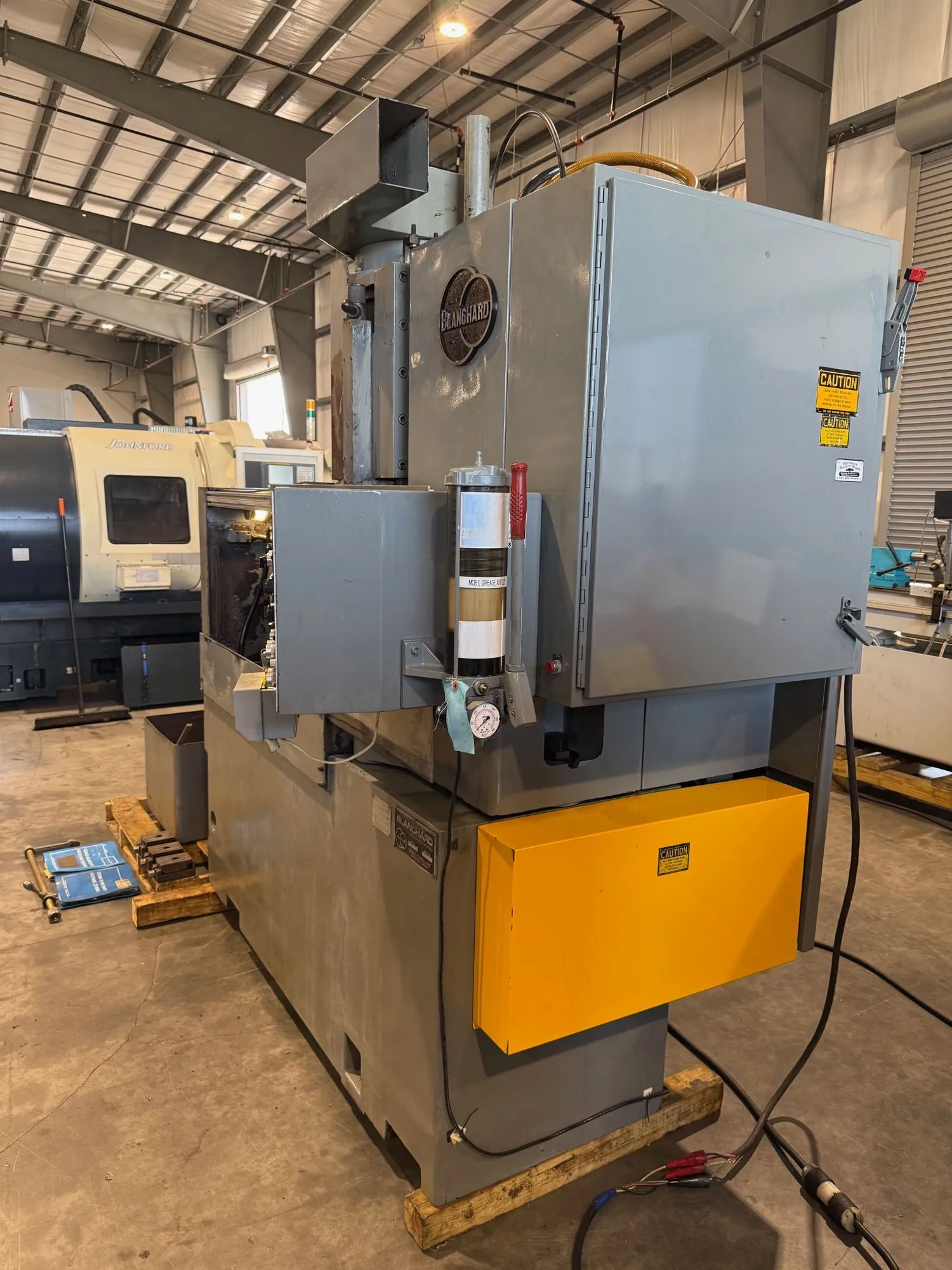

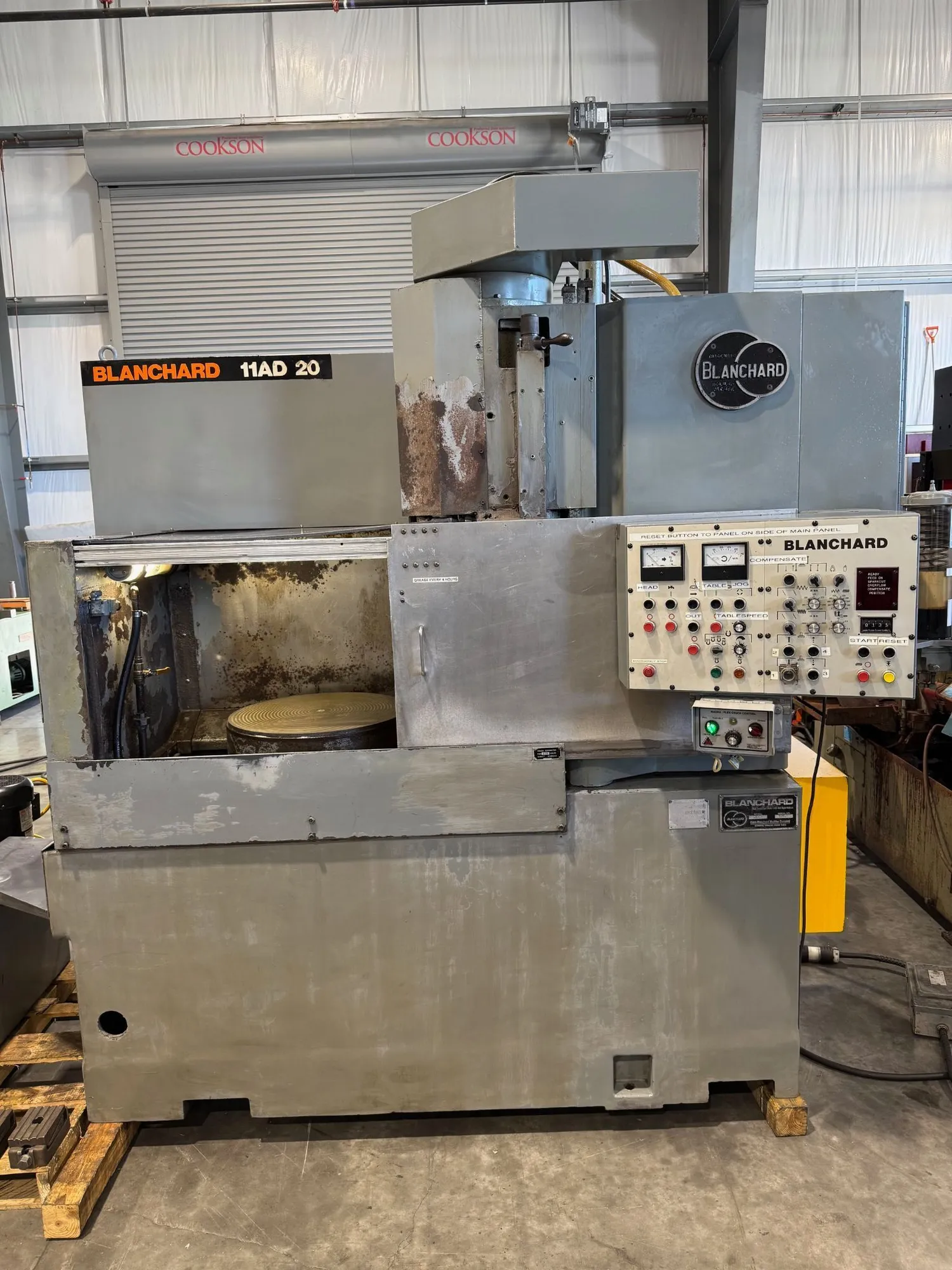

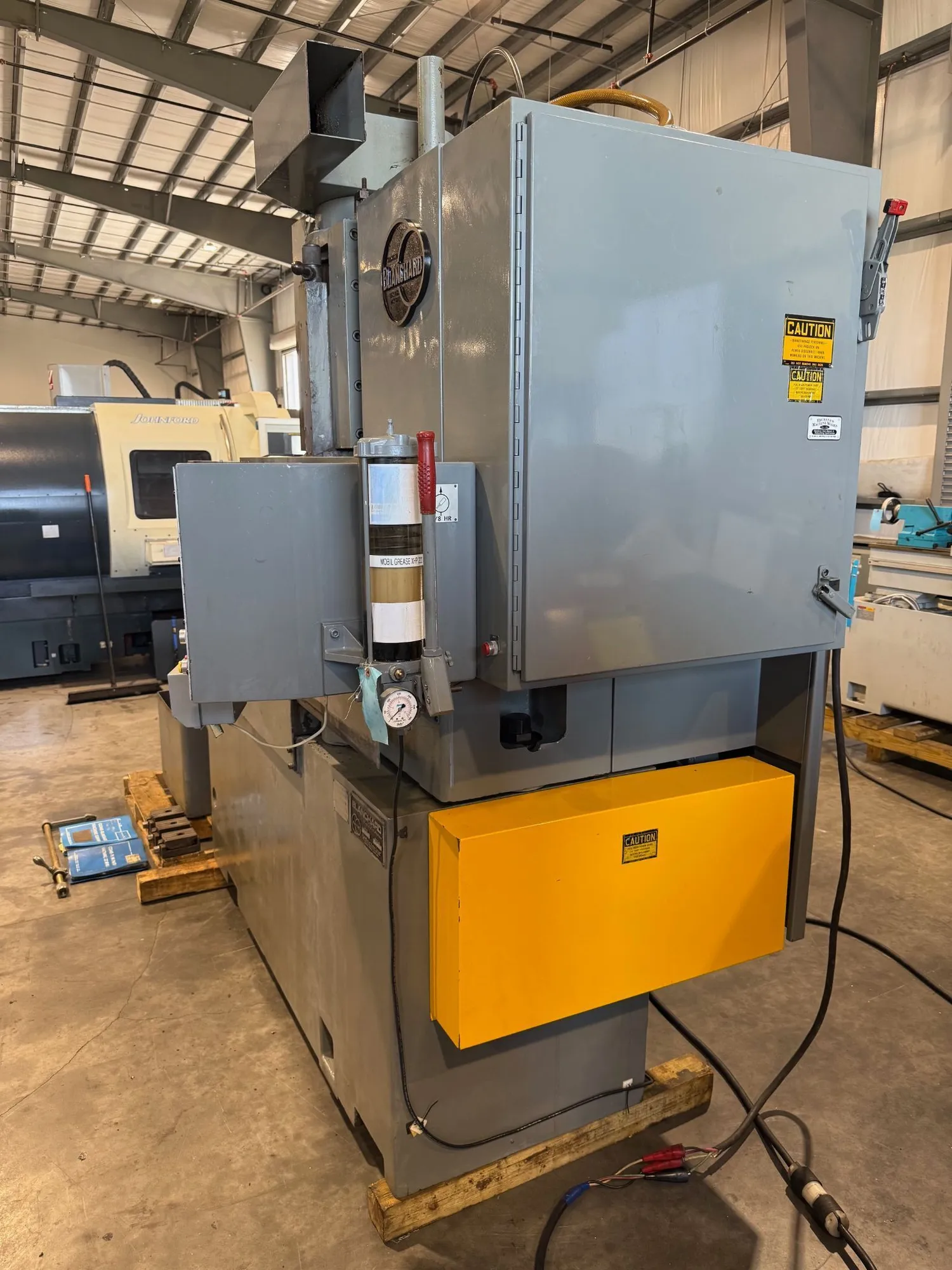

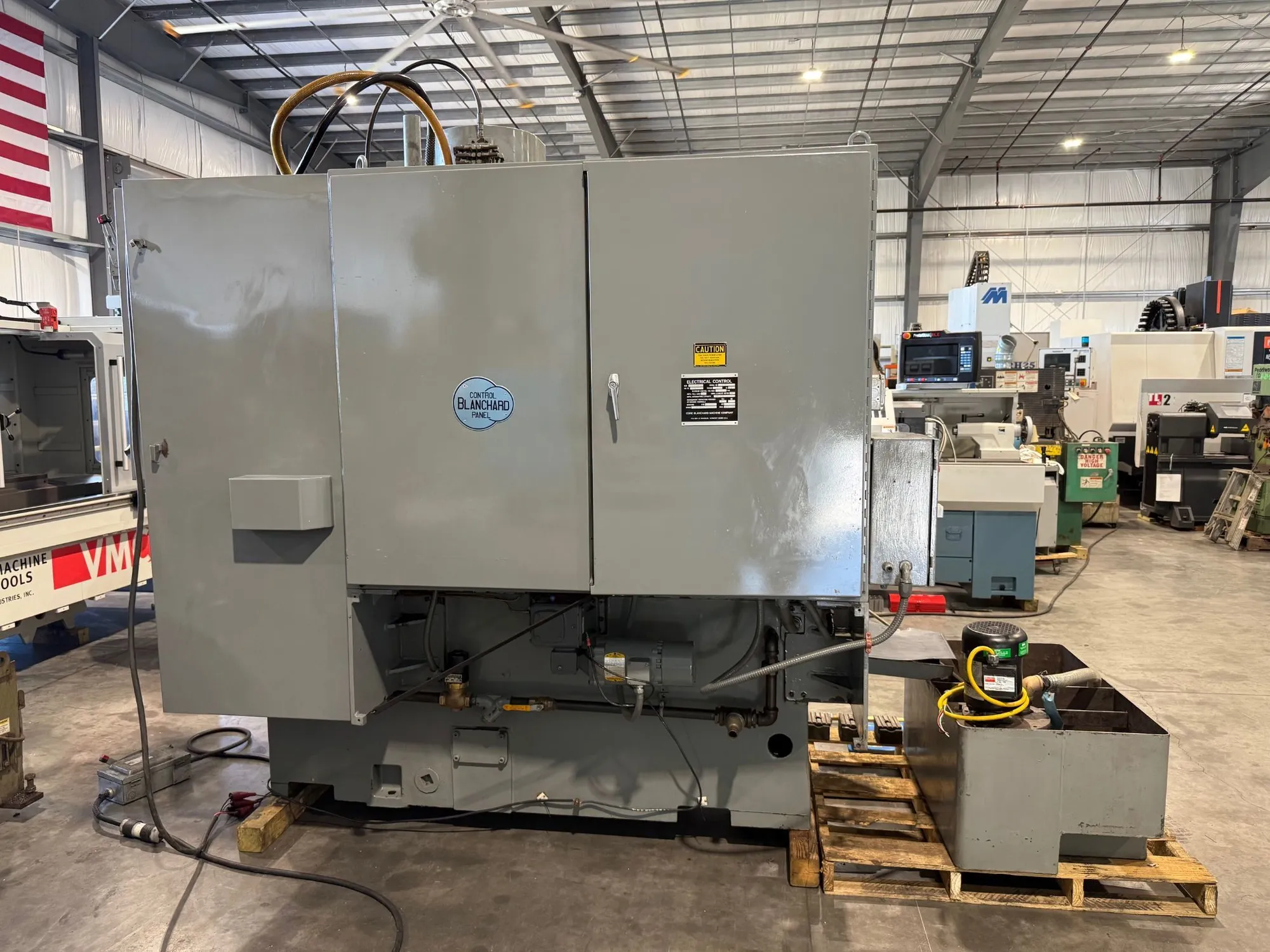

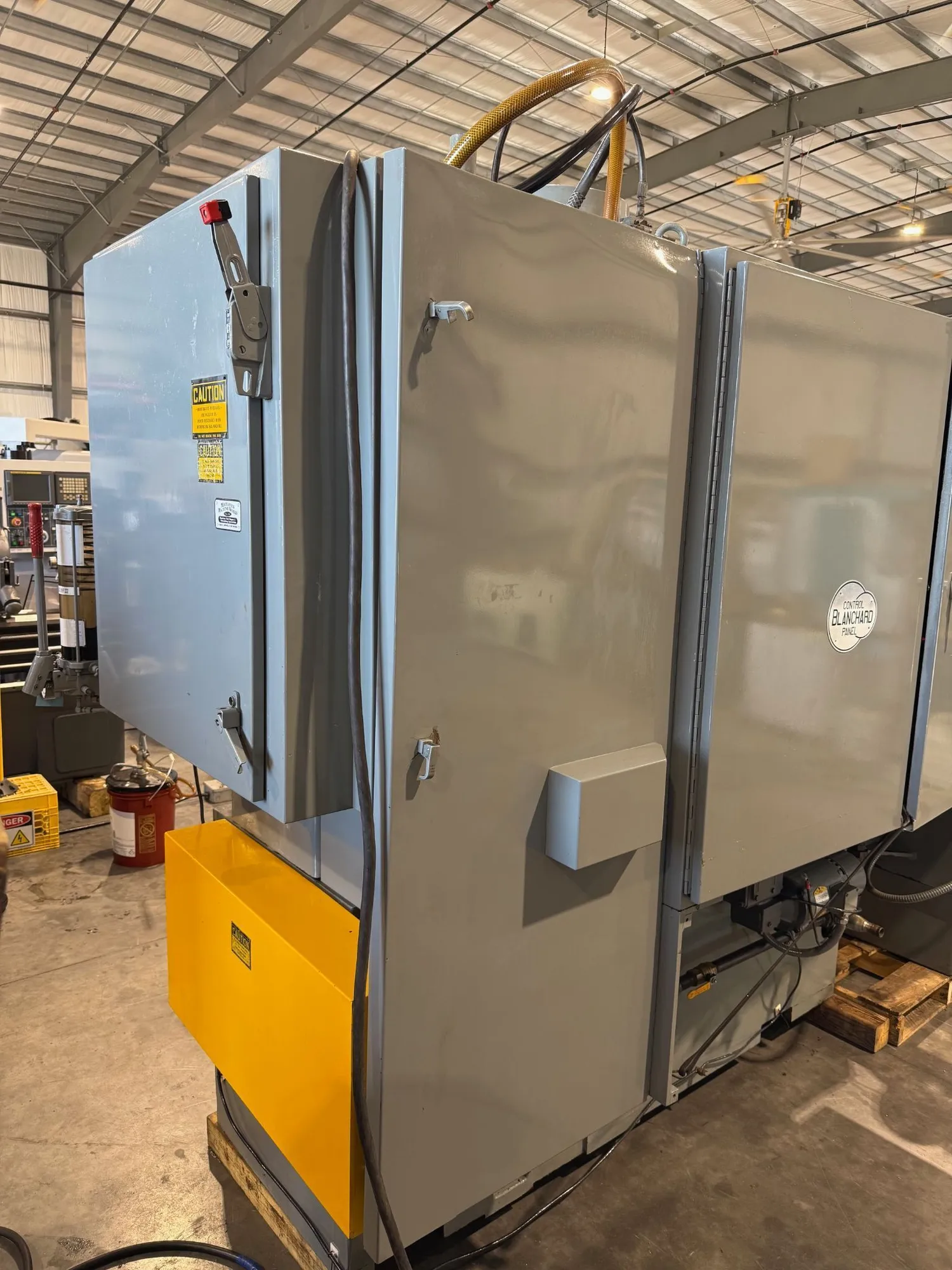

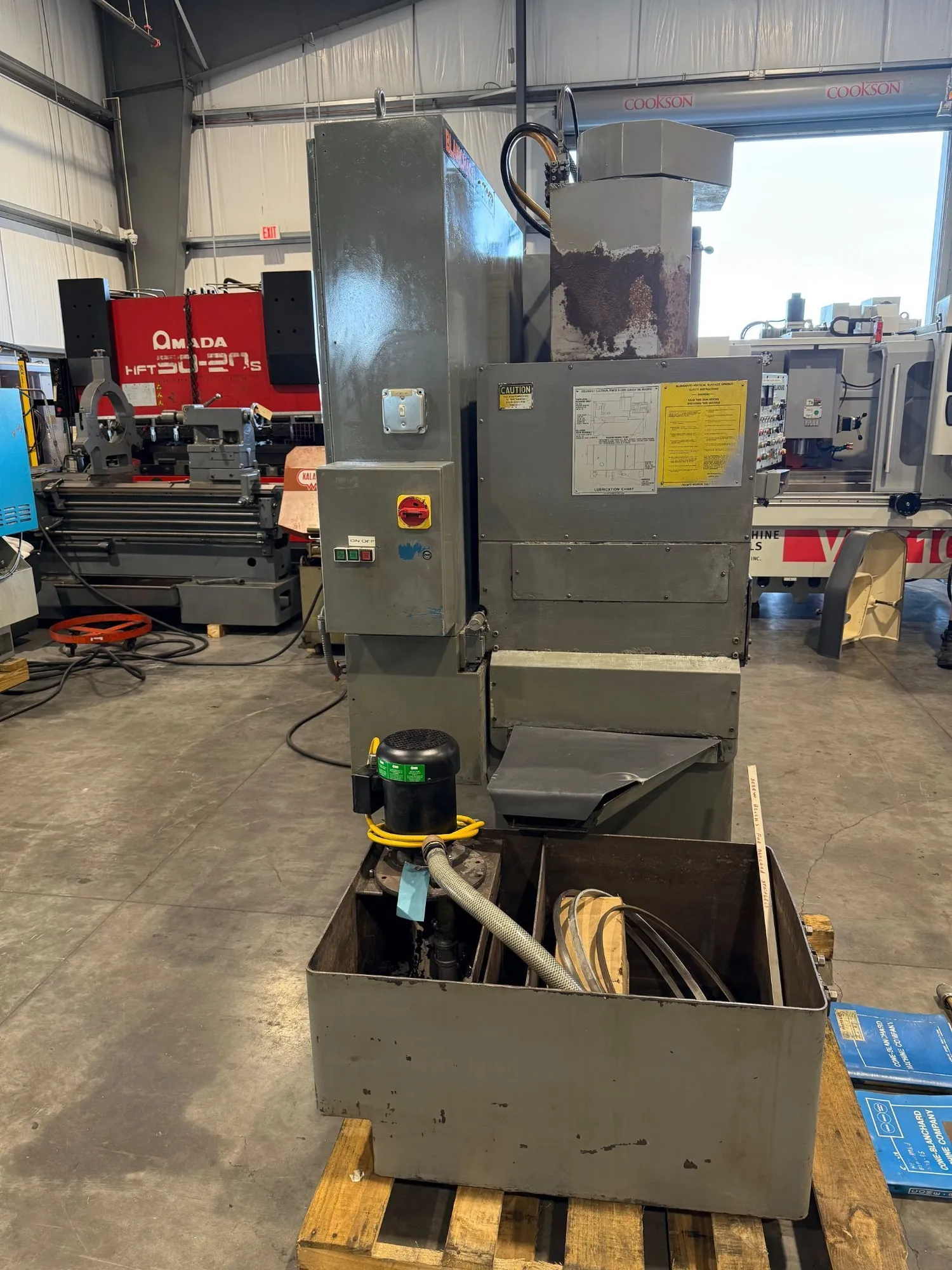

BLANCHARD # 11AD-20 Vertical Rotary Surface Grinder 1995’ USA #7502 Reference # 7502 Model # 11AD-20 Serial # 15899 Year of manufacture- 1995’ Table diameter- 20” Maximum table load- 500 Lbs. Maximum swing inside splash guards- 21” Maximum work height under the grinding wheel- 12” Table speeds Varaible- 15 - 75R.P.M. Wheel speed-1,200 R.P.M. Wheel diameter- 11” Power downfeed range or grinding wheelhead- .001 to .100 I.P.M. Approx chuck thickness- 3/8”

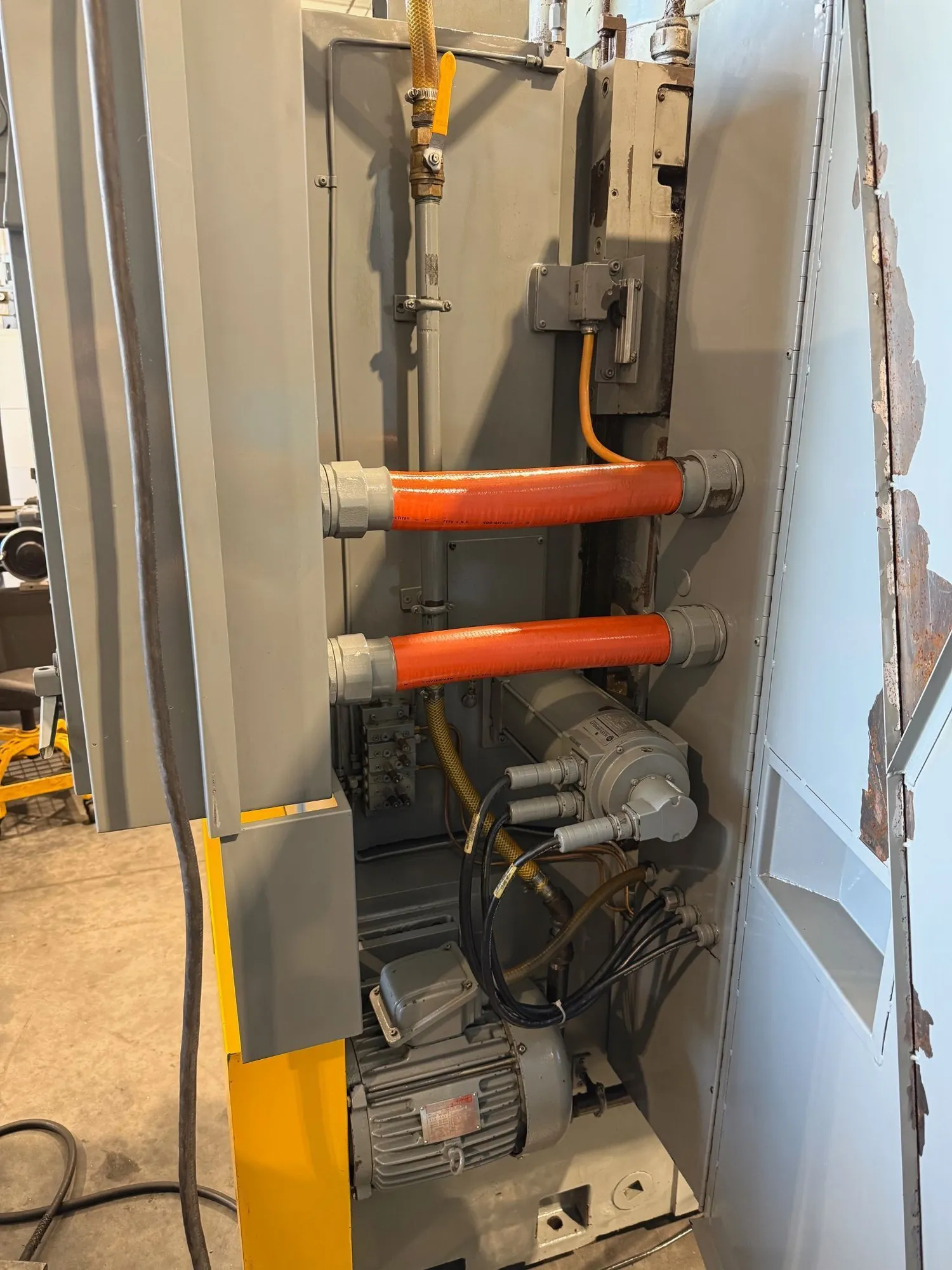

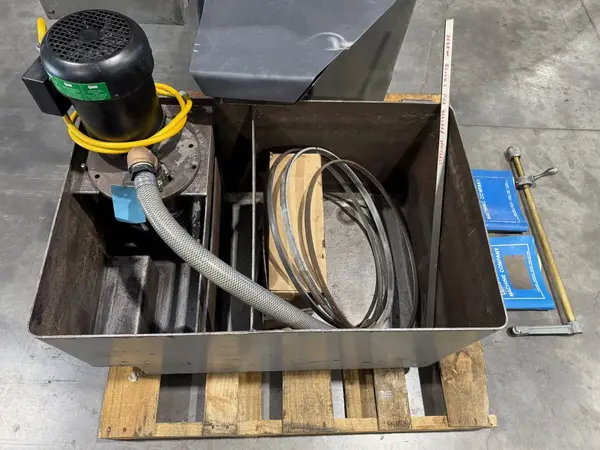

Equipped With 20" Diameter electromagnetic chuck with NEUTROFIER control Motorized power rapid traverse to grinding wheelhead (vertical downfeed of wheelhead) Coolant system with machine splash guards Machine manuals & Schematics ¼ H.P. 3/60/230-460 volt wheelhead rapid traverse motor 2 H.P. 3/60/230-460 volt table drive motor 15 H.P. 3/60/230-460 volt spindle drive motor with electrical controls and load meter Machine is wired for 230 volt operation. Machine weight- 9500 Lbs. Machine dimensions- 92” L x 56” W x 105’’ H Machine location- F.O.B. Sarasota, Florida
