Description
Specifications

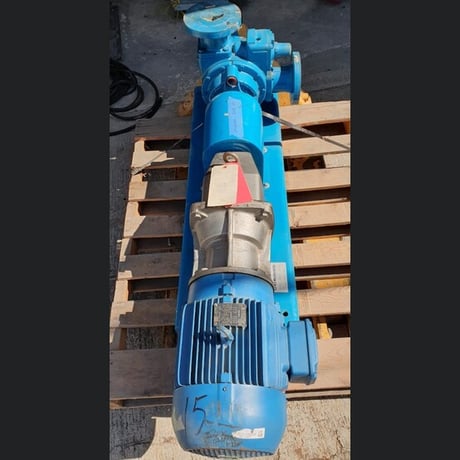

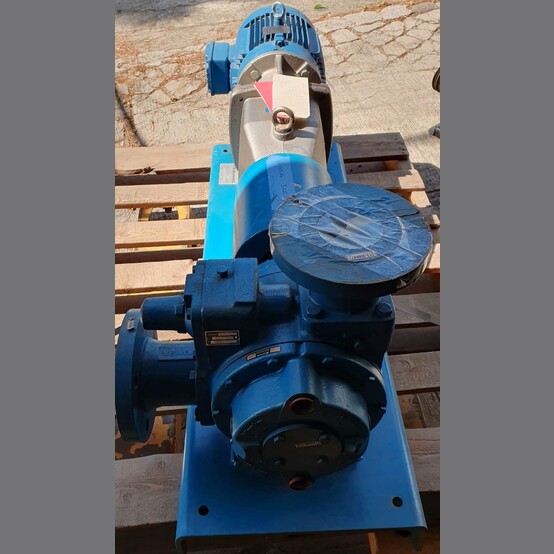

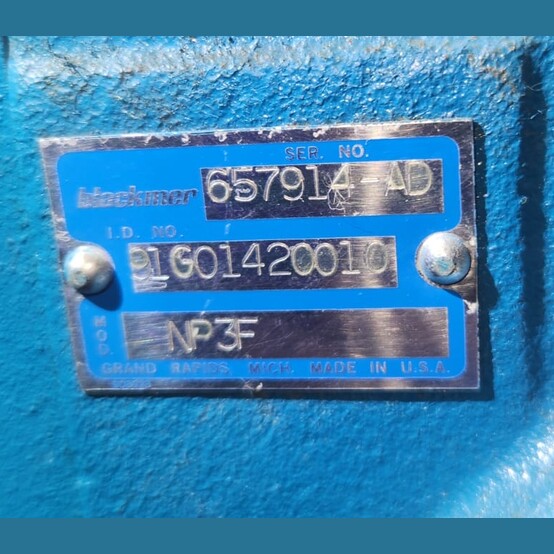

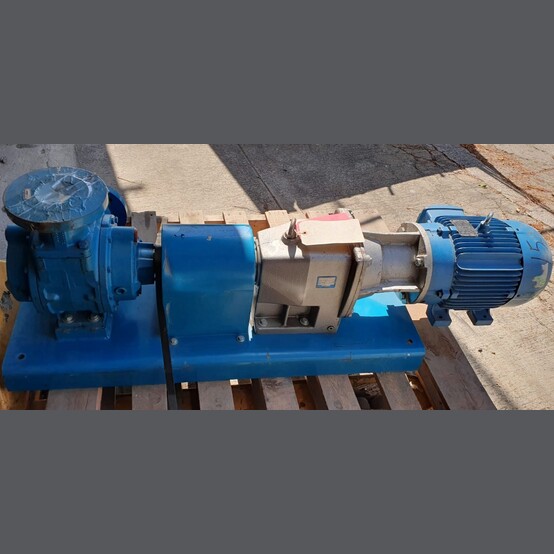

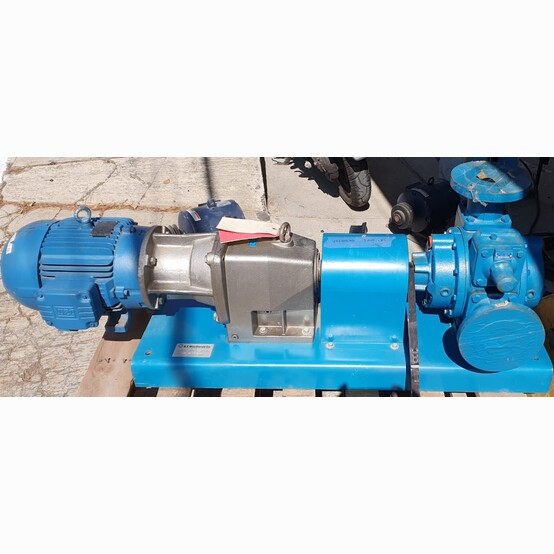

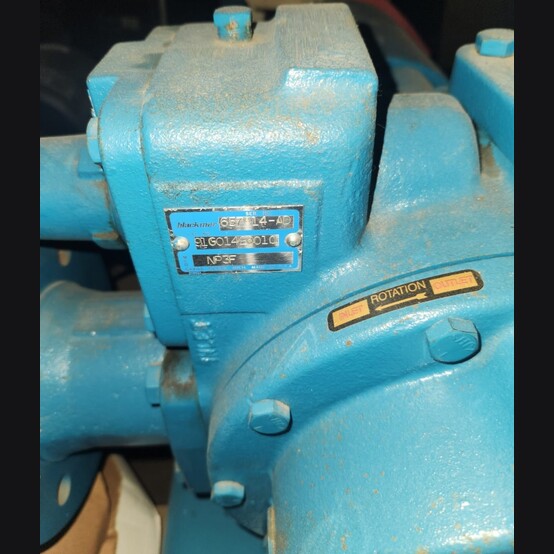

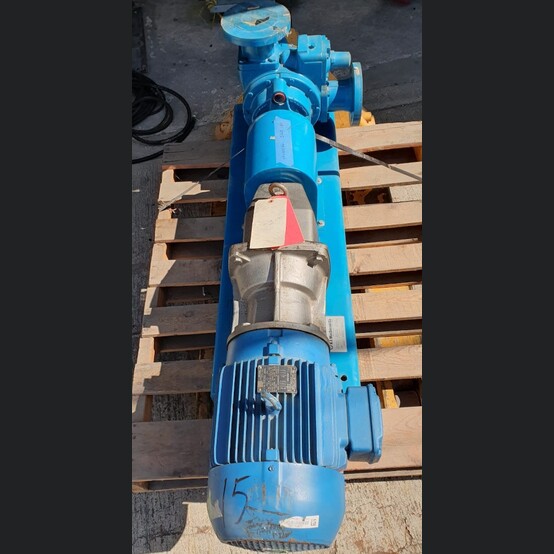

Blackmer NP3F Sliding Vane Pump
- Make: Blackmer
- Model: NP3F
- Type: Positive Displacement
- Condition: Unused Condition
- General Model Specifications:
- Nominal Flow Rate Range: 60 - 276GPM (227 - 1,045L/min)
- Min. Operating Temperature: -25°F (-32°C)
- Max. Operating Temperature: 500°F (260°C)
- Min./Max. Rotation Speed: 70 - 640RPM
- Max. Differential Pressure: 200psi (13.79bar)
- Max. Hydrostatic Pressure: 300psi (20.68bar)

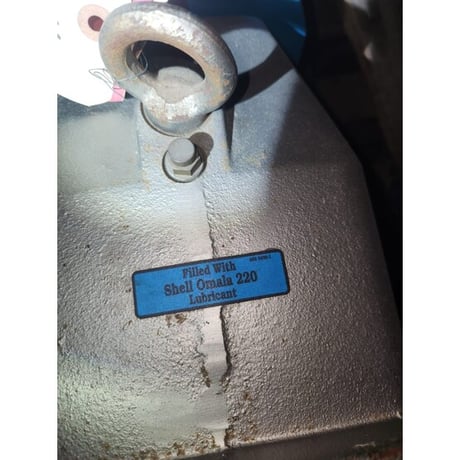

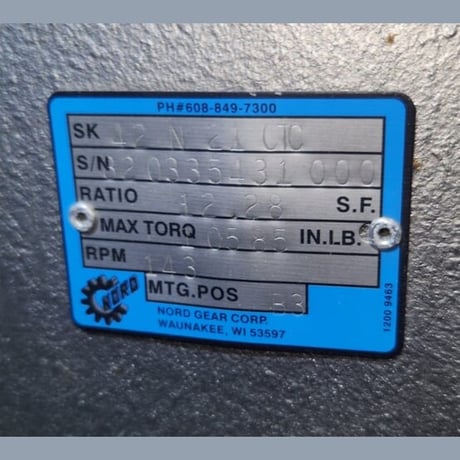

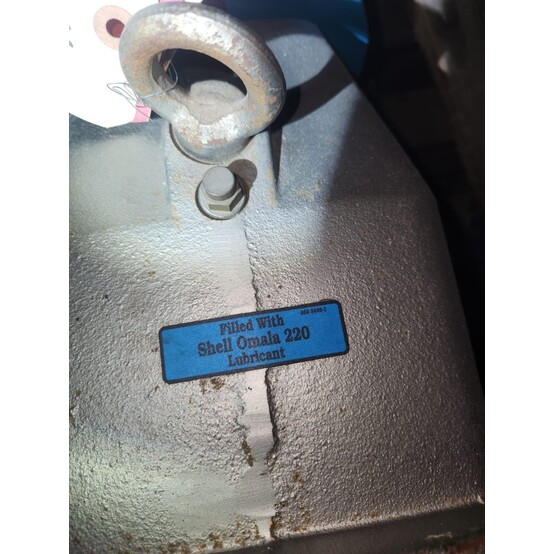

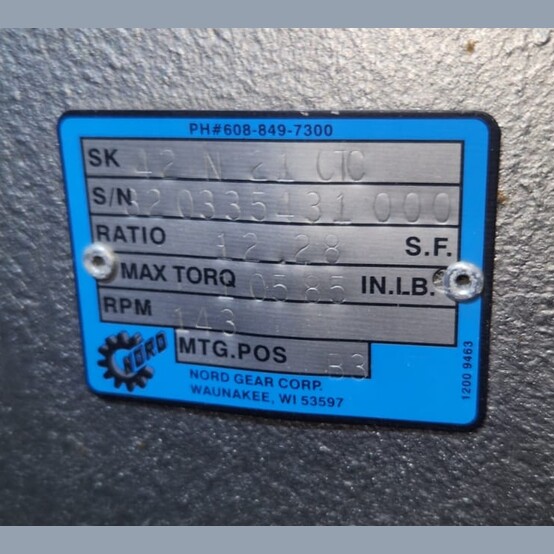

- Speed Reducer:
- Make: Nord
- Ratio: 12.28:1
- Rotation Speed: 143

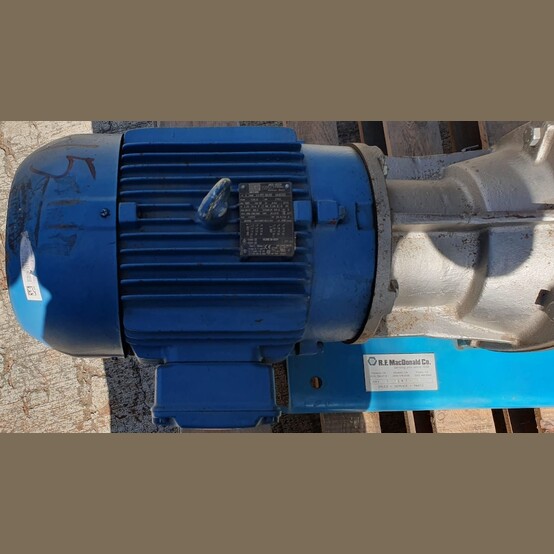

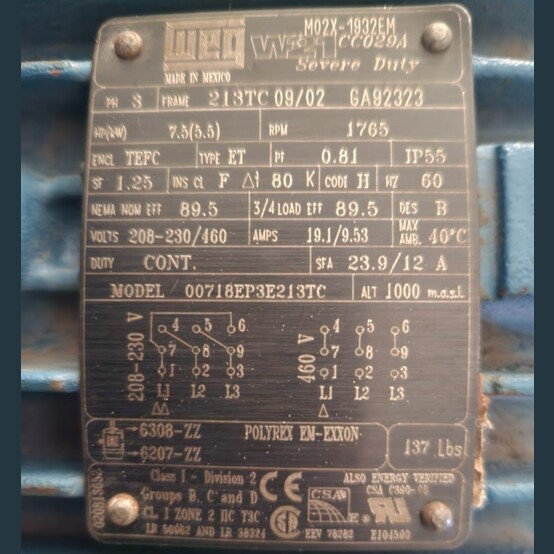

- Drive: WEG Electric Motor
- Power Output: 7.5HP (5.5kW)
- Rotation Speed: 1,765RPM
- Voltage: 208-230/460 Volts
- Current: 19.1/9.53 Amps
- Frequency: 60Hz
- Phase: 3-Phase
- Location: Central America
