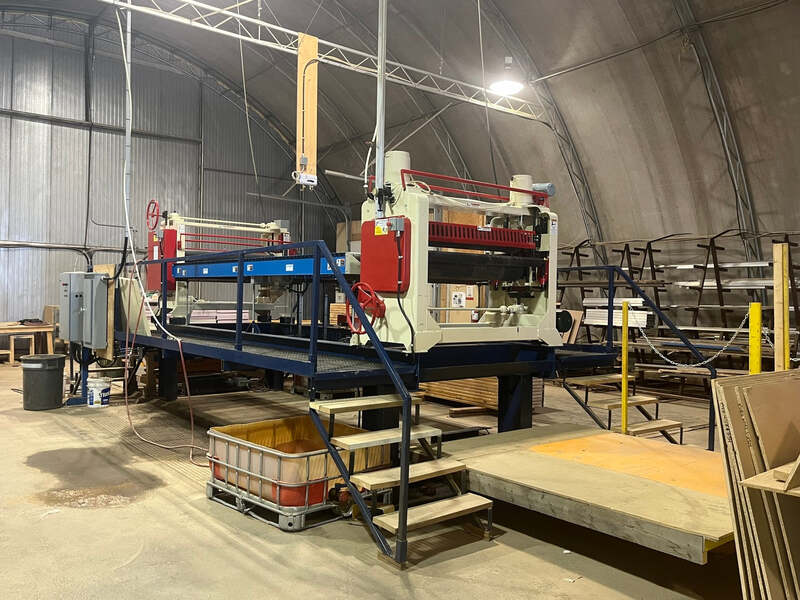

Black Brothers #22-D-875-56, Laminating & Gluing Equipment Line, 56" Glue Spreader, 8-3/4" Neoprene applicator roll, pinch roller, scissor lifting tables

Estimated monthly payment valid upon approved credit.

Request Formal Quote

SKU: 120140
Model: 22-D-875-56
Condition: Used
S/N: 196859
Additional Description:
Glue Roller Laminating and Finishing Equipment
Condition: Fully Refurbished
S/N: 196859
Shipping Dimensions: 96" L x 48" W x 67" H
Weight: 2,800 lbs.
Description:
BLACK BROTHERS ''22-D-875-56'' GLUE SPREADER (TOP) Top Only Adhesive Spreader
Working Width: 56" reconditioned Glue Spreader
"New" Smooth Neoprene coated applicator roll: 8-3/4" Dia.
"New" Neoprene Doctor roll: 6-3/4" Dia.
Upper elevator opening: 0" - 4-1/2"
- Single Hand Wheel adjustment for the Doctor Roll
- Variable speed drive
- NEMA 12 electrics
Complete with: Push button magnetic starter, safety guards, all warning labels.
Electrics: 230 volts, 60 Cy, 3 Phase
Pinch Press Laminating and Gluing Equipment
Description:
Used BLACK BROTHERS "RPP 875-56" PINCH ROLLER
Working width: 56"
New (60/65 durometer): 8-3/4" dia. rolls.
Specifications: Upper elevator opening 0" - 4-1/2"
Variable Speed Drive
Cylinders: 8" Dia.
Combined pressure: 8,000 Lbs max.
Complete with:
- Push button magnetic starter
- Safety guards
- All warning labels
- Bottom infeed & outfeed rolls
- NEMA 12 electrics
Electrics: 230 volts, 60 Cy, 3 Phase
NOTE: Machine will have both upper and lower pinch rollers driven to prevent the parts from slipping in the machine
Econolift Double Scissor Lifting Tables
Condition: New
Qty: 2
Model: 3DSL72
Platform: 48" w x 72"
Lowered height: 15"
Travel: 72"
Raised height: 87"
Electrics: 3 hp, 240 volts, 3 Phase
Includes: Foot Pedal Controls
S/N 1: S19326
S/N 2: S19326
Rolmaster Conveyors - See photo attatchments for full details
Area 1
- 1 x CDLR Roller Conveyor (95 in. length, 56.5 in. width)
Scissor Lift Conveyor
- 1 x Gravity Roller Conveyor (72 in. length, 51 in. width)
Line Shaft: (2) x 14 ft lines
- 4 x Line Shaft Roller Conveyor (84 in. length, 39 in. width)
Steel Platform included with all motors, electrical and PLC's and all controls, drives, foot pedals Included. All components of the line are included as well (water system etc.)
