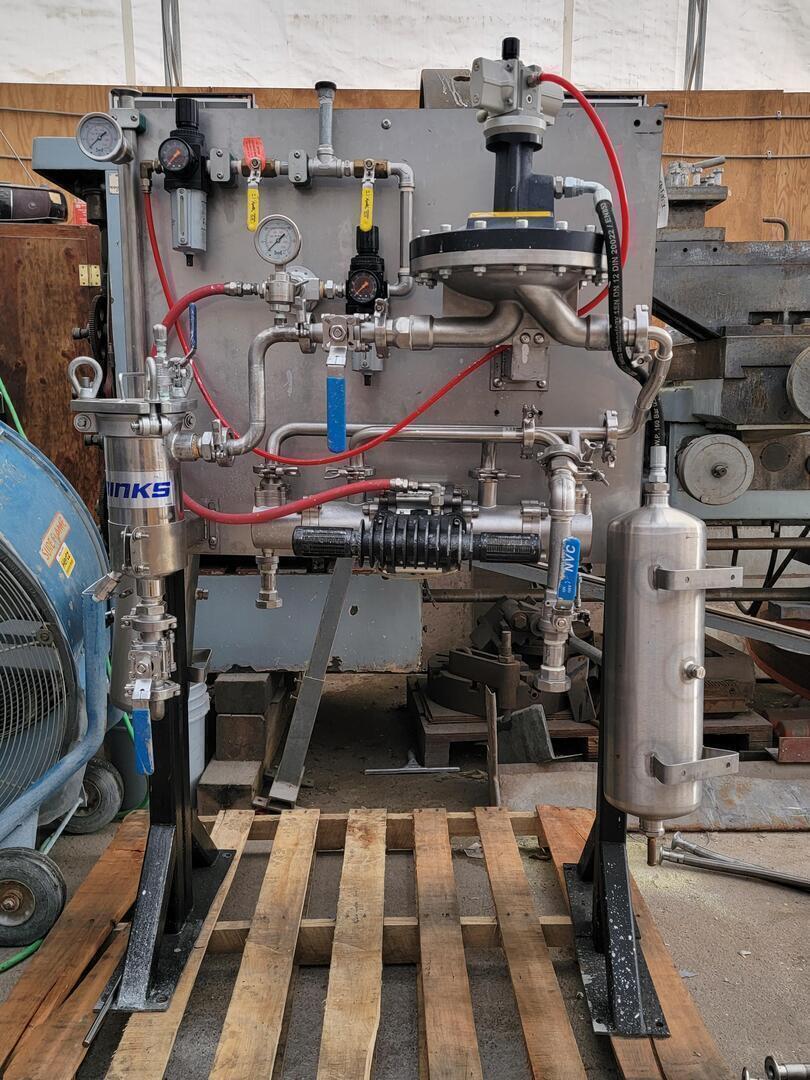

Binks #104009, Paint Pump Station, Maple 15/3 3:1 pump, 22.5 L/min output, 102 PSI. max air inlet, 10 liter tank, surge eliminator

$4,935 USD

Request Formal Quote

SKU: 27535
Model: 104009
Condition: Used
Dimensions: 65.00 (H) x 25.00 (W) x 40.00 (L) inches
Additional Description:
Comes With
Maple 15/3 Pump
- Part Number: 104009
- Ratio: 3:1
- Fluid Output @ 60 cycles/min: 22.5 L/min
- Max. Continuous Cycle Rate: 20 cycles/min
- Max. Intermittent Cycle: 40 cycles/min
- Fluid Connection Inlet / Outlet: 1" Sanitary / 1" Sanitary
- Max Air Inlet Pressure: 7 bar (102 psi)
- Compressed Air Inlet: 3/8" BSPP/NPSM
- Air Volume / Cycle @ 3.1 bar (45 psi): 4.8 L/min
- Air Volume / Cycle @ 6.2 bar (90 psi): 9.3 L/min
Active Surge Eliminator
- Model: 104050
- Max. Working Pressure: 21 bar (308 psi)
Tank and Gauges
- Tank Part Number: 105446
- Tank Max. Pressure: 16 Bar
- Tank Volume: 10 L
- Tank Max/Min Temp.: 100oC / -10oC
