For Sale by RT Machine
Surplus Record Dealer Since 2025
Location: Hughesville, PA
Contact Sales
Phone Number: 570...> Show Phone Number 570-584-2002
Let the seller know you found their listing on Surplus Record!
Description

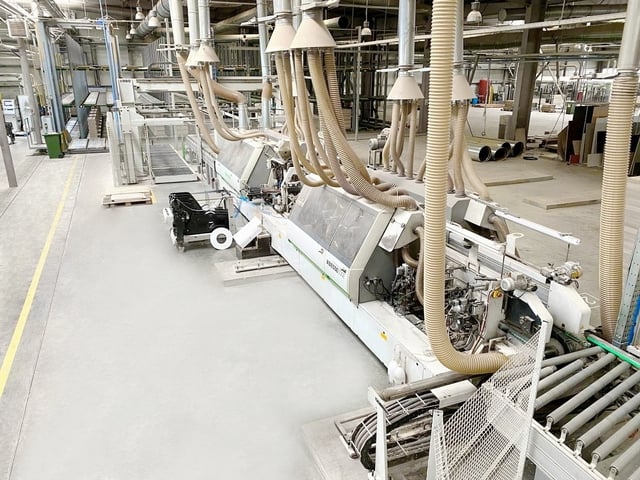

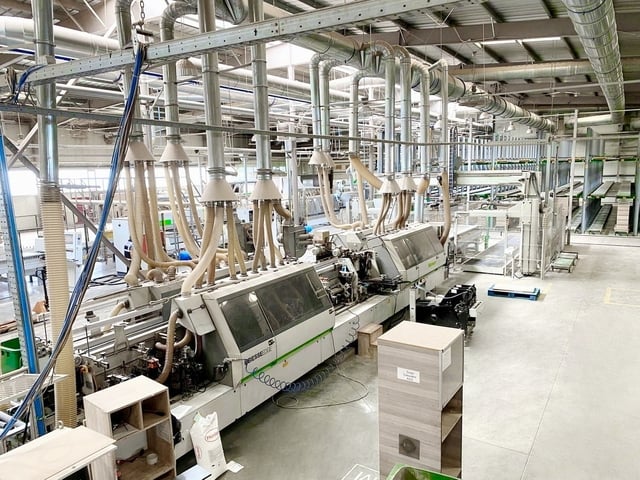

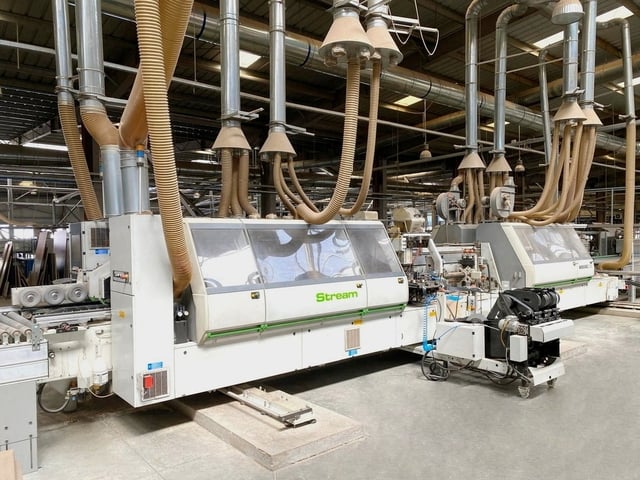

- DOUBLE-SIDE SIZING & EDGE BANDING MACHINE - First (1st) machine in a line
- Edges (tape) thickness in rolls (min/max) mm 0,3 - 3
- Panels thickness (min/max) mm 10 - 60
- Working width (min/max) mm 270 - 1200
- Numerical Control /Software SINITRA
- Adjustable feeding speed (m/min) 10 - 40 (INVERTER C.N.)
- Safety and sound-proof enclosures/cabins, Working line (work units support tables), manual adjustment
- SIZING PART (for each side):
- No. 2 Hogging Units (1 Top + 1 Bottom) DT 10 (Kw 5.8 x 2), Free space for Milling unit FS
- Milling unit (vertical join trimming) ES30 + ER30 (Kw 5 x 2) 0° - 90°
- Softforming Milling unit SF 10 (2 x Kw 2,4) 0° - 45°
- Spraying unit (Anti-sticking liquid)
- EDGE-BANDING PART (for each side):
- Glueing Unit (Hot Melt + Quick Melt Unit) SP3/SF, SP40 (HighMelt + Edge Control EC 40)
- Lamps to heat the workpieces side (infrared heater) RP 10, Band Pressure zone (N.C. adjustment)
- Pressing rollers (revolver) both for straight and shaped edges (softforming) Soft PF40 (4 positions) mm 800 (Cesoia CI10+CS10+RL10) + Edge coils supporting unit (No. of reels) 6
- Rough Milling unit RS 10 (Kw 1,3 x 2)
- Fine Milling unit Softforming RF 10 / SF (Kw 0,65 x 2)
- Fine Milling unit (Multi-profile) RF 30 (Kw 0,65 x 2)
- Milling grooving Unit FB 30 (Kw 4,5 x 2) 0 - 90°
- Profile edge scraping unit (Multi-profile) RB 30
- Glue scraping unit RC 05 / Soft, Spraying Unit (for polishing liquid) + Buffing unit SZ 30 (Kw 0,37 x 2)
Get Your Price from RT Machine!
Buyers Who Viewed This Listing Also Viewed:
Biesse #Stream-B1-9.0, edgebander, 0.4-15mm edge thick capacity, 10-60mm panel thick, 100mm x 150mm min panel size, premill, glue station, trimmers, 2003
Category: Woodworking Edgebanders
Seller: Carolina Machinery Sales
Location: Monroe, NC
Mfr: Biesse
Model: STREAM-B1-9.0
Year: 2003
Biesse Stream B1 9.0 Edgebander With Doucet Return Conveyer, 0.4 mm - 15 mm edge thickness capacity100 mm minimum panel width10 mm - 60 mm panel thickness150 mm minimum panel lengthExternal edgebanding storage and feeding magazinePremill Two (2) motorsGlue station Pre-melt hopper Glue application roller Pressure ...more
JUST ADDED!
Brandt #11-20, woodworking edgebander, 2016
Category: Woodworking Edgebanders
Seller: George Washington Machinery
Location: East Wenatchee, WA
Mfr: Brandt
Model: 11-20
Year: 2016
Biesse #Stream-B1, edgebander w/ pre-mill & corner rounding, 2003
Category: Woodworking Edgebanders
Seller: Ex-Factory
Location: Charlotte, NC
Mfr: Biesse
Model: STREAM-B1
Year: 2003
BIESSE - STREAM B1 9.5 Edgebander (w/Premill & Corner Rounding) -- Edge thickness cap.: 0.01' - 0.8" (0.3 - 20 mm); Min. panel width: 2-1/2" (65 mm); panel thickness: 0.4" - 2.4" (10 - 60 mm); min. panel length: 6" (150 mm). Automatic 2-coil vertical feed magazine for coil material: Up to 3 mm thickness with ...more
JUST ADDED!

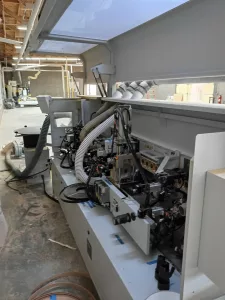

Brandt #KDF-230, Edgebander, 5/16" to 2-3/8" panel thickness, 1/8" max. edge thickness, 2-3/4" workpiece width, Brandt EasyTouch control, 2018
