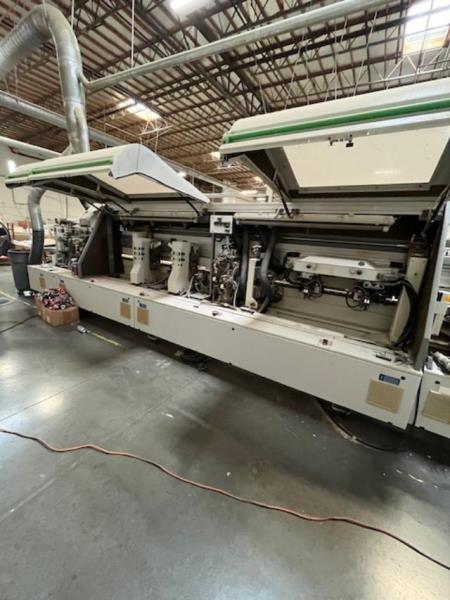

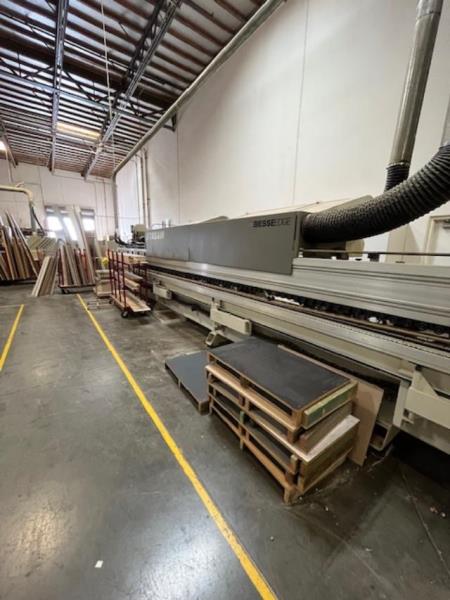

Biesse #Stream-B1, edgebander w/ pre-mill & corner rounding, 2003

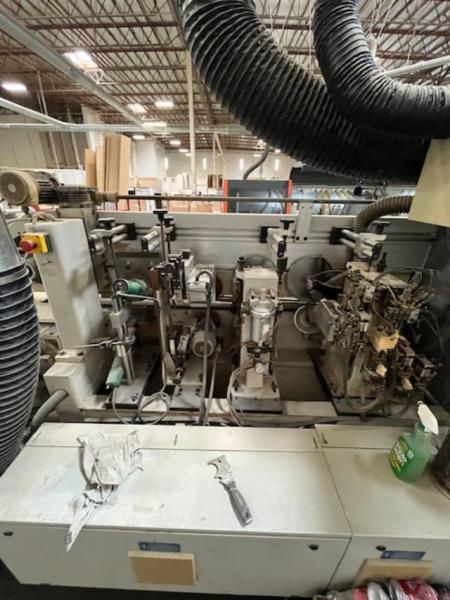

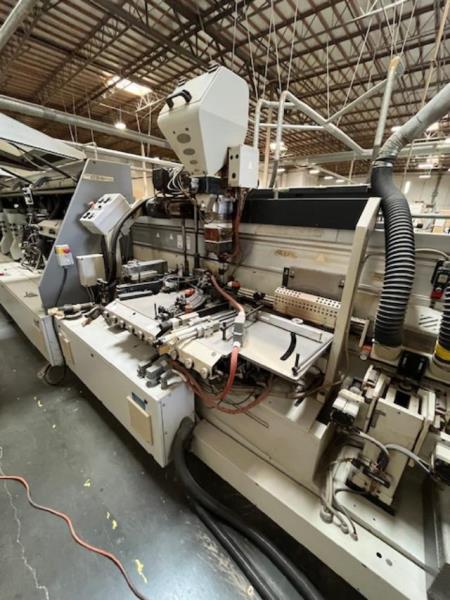

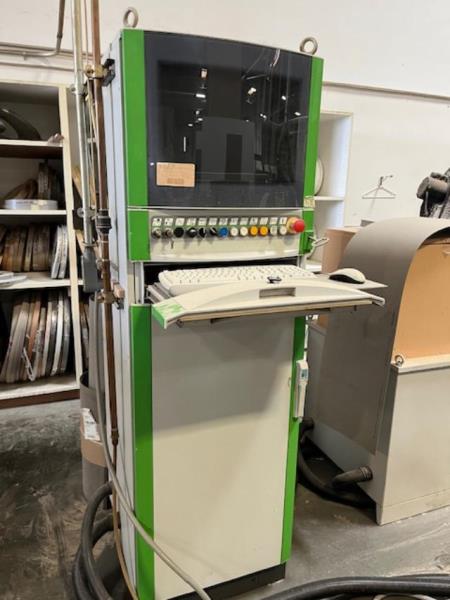

BIESSE - STREAM B1 9.5 Edgebander (w/Premill & Corner Rounding) -- SpecificationsEdge thickness cap.: 0.01' - 0.8" (0.3 - 20 mm); Min. panel width: 2-1/2" (65 mm); panel thickness: 0.4" - 2.4" (10 - 60 mm); min. panel length: 6" (150 mm). Automatic 2-coil vertical feed magazine for coil material: Up to 3 mm thickness with automatic changeover. Patented Glue System with: Premelt; large separated granular hopper for easy filling & high gluing capacity.Reversible roller applicator with: (1) Large driven pressure roller & (6) pneumatic secondary pressure rollers. -- Operator & Machine Control "NC 410" Controller with: Graphic interface on MS-Windows 2000 Professional; 32-bit Operating System; high resolution LCD color screen;Unlimited" number of working programs; each with functions for remote control of processing units: Fault diagnostic; bar code reader adaptable; etc. Workstations -- Premilling UnitWith jump control & side copying unit for managing warped panels; 2-position infeed fence; digitals readouts. -- End TrimmingDouble motor front & rear linear end trimming unit: "IT 46" (0.4 HP / 0.3 kW - 12,000 RPM motors ea.); pneumatic chamfer setting: 0 - 15 Adjustable. -- Pre-/Rough TrimmingTop & Bottom "RS 10": 1-3/4 HP / 1.3 kW - 12,000 RPM Motor ea.; pneumatic exclusion & positioning from Control Panel. -- Radius/Bevel TrimmingTop & Bottom: 0.87 HP /0 .65 kW - 12,000 RPM Motor ea.; tiltable 0 - 30; pneumatic exclusion from Operator Panel. -- Corner Rounding 4-Motor for leading & trailing edges. -- Profile Scraping Unit: Top & Bottom with collection box. -- Flat Glue ScrapersTop/Bottom to remove potential glue squeeze out. -- Buffing UnitTop/Bottom oscillating/tilting "SZ 30" w/pneumatic exclusion control from Control Panel; 0.67 HP / 0.5 kW - 1,400 RPM motors. -- Hot Air UnitTop/Bottom hot air blowers to reactivate/smooth heavy PVC radiused edges. -- Complete with:Motorized top pressure beam with: Powered V-belt holddown; 80 mm wide Heavy-Duty feed chain w/rubber pads. 4 HP (3 kW) Feed drive for feed variable speeds of: 33 - 79 FPM (10 - 24 MPM). Electronic positioning by NC controller with: Pneumatic Preset Stop System for most adjustments via the Control Panel on: Top & bottom trim; fine trim; scraper station; electronic frequency inverter.Includes: Electronic DC brakes on all trim motors; sound cabins for all trim workstations; outboard panel support.
