Manufacturer: Biesse
Model: SKIPPER 100
Year: 2014
X-Axis: 98
Y-Axis: 39
Z-Axis: 2
Stock # BP-012749
1 / 10
Click to zoom in
1 / 10
For Sale by Ex-Factory
Surplus Record Dealer Since 2022
Location: Charlotte, NC
Contact Sales Dept.
Phone Number: 704...> Show Phone Number 704-285-2223
Let the seller know you found their listing on Surplus Record!
Description

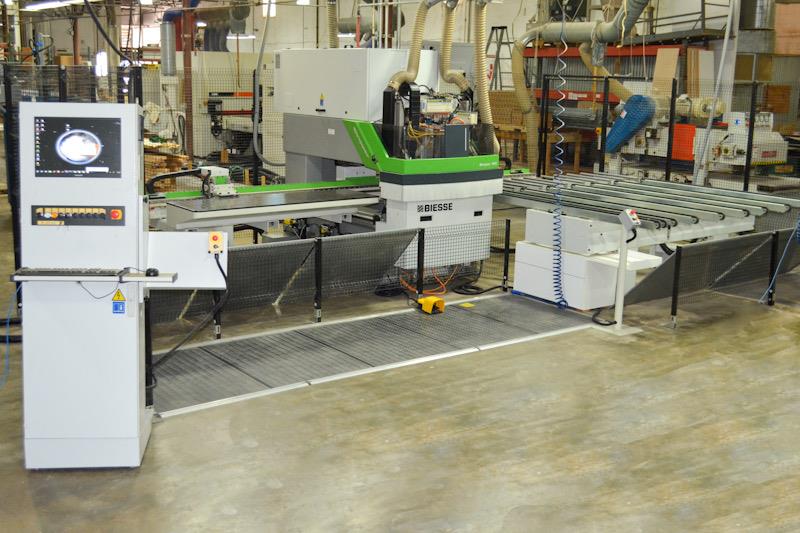

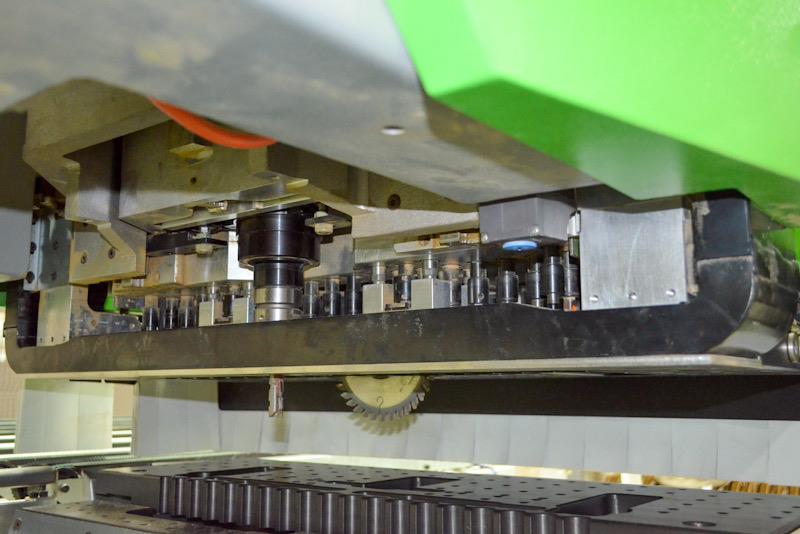

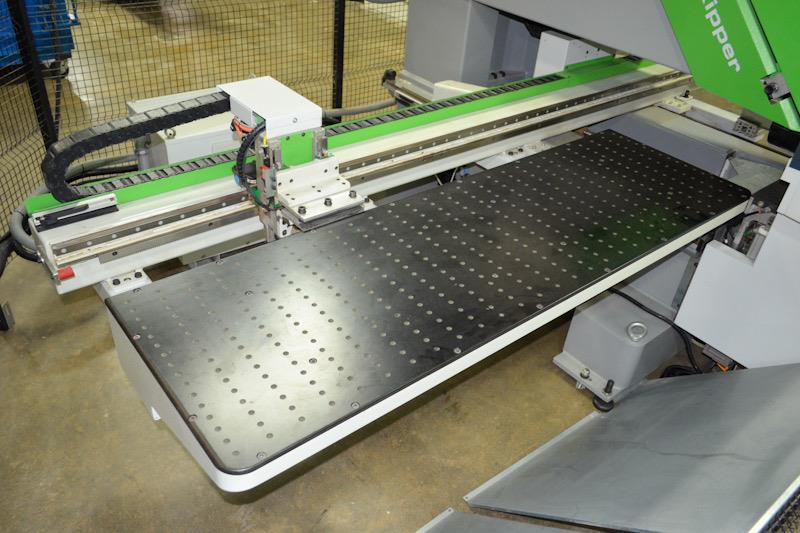

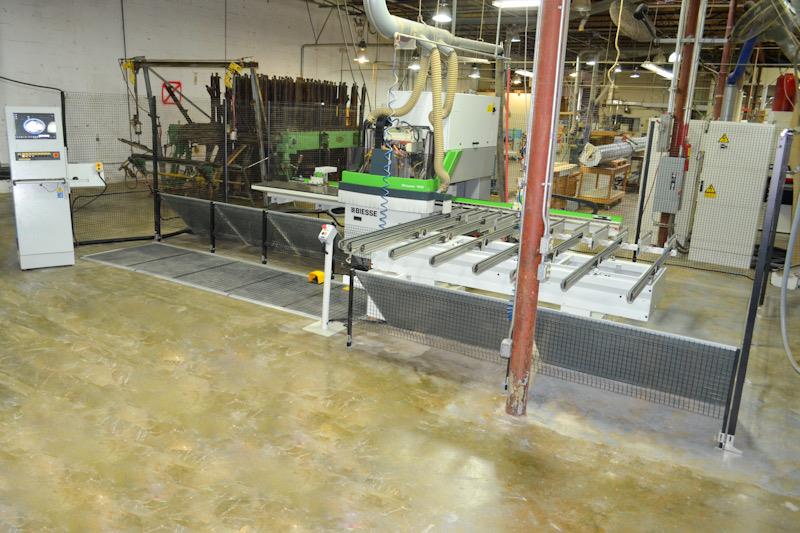

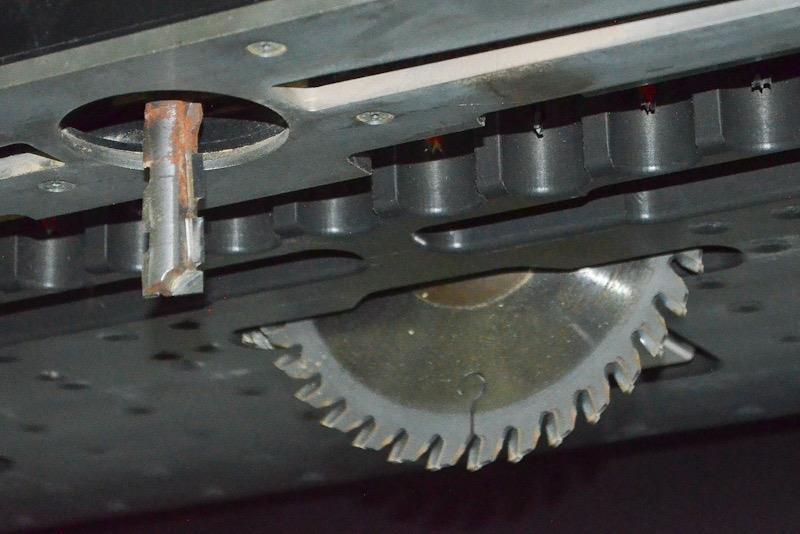

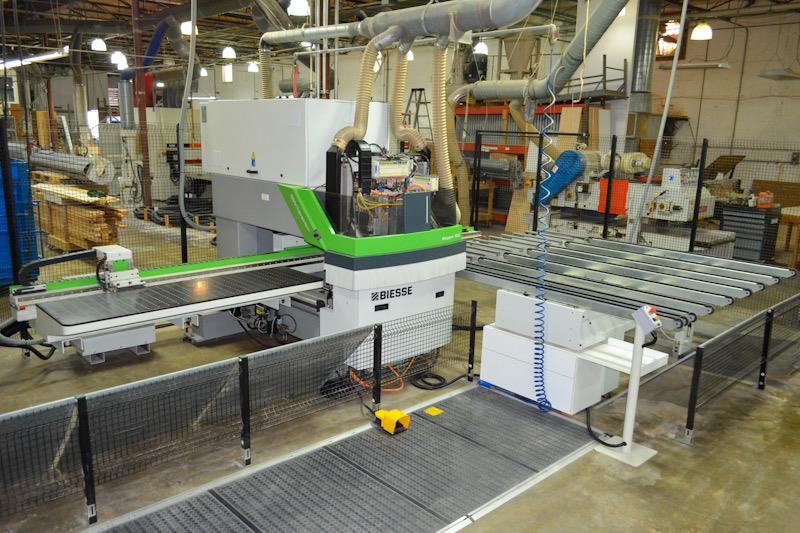

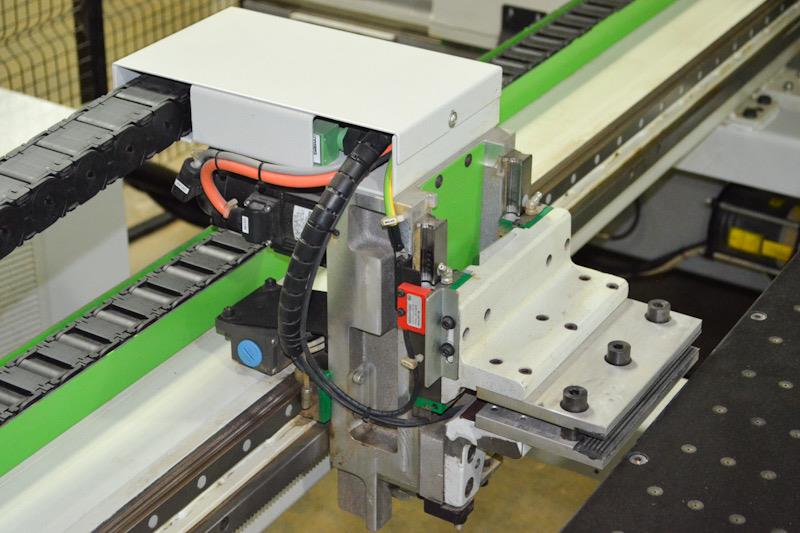

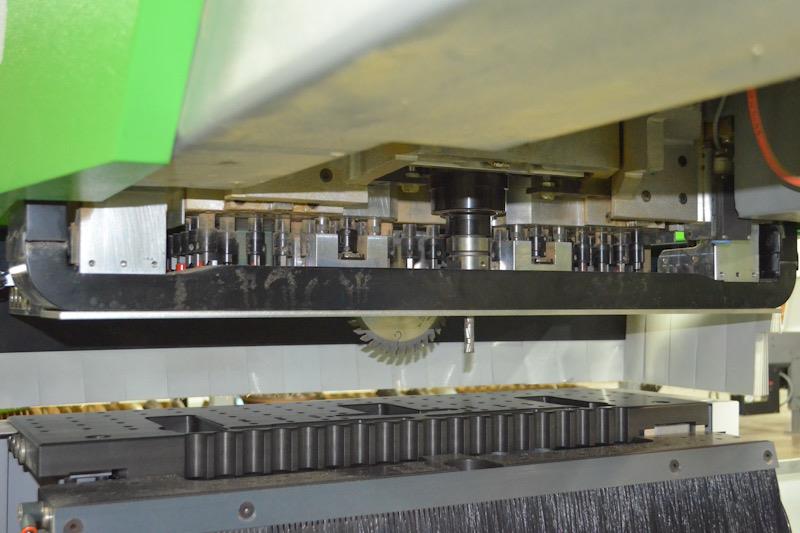

BIESSE SKIPPER 100 2-Head CNC Machining Center, with Outfeed TableSpecifications: -- Flexible "Top & Bottom" Machining Center that uses an innovative panel handling system.Working Capacity: -- "X" Axis 2,500 mm (98.43"), "Y" Axis 1,000 mm (39.37"), Max. part thickness 60 mm (2.36"). -- Min. workable part size: "X" Axis 90 mm (3.54"), "Y" Axis 70 mm (2.76"), & "Z" Axis 8 mm (0.31").Work Table: -- Left-hand infeed & Right-hand outfeed Y-Beam with Clamps. -- 22"; W x 71"; L x 34-1/2"; H Air flotation loading table. -- 24"; W x 8’ L Unloading table, with 1-1/16"; Dia. Coated rollers on 9-1/8"; centers.Positioning Speed: -- "X" Axis 120 MPM (393 FPM), "Y" Axis 90 MPM (295 FPM), "Z" Axis 30 MPM (98 FPM).Boring Units: -- (1) Top & (1) Bottom boring blocks, 1.7 kW (2-1/4 HP) Motor, Variable spindle speeds 4,000 - 6,000 RPM, Each with: (29) Vertical spindles with (17) "X" Axis & (12) "Y" Axis, (10) Horizontal spindles with (4 + 4) "X" Axis & (1 + 1) "Y" Axis, & (1) "X" Axis Grooving saw with 1.7 kW (2-1/4 HP) Motor, Blade speed 5,000 RPM, Right-hand rotation, & Blade diameter 150 mm (5.91").Machining: -- (1) Top & (1) Bottom 3.5 kW (4-3/4 HP) Electrospindles, Each with: Variable spindle speeds 7,000 - 18,000 RPM, Right-hand/Left-hand rotation, Max. tool dia. 40 mm (1.57"), HSK D-50 Adapters for Manual push-button quick tool change, ERC-32 Toolholders & RC-32 Collets.Operator & Machine Control: -- Mobile Control Console, with PC-Based Control, 19" LCD Monitor, BIESSE "WORKS" + "WINDOWS" Operating system. -- Pendant control.Equipped with: -- Universal transformer, Automatic lubrication system for guides & ways, Sound hood, 79" H Safety fence with Lock-out door, & 3-1/2’ x 12-1/2’ Coin pattern pressure-sensitive safety mat.Complete with: -- User Manual. -- 6-1/2’ x 8’ x 35"; H Outfeed Table, with (9) 1/2"; W Transfer Belts.Dimensions including Safety Fence: 292" x 196" x 87" H.
Get Your Price from Ex-Factory!
