Description

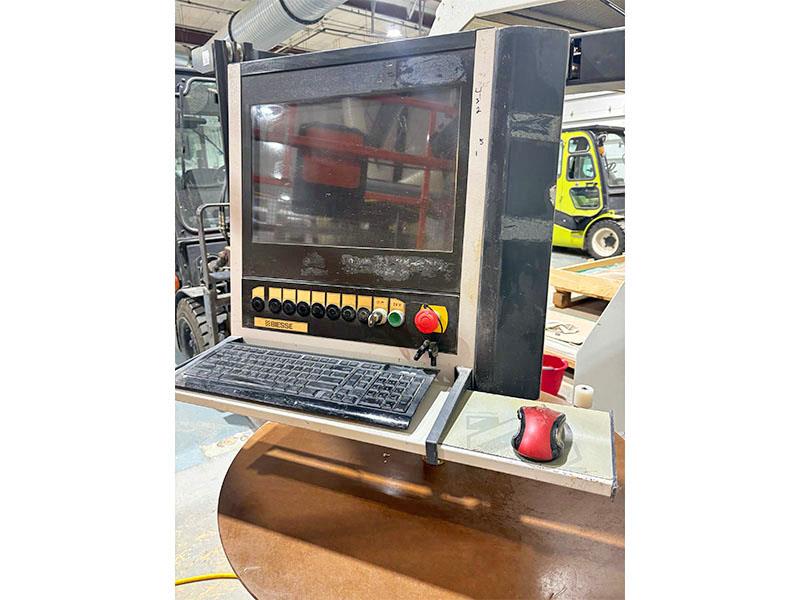

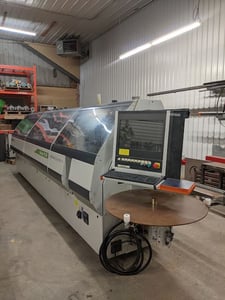

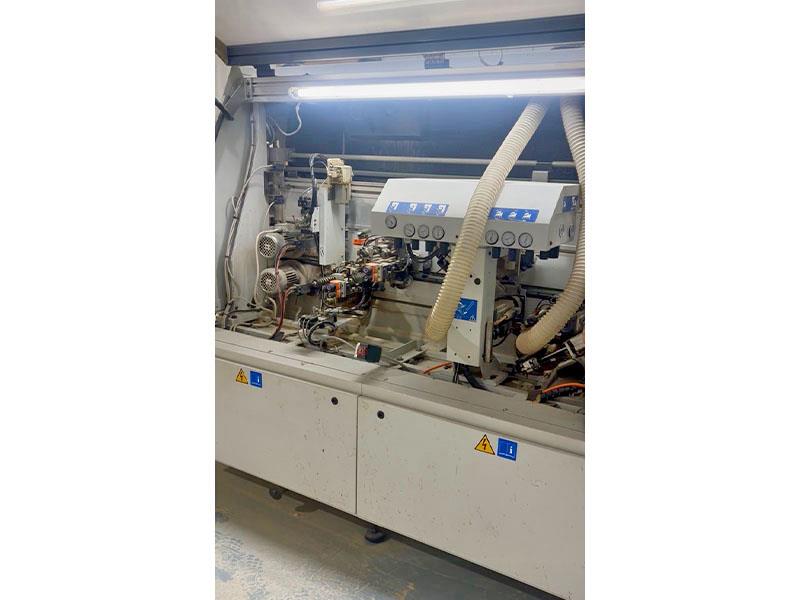

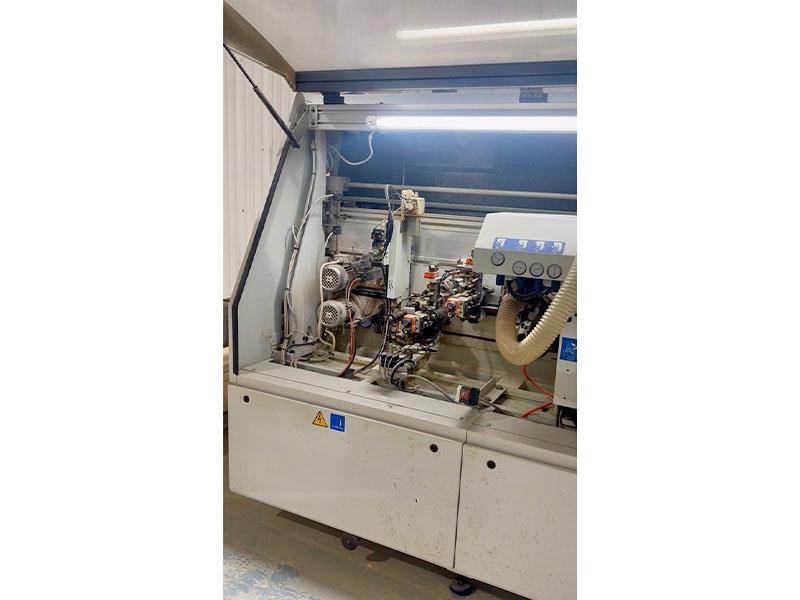

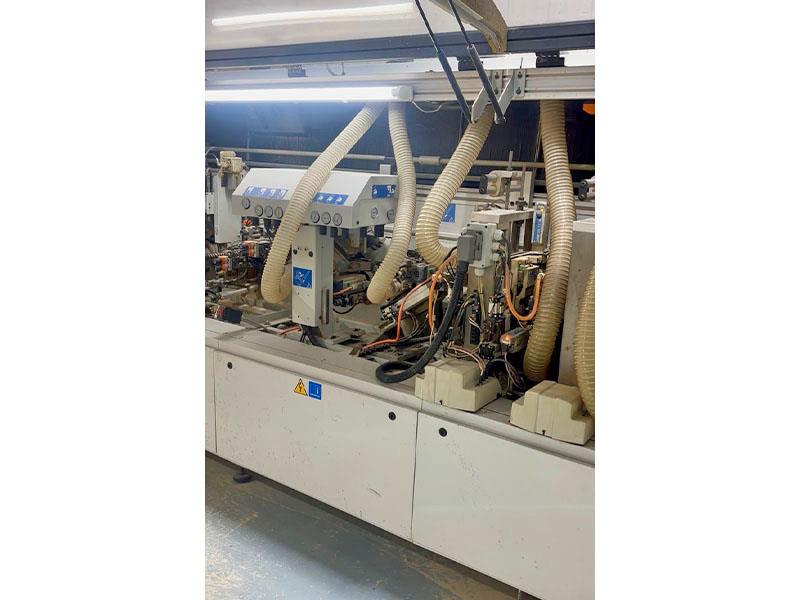

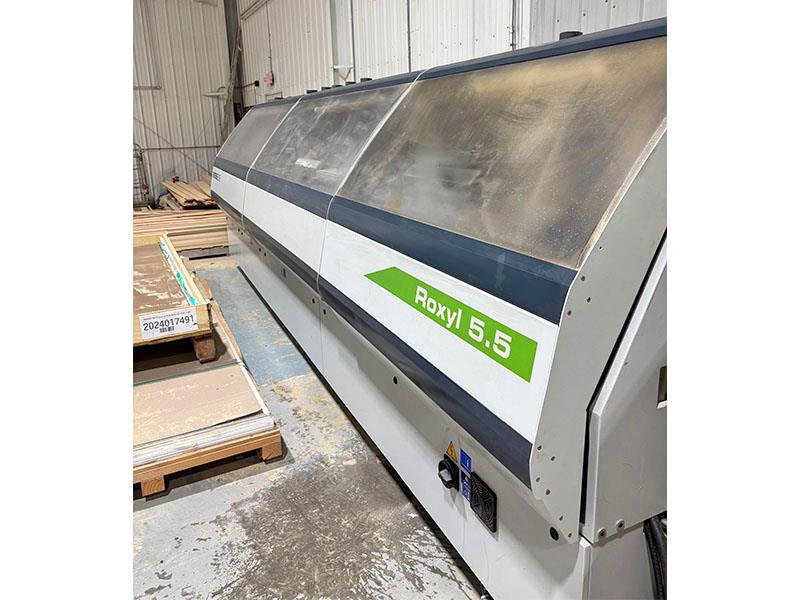

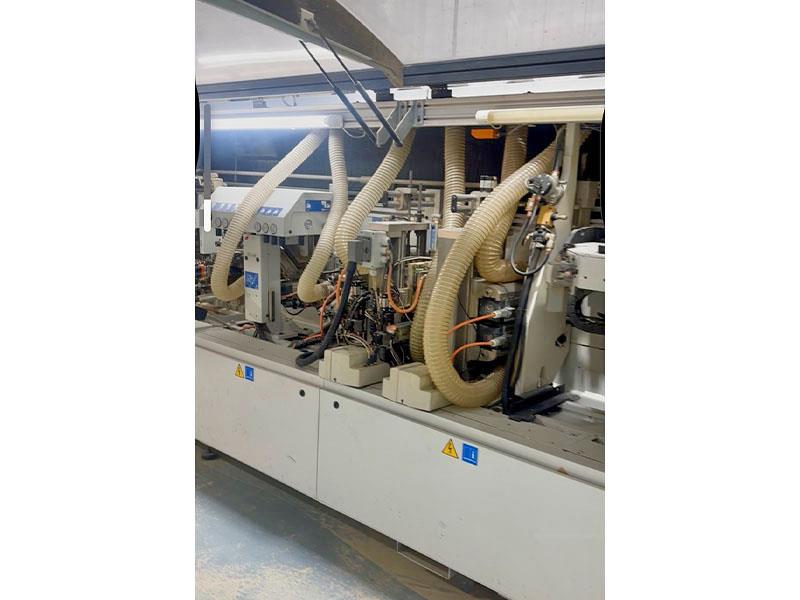

BIESSE - ROXYL 5.5: Edgebander (w/Premill & Corner Rounding)SpecificationsEdgebanding Cap. - Edge thickness for strips: Min./max.: 0.4 - 22 mm (0.02" - 0.87"); coiled material from: 0.4 - 3 mm (0.02 - 0.12"); panel thickness from: 10 - 60 mm (0.39 - 2.36"); workpiece width; Min.: 85 mm (3.34"); workpiece length min.: 140 mm (5.51"); feed speeds: 10 - 14 - 18 - 20 MPM (33 - 46 - 59 - 65 FPM). Machine Interface -- "Roxyl-Matic" Automated machine setup; MS/Windows XP Operating System; floppy drive; 4 GB HD; USB port, keyboard, and mouse interface. -- Flat-Screen (17") with Color graphics interface: Programs can be easily created & recalled at will; graphic interface makes programming easy: Icon of each unit may be brought up on the screen to show the Operator the status of the unit & parameters, which can be programmed; Edgebander may be operated manually when required, without necessity to write a program.Machine Infeed Configuration -- Premilling Station "FL-502". (2) LH & RH Rotating NC controlled spindles with: Automatic center positioning. -- Anti-Adhesive: "ADZ-700" Automatic Spray Unit with: Glue release agent preventing glue to adhere to workpiece surfaces. -- Infrared Heating Lamp. Preheating workpiece edge to ensure best possible surface adhesion quality of edgebanding material. -- Edge Magazine. Automatic for processing coiled & strip edgebanding material. -- Pressure Section Servo controlled programmable pressure section with: (1) Large driven roller and (4) idle rollers.Gluing System -- EVA (Hot Melt) "QM-705" Quick premelting granulate with: Glue roller applicator to cover conventional edgebanding material. Workstations -- End Trimming Unit "IN-801": Front & Rear trimming motors; unipoint swivel: 0 - 15 Bevel; programmable pneumatic change-over from flush to bevel. -- Rough/Flush Trimming Unit "RS-701": Top/Bottom pre- or flush trimming motors. -- Flush/Bevel/Radius Combination Trimming Unit "RF-400": Servo controlled: (2) Servo motors (one for horizontal tool position; one for tool up/down position); uses combination bevel/radius/flush insert knives; prepositioning of motors by pneumatic air cylinders. -- Corner Rounding Unit "CR-202": (2) Motors for front/back corner and upper & lower edge profiling. -- Profile Scraping Unit "RBK-503": Top/Bottom 2-axis NC programmable knife positioning (i.e. 2 - 3 mm radius) for PVC edges. -- Glue Scraping Unit "RCC-701": Flat top/bottom; digital positioning indicators; pneumatic controlled for in/out position. -- Buffing Station "SP-501" Top & Bottom buffing motors with: 150 mm (6") Cloth buffing wheel diameter; adjusts in multiple directions. -- Edge Reactivation Unit "PH-700": Top/Bottom hot air blowers to restore original color to profile scraped PVC edge material.Complete with: -- Top Pressure Beam with: Driven flat belt & programmable height positioning.Includes: Multi-Tap Transformer. - Sound Hoods with interior lights. - Outboard panel support.
