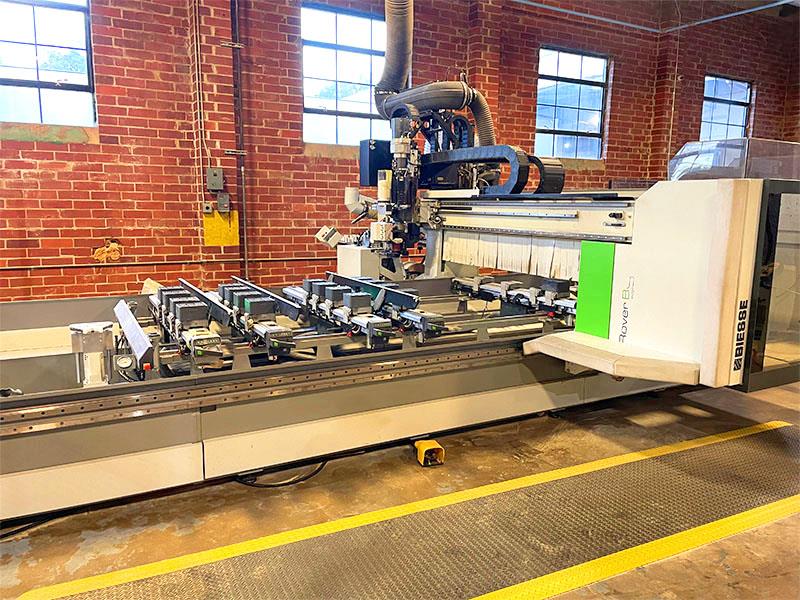

Biesse #Rover-B-Edge-1667, CNC machining center, 5-Axis, 265" X, 62" Y, 13" Z, 24k RPM, 22 ATC, w/ edgebanding, 2018

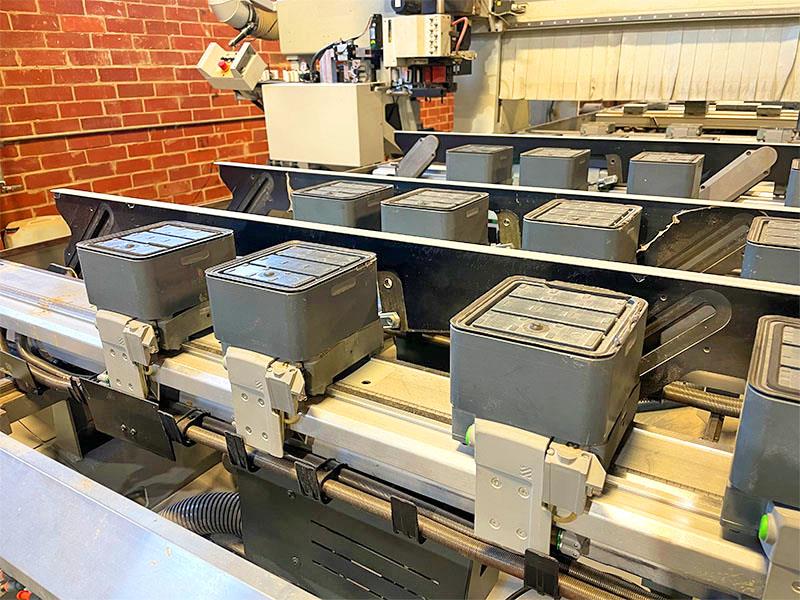

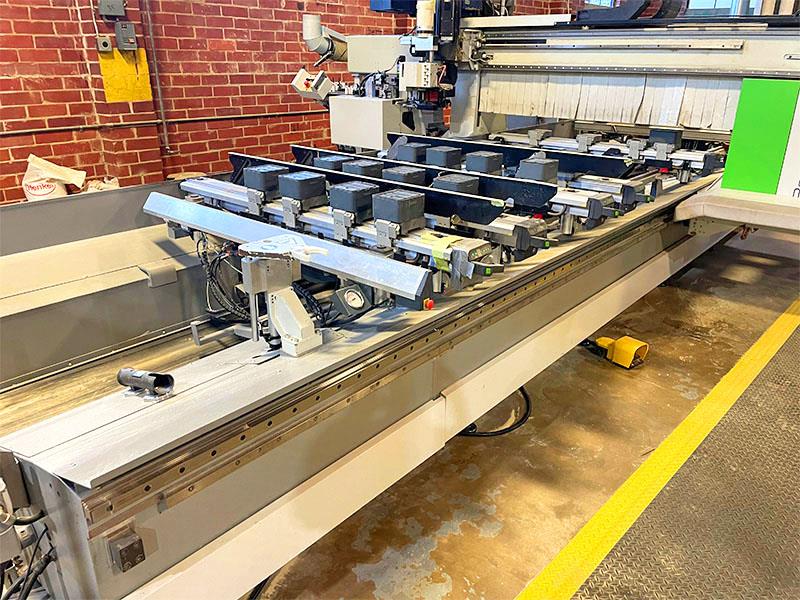

BIESSE ROVER B EDGE 1667 CNC MACHINING CENTER (W/EDGEBANDING) -- Specifications:This "Bridge Gantry" machine is "IDEAL" for window, stair, door & component parts manufacturing:Working Field considering "all" units when Routing, "X" Axis is 265" (6,735 mm), "Y" axis is 62.9" (1,600 mm), "Z" axis stroke 13.6" (345 mm), max. material thickness when machining 9.6" (245 mm)When "Edge Banding" "X" Axis is 227" (5,780 mm), "Y" axis is 62.9" (1,600 mm), the max. material thickness is 2.3" (60 mm); the minimum internal radius is 30 mm & minimum external radius is 8 mm (depending on flexibility of the banding material). -- Positioning Speed: "X" & "Y" axis is 279 FPM (85 MPM), "Z" axis is 98 FPM (30 MPM); AC Brushless Servo motors with digital drive and linear guides ensure high speeds with a smooth acceleration-and-deceleration. -- Worktable: (8) Vacuum bar support rails with pneumatic lifting blades, (4) "ATS" vacuum pods per rail; set up assistance according to the program to process.(8) Pneumatic pop-up back stops, (8) pneumatic pop-up front stops, (4) pop-up side stops, (2) pop-up central stops create (2) independent work zones.Edge Banding unit:The edgebanding is automatically applied to square or irregularly shaped parts as the CNC head rotates along the "X" "Y" & "Z" axis and simultaneously rotates the tooling up to 360 on a high precision "C" axis.Floating "hot melt" glue pot & application roller with separate thermostats apply glue on the panel edge.Pneumatically controlled pressure roller with manually adjustable guides for coil & strip feeding; numerically controlled with encoder that measures strip feeding process.(1) 4-Coil tape magazine with warning sensor when the end of the spool is near; edge banding unit precisely applies 0.4 - 3 mm ABS & PVC with 60 mm (2.3") max. edge height.Pneumatically activated saw blade performs the end trimming at a 35 angle for precise fitting of overlapping joints on adjoining edges. -- Boring Unit: BH17 Boring Head with 4 HP (3 kW) motor, variable speed from 1,500 - 7,500 RPM; (10) Independent "Quick Change" vertical spindles with (6) spindles in "X" axis & (4) spindles in "Y" axis.(6) Horizontal boring spindles with (2+2) in "X" axis & (1+1) in "Y" axis; (1) "X" axis grooving for up to 120 mm dia blade. -- Machining: (2) 18 HP (13.2 kW) liquid cooled electro-spindle router with HSK F63 adaptor; 1,500 - 24,000 RPM.(1) NC controlled "C" axis for 360 horizontal processing; (1) 22-position ATC tool Plate mounted at the back of the machine. -- Operator & Machine Control: PC Front End with Biesse "BH 660" + "BiesseWORKS Advanced" + "bSOLID" + "bEDGE" + WINDOWS "XP" operating system.15" CRT monitor, full keyboard, mouse, 1.44MB & CD ROM disk drives, RS 232 & USB ports, Ethernet connection.Multitask operating system with specific function controls & and internet trouble shooting capabilities; input/output modules, axes override, 4-axes interpolation, diagnostic graphics aid for programming, machine data & to
