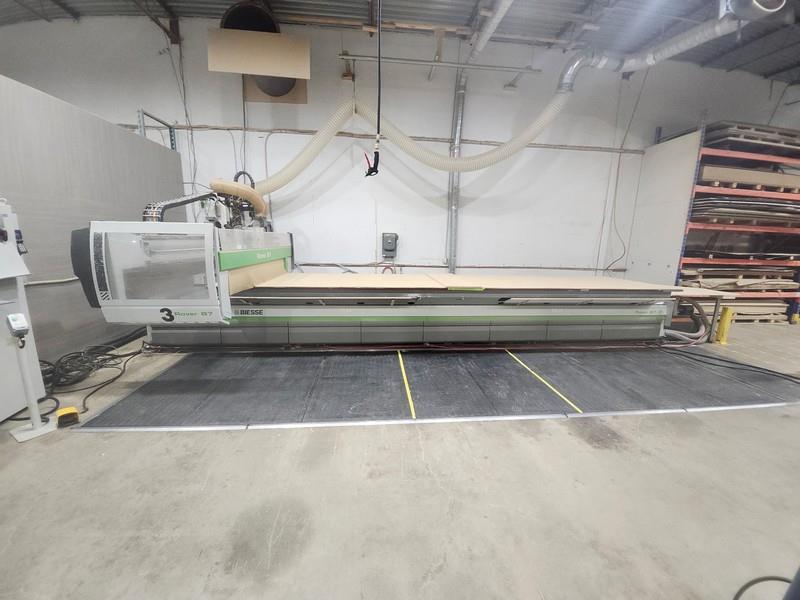

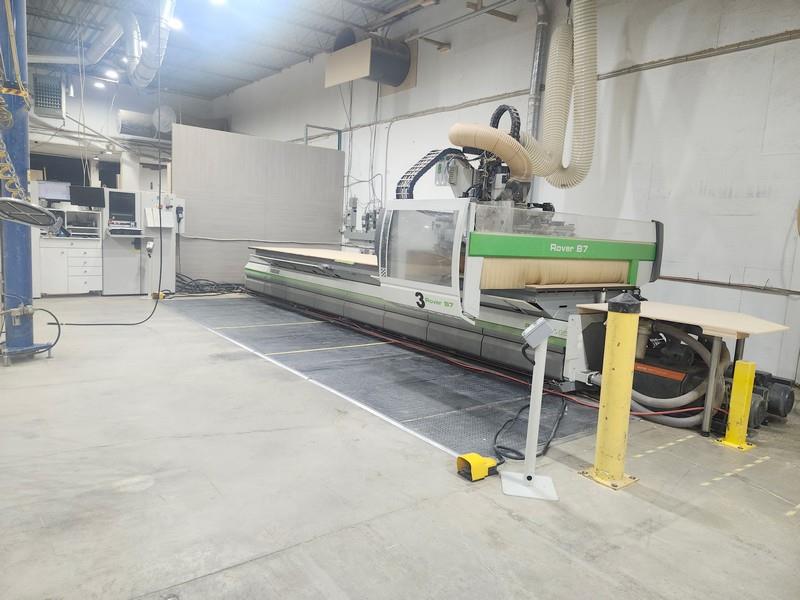

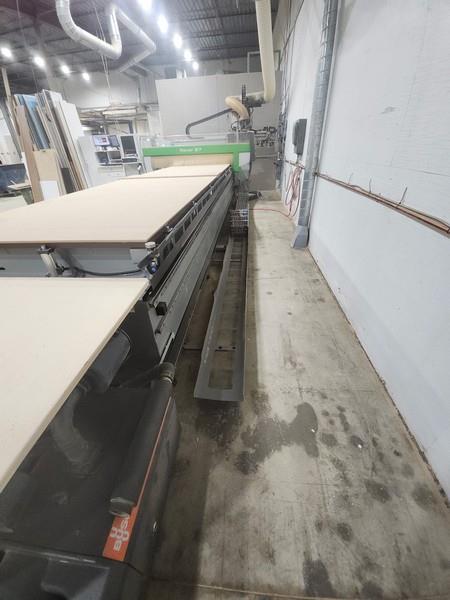

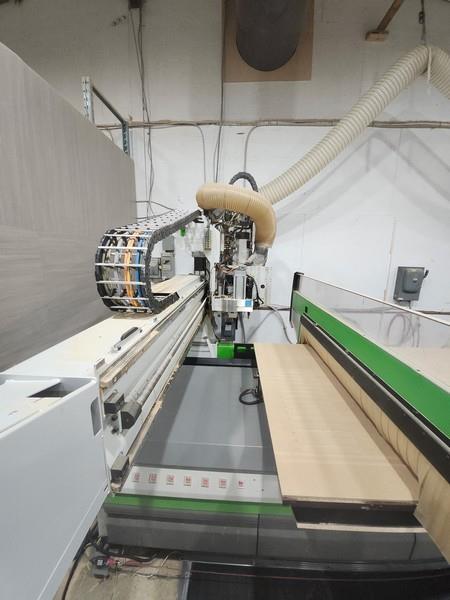

Biesse #Rover-B-7.65, flat table machine, 5' x20'tbl., 240" X, 61.4" Y, 7" Z, 24k RPM, 12 ATC, 2008

Estimated monthly payment valid upon approved credit.

Request Formal Quote

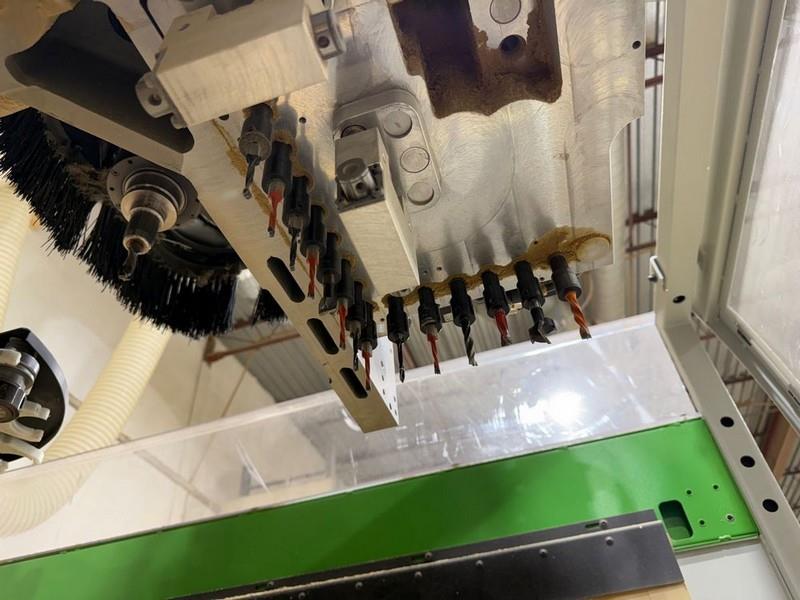

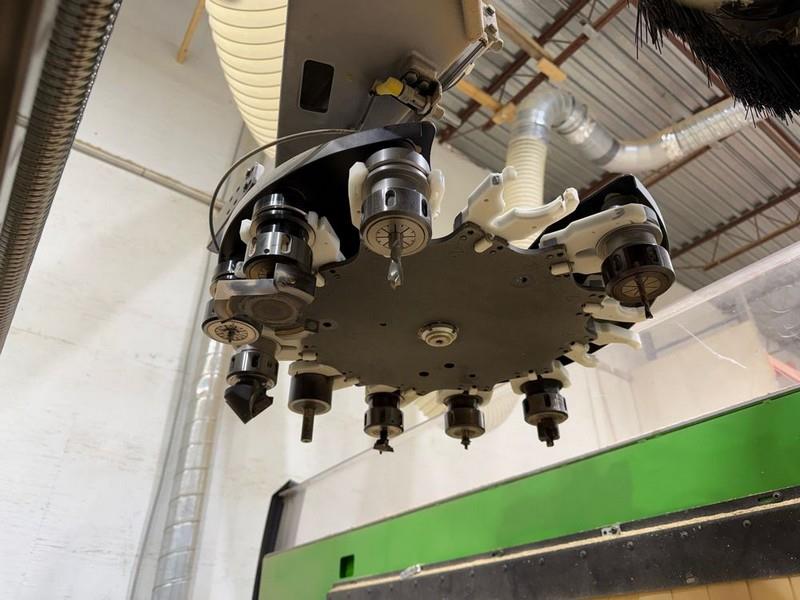

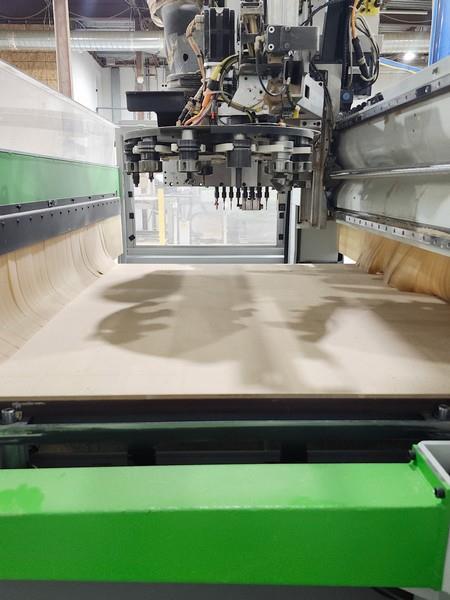

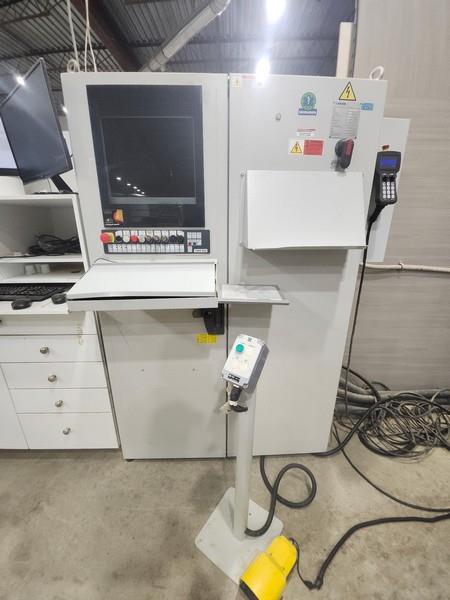

BIESSE ROVER - B 7.65 R FTK: Flat Table Machine (w/ATC/Boring) -- Specifications5' x 20' Flat table design for "Nested Base" processing: Working field: "X" Axis: 240" (6,095 mm); "Y" axis: 61.4" (1,552 mm); "Z" axis stroke: 7" (180 mm); max. material thickness: 5.9" (150 mm). -- Positioning Speed"X" & "Y" Axes: 262 FPM (80 MPM); "Z" axis: 98 FPM (30 MPM); "X" axis uses a helical rack & pinion system; "Y" & "Z" axes use precision ball screws.All axes movement is on precision linear guides & ways: Controlled by digital, brushless AC Servo motors; all motion components are maintained by an automatic lubrication system. -- WorktablePhenolic "MATRIX" grid vacuum table for: FT "Nesting" or single part processing using (optional) pods or jigs; (1 + 1) side pop-up pins for easy material location. -- Boring Unit(1) 2-1/2 HP (1.7 kW) - 4,000 RPM Motor: (14) Independent vertical spindles; (7) in "X" axis & (7) in "Y" axis; (4) horizontal spindles with: (1 + 1) in "X" axis & (1 + 1) in "Y" axis. -- Machining Unit(1) 16 HP (12 kW) liquid cooled electrospindle with: HSK-F63 Adaptor; variable speed from: 1,000 - 24,000 RPM; (1) 12-position ride along tool changer for "on the fly" ATC. -- Operator InterfacePC Front-End controls with: BIESSE "NC 1000" + WINDOWS "XP" operating system; 15" color CRT; 40 GB hard drive; full keyboard & mouse; Ethernet connection capabilities. New control with: WINDOWS 10 installed in 2025 by BIESSE; value: ...$ 14,000. -- Complete with:(2) 10 HP (7.5 kW) BUSH Vacuum Pump. Fully rebuilt in 2021; original manuals & documentation; safety fencing & perimeter devices. -- Actual Model: BIESSE Rover B 7.65 R FTK
