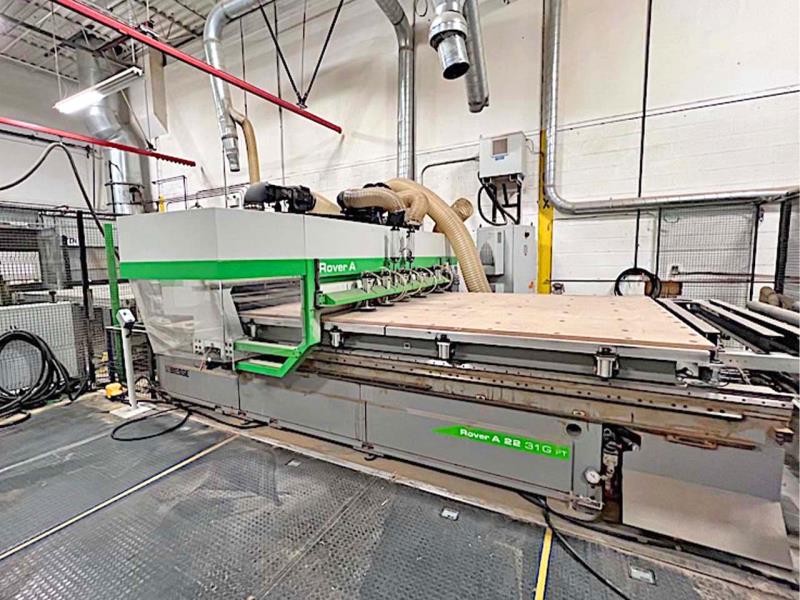

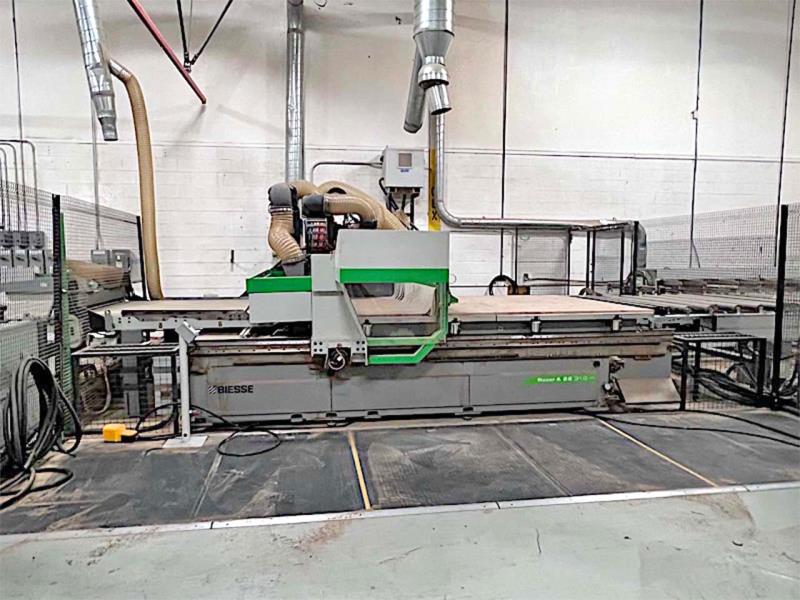

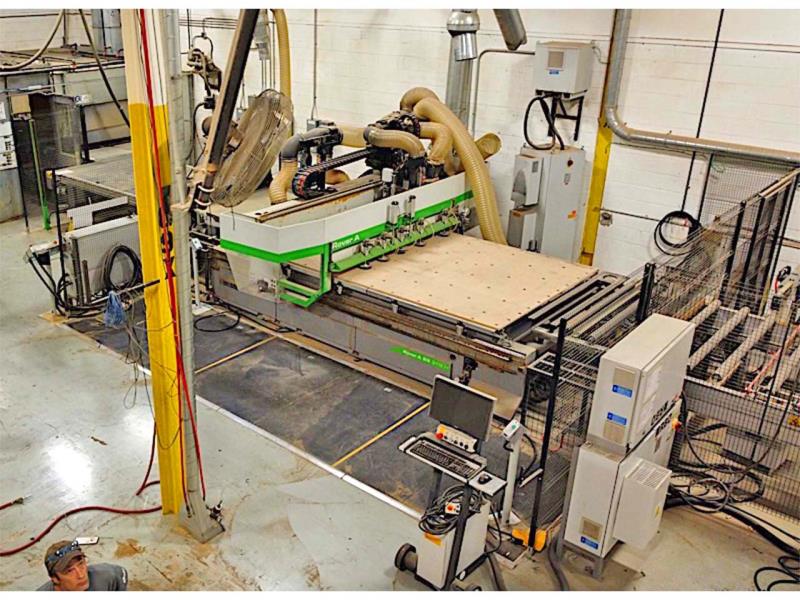

Biesse #Rover-A-2231, CNC Router, 122" X, 86.6" Y, 12.7" Z, 4.7" Thickness, 262 FPM, 600 V., 2011

Estimated monthly payment valid upon approved credit.

Request Formal Quote

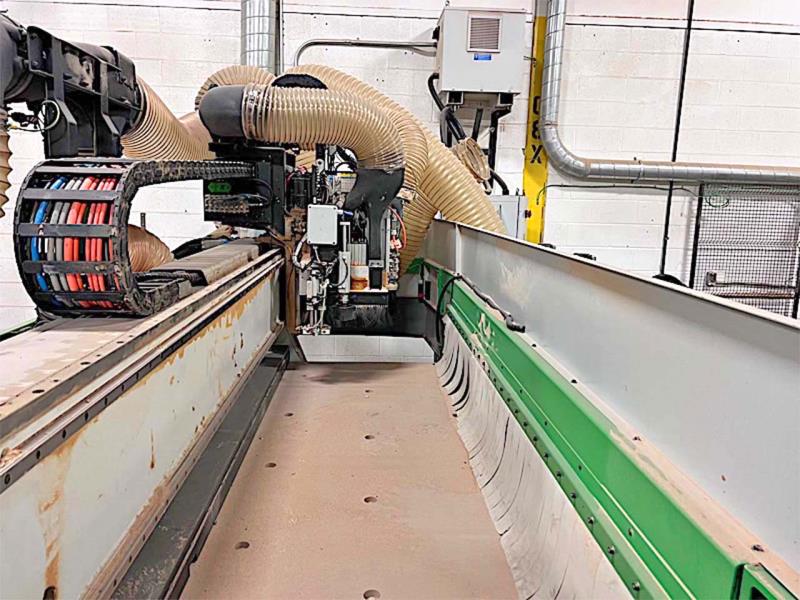

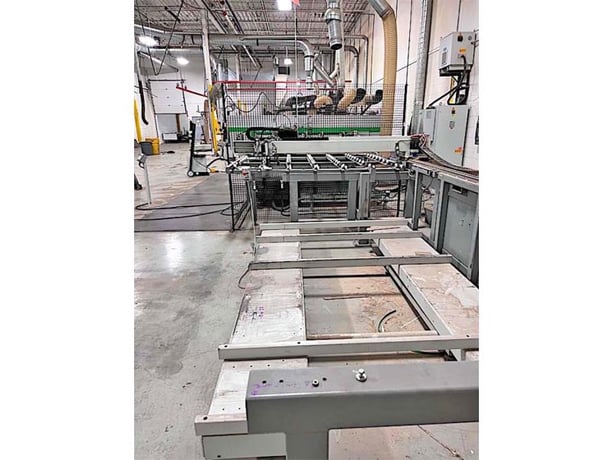

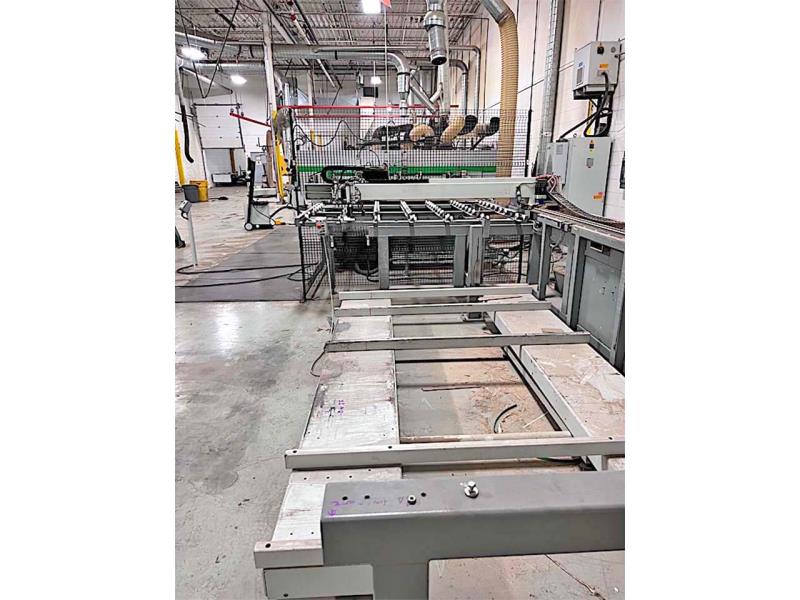

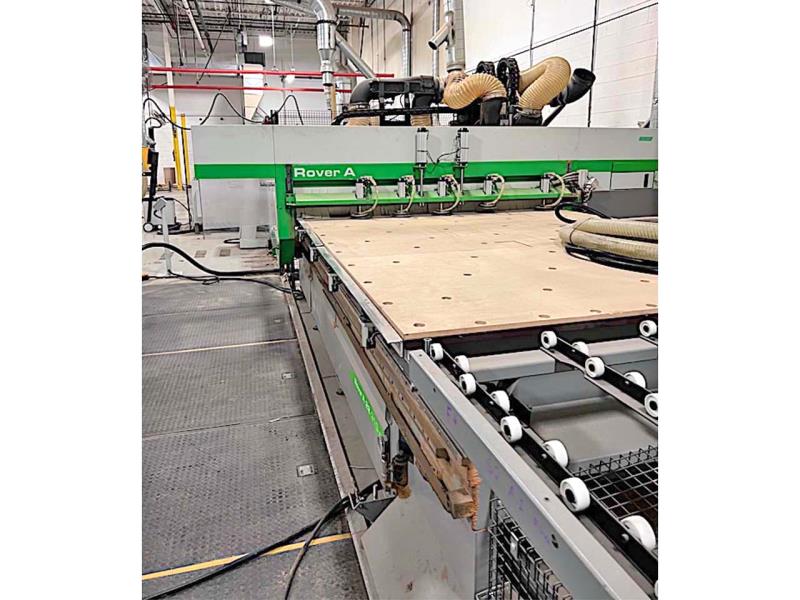

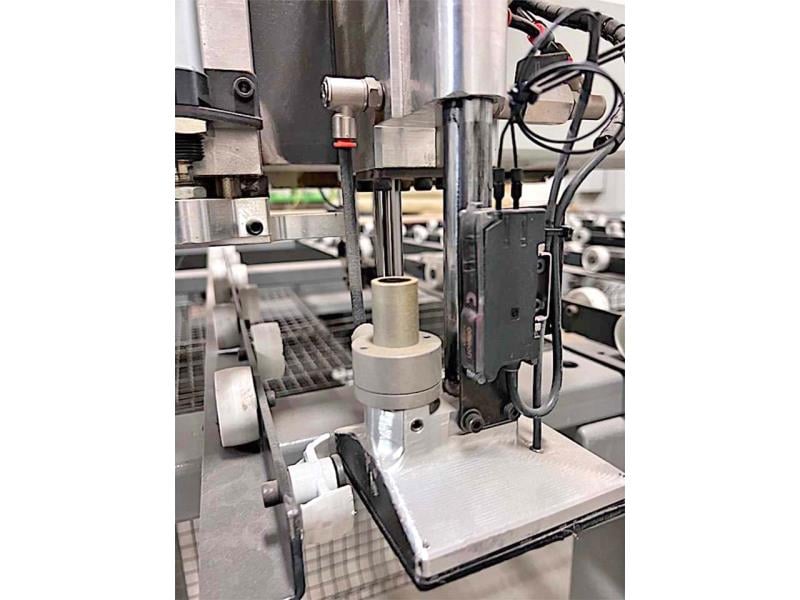

BIESSE ROVER A 2231 G FT FLAT TABLE MACHINE (W/LOADING, UNLOADING): -- Specifications:7' x 10' "Matrix" grid Phenolic surface for "Nested Base Manufacturing". -- Working Capacity: "X" Axis 122 (3,100 mm), "Y" axis 86.6" (2,200 mm), "Z" axis stroke is 12.7" (325 mm), max. material thickness 4.7" (120 mm). -- Positioning Speed: "X" axis 262 FPM (80 MPM), "Y" axis 197 FPM (60 MPM), "Z" axis 66 FPM (20 MPM). All axes movement is on precision linear guides & ways and controlled by digital, brushless AC Servo motors.All motion components are maintained by an automatic lubrication system. "X" & "Y" Axes use a precision rack & pinion system; "Z" axis uses precision ball screws. -- Work area:Flat table design with HI-FLOW, multi-zone Matrix" grid Phenolic surface for "Nested Base Manufacturing".Automatic NC controlled zoning of the vacuum table with (9) individual zones.(2) Pneumatic "side" pop-up reference stops, (4) pneumatic "back" pop-up reference stops, & (6) pneumatic "front" pop-up reference stops.Prepared for (optional) "quick fit" vacuum outlets for optional clamping of small or awkward shaped parts; with "quick connect" vacuum outlet for custom vacuum pods & fixtures. -- Boring Unit:(1) 2.5 HP (1.7 kW) Motor, variable speed up to 6,000 RPM: Boring block with (10) independent vertical spindles, (7) in "X" axis & (3) in "Y" axis;(1) "X" axis grooving saw for max 120 mm dia blade. -- Machining:(1) 18 HP (13.2 kW) Air cooled HSD Electro Spindle with HSK 63 adaptor, variable speed from 1,000 - 20,000 RPM.(1) 8-position ATC tool changer plate located at the back of the machine base.NC controlled presetting for the measurement of the tool length. -- Operator & Machine Control:PC Front-End with: BIESSE XP 660 + BiesseWORKS + WINDOWS WRT operating system.17" TFT Flat screen monitor; server, full keyboard, & mouse all mounted on a mobile cart; Ethernet connection capabilities.BiesseWORKS Graphic interface makes full use of the operating methods typical of the WINDOWS operating system: Assisted graphic editor used to program machining operations; programming, and guided creation of parametric macros.Import of CAD and other external software files in DXF & CID3 format; 3D simulation of the tool path, calculation of machining time & the ability to create rotate virtual faces. -- Complete with:(1) 900 m/Hr Vacuum Pump; Safety mats & fencing; Tool touch-off probe for automatic program update according to the tool length.Automatic Lubrication System for linear guides, rack & recirculating ball screw. Tele-Service capabilities. -- Options Include: ● (1) NC Controlled infeed Scissor Lift table with vacuum loading; ● (1) Rake system; ● (1) NC controlled & powered belt outfeed table with vacuum sweeping system; ● (1) Additional NC controlled powered belt outfeed table; ● Bar code label printer. -- Actual Model is BIESSE ROVER A 2231 G FT
