Bescutter fiber laser cutting machine, 10000 watt, ANCA Control system w/nesting function, water cooled, 3 KW dust exhausting fan, new

Manufacturer: Bescutter
Watt: 10000

For Sale by Worldwide Machine Tool

Silver Level Dealer
Surplus Record Dealer Since 2011

Description

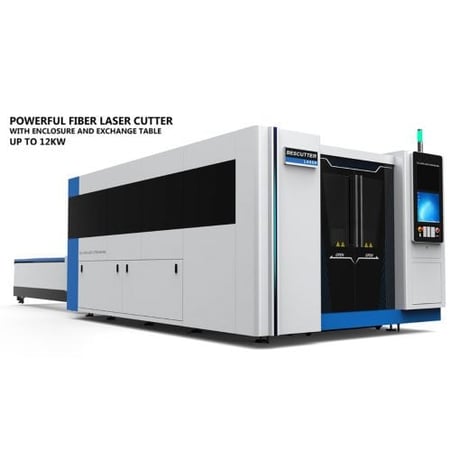

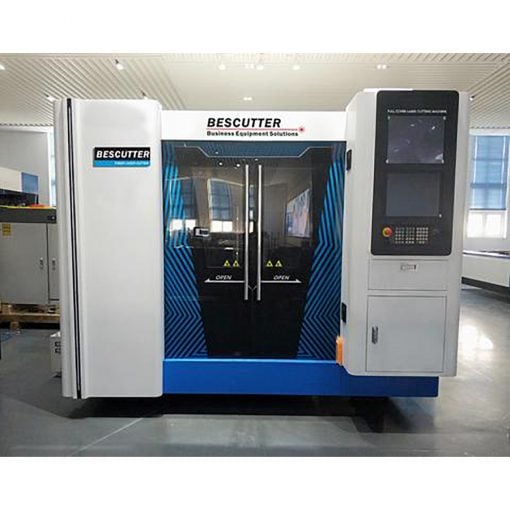

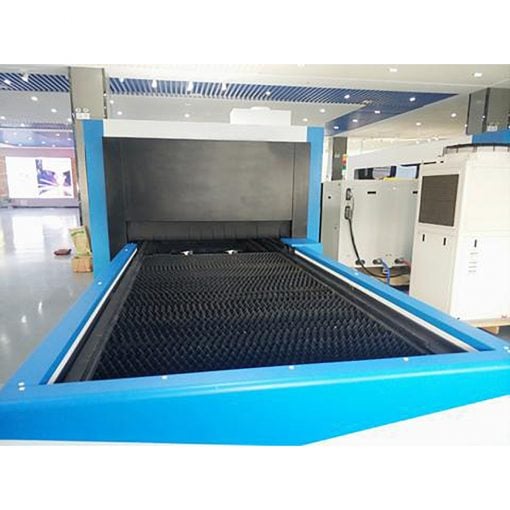

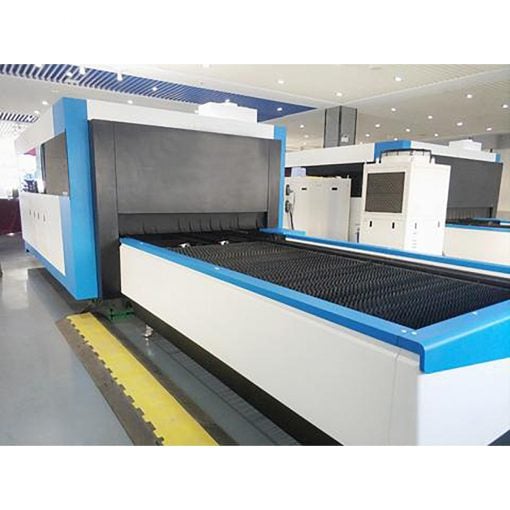

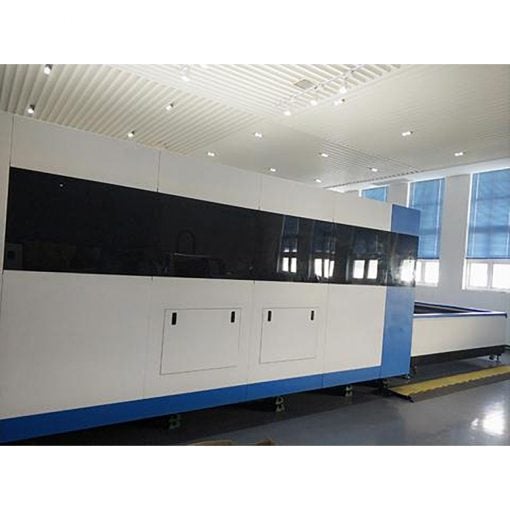

10,000 Watt New Bescutter Fiber Laser Cutting Machine Model Titan 3015 RC10,000 for sale. BESCUTTER Titan series fiber laser cutting machining is our advanced laser cutting system with full enclosure and exchange table. The fast cutting, energy efficiency and low maintenance add more value to the machine.
Efficient, Reliable User Friendly, Ergonomic
Globally recognized high performance components
Precise and efficient cuts on both thick and thin metals
Perfect results on variety of material
Long Durability
10,000 Watt New Bescutter Fiber Laser Cutting Machine Model Titan 3015 Specifications:
TITAN 3015 Table RayCus 10000W
Working size 1500 X 3000mm (59" W x 118" L)
X-axis Travel 1500mm (59")
Y -axis Travel 3000mm (118")
Z -axis Travel 218mm (8.6")
Laser Power 10,000W
X/Y Axis Positioning Accuracy ±0.05mm/m
X/Y Axis Repeated Positioning ±0.02mm
Maximum Velocity of Movement 169m/min (6654"/min)
Machine weight 9525kg (21,000 lbs)
Outline size 8509 x 2845 x 2489 mm (335" x 112" x 98")
Laser Generator RayCus RFL-C10,000W
Laserhead PRECITEC (auto focus)
Controlling System ANCA Control System with Nesting Function
Electromechanical SCHNEIDER
XYZ Servo Motors ANCA Y 2x7200W, X 1x4200W, Z 1x1500W
Reducer Motavario
Water cooling TEYU CWFL-10,000
Dust exhausting fan 3KW
Energy Chain Jin Fu Long
Peumatic Control SMC or AIRTAC
Industry Computer Advantech
10,000 Watt New Bescutter Fiber Laser Cutting Machine Model Titan 3015 Features:
Motorized focus position adjustment for automatic machine setup and piercing work.
Lightweight and slim design created for fast acceleration and cutting speed.
Drift-free, fast reaching distance measurement.
Permanent protective window monitoring.
Automated piercing with Pierce Tec.
Water cooling of the sheet metal with Cool Tec.
Completely dustproof beam path with protective windows.
LED operating status display
Output of all sensor data via WLAN to APP and machine control possible.
Pressure monitoring in the nozzle area (gas cutting) and in the head.
ANCA laser cutting application software supports advanced features such as ramping frequency and duty
during piercing, fast and reliable height following control, laser head protection during all operations, ability to
start from any item on the part, and can cut 1,200 holes in one minute.
Independent Power Distribution Cabinet, preventing electrical Interference.
Benefits of The ANCA Motion Solution
Built in support for gantry axis configurations
Several modes of height control are available including fully programmable Z positions and height sensors
Interface with laser systems including power ramping for improved corner cutting
Track the cutting profile in real time, Start a job from any point
Interrupt and restart job, restarting from any pierce point or simply the previous or next pierce point
Operator override of gas pressure or laser power
Sheet qualification cycle to find plate edges and alignment
Customizable soft PLC for control of auxiliary devices
Combined graphical user interface and CNC for improved productivity
Modern interface with easy to use Commander software on our AMI5000 Touch Pad HMI
Complete platform operates on Microsoft® Windows providing flexibility and easy integration.
Network connectivity included on all CNC platforms allowing easy file transfer and remote diagnostics
Patented MPG allowing incremental motion along programmed path, either forwards or reverse
Motion control and planning for accurate high-speed cutting
High speed traversing and positioning regardless of machine size
Fly cutting, including line and arc scanning
Ping-pong movement for repositioning
Support for automatic focal adjustment
Shape library, convenient access to predefined shapes without requiring separate CAD/CAM system
Easily translated in any language required for different customers
Able to meet your Industry 4.0 requirements
