For Sale by Southern Fabricating Mchy Sales
Description

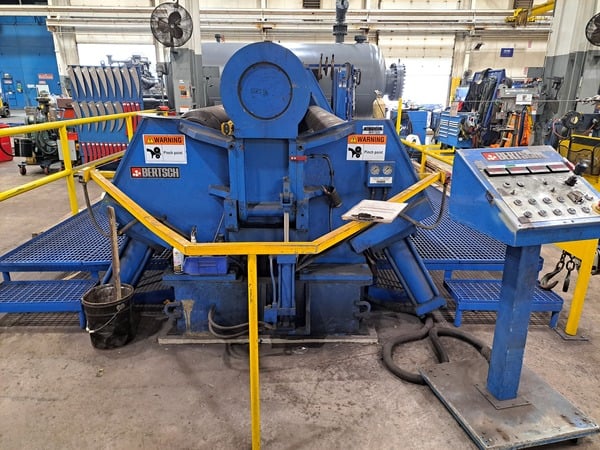

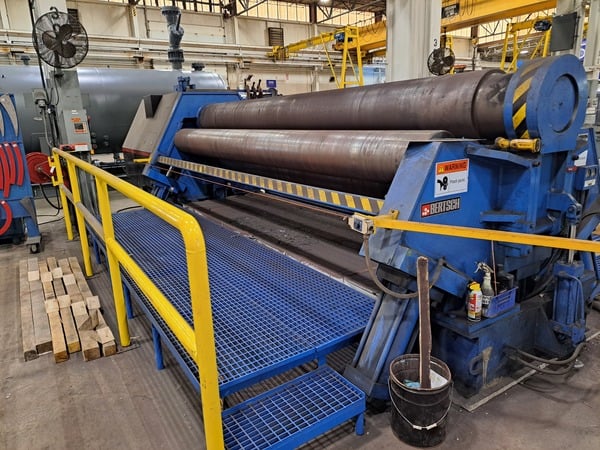

3/4” X 15’ Plate Rolling Machine with Digital Readout on Control Pedestal, Safety Line Around Machine and Hydraulic Drop End for Part Removal
GENERAL SPECIFICATIONS
Rolling Capacity Nominal Thickness: .75″ x 15′
Rolling Capacity Maximum Thickness: .865″ x 15′
Rolling Capacity @ 70% Length: 1.024″ x 7′
Rolling Capacity @ 30% Length: 1.563″ x 3′
Maximum Rolling Length: 180″
Top Roll Diameter: 18″
Bottom Roll Diameter: 17″
Motor, Main: 30 HP
Electrics: 460/3/60
Approximate Machine Dimensions: 264″ x 87″
Approximate Machine Height: 96″
Approximate Machine Weight: 56,000 LBS

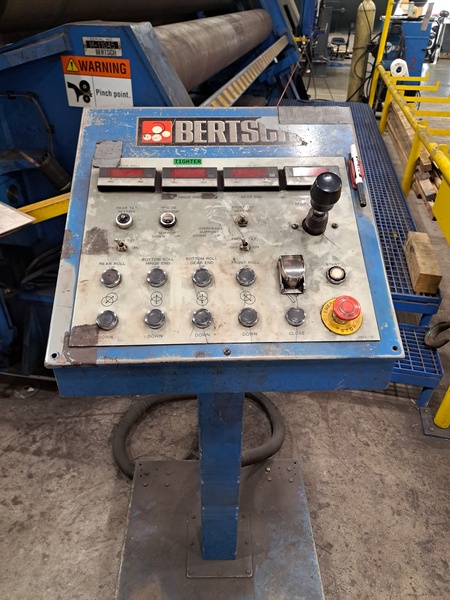

INCLUDES: Digital Readout on Control Pedestal, Safety Line Around Machine and Hydraulic Drop End for Part Removal.
***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
