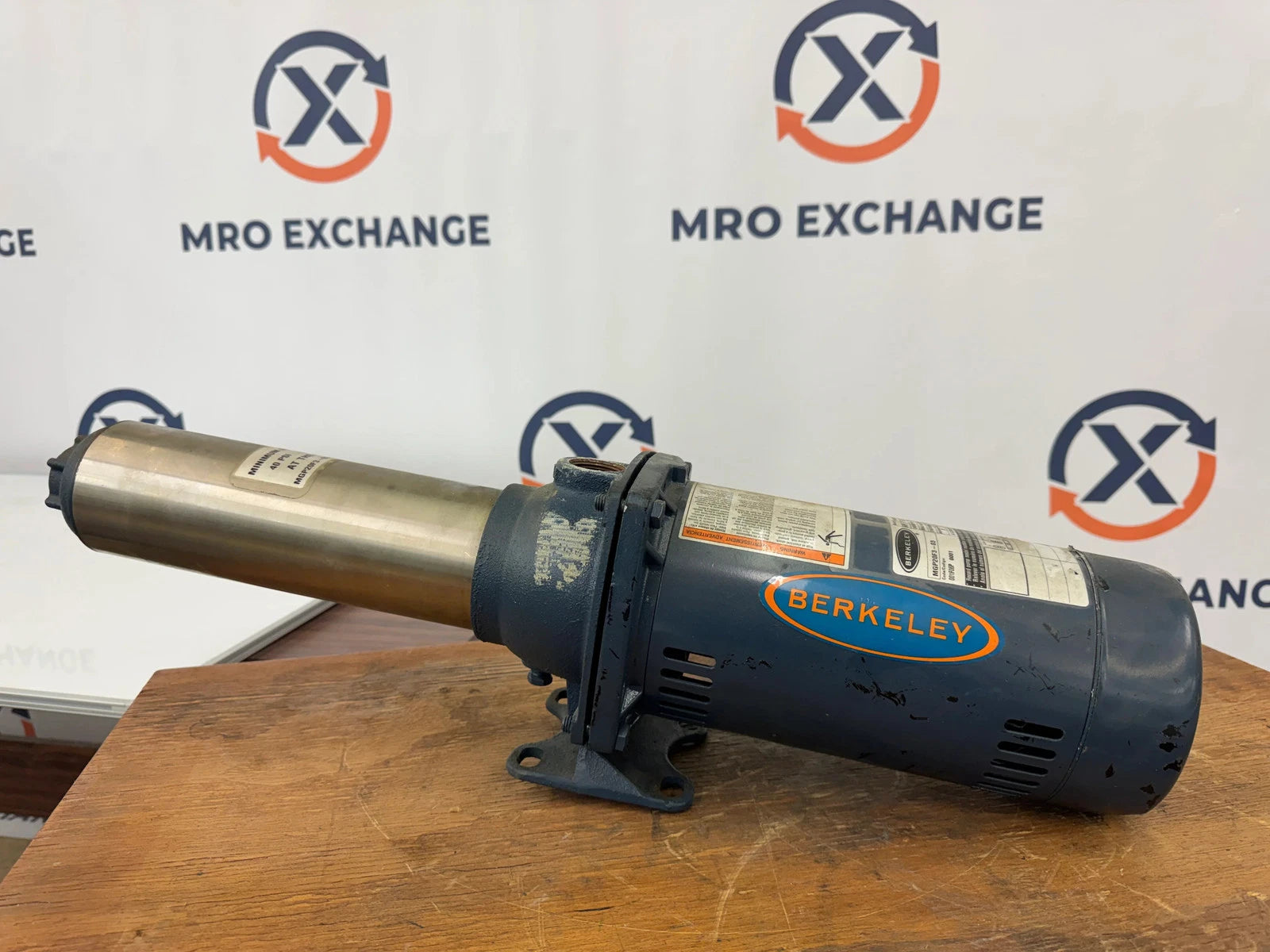

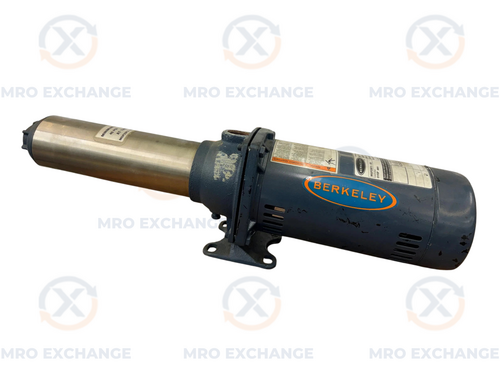

Berkeley MGP20F3-03 Centrifugal Booster Pump

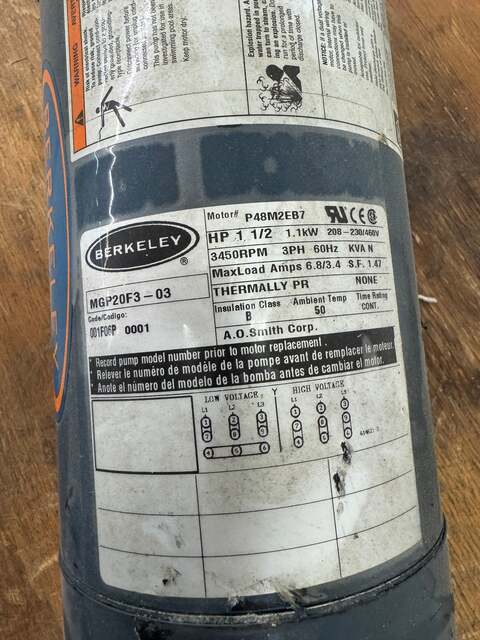

The Berkeley MGP20F3-03 is a close-coupled, multi-stage, high-pressure centrifugal booster pump rated at 20 GPM and 1-1/2 horsepower. The unit is driven by an A.O. Smith Corp motor, model P48M2EB7, rated at 1.1kW, 208-230/460 volts, 3-phase, 60Hz, 3450 RPM, with a service factor of 1.47 and maximum load amps of 6.8 at low voltage and 3.4 at high voltage. Insulation class is B with a 50-degree Celsius ambient temperature rating. The motor winding configuration supports dual-voltage operation per the terminal diagram on the nameplate. The MGP series features Berkeley's proven SignaSeal floating impeller design, which minimizes thrust loads to protect motor bearings and mechanical seal components during continuous operation. The pump column is stainless steel construction as visible in photos, with a cast iron motor adapter and base. The pump features 1-inch NPT suction and discharge connections. Typical applications include pressure boosting for pressure washing systems, reverse osmosis and filtration systems, HVAC booster service, spray systems, and general industrial fluid transfer. The unit shows visible signs of use including paint wear on the motor housing and pump adapter. Specifications sourced from nameplate data confirmed in photos and Berkeley MGP series published documentation.

Stock # 0226-327
