Description

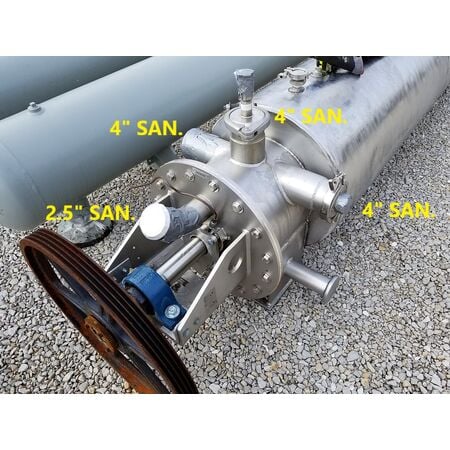

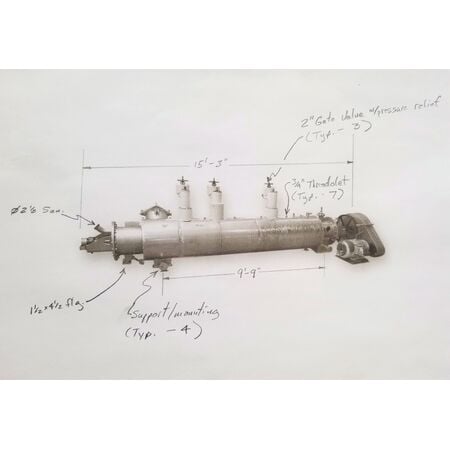

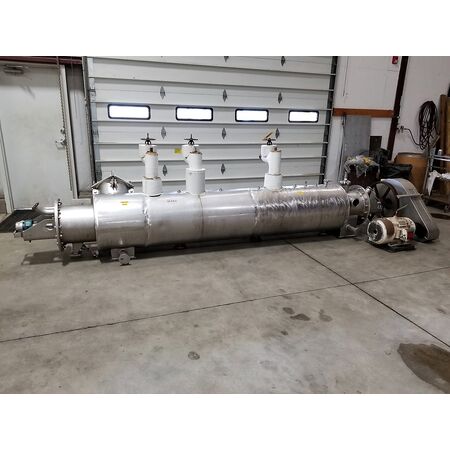

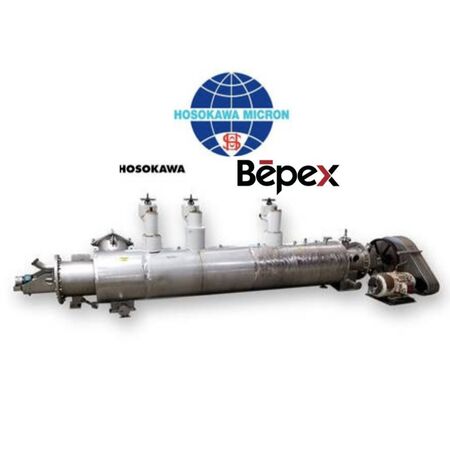

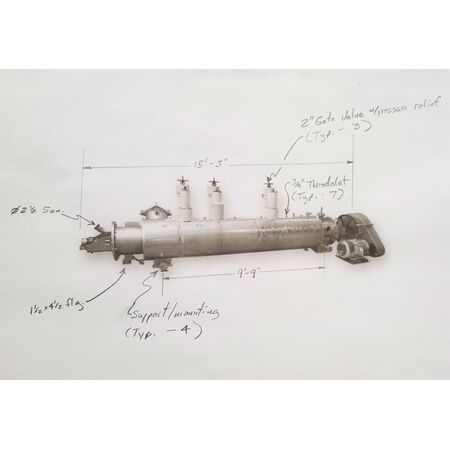

Used Stainless Steel Bepex Solidaire Fluidizing Paddle Dryer Cooler SJS-16-10 The Solidaire paddle dryer system is a continuous, thin-layer paddle-dryer that provides extremely efficient thermal treatment. Ultra-high thermal efficiency High speed paddles break up loose agglomerates without particle size attrition Paddles can be adjusted to control residence time Bepex Solidaire Dryer Cooler Model No: SJS-16-10 Serial No: SJS 98005581 Maximum Pressure: Body - 5 PSIG @ 365 F, Jacket - 150 PSIG @ 365 F Minimum Metal Temp: 70 F @ 5 PSIG, Jacket - 70 F @ 150 PSIG Jacket Thickness: .188 Shell Thickness: .250 15 HP Reliance Motor: 230/460 Volt, 1765 RPM, 3 Phase, Frame: 256TC 2-3/4" product inlet. The paddles are oriented 180 apart, staggered. (2) rows (2) rows with paddles spaced every 3.25". Totaling (94) paddles. Paddles have adjustable angle via the treaded ends and the lock nut. Please refer to the .pdf manual.
used beltomatic belt dryer/dehydrator, model 205bx. approximate web 6' wide x 12' length. effective square foot area 60. 2 million btu rating per hour, 7,500 maximum cfm. capable temperature of 295 degrees f, 5-7 psi. maximum 300lbs water evaporation. fines conveyor in the bottom of dryer. adjustable leveling ...more
Used approximately 20" diameter X 20" face Blaw Knox chrome plated single drum dryer, serial #15868. Manual scraper discharge. Has jacket feed pan. Belt driven by 1.5 HP US varidrive, 3/60/230/460 volt, 900 rpm, rated 39.4:1 ratio, 5.4 rpm min, 54 rpm max. Drum mounted on outboard bearings. Has hood, 12" X 30" side ...more
MODEL. RS335, SERIAL. 91400656, PUMPS (2). ARMSTRONG MODEL 4030BF, SIZE 3 X 1.5 X 13, SERIAL'S 167841 & 167842, 170 GPM, 170 FT. HEAD, TANK SIZE. 48" X 42" X 40" HIGH, MOTORS (2). 15 HORSEPOWER, SKID MOUNTED,OVERALL DIMENSIONS. 4' X 10' X 8' HIGH, MOTOR STARTERS AND CONTROLS. YES.
Complete stainless steel rotary drying system composed of dual (2) 13 X 60 stainless steel triple-pass rotary drum dryers. System includes trunnions and drives, controls, motors, 70 million btu natural gas burners with max thermal output of 42.200.000 kj/h, discharge cyclone, multi-clones, fans with motors, stack, all ...more
