Benteler #PROCESSING LINE, automotive glass, 2003

$289,500 USD

Request Formal Quote

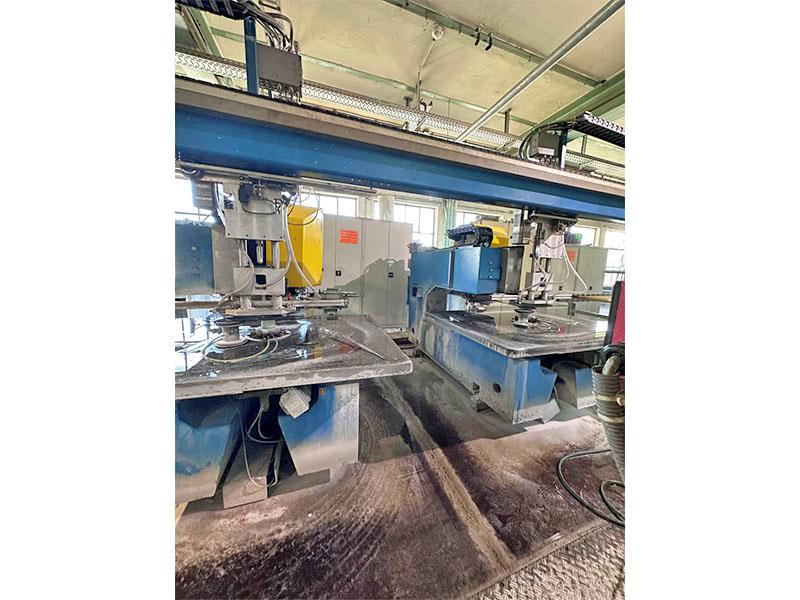

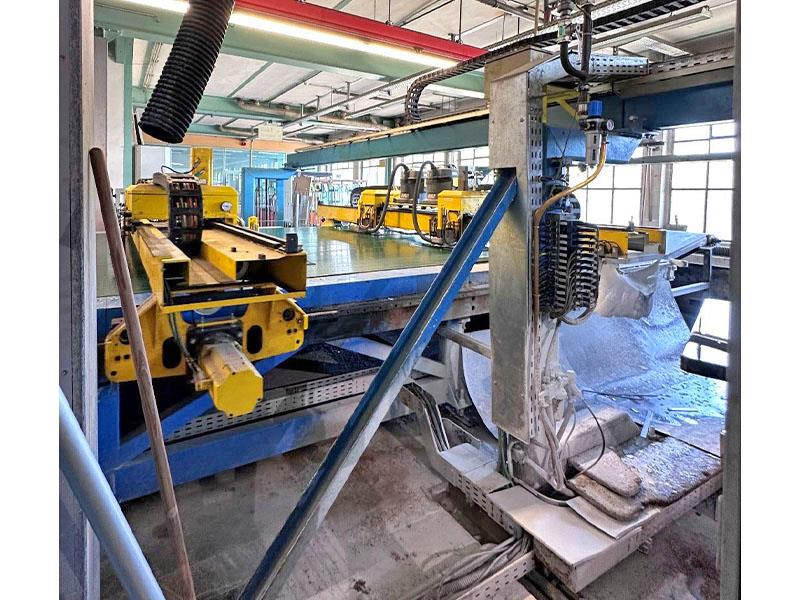

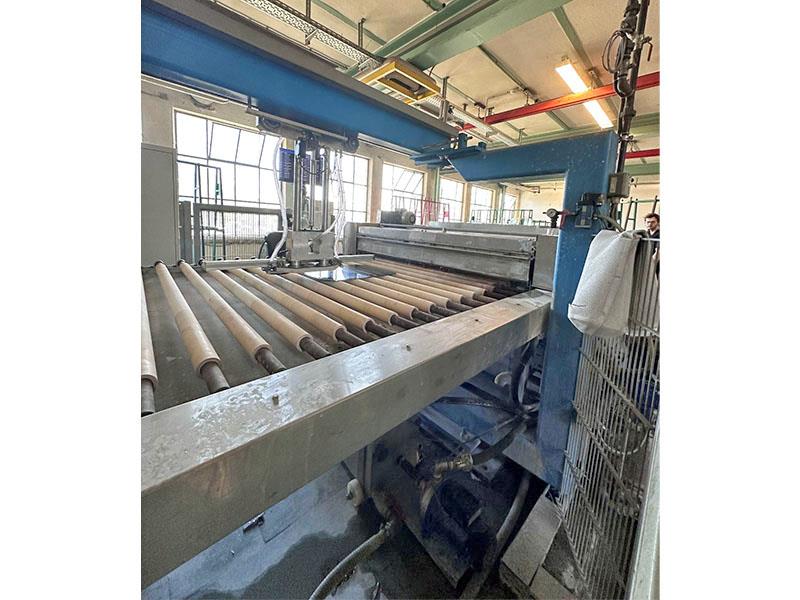

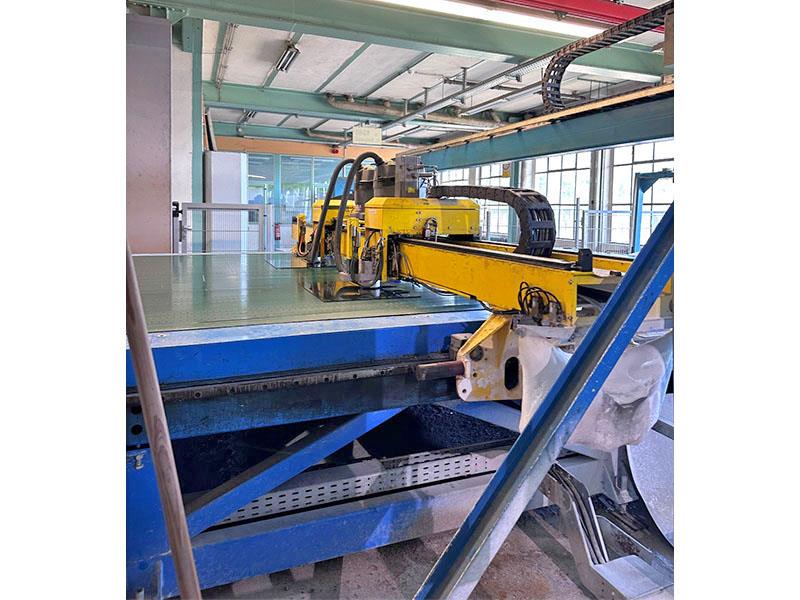

BENTELER: Fully Automated CNC - Cut, Break, Grind (CBG) Line for Automotive & Appliance GlassFully Automatic Glass Processing Plant designed for: High production feeding; cutting; breaking; grinding edges; drilling; milling cutouts; washing. This Line is Product-Specific for the highly efficient & precise: Cutting; breaking; grinding; drilling of backlites; appliance glass & solar glass. It is particularly suited for "High Volume" production. Line Consists of following Components: ● BENTELER - DCMC Glass Cutting & Breaking Machine. ● BENTELER - DCNC Cylindrical Glass Grinding & Polishing Machine. ● BENTELER - Shuttle Transport System. ● BENTELER - Horizontal Washing Machine with: Inlet & outlet conveyors. ● BENTELER Water Filtration.Specifications & General Process DataSingle Primitive ProductionRaw glass length max.: 1,300 mm.Raw glass width max.: 2,300 mm.Min. pane dimension (raw glass): 200 x 330 mm.Min. pane dimension (finished size): 170 x 300 mm or max. combination: 1,600 x 1,350 mm.Grinding of panes without cutting possible with dimensions: 1,480 x 1,670 mm.Max. diagonal (max. grinding diameter): 2,240 mm.Diagonal (max. grinding diameter): 2,240 mm. Max. glass weight: 350 N. Double Primitive ProductionMax. Pane dimensions (raw glass): 1,250 x 1,350 mm.Min. pane dimension (raw glass): 200 x 330 mm.Min. pane dimension (finished glass): 170 x 300 mm. Processing diameter max.: 2,240 mm.Processing diameter min.: 170 mm.Glass sheet thickness: 1.5 - 8 mm.Max. glass weight: 350 N. Sound level: <80 dB (A).Features ● Fully automatic processing of Specialty Glass. ● High volume productivity. ● Small setup times. ● Storage of machine parameters. ● Programmable panel dimensions via central operations panel.NOTE: Very good condition & ready for immediate shipment.NOTE: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full-Service Logistics"; from Overseas Suppliers to your Door. …Packaging; Container Loading; Ocean Freight; Marine Insurance (door to door);US or Canadian Customs; Duty and domestic shipping to your Plant Door.
