Description
Description
Belmont 3.5 KVA ZNC EDM Drilling Machine
Inventory # 10109
S/N: D98BBZ26005
Hours: 1,206.14
Specifications:
Max. Workpiece Size: 17.72″ x 11.81″ x 11.81″ (450mm x 300mm x 300mm)
Max. Workpiece Weight: approx. 331 lbs. (150 kg)
CNC X / Y Travel: 11.02″ / 9.06″ (280mm / 230mm)
ZNC X / Y Travel: 11.81″ / 9.84″ (300mm / 250mm)
Z Travel: 13.78″ (350mm)
Machine Head Movement: 4.72″ (120mm)
Electrode Pipe Diameter: 0.012″ ~ 0.118″ (0.3mm ~ 3.0mm)
Fluid Capacity: 5.28 Gallons (20 Liters)
Dielectric Fluid: Water
Max. Input Power: 3.5 KVA
Max. Machining Current: 30 A
Motor: 220v / 3ph
Mechanical Specifications:
Dimensions: 45″ x 55″ x 80″ H
Weight: approx. 1,985 lbs.
FOB Our Baltimore, MD Warehouse
Related
Get Your Price from Norman Machine Tool Ltd!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!

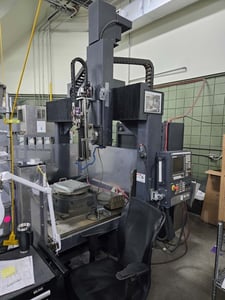

Current Electrical Discharge Machine #RT6050, 5-Axis CNC Electrical Discharge Drilling Machine, 60" X, 50" Y, 16" Z, 60" x 50" table, Siemens Sinumerik control, 2011
