Bavelloni #Max-60-CNP, Straight Line Vertical Glass Bevel Machine, 13-Spindle, 1.6" x 1.6" min. glass size, 0.12"-1" glass thickness, 33" working height, 0.5-4.1 m/min, 2000

Estimated monthly payment valid upon approved credit.

Request Formal Quote

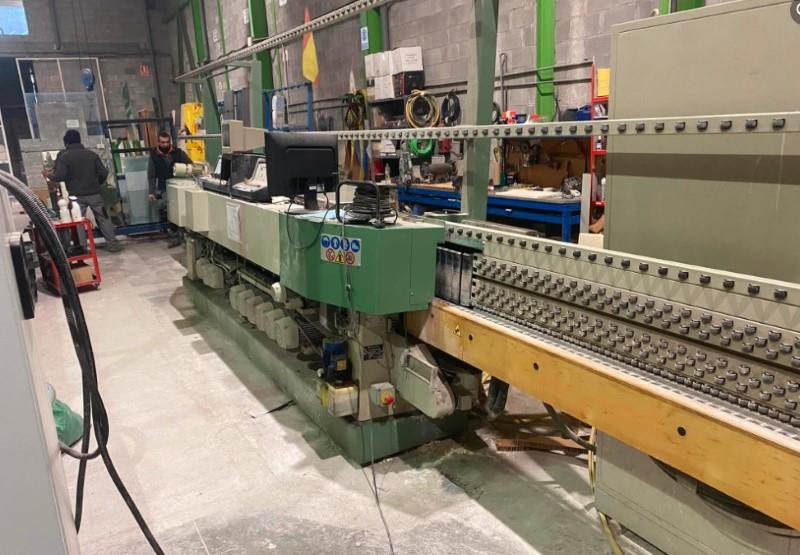

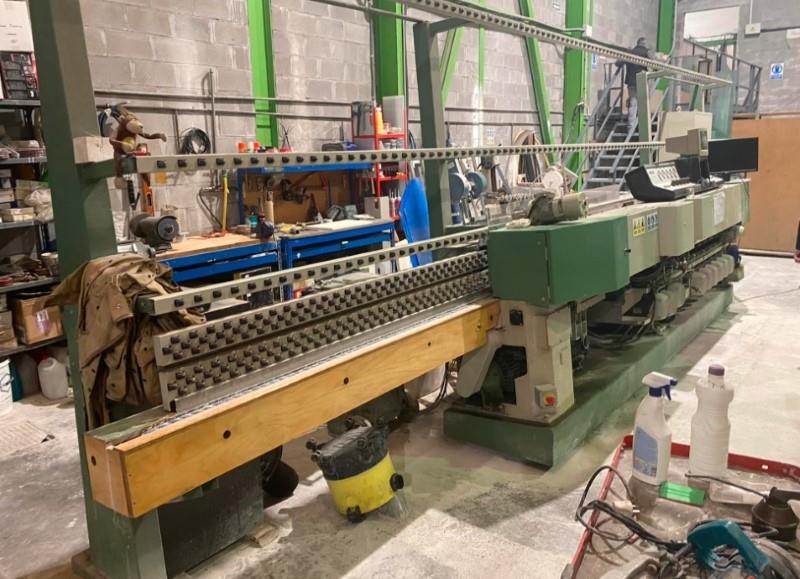

BAVELLONI MAX 60 CNP Straight Line Vertical Glass Beveling Machine

CNC controlled vertical straight line beveller with (13) spindles. The machine is geared toward high production with read outs placed on the control panel to set adjustments of glass thickness, bevel inclination and edge thickness in order to process the desired bevel.

Wheel Configuration:
Pos. 1 Diamond wheel CUP CC
Pos. 2 Diamond wheel CUP CC
Pos. 3 Resin Diamond Wheel CUP CC
Pos. 4 Resin Diamond Wheel CUP CC
Pos. 5 Resin Diamond Wheel CUP CC
Pos. 6 Resin Diamond Wheel CUP CC
Pos. 7 Polishing Arris Wheel CUP CC
Pos. 8 Felt Wheel FE CC
Pos. 9 Felt Wheel FE CC
Pos. 10 Felt Wheel FE CC
Pos. 11 Diamond Wheel CUP CC
Pos. 12 Polishing Wheel CUP CC
Pos. 13 Diamond Arris Wheel CUP CC

Specifications:
● Spindles: 13
● Min. glass size: 40 x 40 mm (1.6" x 1.6")
● Glass thickness: 3 - 25 mm (0.12" x 1")
● Bevel angle: 3- 45
● Max. bevel: 60 mm (2.36")
● Feed speed : 0.5 - 4.1 m/Min.
● Working height: 840 mm (33")

NOTE: In good condition & ready for production.

NOTE: Price includes “Full Service Logistics” from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
