Description

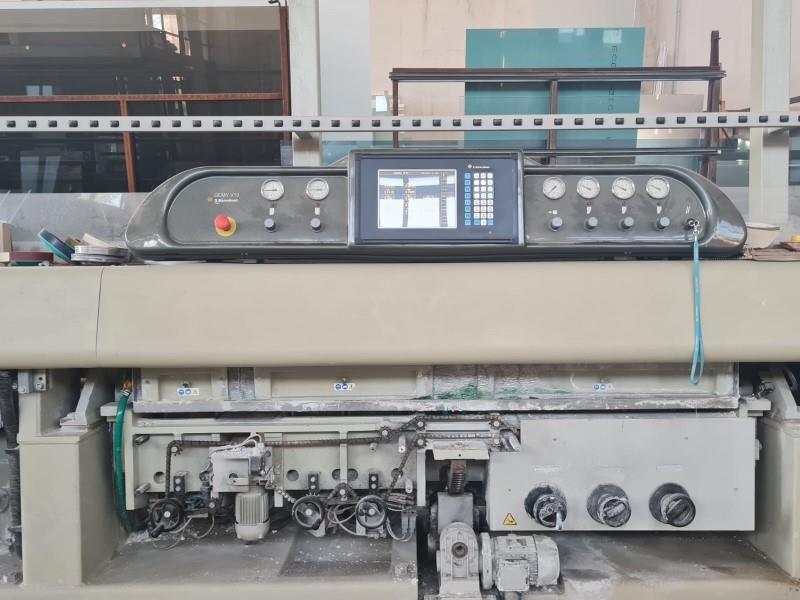

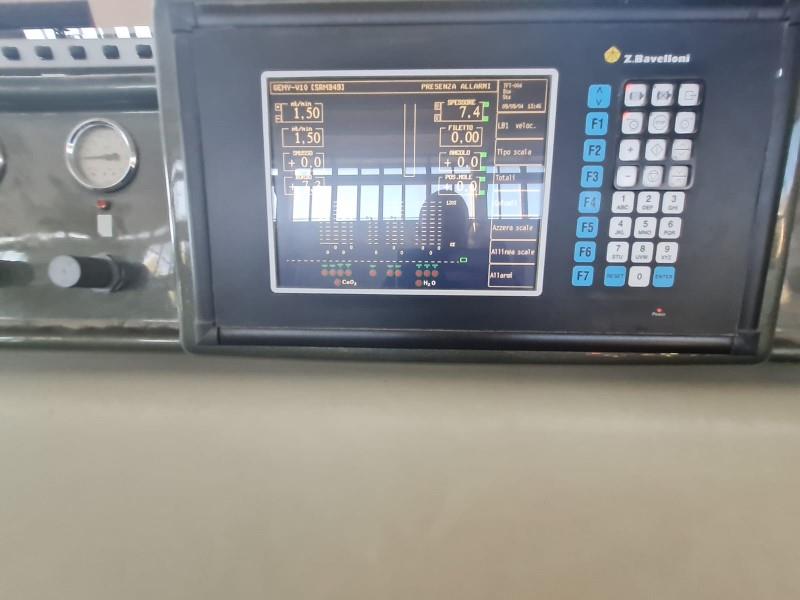

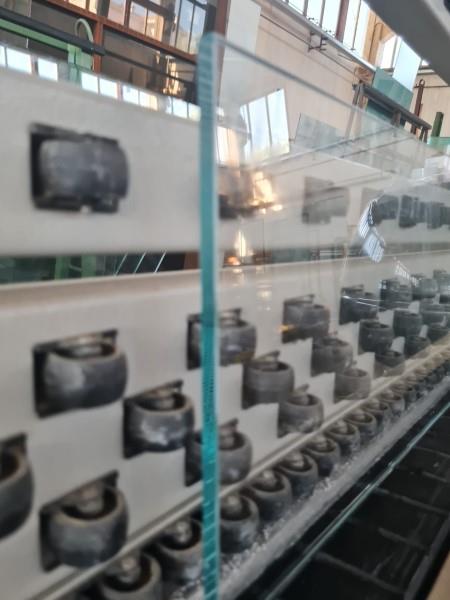

BAVELLONI - GEMY V10: Straight-Line Edging Machine 10-Spindle Vertical variable-angle, straight line edging, and mitering machine. It is possible to execute both flat edge and a slanted edge simultaneously from 0 to 45 with side arrises.Machine features: Patented sliding Conveyor without ball bearings that provides high-performance and extremely low-maintenance. Full-featured CNC enables full management of the machine's functions in an easy intuitive manner. Wheel Configuration(3) Diamond wheels (150 mm) for flat edge.(2) Polishing wheels.(1) Polishing wheel with Cerium.(2) Diamond wheel (150 mm) for arrises.(2) Polishing wheels (150 mm) for arrises.Specifications ● (10) Spindles. ● Right-to-left operation. ● Feed: 0.5 - 5.5 MPM (1-1/2 - 17 FPM). ● Glass thickness: 3 - 51 mm (2"). ● Min. glass height: 70 mm (2-1/8"). ● Working height: 812 mm (32"). ● Power: 27 kW.Overall dimensions: 8,800 x 2,100 x 2,300 mm (346" x 83" x 91").Weight: 3,330 kG (7,350 Lbs).NOTE: Machine in good working order; under power; available for immediate shipment!NOTE: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full-Service Logistics"; from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty, and Domestic shipping to your Plant Door!
