Description

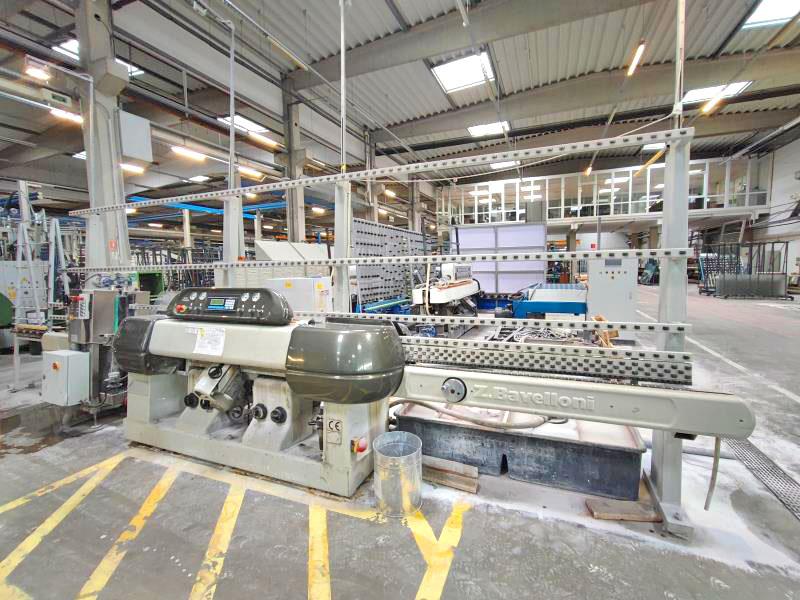

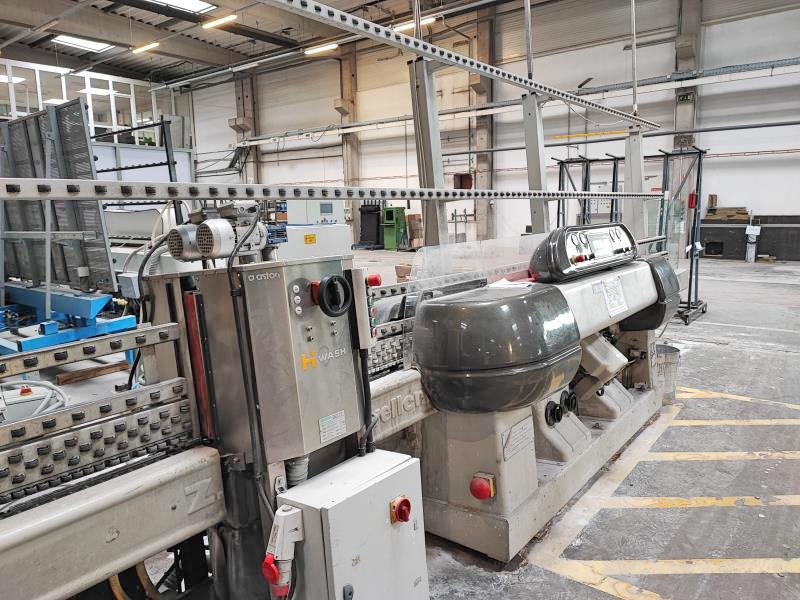

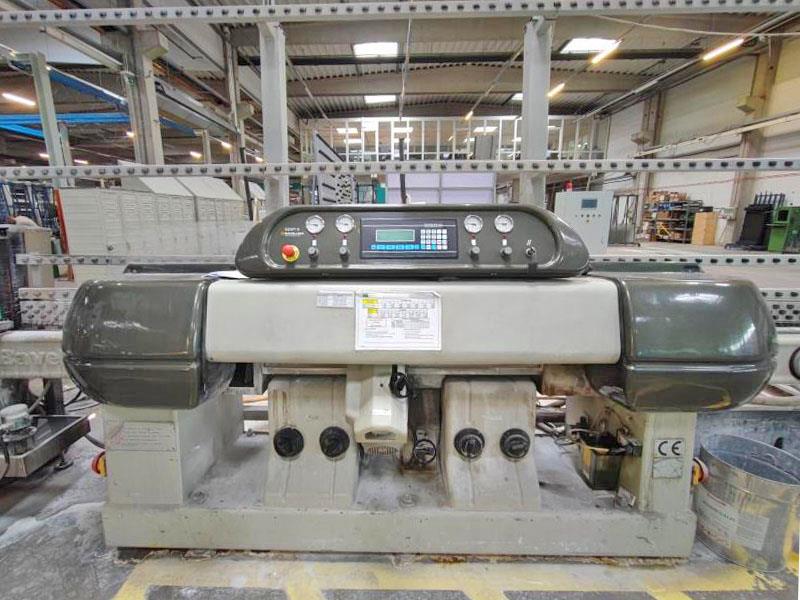

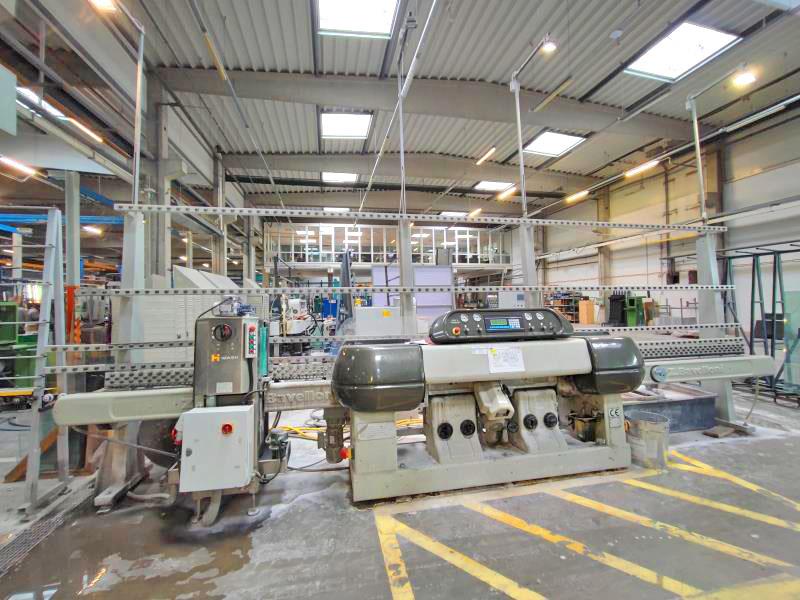

BAVELLONI GEMY 6 Straight-Line Edging Machine (6) Spindle Vertical Straight Edging machine for the processing of flat edge and arris with cerium oxide polishing on the edge.Chamfering spindle able to cut the corners from sheets while the edging operation is being performed. It can be used to temper glass, and generally when the rounding off of corners is required. The PATENTED system allows 45 corners to be executed perfectly, also at maximum speed (5 m/min), and guarantees the evenness of the 4 corners.Wheel Configuration:(2) Diamond wheels (150 mm) for flat edge(2) Polishing wheel (150 mm) for flat edge(2) Resin wheel (150 mm) for arrisFeatures: ● Motorized positioning of oscillating unit & spindles ● Adjustable conveyors made with anti-friction material & replaceable rubber pads ● Low maintenance, low vibration belt drive spindles ● Ability to work laminated glass ● Variable speed spindles and conveyor ● CNC controlled with 10.4 TFT display ● Ability to store up to (99) different work configurationsSpecifications: ● Number of spindles: (6) ● Operation: Right to left ● Feed: 0.5 - 5 m/min. ● Glass thickness: 3 - 35 mm ● Min. glass height: 35 mm ● Power: 16.5 kWDimensions: 6700 x 1300 x 2300 mmWeight: 2600 KgNOTE: Machine is in very good condition and under power, in production. Ready for immediate shipment.NOTE: EX-FACTORY's Logistic Department is experienced and setup to provide “Full Service Logistics"; from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
