Tumble Basket Sandblast System

This industrial automatic basket sand blast system with cyclone separator and dust collector is the perfect solution for those looking for an efficient and effective way to automatically blast parts. This also has a manual blast hose with foot pedal for regular hand blasting. The system is designed to provide a uniform and consistent blast pattern, ensuring that the media blasts exactly where you need it to. The cyclone separator and dust collector work together to remove excess dust and debris from the air, keeping your workplace clean and free from dust particles.

This system is a reliable and durable option for any business or industrial application.

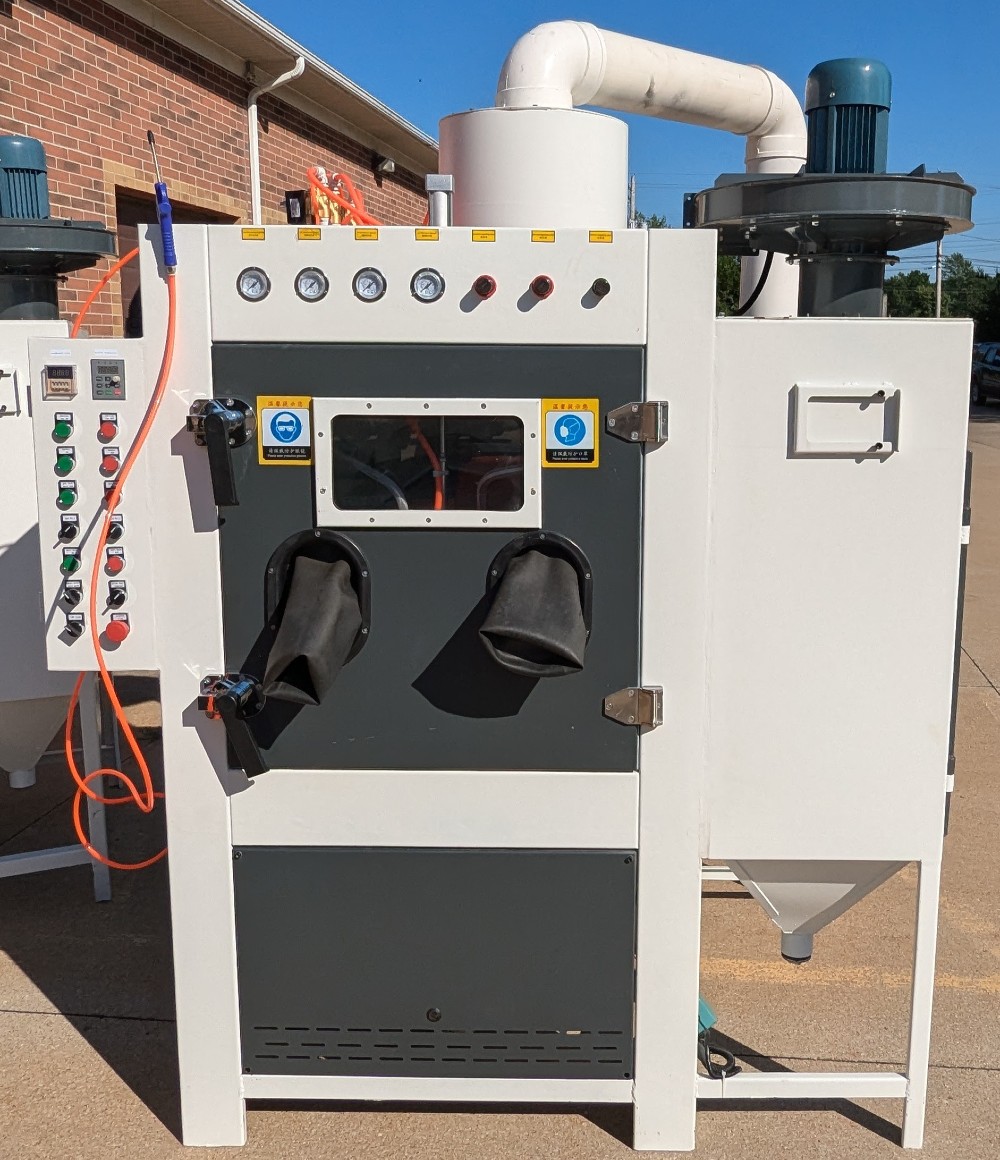

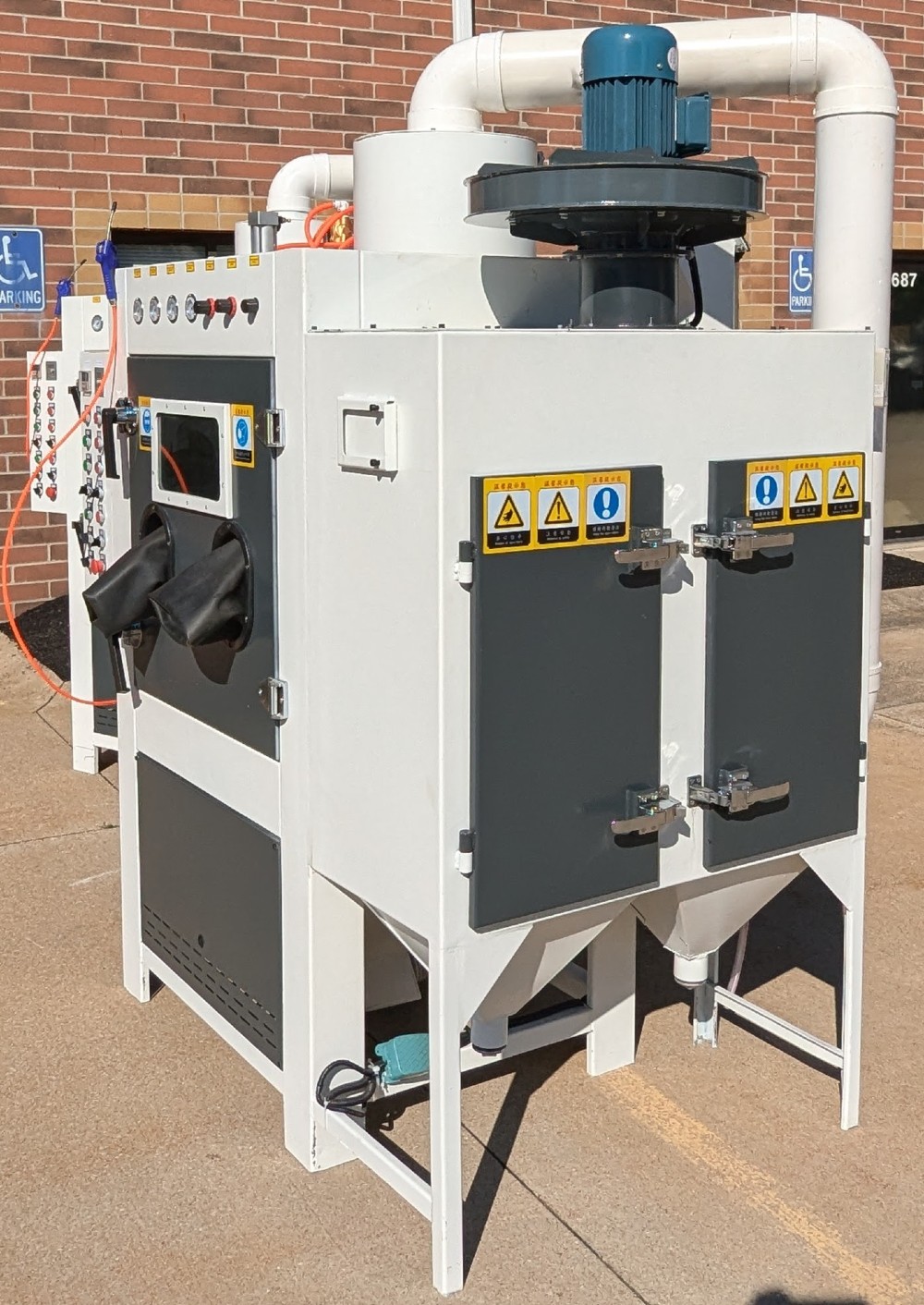

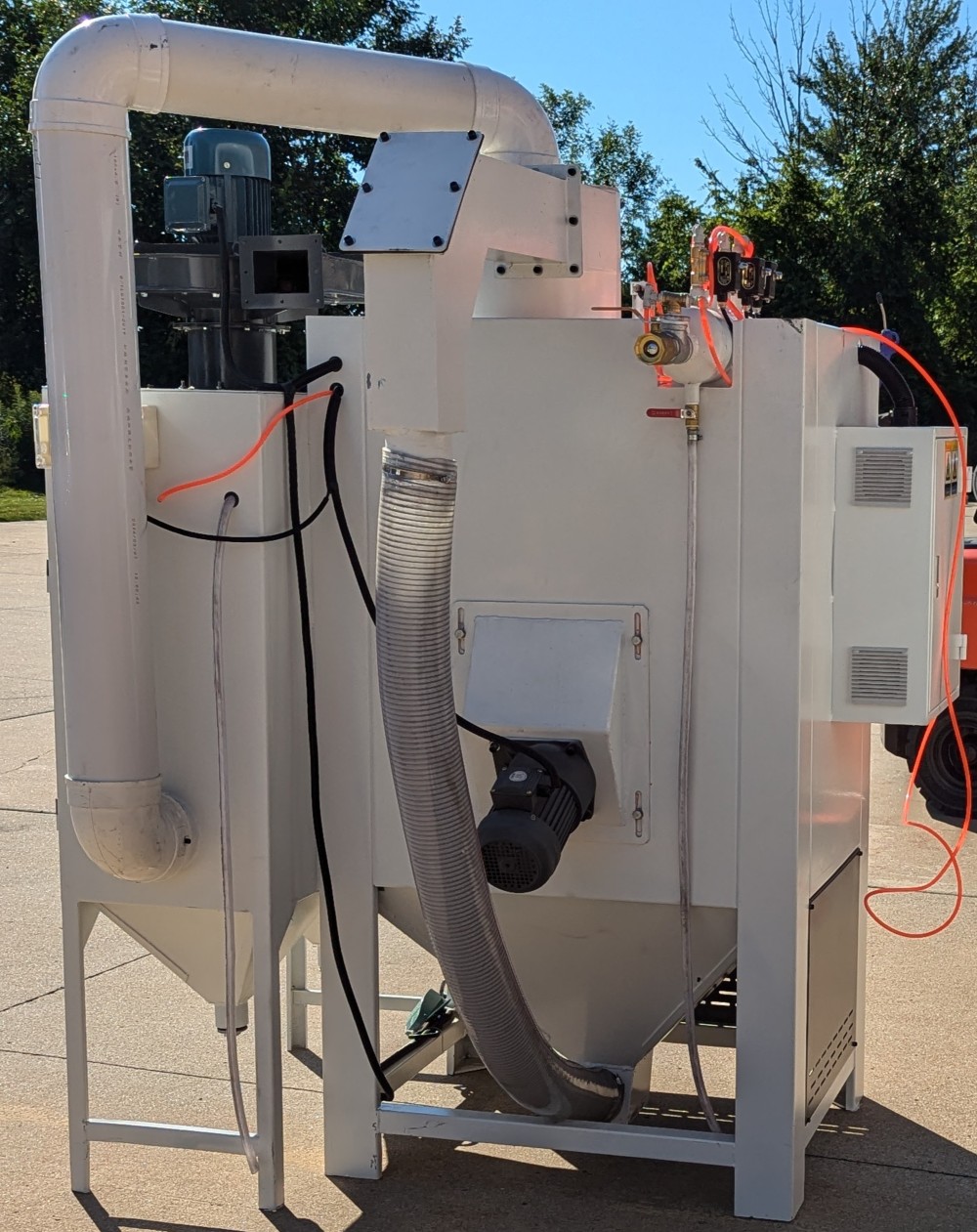

Automatic Tumble Basket Suction Type Sandblast System w/Cyclone Separator & Cartridge

Dust Collector with reverse pulse cleaning

● Model: XTG-1080F-2A

● Outside dimensions: 60” x 57” x 86.6”H (1525 x 1448 x 2200mm tall)

● Steel machine body thickness: .079” (2mm)

● Inside cabinet measurements: 39” x 31.5” x 39”H (1000 x 800 x1000mm tall)

● Height of floor: 47.2” (1200mm)

● Max height of machine: 87” (2200mm)

● Lights: 2- 13w LED lights

● View window: 1

● Blast guns: 2 automatic blast guns with long life boron carbide nozzles + 1 manual blast gun and foot operating pedal for normal sandblasting

● Blast nozzle opening size: .315” (8mm)

● Blast nozzle material: Boron carbide

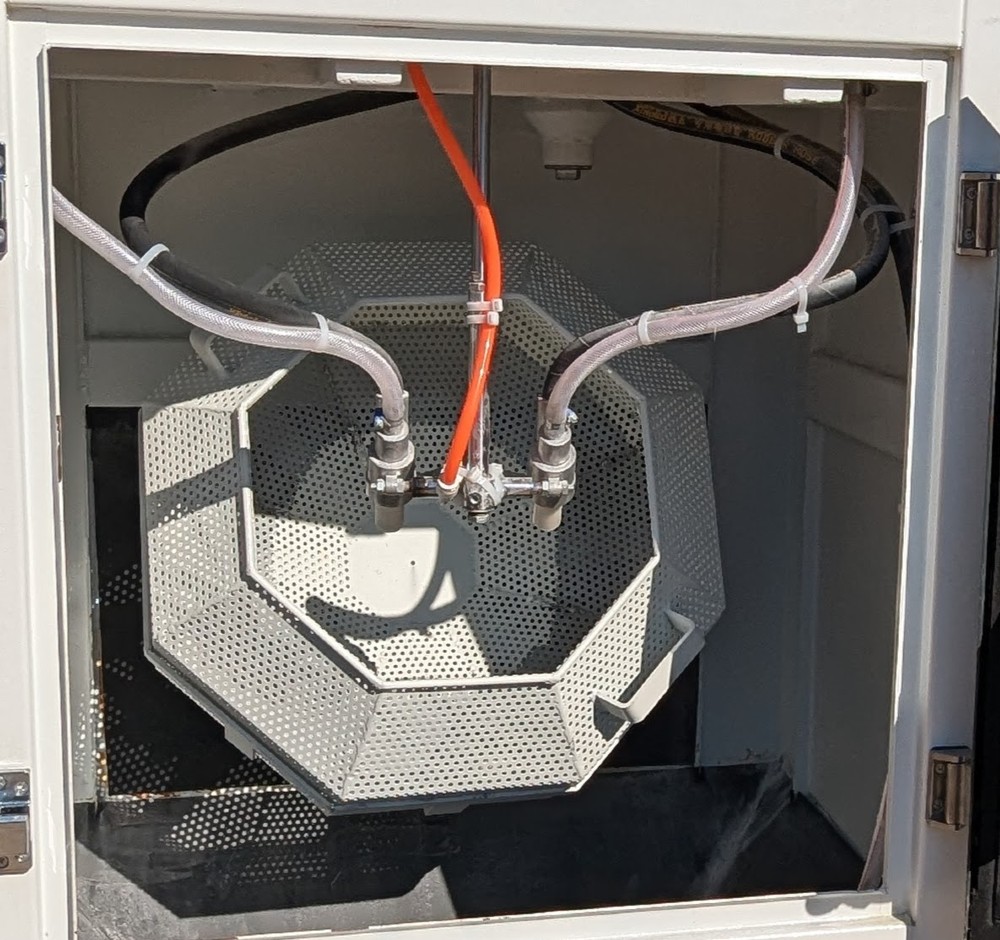

● Basket diameter: 24" (600mm) basket w/VFD speed control 1/2HP (.4kw) motor

● Total air consumption: 35-63CFM (1.0-1.8m3/min)

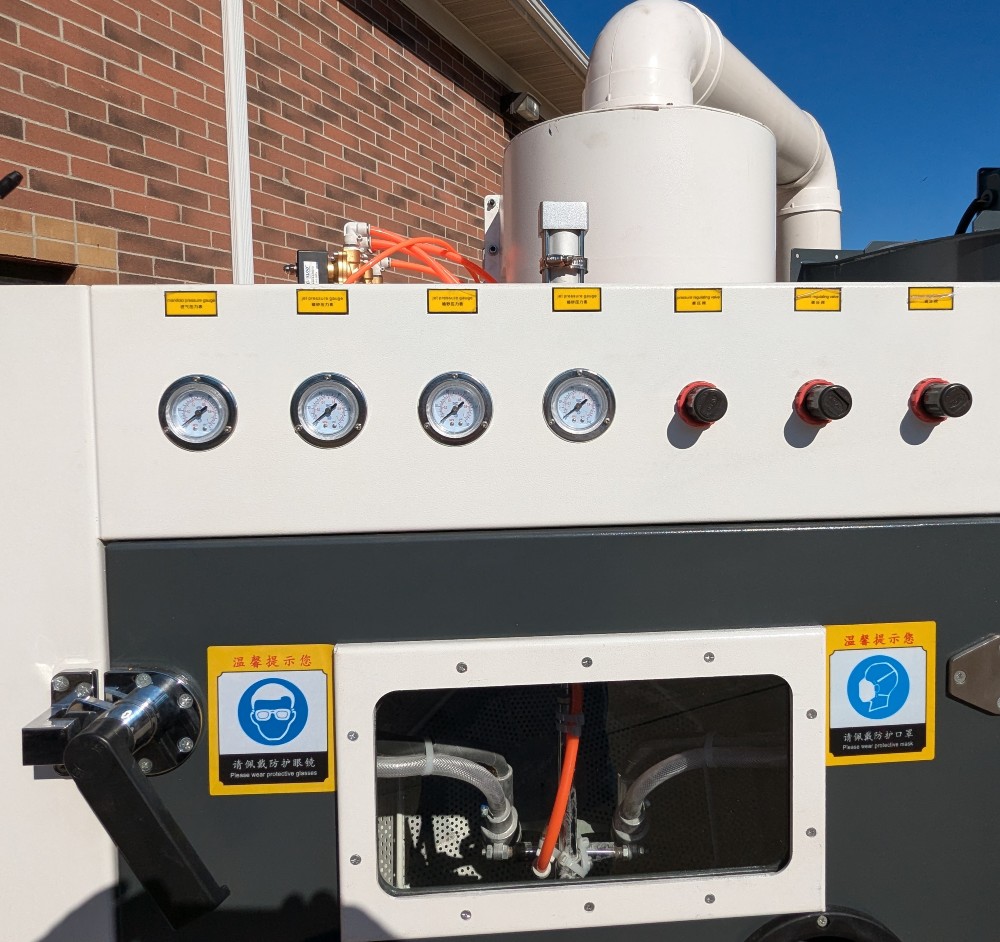

● Air pressure: 72-101PSI (.5-.7Mpa) with visual front panel pressure gauges

● Loading capacity of rotary basket: 66lbs (30kg)

● Abrasive media QTY: 55lbs (25kg)

● Abrasive materials used are: Glass beads, aluminum oxide and other non-metallic

abrasives

● Media consumption: 2 x 66.6lbs/min (2 x 3kg/min)

● Blast media velocity: 164 ft/sec (50m/s)

● Blow-off gun: 1

● Two blast guns are controlled during auto basket blasting: Pneumatic cylinder movement is up &

down to load and unload the basket for clearance

● Dust collector blower: 2HP (1.5kw)

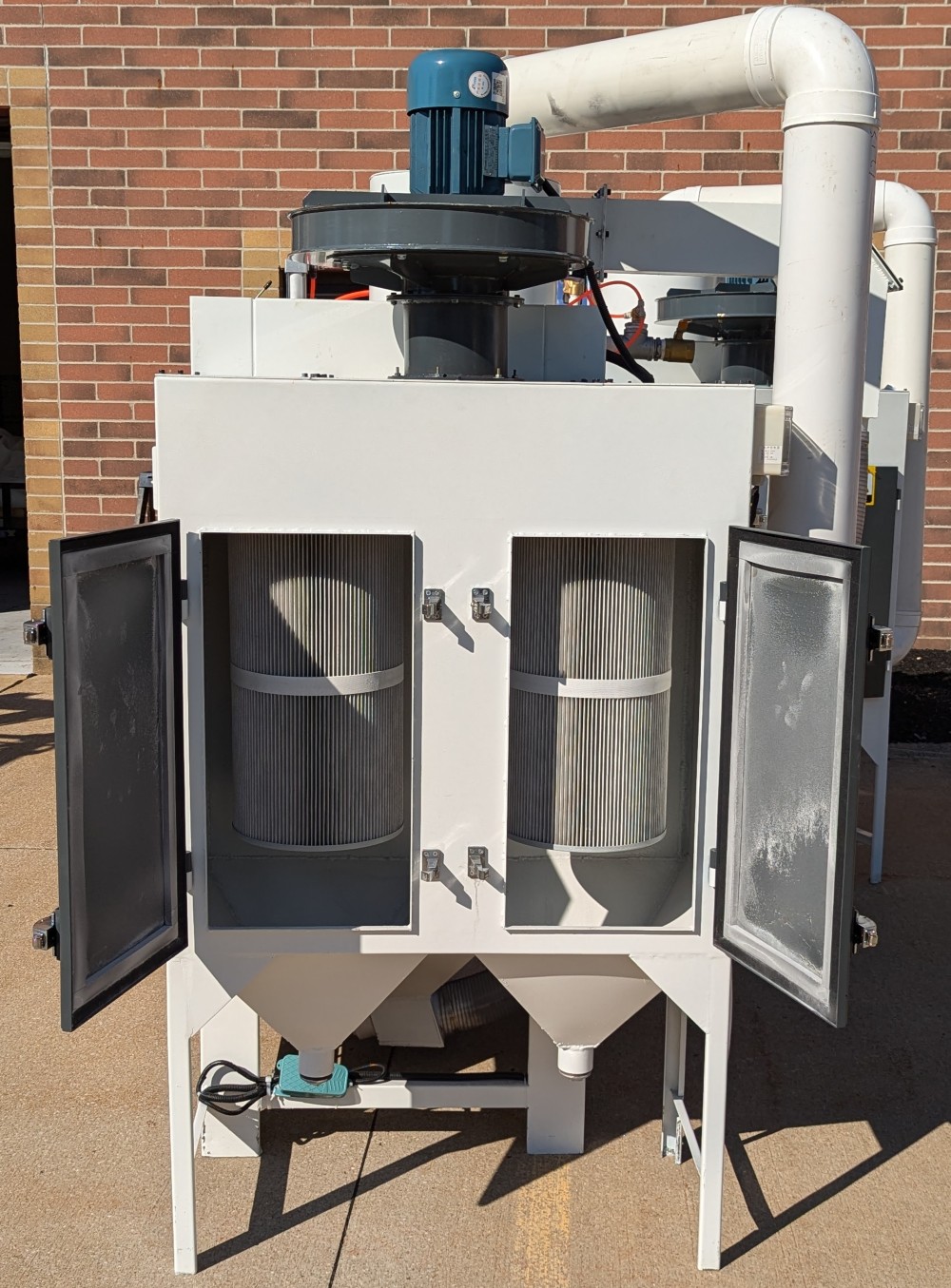

● Dust collector filter: 2 Cartridges with reverse pulse cleaning

● Dust collector cartridge size: 12.6” dia x 24” tall (320 x 600mm tall)

● Total power: 3HP (2.2kw)

● Total system weight: 1,000/lbs

● Voltage: 460V, 3PH, 60HZ + 120V for control
