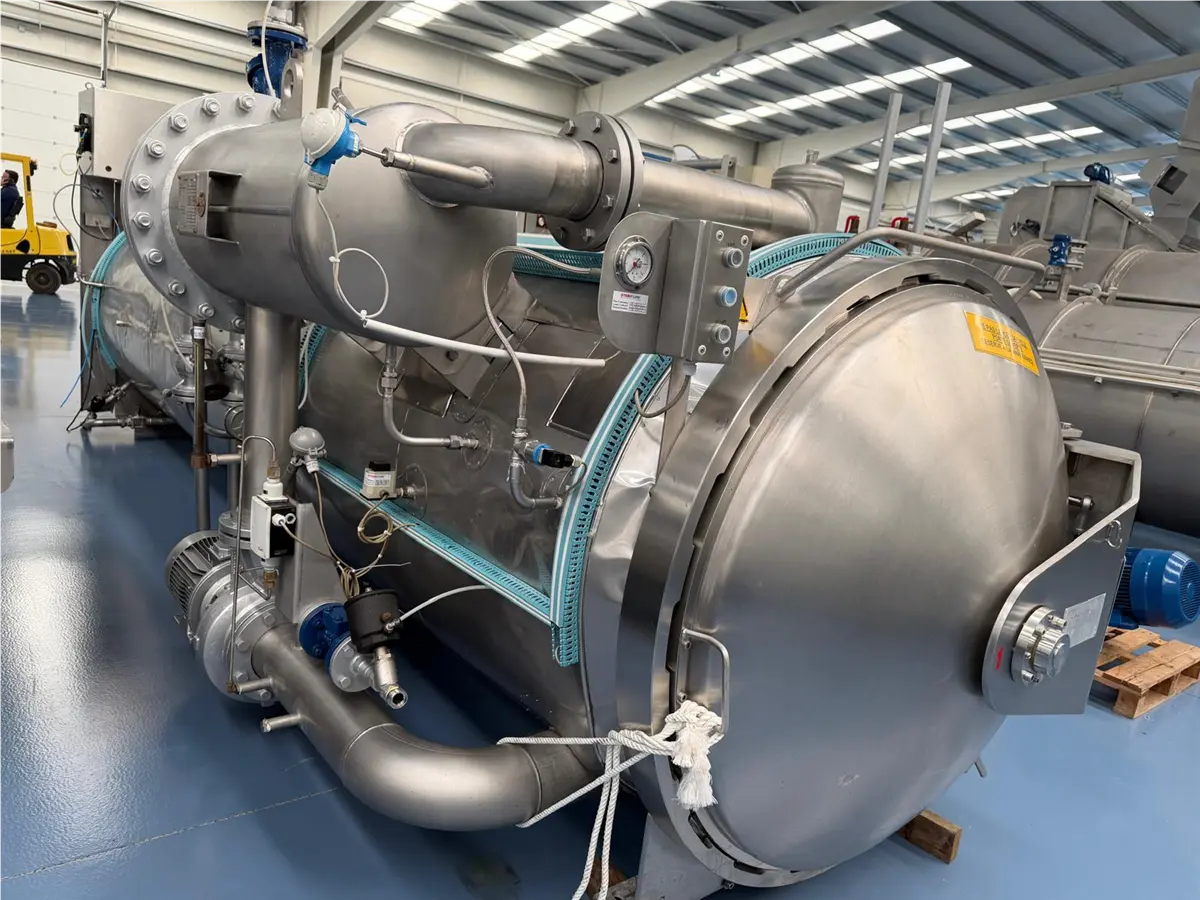

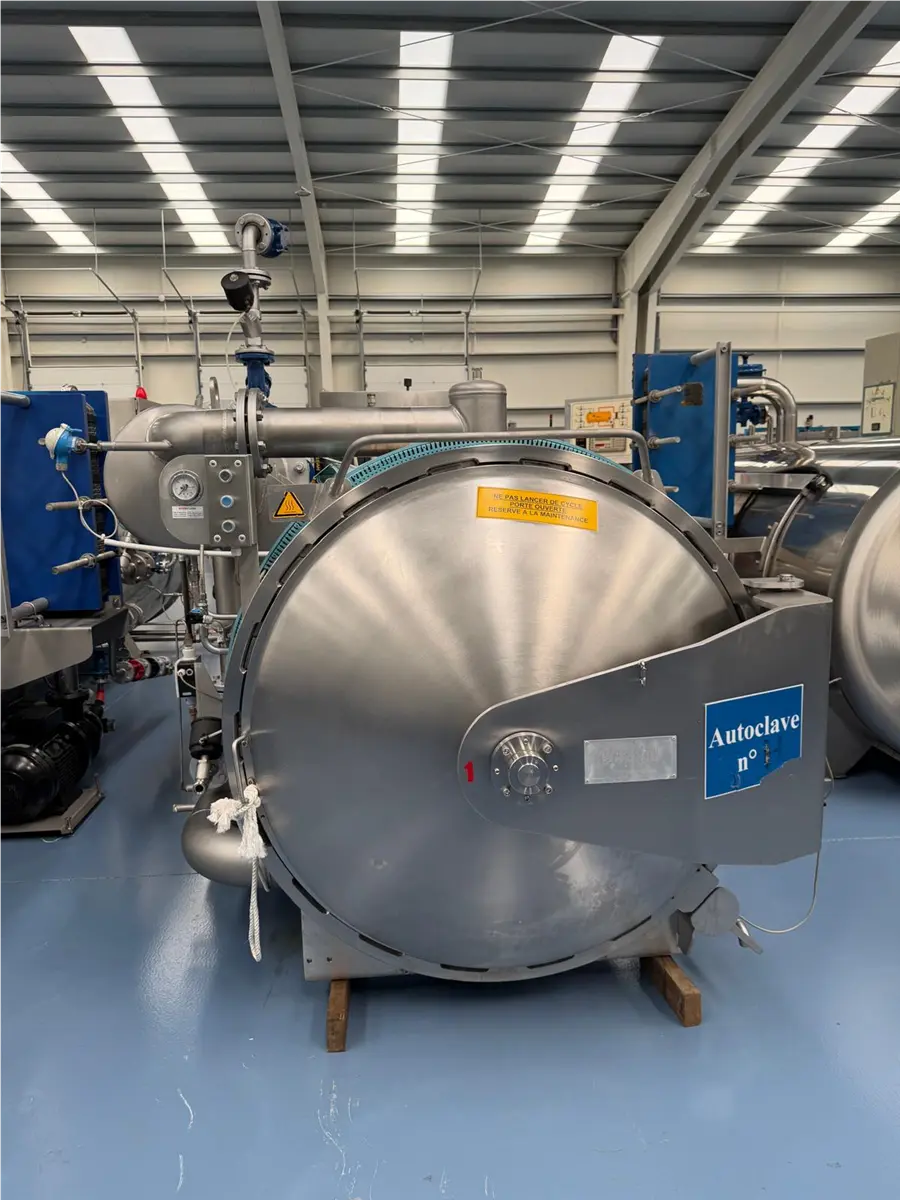

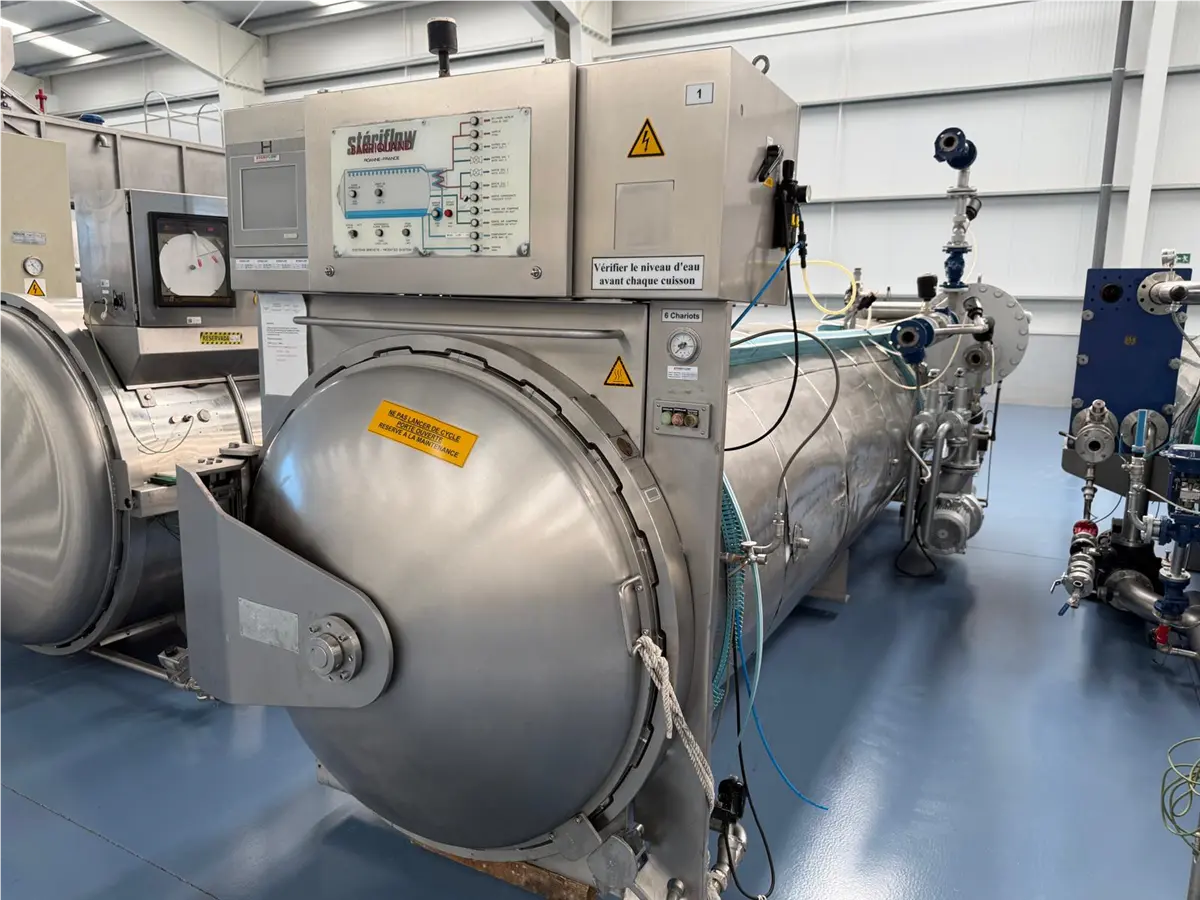

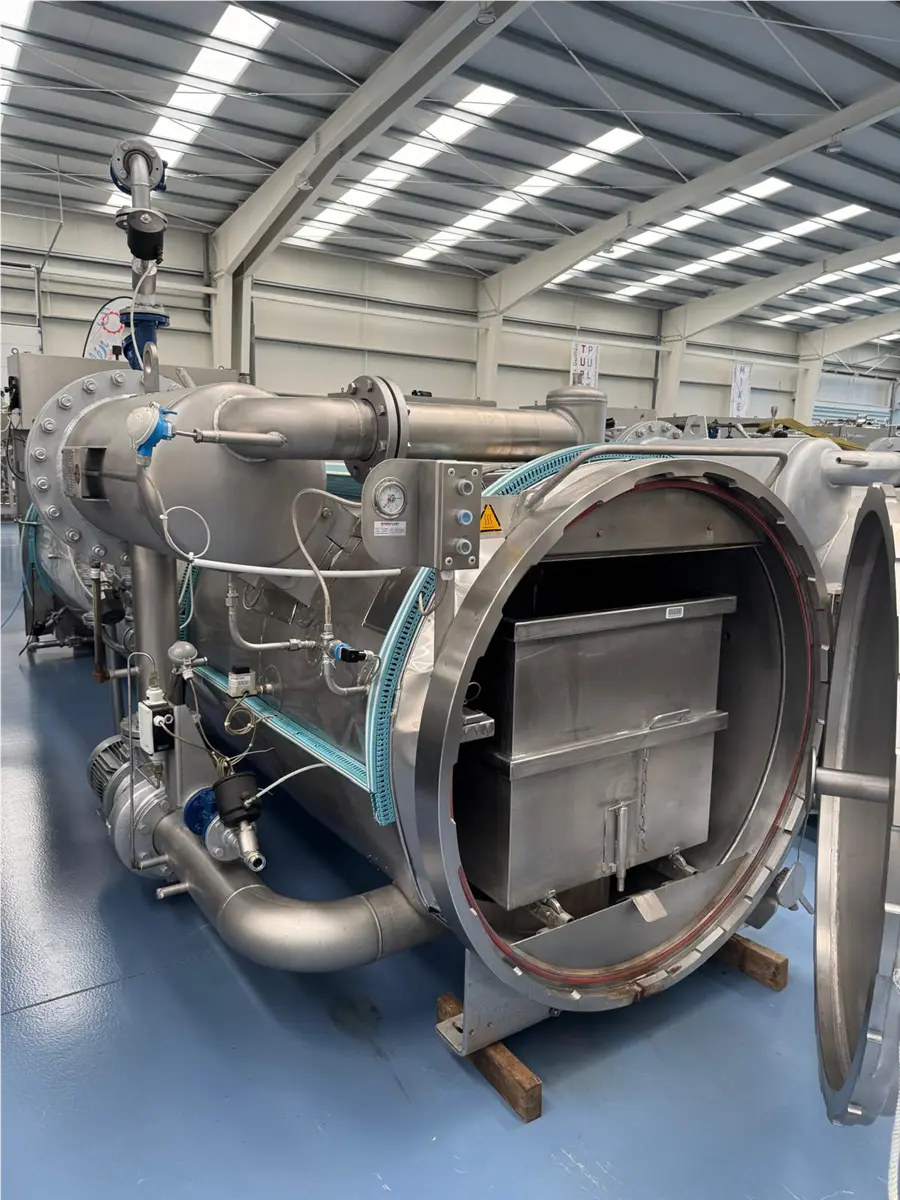

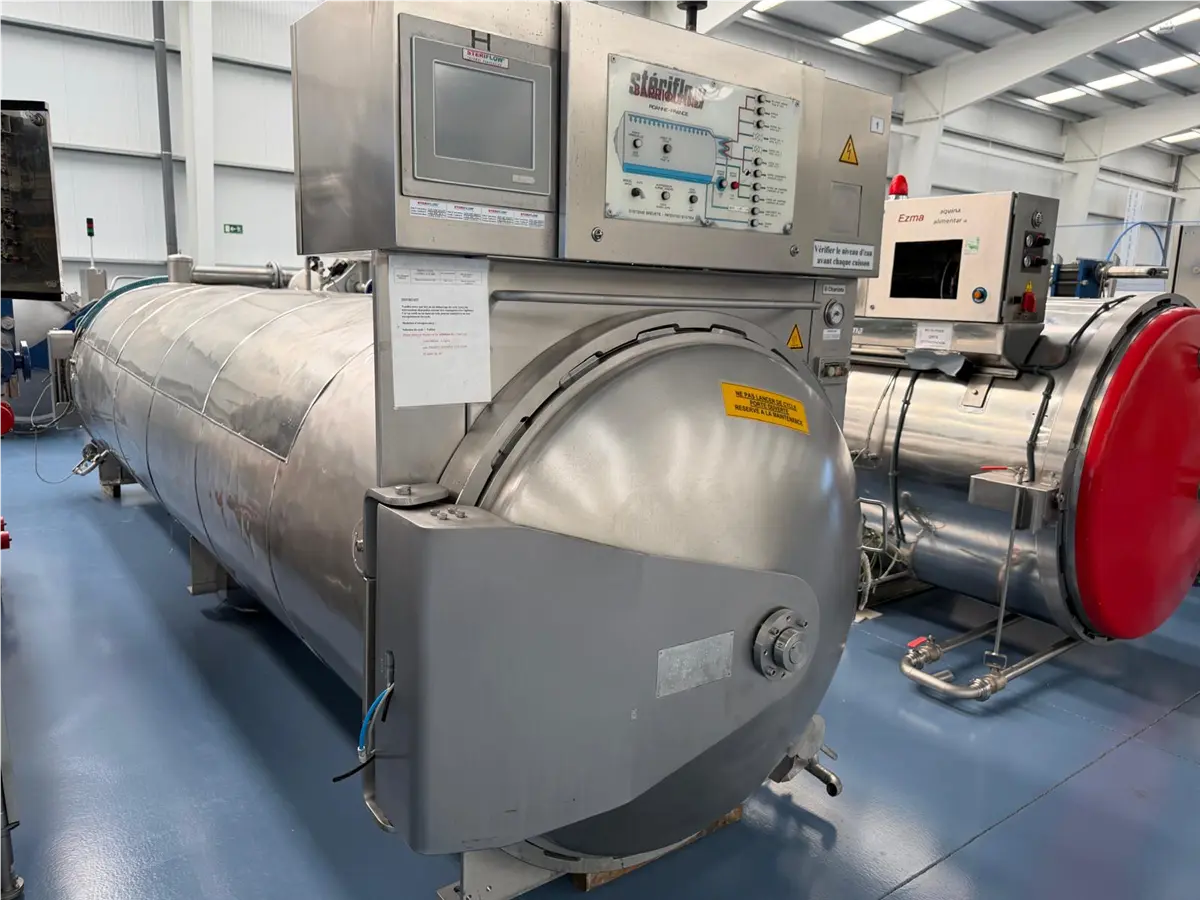

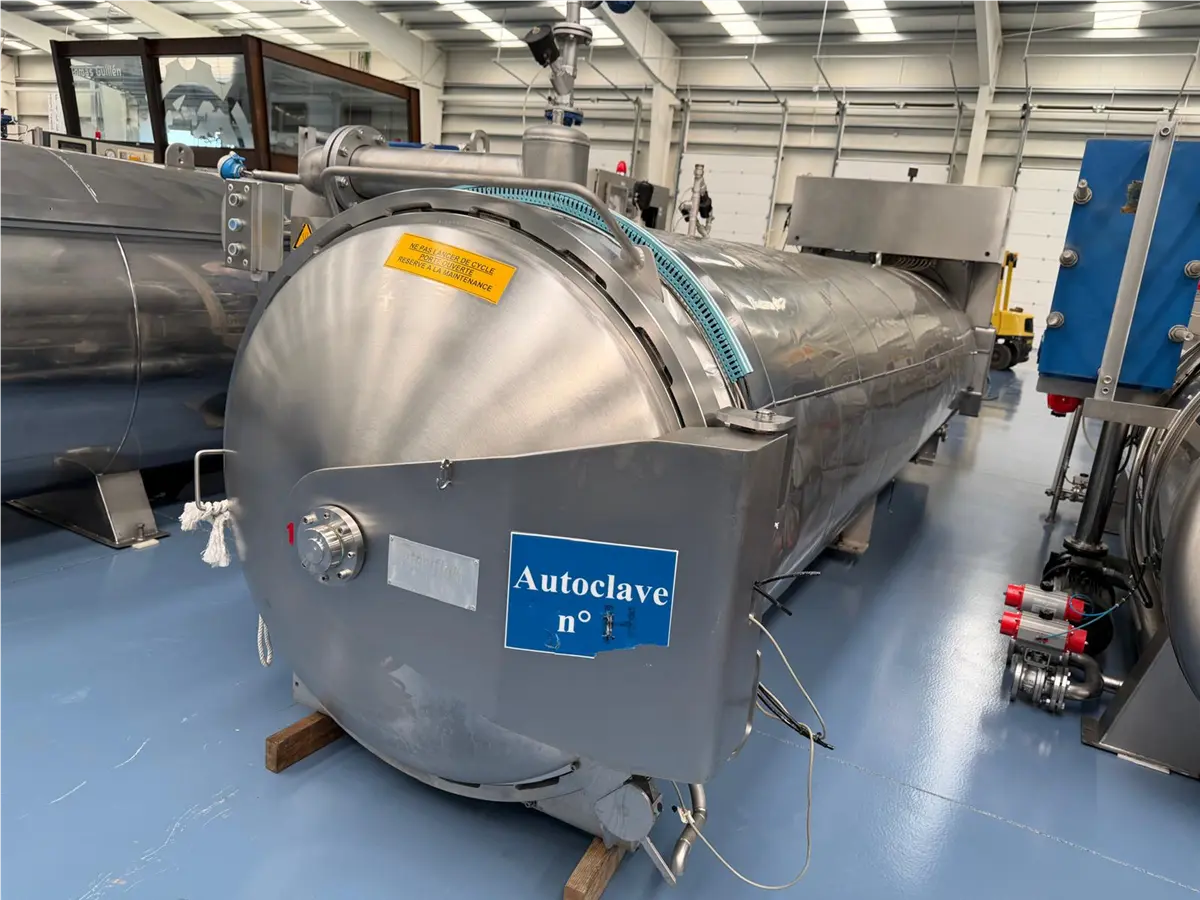

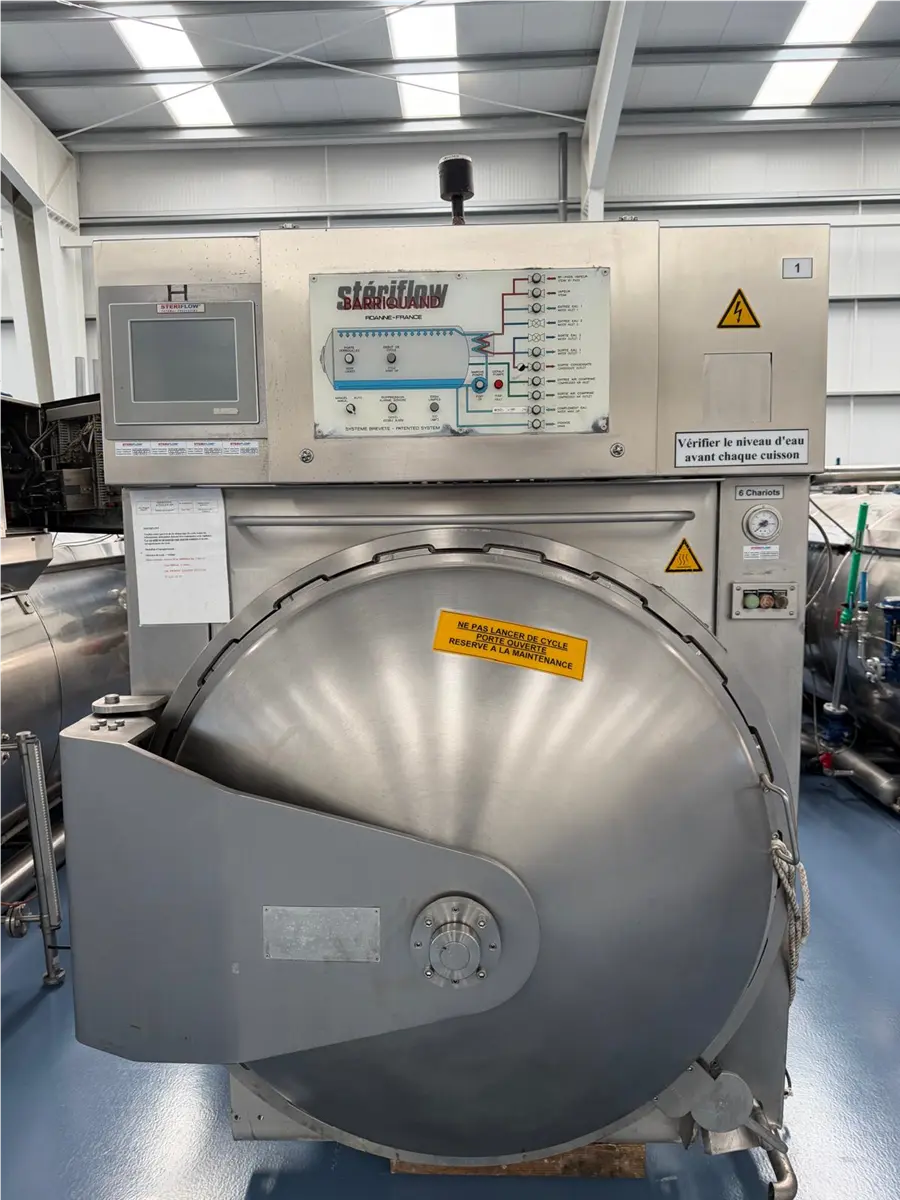

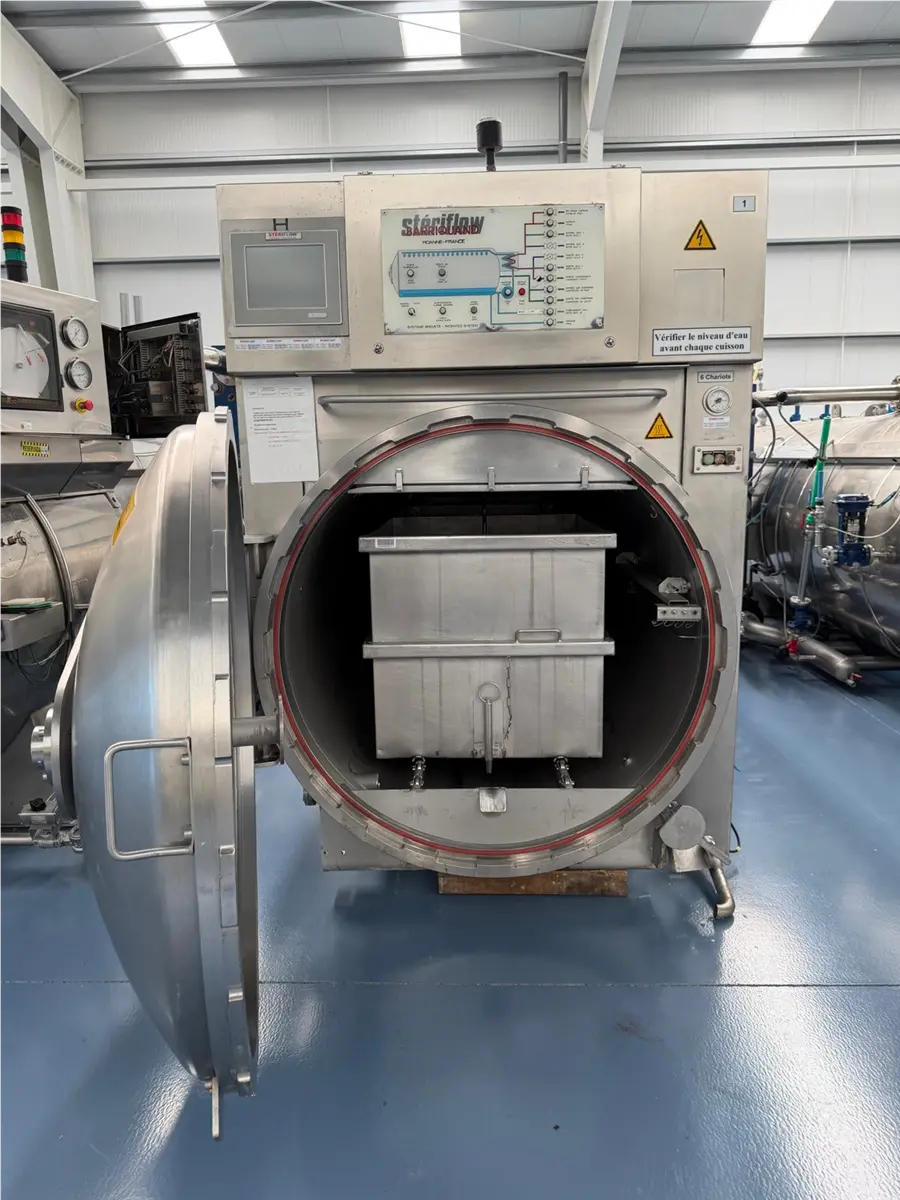

51.2" x 252" Barriquand Steriflow #1362-EL, water cascade retort, 6 baskets, double door, 2042 gallon, 73 psi, 17.7 HP, heat exchanger

Specifications:

HEIGHT	2.70 m
INCLUDED	2.10 m
USEFUL WIDTH	1.30 m
LENGTH	6.40 m
WEIGHT	2665 Kg
MAKE	BARRIQUAND STERIFLOW
MODEL	STERIFLOW 1362 EL
MADE OF	STAINLESS STEEL
CONTROL PANNEL	INCLUDED
POWER	13 KW / 17.70 HP
INCLUDED	DOUBLE DOOR
WORKING PRESSURE	5 BAR
TEST PRESSURE	150C
TEST PRESSURE	5 BAR
VOLUME	7730L
SYSTEM	DE CASCADA
CATEGORY	B
INCLUDED	MARCADOR CE
NUMBER OF BASKETS	6
PRESSURE TEST	10 BAR
INCLUDED	TUBULAR HEAT EXCHANGER
FLUID	STEAM
INSIDE DIAMETER	1300 mm
No. DOORS	2

Description:
Autoclaves are used for the sterilization of packaged products that need to reach high temperatures (+100C) for the elimination or inactivation of pathogenic microorganisms.
Static autoclaves: these are suitable for any format and are used for food packaged in cans, jars and other flexible materials.
Inner diameter: 1,450 m.
Characteristics:
STEAM CONSUMPTION:
- Steam consumption (6 Bar): 630 kg.
- Flow rate: 2.000 kg/h.
COLD WATER CONSUMPTION:
- Consumption (4 Bar) : 12 m
- Flow rate: 40 m/h.
COMPRESSED AIR CONSUMPTION:
- Consumption (6 Bar): 16 Nm
- Flow rate: 160 Nm/h.
TUBULAR HEAT EXCHANGER:
- Make: STERIFLOW
- Model: HEAT EXCHANGER IJMS
- Capacity: 145 L.
- Surface area: 11.25 m
