Description

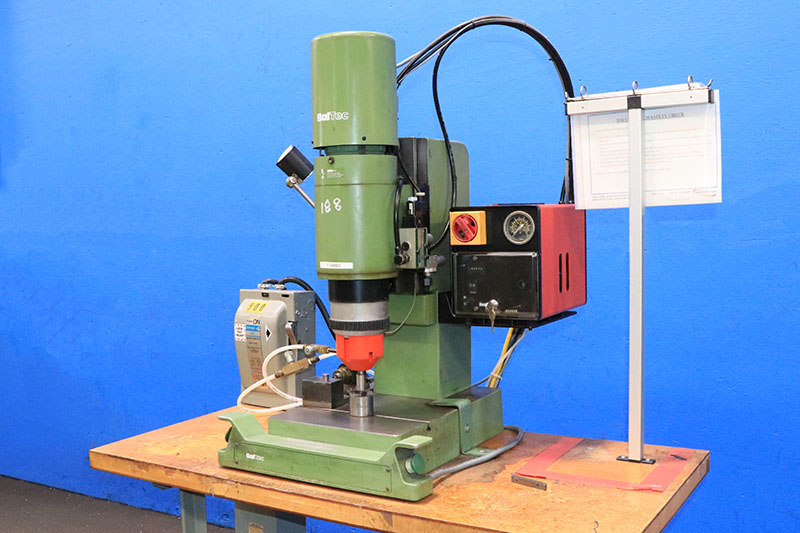

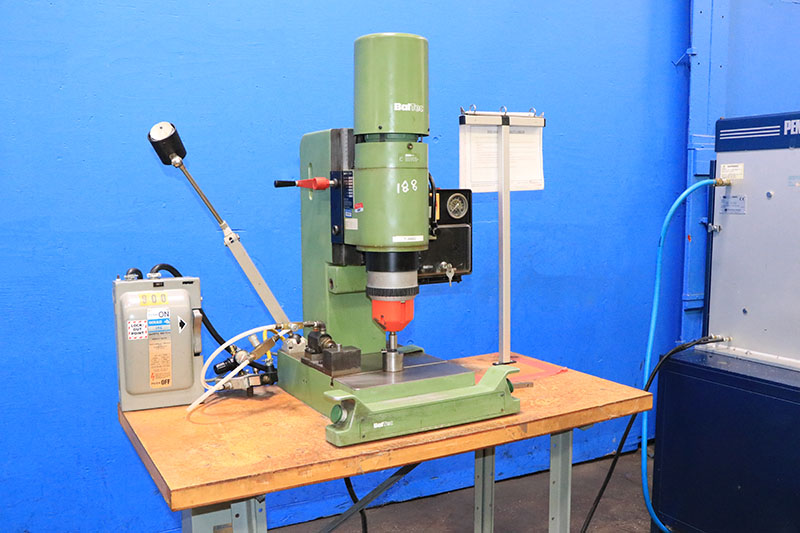

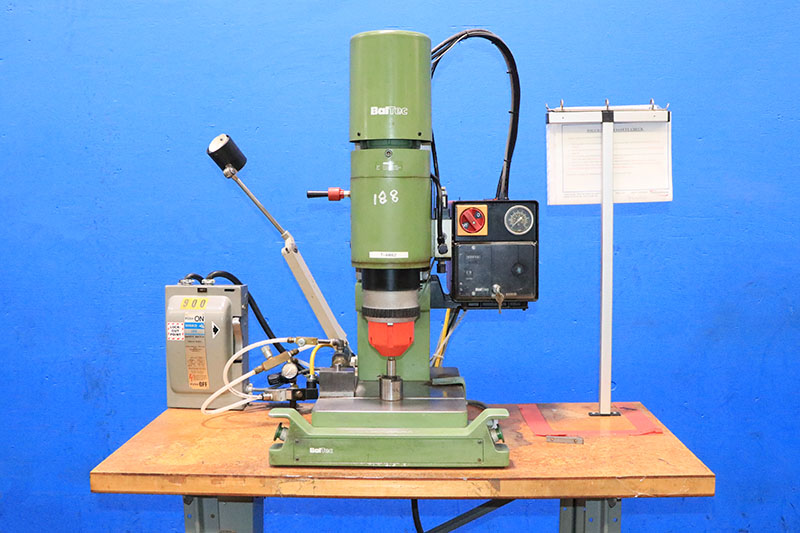

BALTEC RADIAL RIVETING MACHINE
MODEL RN-280… S/N 27376… NEW 1990
SHANK DIAMETER ....................... 1 - 12 mm
RANGE (1010 STEEL) ................... .04 - .5"
MAXIMUM DOWNFEED FORCE ...............″800 @ 88 psi
PNEUMATIC
STROKE LENGTH RANGE .................. 5 - 40 mm
.2" - 1.57"
TABLE SIZE ........................... 12-5/8" X 12"
MOTOR HP @ 1700 RPM ..................″/4
OPERATING VOLTAGE ....................″ x 440 V
CFM @ 80 psi, MAX STR, 10 SEC CYCLE .. 2.5"
DIMENSIONS: 23″(L-R) x 29″(F-B) x″3″(H)
MACHINE WEIGHT (NOT CRATED) ..........″75 LBS.
COMPLETE WITH:
-RIVETING CAP. FROM .040" TO .5" (STEEL RIVETS, APPROX.
52,000 PSI TENSILE STRENGTH)
-3-PHASE SPINDLE MOTOR,″/4 HP / 440 VOLT
-MAXIMUM 85 PSI AIR PRESSURE
-MICROMETER SPINDLE STROKE ADJ. FROM .2 - 1.575"
-RUGGED CAST IRON COLUMN, w/EASY COURSE ADJ. HANDLE
-PRECISION GROUND BASE w/T-SLOT AND PRECISION REAMED
CENTERING HOLE, ALLOWS FOR FAST FIXTURING CHANGES
-SEMI-PERMANENT GREASED SPINDLE DESIGN ELIMINATES
FREQUENTLY SCHEDULED MAINTENANCE.
-ADJUSTABLE STROKE SPEED CONTROL, ALLOWS FOR PRECISE
RIVETING CONTROL

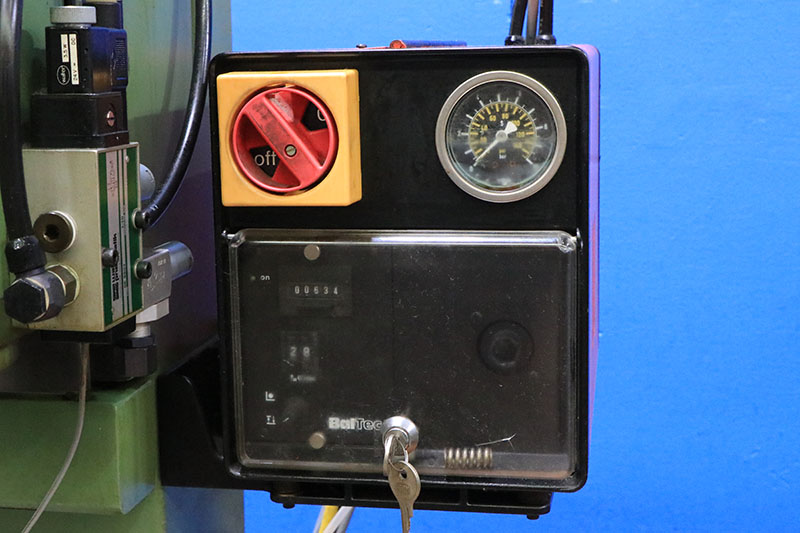

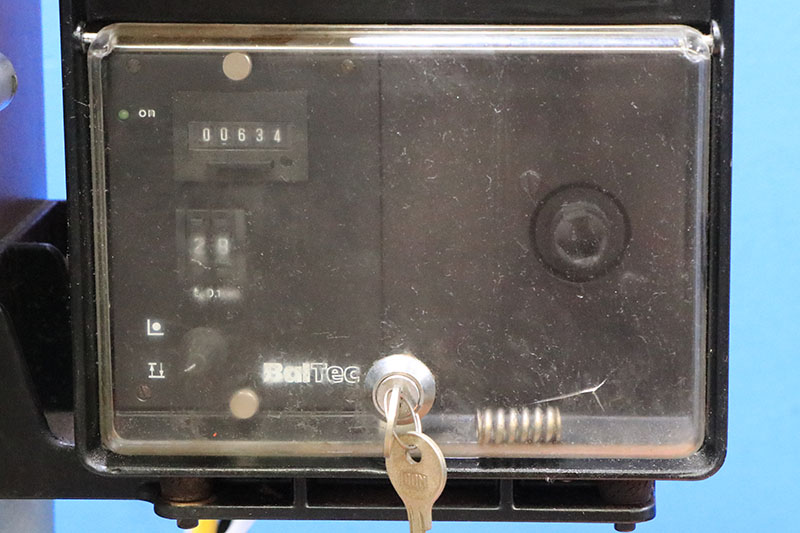

-RC20 CONTROLLER, THAT FEATURES:
SMALL COMPACT DESIGN, ONLY 8" WIDE, 14" DEEP, 7" HIGH
LARGE 7 CHARACTER LCD DISPLAY, EASY TO READ
SOFT TOUCH KEY PAD, FOR EASE OF OPERATION
-MAIN ON / OFF SWITCH
-RESETABLE CYCLE COUNTER, ALLOWS FOR ACCURATE PRODUCTION COUNTS
-AUTOMATIC SELECTION MODES OF MANUAL OR SEMI-AUTOMATIC
MODES, UPON CONTROL START-UP
-MANUAL COUNTDOWN TIMER, GREATLY AIDS MACHINE SET UP
-NON-RESETABLE TOTAL HOUR ACCUMULATOR, HELPS TRACK TOTAL MACHINE USAGE FOR LONG RANGE MAINTENANCE
-MANUAL OR SEMI-AUTOMATIC OPERATING MODES
-RIVETING TIME CONTROL FROM .1 SECOND TO 5.9 SECONDS IN
INCREMENTS OF .1 SECOND.
-OPERATOR…"LOCK OUT" FEATURE, MINIMIZES OPERATOR TAMPERING
-BUILT-IN DIAGNOSTIC AND ERROR MESSAGES

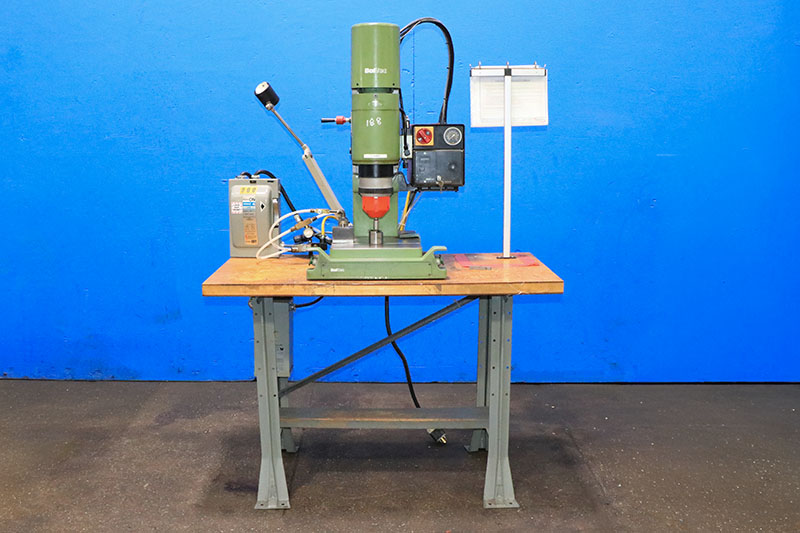

NICELY MAINTAINED MACHINE MOUNTED ON PRIVATE WORK STATION TABLE
