Baldor Electric Centrifugal Blower Model 1000A

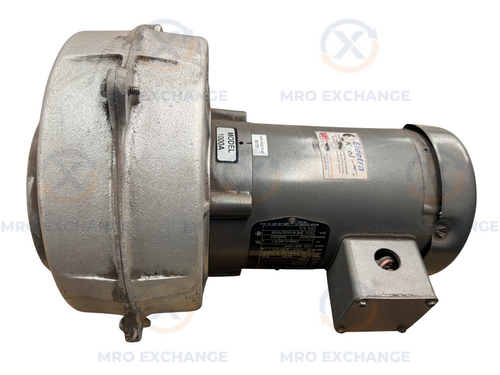

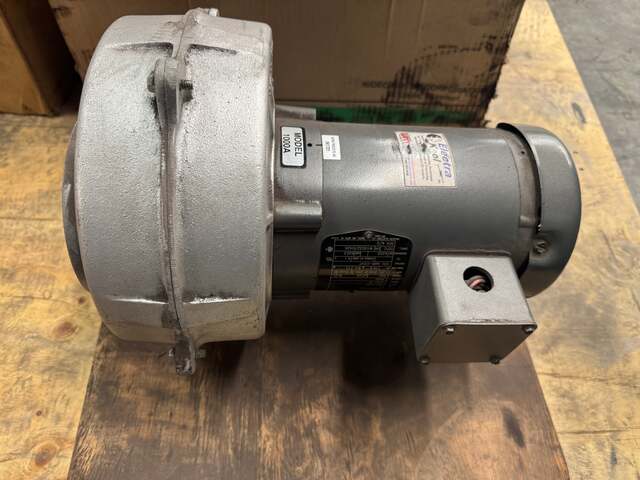

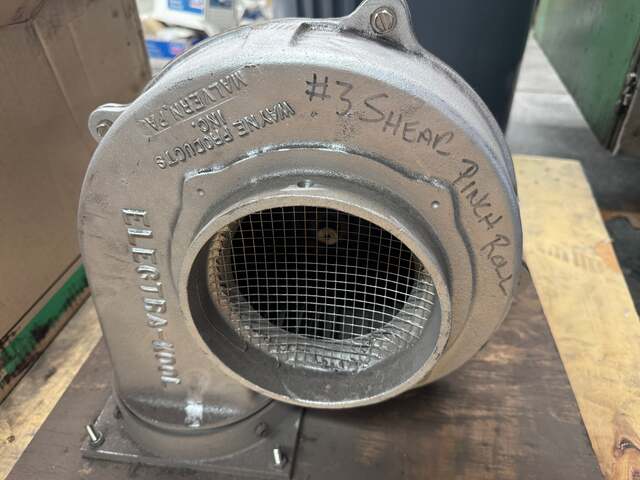

Used in industrial cooling and ventilation applications, the Wayne Products Electra-Kool Model 1000A is a centrifugal blower unit designed to deliver high-volume filtered or unfiltered ambient air to electrical enclosures, DC motor housings, or other heat-sensitive industrial areas. The blower housing is cast aluminum construction with a wire mesh intake guard and mounts via a 6.5 inch square flange with a 6 inch hole-to-hole bolt pattern.

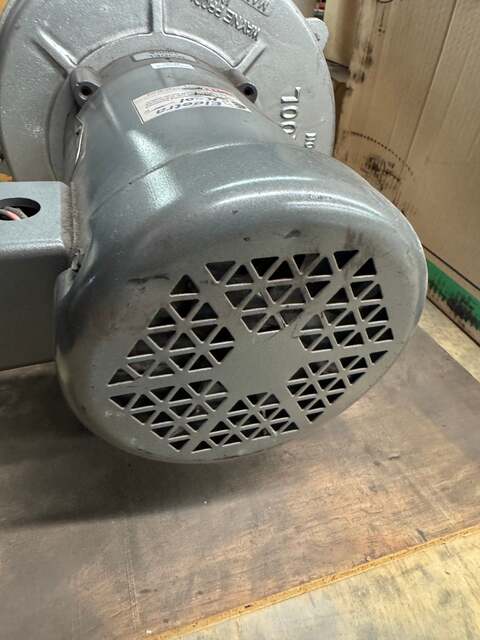

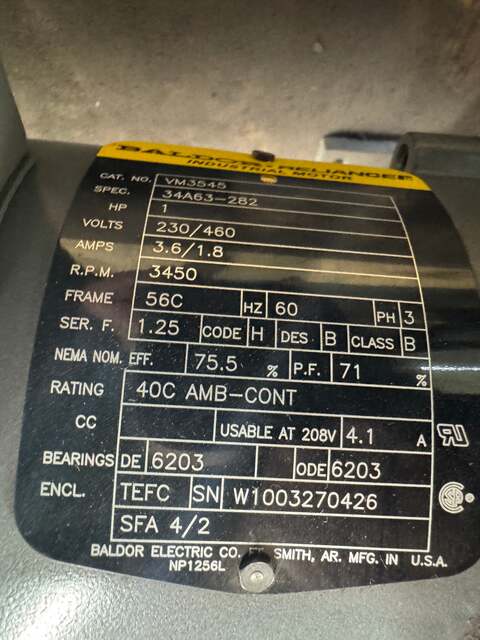

The unit is powered by a Baldor Reliance industrial motor, catalog number VM3545, spec 34A63-282. The motor is rated at 1 HP, 3450 RPM, 56C frame, TEFC enclosure, Class B insulation, service factor 1.25. Voltage rating is 230/460V with corresponding full load amps of 3.6/1.8A. Usable at 208V at 4.1A. Frequency is 60Hz, 3-phase. Serial number W1003270426. Bearings are 6203 DE and ODE. Rating is 40C ambient continuous. Manufactured by Baldor Electric Co., Smith, AR, USA. Motor nameplate NP1256L. NEMA nominal efficiency 75.5%, power factor 71%.

The blower assembly overall dimensions are approximately 28 inches tall by 15 inches wide by 13 inches deep per manufacturer published specifications for the Model 1000. The impeller is heavy-duty steel. The motor nameplate confirms CSA and UR certification markings. Item shows surface wear consistent with prior industrial service.

Stock # 0526-02441
