Baileigh #PT-105-HD, CNC Plasma Cutter, 5' x 10' table, 120 amp, 5/8" production cut, 220 Volt, 1PH, 2023

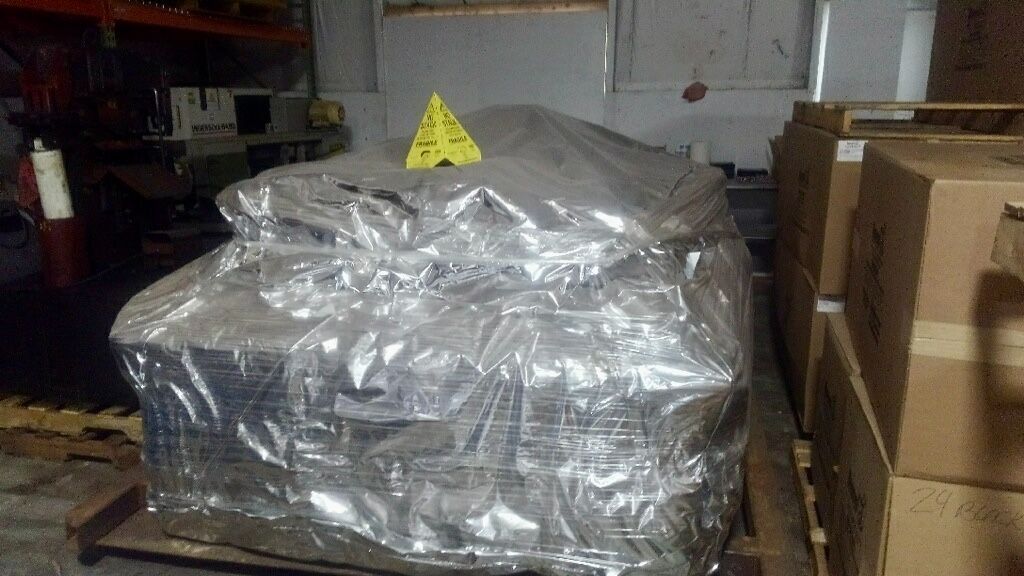

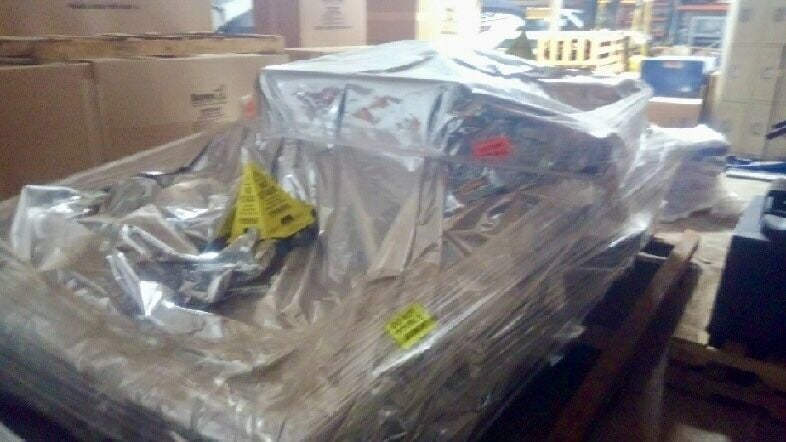

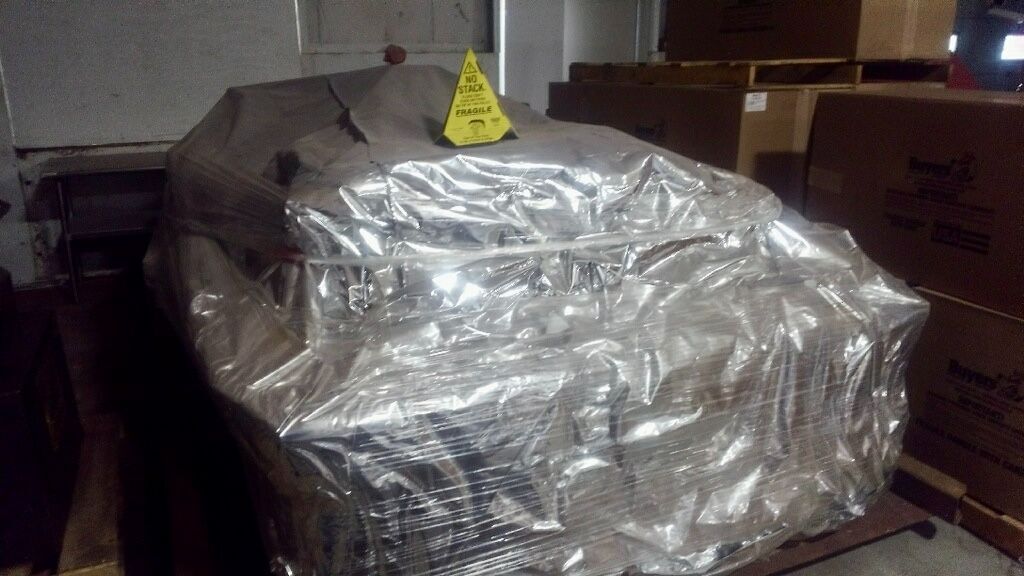

2023 Brand New Unused BAILEIGH PT-105 HD CNC Plasma Cutter, 5' x 10' Table
120 amp plasma power supply,

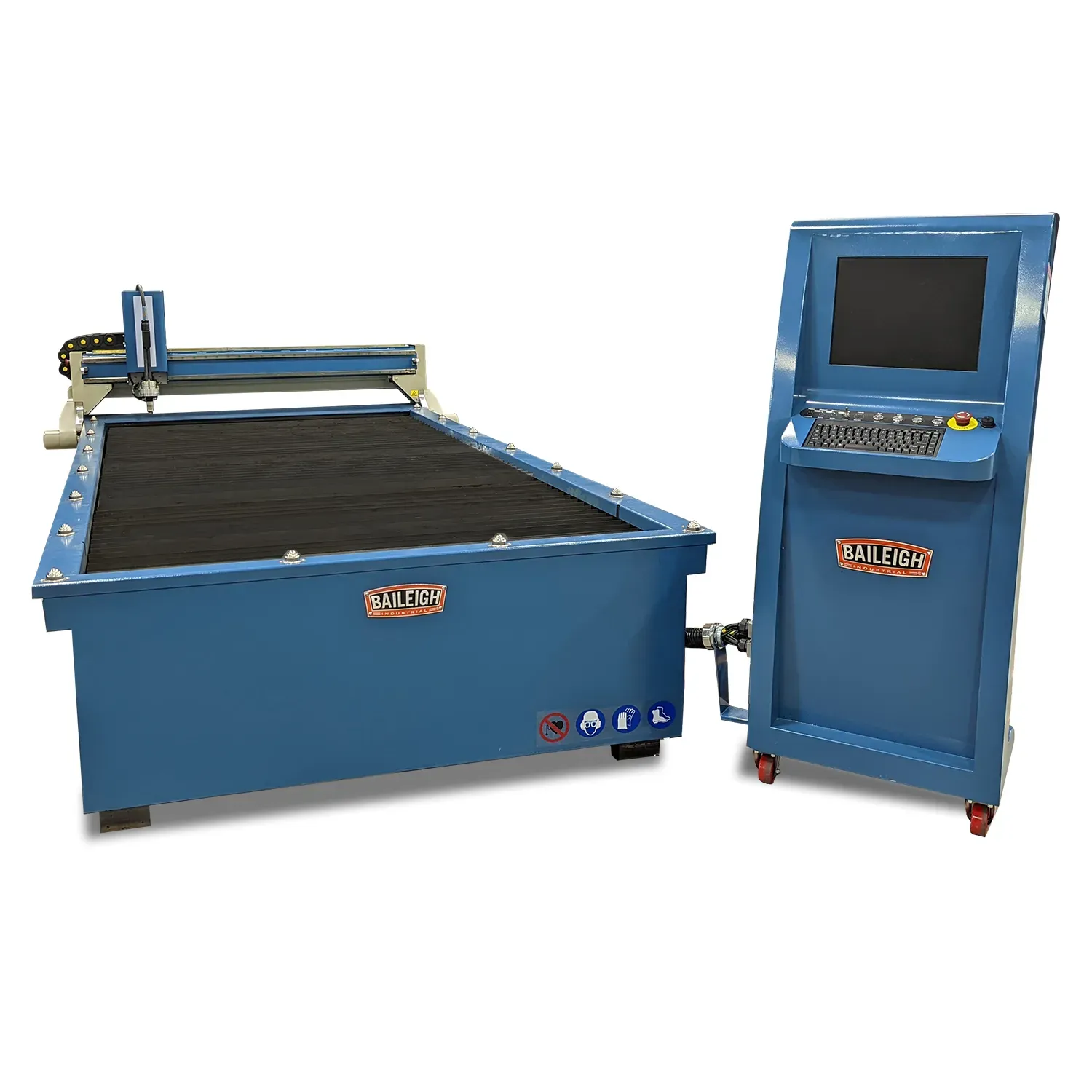

Baileigh 5' x 10' CNC Plasma Cutting Table PT-105HD-V2 1231495A

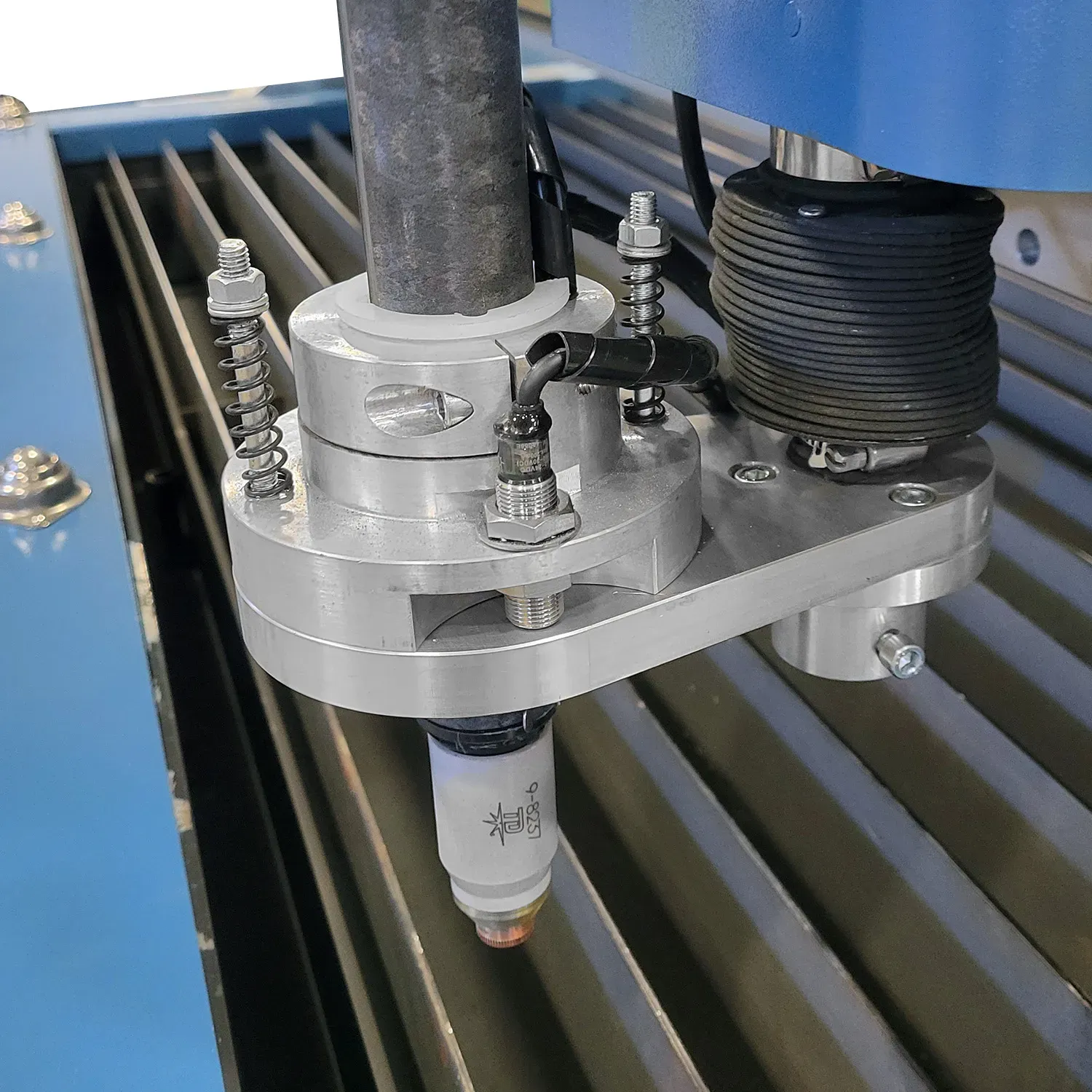

Our PT-105HD-V2 is the next generation of our plasma tables, it has the structural strength to handle 5' x 10' sheets. Automatic height detection is ideal for production runs. It arrives nearly fully assembled and comes with the software. For our version with an integrated water bath, see the Baileigh 60 x 140 CNC Plasma Table PT-105HD-W.
The PT-105HD comes standard with BobCAD-Cam Express programming software. You can design or plot out your project on any computer and load the plasma table via a USB drive.
Features:
Runs on 220-volt single-phase power.

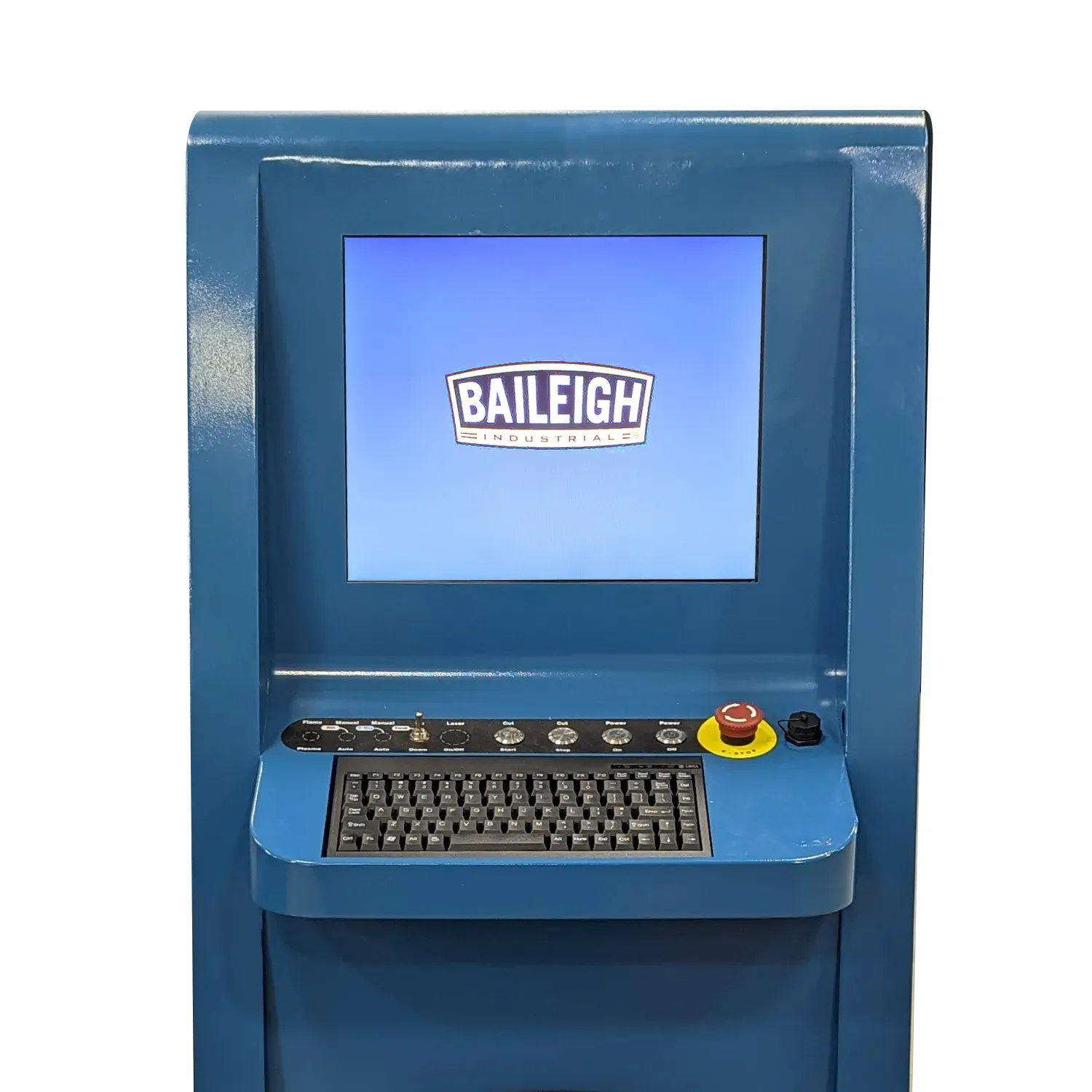

Control the X, Y, and Z-axis movement from the sturdy podium with a large console screen and keypad.
Includes easy-to-learn design software that you can load into any basic PC (more details below).
The console offers a pre-loaded library of shapes that you can resize and alter at the tablewithout a computer.
Panasonic brushless servo motors, controlled by Panasonic servo motion controllers, drive the gantry.
Gantry can move out of the way for a full 10-foot sheet during loading, minimizing the chance of machine damage.
High gantry (one of the highest in the industry) lets you clearly see its movement for better adjustment and control.

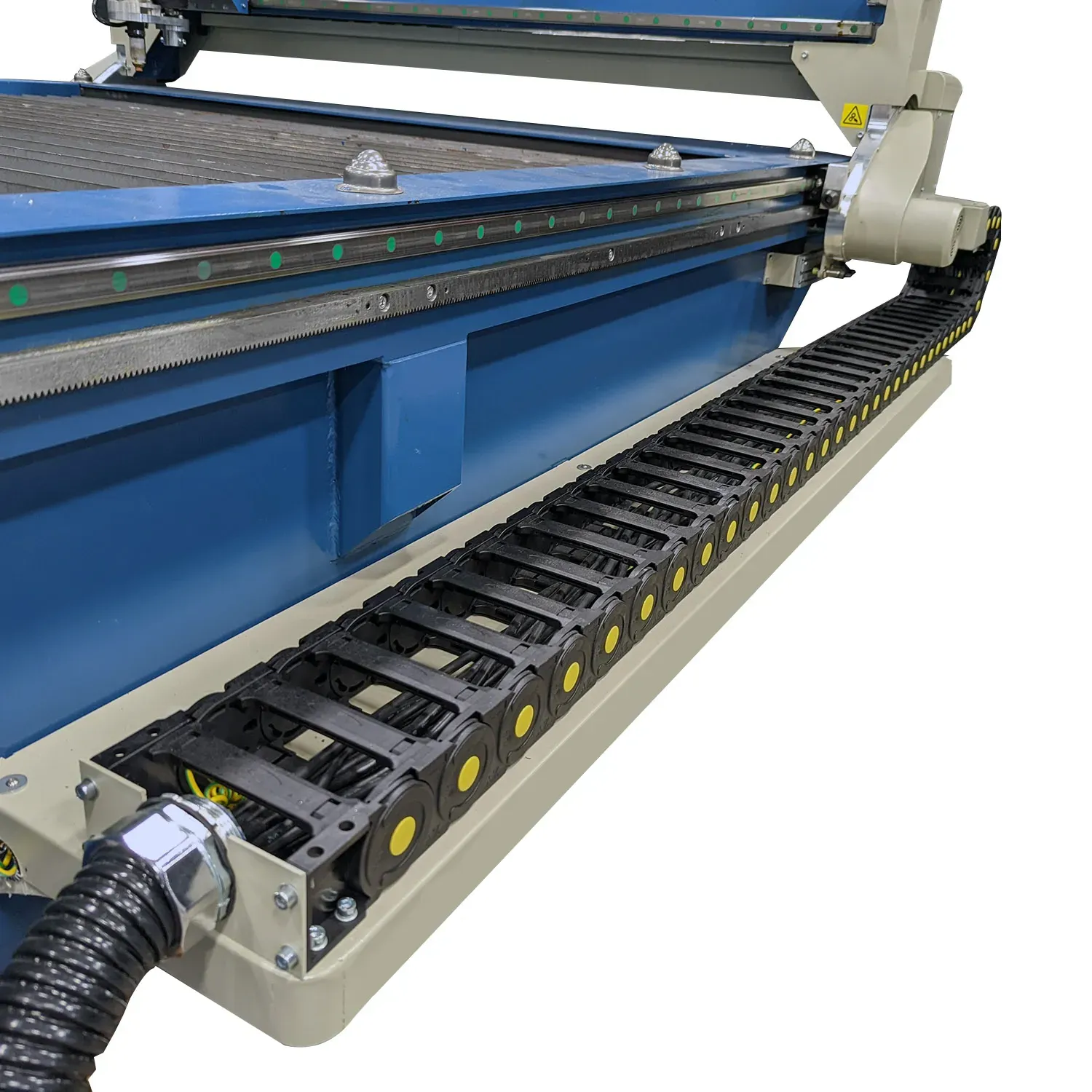

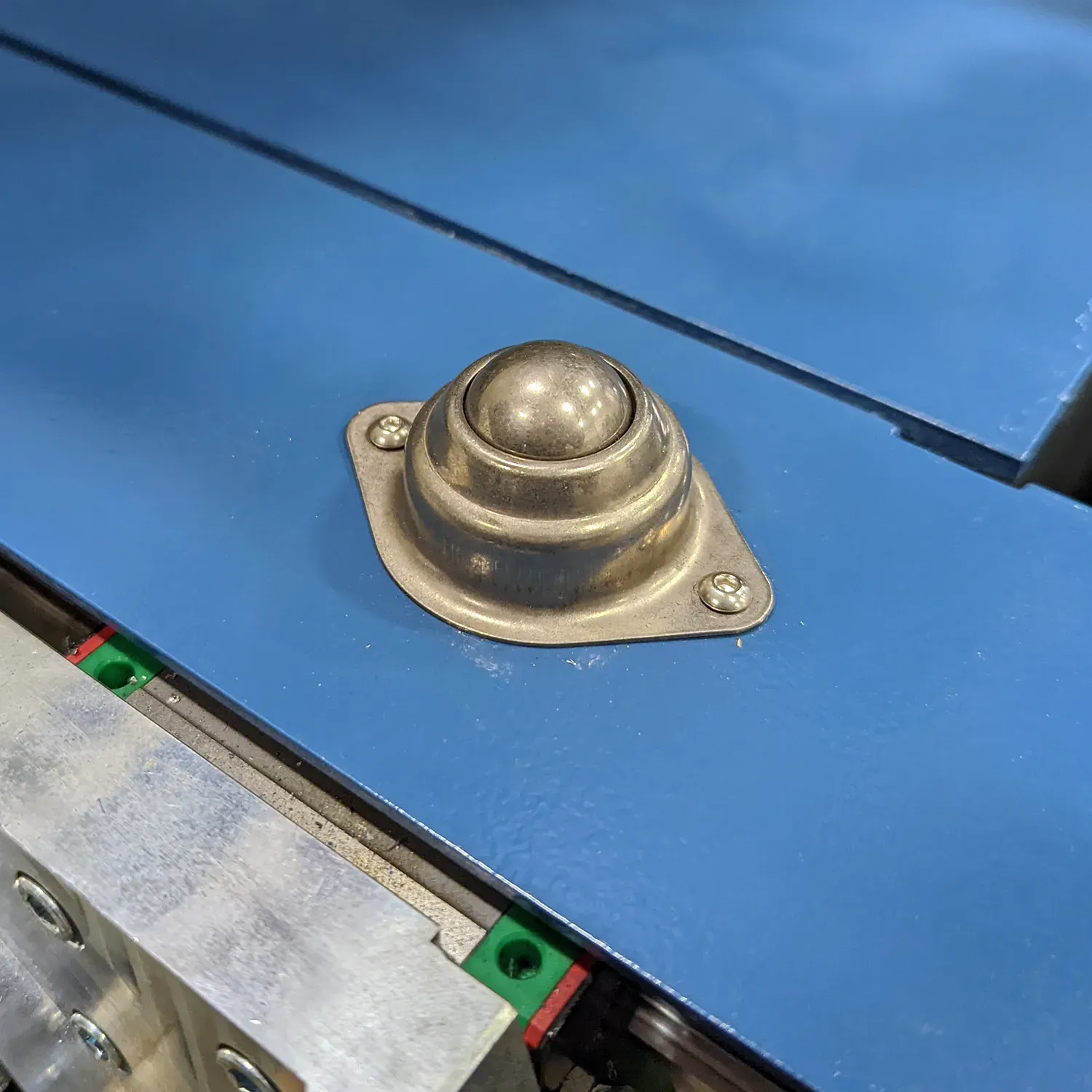

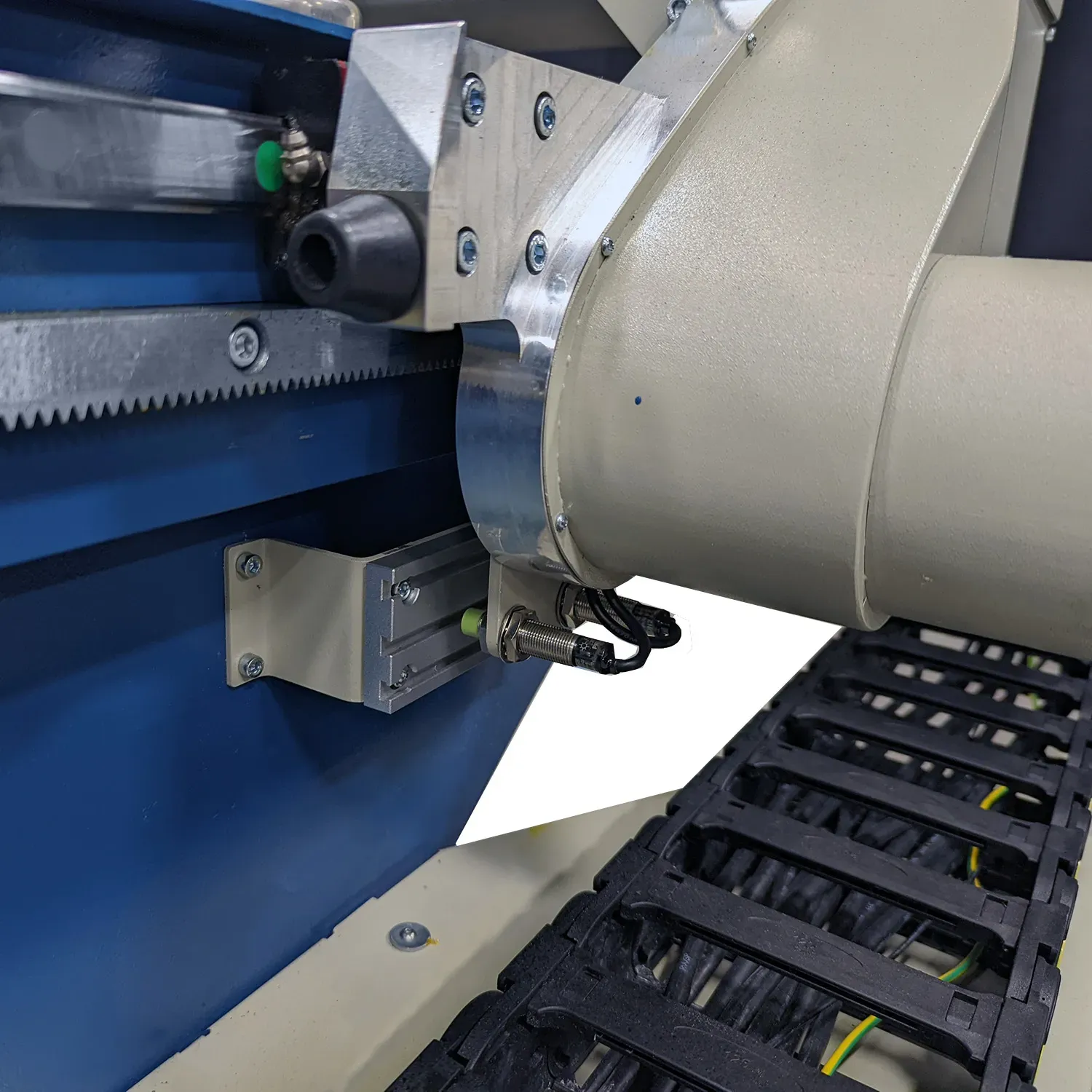

Axes ride on heavy-duty Hiwin square rails.
Wipers on rails keep welding dust out of the slide for a smooth transfer without noisy friction caused by dirt build-up.
Our design reduces the risk of damaging the table while loading or pinching your forkliftunlike competing plasma tables with recessed work areas.
Baileigh PT-105HD-V2; 220V 1Phase, 5' x 10' CNC Plasma Cutting Table Downdraft with Automatic Torch Height Control 1231495A
APPLICATION Metal Working
Brand Baileigh
POWER SOURCE Electric - Corded
PRODUCT TYPE Tools/Machinery
TOOL SUB-TYPE Routers - CNC Routers
TOOL TYPE Routers
VOLTAGE 208V-240V 1Ph
PT-Cut Master - (A-120) Plasma power supply
5/8" (15 mm) Production Cut - 1 -1/2" (38 mm) Maximum Edge Start Cut Air Plasma - 80% Duty Cycle - 120A Maximum Output
Features
Victor Technologies Cutmaster A-120 Automatic Plasma Cutting System
5/8" Production
220V Single Phase Motor
25' Cable
Amp Draw (amps)
120
Gross Weight
89.0
Input Power
220V Single Phase
Model Number
A-120
Net weight
89.0
