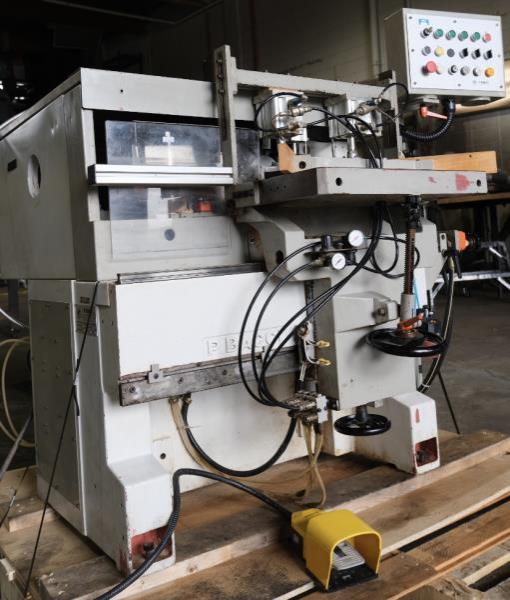

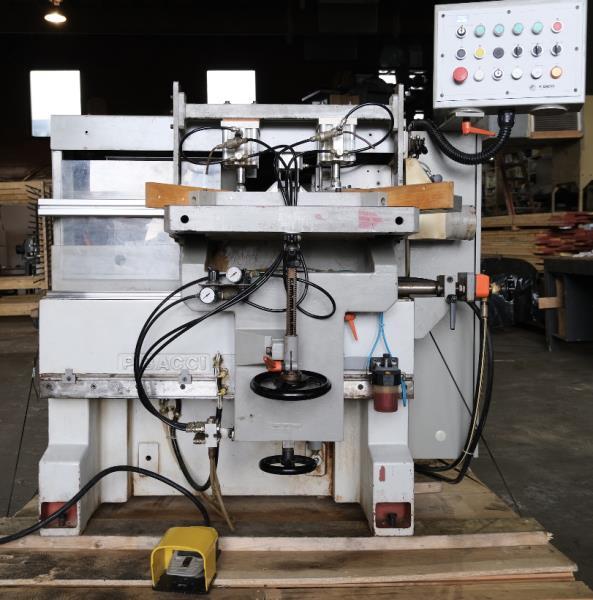

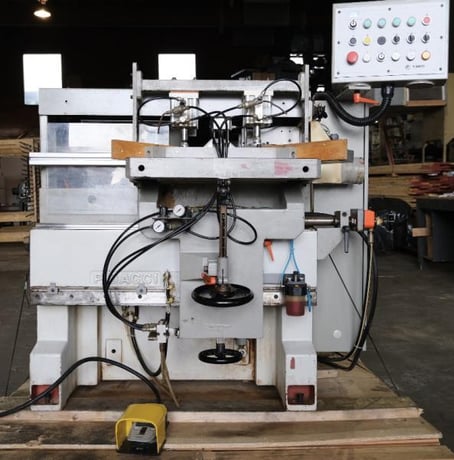

Bacci #TTF-1, Miter/Mortise/Tenon Door Machine, 45 deg miter frame door production, 3 HP w/400 mm blade diameter, 7-1/2 HP shaper, 60 mm boring depth, 1998

$8,550 USD

Request Formal Quote

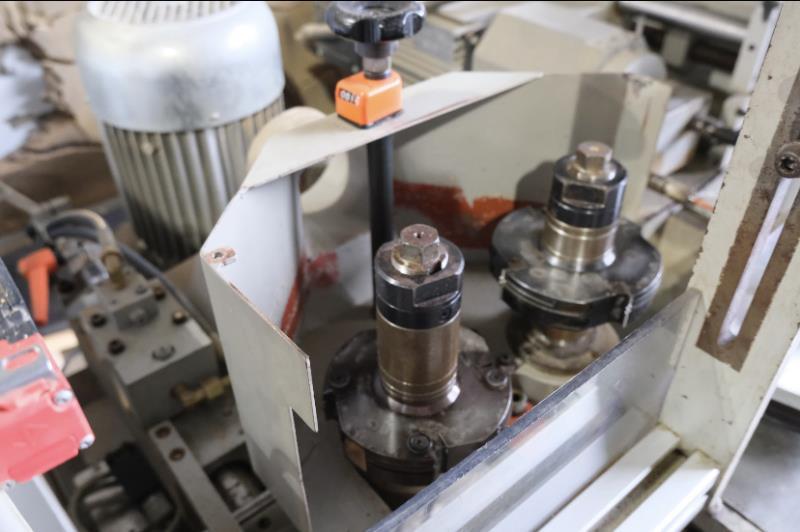

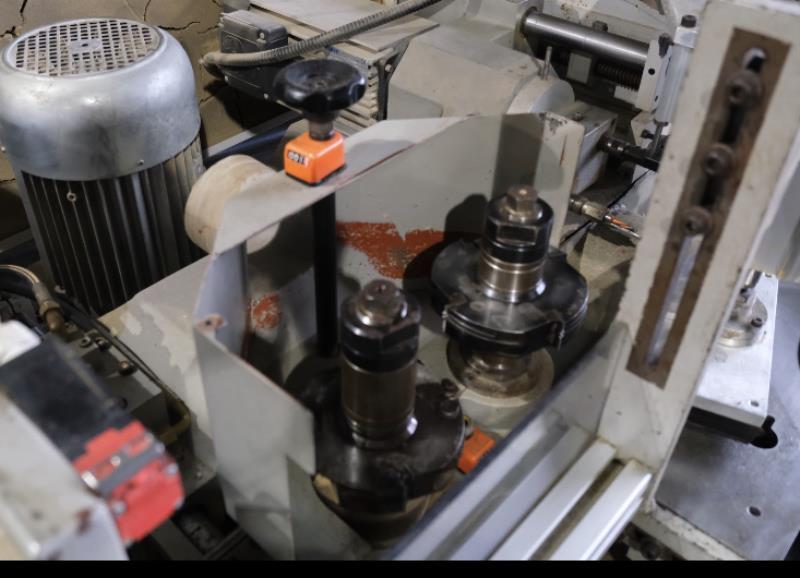

BACCI TTF1 T2M Cabinet Miter Door Machine Cutting boring and moulding machine, designed for 45 miter frame door production, with each cycle the parts are trimmed drilled and finger jointed; single sided cutting-boring-molding machine. Equipped with: -- Hydraulic control of table stroke; ball bushing and ground and hardened guides for the table movement; high precision cutter holder spindle moulding unit with automatic return. Features: -- PLC allows any combination of the cutting boring moulding operations, designed for 45 miter frame door production, with each cycle the parts are trimmed drilled and finger jointed, and a complete joint is produced with each cycle. Complete with: -- 3 HP Saw motor with 400 mm blade dia.; 7-1/2 HP shaper motor, 60 mm boring depth, (2) shaping units, (1) clockwise and (1) counter clockwise, 35 mm shaft dia., 8,000 RPM spindle speed; max. size of tools 160 mm dia. x 120 mm height.
