B & R Automation Temperature Input Module X20AT2222 24 VDC

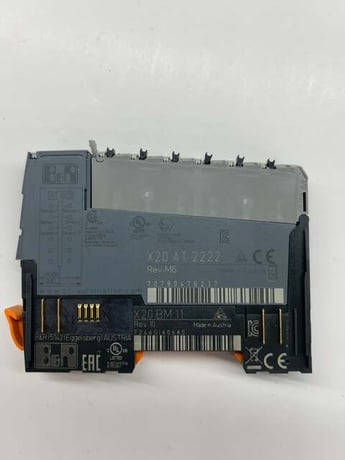

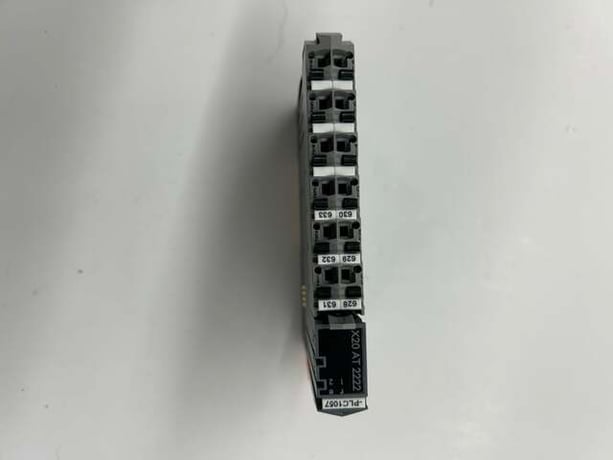

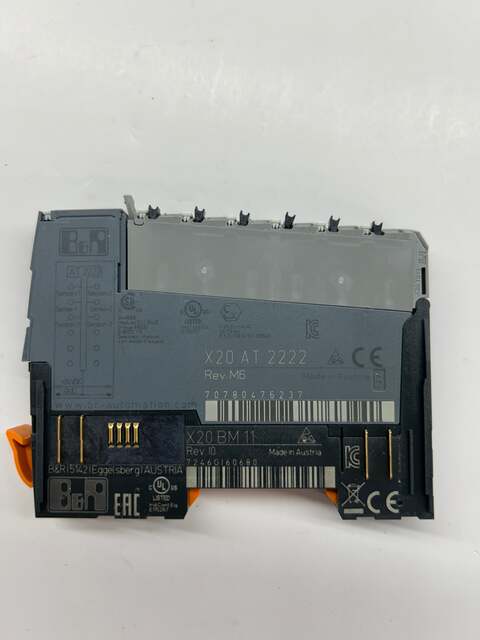

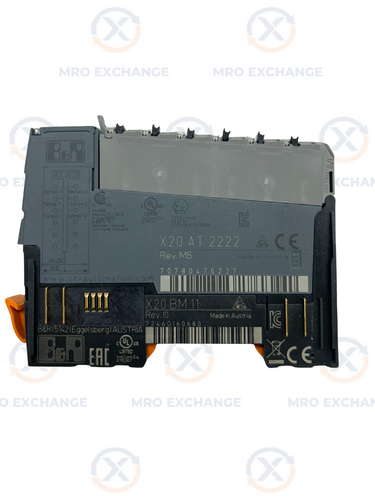

Used in B&R X20 series automation systems, the X20AT2222 is a 2-channel resistance temperature measurement module designed for PT100 and PT1000 RTD sensors. Part number X20AT2222, revision M6, manufactured by B&R Automation in Eggelsberg, Austria. The module provides direct resistance temperature measurement with configurable sensor type per channel, supporting both 2-wire and 3-wire connection configurations per module. Configurable filter time is supported for signal conditioning. The module interfaces with X20 6-pin terminal blocks and is designed for X20 system bus backplane mounting. This unit is listed together with the X20 BM11 bus module, revision I0 (serial 7246G160680), which serves as the base and bus connector for the X20AT2222 slice. The X20AT2222 carries serial number 70780476237 and bears UL Listed and CE markings. The X20 BM11 also carries UL Listed and CE certifications. Both components are Made in Austria. The module is part of B&R's X20 modular I/O platform, compatible with POWERLINK, X2X Link, and other B&R communication architectures depending on the bus controller in use. Terminal block labeling visible on the module face identifies Sensor-1 and Sensor-2 input connections.

Stock # 0326-1048
