B & R Automation Synchronous Servo Motor 8JSA32.E9030D200-0 - Variable 3000 RPM

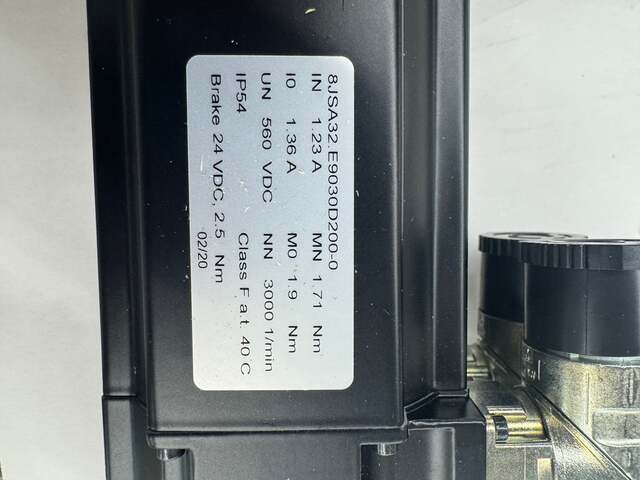

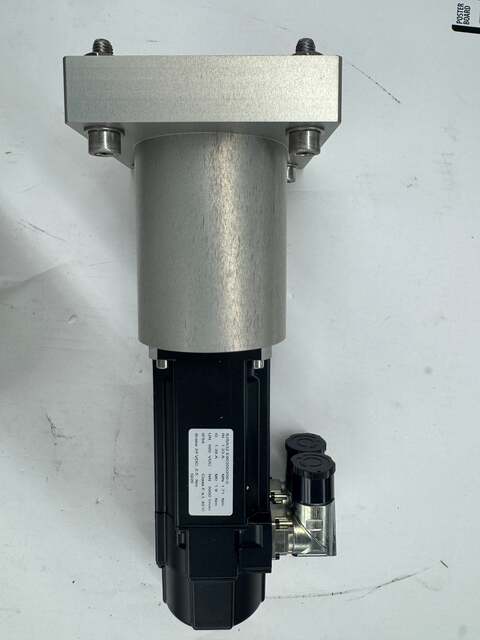

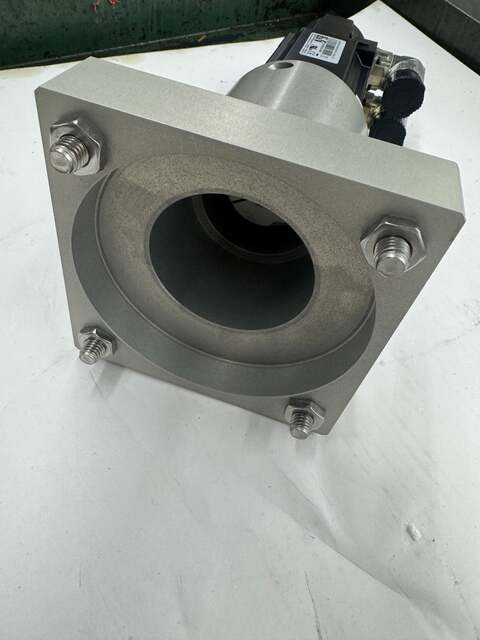

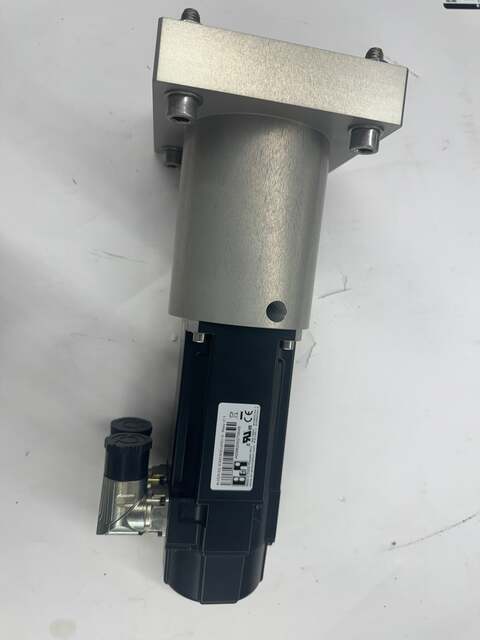

The B&R Automation 8JSA32.E9030D200-0 is a three-phase synchronous servo motor from the 8JSA series, size 3, length 2, featuring self-cooling (Design A). The nameplate confirms a nominal speed of 3000 rpm, nominal voltage of 560 VDC, nominal current of 1.23 A, nominal torque of 1.71 Nm, stall torque of 1.9 Nm, and stall current of 1.36 A. The motor is equipped with a 24 VDC holding brake rated at 2.5 Nm. Insulation is Class F, rated at 40 degrees C. Protection rating is IP54. The encoder type is E9, corresponding to a B&R EnDat multi-turn feedback system per 8JSA series nomenclature. Revision C1 and date code 02/20 are visible on the side label. The unit carries CE and UL markings. This motor is mounted to a custom-machined aluminum mounting flange with four stainless mounting studs and four corner bolt flanges; this flange is not an OEM B&R component and its origin is unconfirmed. The assembly is listed as photographed. The 8JSA series is designed for precision motion control applications in automation and packaging environments. Part number 8JSA32.E9030D200-0, serial number visible on label as ADRE0B002700848.

Stock # 0326-1102
