AXYZ Automation #7012, multi-spdl. CNC router, 7' x12'tbl., 2004

Estimated monthly payment valid upon approved credit.

Request Formal Quote

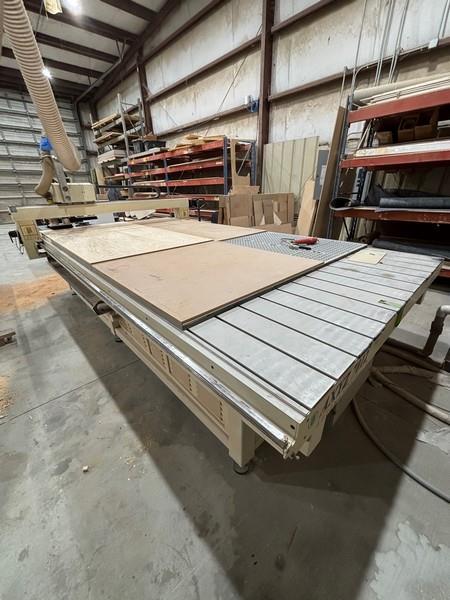

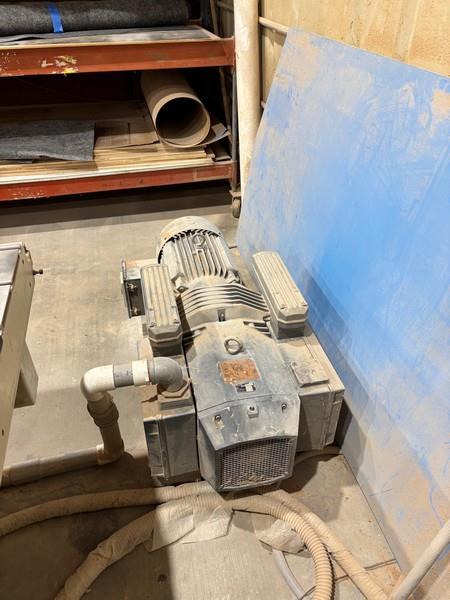

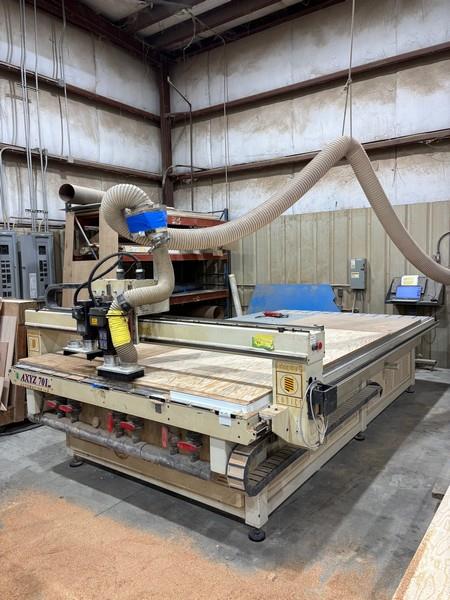

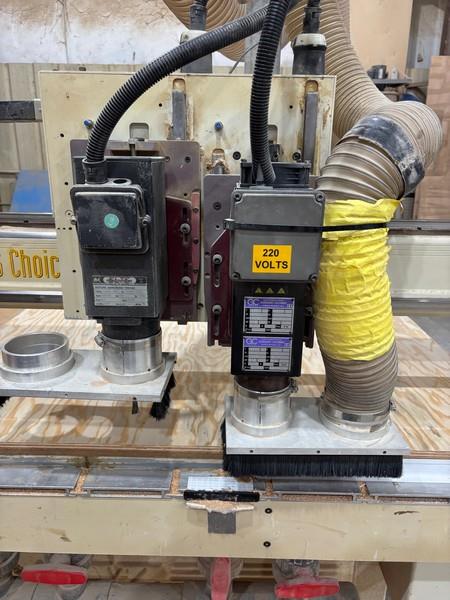

AXYZ - 7012: 7' x 12' CNC Router with: Multi-Spindles82" x 150" Moving gantry machine in a front-to-back configuration with: 115" x 168" Long stationary table; 82" x 150" Process area; multi-zone vacuum table supported by: 10 HP BECKER Vacuum Pump. -- Equipped with:(1) ELITE 10 HP Wrench type routing spindle; (1) ELITE 5 HP wrench type routing spindle; both are variable speed from: 6,000 - 18,000 RPM. -- AXYZ Controller. Includes: AXYZ "Tool Path Interface"; handheld pendant with user-friendly Control System with: Over (75) Operator programmable functions; can run: DXF, HPGL, and G-Code file formats. -- All Axes Move on STAR linear ways and utilize high speed, high torque Servo motors driving rack-and-pinion transmissions; the gantry uses a double drive system. -- Comes complete with:(1) 10 HP BECKER Vacuum Pump and documentation.
