For Sale by Atlantic Power & Equipment
Description

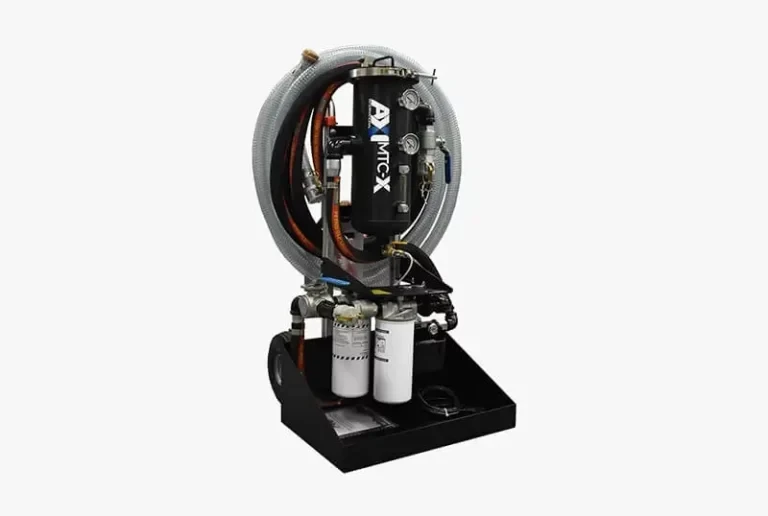

MTC-X Mobile Fuel Polishing System
- Removes heavy and fine contaminants such as sludge, water, and particulates from fuel storage tanks (26 GPM flow rate)
- Portable system design for easy transportation
- Multi-Stage filtration process with fine filter bypass
- Prevents unnecessary mess, catching potential drips or spills produced during routine filter changes with the cart's drip tray
Product Details
The MTC-X is a mobile fuel polishing system that removes water, sludge, sediment, and other contaminants that accumulate in fuel storage tanks. The system’s cart-based design allows for maximum portability and ease of transportation from tank to tank. The MTC-X also features an additional stage of fuel filtration with a set of secondary fine filter elements. With a 26 GPM flow rate, the MTC-X can polish up to 12,480 gallons (47,242 liters) of fuel in a runtime of 8-hours.
System Features:
Manual Filtration
Remediate fuel to desired cleanliness level with a multi-stage filtration process
Fine Filter Bypass
Spare fine filters during heavy contaminant removal
Portable System Design
Easily transport system from tank to tank with the system's cart-based construction
Drip Tray
Capture potential drips or spills produced during routine filter changes.
TECHNICAL SPECIFICATIONS
Product Specifications
Nominal Flow Rate
26 GPM/1,560 GPH (98.4 LPM/5,905 LPH)
Primary Filter
Bag Filter Vessel, Liner Basket for use with 1 - 800μ Water Block
Secondary Filters
3, 10, or 25μ Fine Filter or 3, 10μ Water Block
Fuel Conditioner (Optional)
LG-X 3000 Inline Magnetic Conditioner
Pump
3/4 HP Rotary Vane Pump
Power
120V/60Hz/15A or 230V/50Hz/15A
Plumbing
Black Iron
Ports
1.5" Cam & Groove In, 1.25" Cam & Groove Out
Dimensions
≈ 48” x 22.5” x 25” (122 x 57 x 63 cm) (H x W x D)
Weight
≈ 185 lbs (84kg)
