AXI MTC HC-50 Mobile Fuel Polishing System (NEW)

MTC HC-50 Mobile Fuel Polishing System

• Removes heavy and fine contaminants such as sludge, water, and particulates from fuel storage tanks (25 - 75 GPM flow rate)
• Portable system design for easy transportation
• Compressed Air Powered Pump
• Multi-Stage filtration process with fine filter bypass
• Prevents unnecessary mess, catching potential drips or spills produced during routine filter changes with the skid's drip tray

Product Details

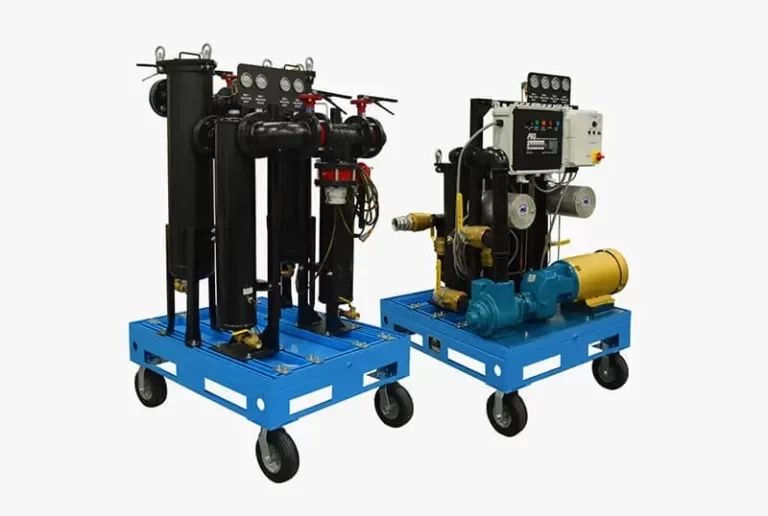

The MTC HC-50 is a high capacity mobile fuel polishing system that removes water, sludge, sediment, and other contaminants that accumulate in fuel storage tanks. The system’s skid-based design allows for maximum portability and ease of transportation from tank to tank with 4 swivel wheels. The MTC HC-50 also features an air powered pump and a multi-phase fuel polishing process that allow users to remove water and large particulate before utilizing fine filtration elements. With an adjustable flow rate range of 25 to 75 GPM, the MTC HC-50 can polish up to 36,000 gallons (136,275 liters) of fuel in a runtime of 8-hours.

System Features:

Multi-Stage Filtration

Remediate fuel to desired cleanliness level with a multi-stage filtration process

Fine Filter Bypass

Spare fine filters during heavy contaminant removal

Portable System Design

Easily transport system from tank to tank with the system's skid-based construction

Drip tray

Capture potential drips or spills produced during routine filter change.

• TECHNICAL SPECIFICATIONS

  Product Specifications

  Nominal Flow Rate

  25 - 75 GPM (94.6 - 283.9 LPM)

  Primary Filter

  Bag Filter Vessel, Liner Basket for use with 1 - 800μ Filter Bags

  Water Separator

  FP-90 Mechanical Water Separator

  Secondary Filters

  Cartridge Filter Vessel, 2 - 30μ Particulate, 10-30μ Water Block, or 3-10μ Micro-glass Filters

  Fuel Conditioner

  LG-X 4000 Inline Magnetic Conditioner

  Pump

  Air-Driven Double-Diaphragm Pump

  System Controller

  SFC50 Smart Filtration Controller with Safety and Alarm Features

  Power

  Air Powered (25 -50 SCFM @ 90psi)

  Plumbing

  Black Iron

  Ports

  2" Cam & Groove In, 2" Cam & Groove Out

  Dimensions

  ≈ 59” x 36” x 45” (150 x 91 x 114 cm) (H x W x D)

  Weight

  ≈ 630 lbs (286 kg)
