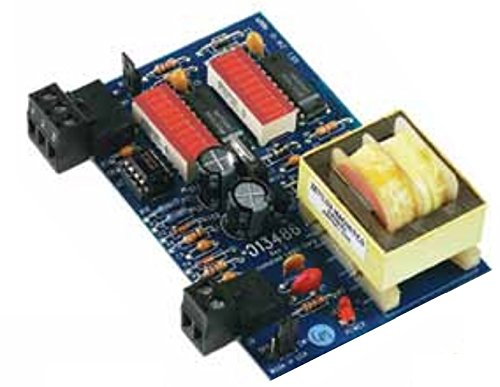

Automated Logic DIAG485 Ancillary Network Board for ARCNet, Diagnostic Board

Automated Logic DIAG485 Ancillary Network Board for ARCNet, Diagnostic Board - DIAG485 correctly biases the ARCNET 156 Kbps network independent of the length of the wiring and offers visual diagnostics of the signal levels. Designed to ensure the superior performance of ARCNET 156 Kbps in the field, the ARCNET ancillary network boards serve to properly terminate, bias, protect and repeat data transmitted over the twisted pair EIA-485 network. Based on a native BACnet architecture, the Automated Logic system uses ARCNET 156 Kbps as the high speed building control network to connect Portal, ME line, SE line and ZN controllers with a family of routers. Dimensions : 4" (width) by 4" (height) by 2" (depth). 102mm (width) by 102mm (height) by 51mm (depth). - Automated Logic - Automated Logic Corporation - DIAG485 - DIAG485
