Atlas, Wire Ring Coiler, 3/16" capacity, 38" ring, 43" pass line, uncoiler, 2 plane straightener, cutoff, guides

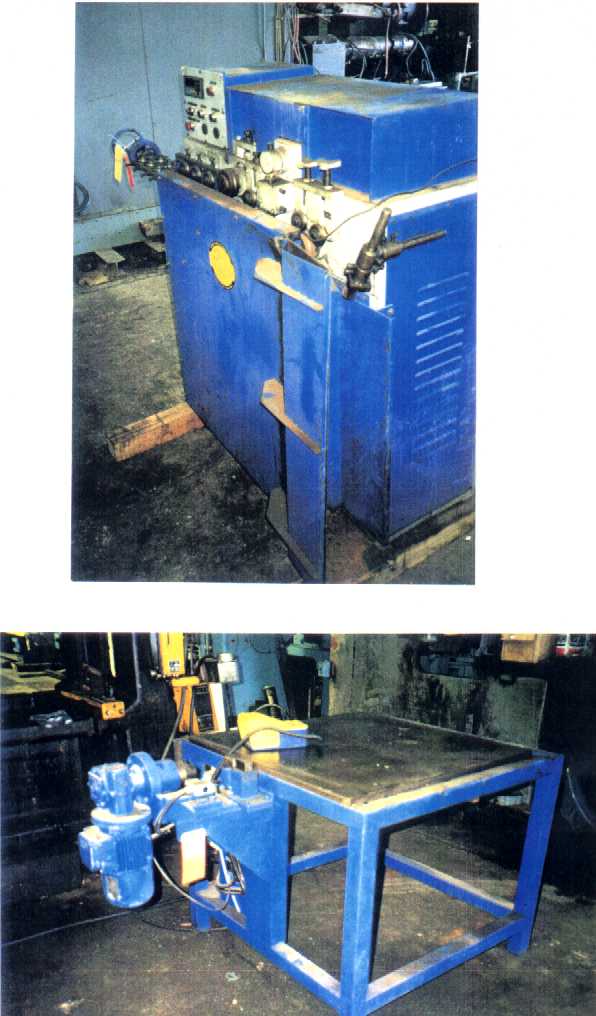

COILER:
CAPACITY:........ 3/16" DIA (APPROX)
RING SIZE:.............. MIN 6" DIA
MAX 38" DIA
PASS LINE .............. 43"
EQUIPPED WITH:
- NON-POWERED UNCOILER
- 12 ROLL -2 PLANE STRAIGHTENER
- PINCH FEED ROLLS
- LENGTH COUNTER ROLLS
- CUTOFF
- (3) ROLL WIRE BENDING HEAD
- Q.E.M. MO#EM560.31 ELECTRONIC COUNTER
- RING GUIDES
- MANUAL ADJUST ON ALL ROLLS

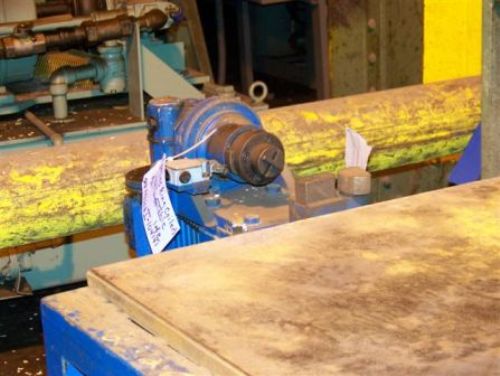

WIRE TWISTER:

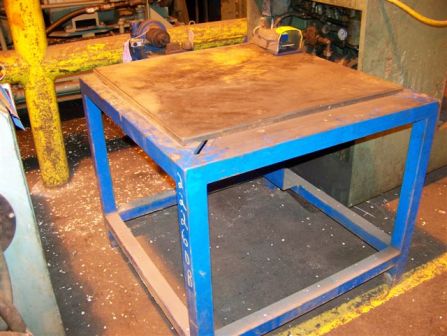

WIRE TABLE ............ 39" X 39" TOP
MOTOR ................. 1/2 HP, 220/440/380/420 1360RPM
20% GEAR RATIO
TWISTER SET UP WITH FOOT PEDAL FOR CONTROL ON HEAD ROTATION
EQUIPPED WITH:
- AIR OPERATED CLAWING HEAD
- FOOT TRIP
- PNEUMATIC PRESSURE REGULATOR
- NON ADJUSTABLE CHUCK
OVERALL DIMENSIONS:
COILER ................... 6'1" L-R X 3' F-B X 5' HIGH
WIRE TWISTER ............. 5'4" L-R X 3'4" F-B X 5'2" HIGH
WITH 1/2 HP 220/440/380/420V, 50 HZ, 1360 RPM)
COIL PAYOFF .............. 3'6" L-R X 7'6" F-B X 5'7" HIGH
(ARM DIM, - 5.5" DIA. X 6'4" LG - 45" FL00R TO
ARM CENTER LINE)
