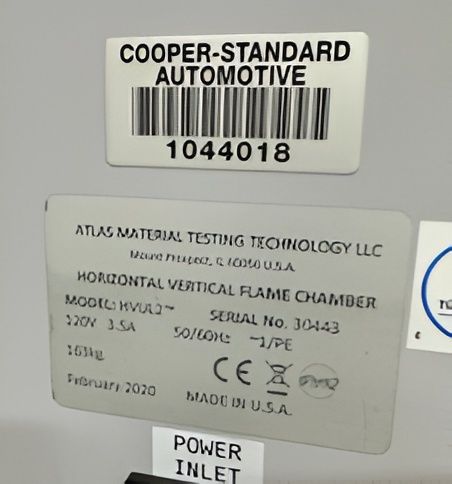

Atlas #HVUL2, flammability chamber

$5,900 USD

Request Formal Quote

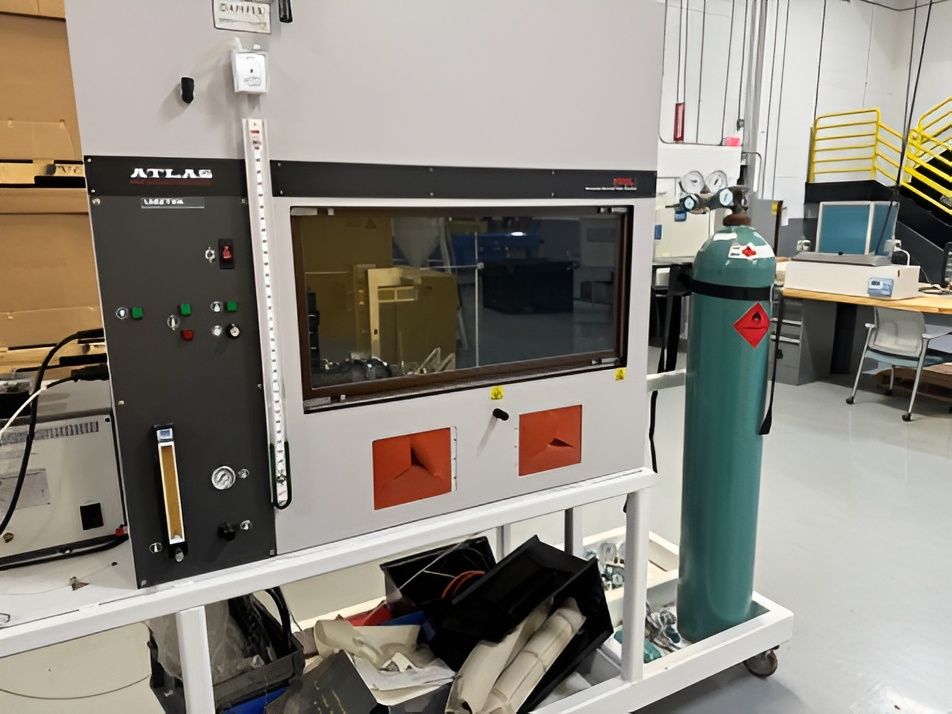

THE ATLAS HVUL2 HORIZONTAL VERTICAL FLAME CHAMBER IS ENGINEERED FOR THE FLAMMABILITY TESTING OF PLASTIC MATERIALS IN CONSUMER ELECTRONIC DEVICES ACCORDING TO UL 94 AND IEC 60695 STANDARDS. CONSTRUCTED FROM STAINLESS STEEL WITH A BLACK INTERIOR FOR HIGH VISIBILITY, THE CHAMBER FEATURES A LARGE SLIDING TEMPERED GLASS VIEWING WINDOW AND FLEXIBLE IRIS HAND ACCESS PORTS. TECHNICAL SPECIFICATIONS INCLUDE A PRECISION METERED GAS BURNER WITH ADJUSTABLE ANGLES OF 0, 20, AND 45 DEGREES, AND A FULLY ADJUSTABLE SPECIMEN SUPPORT FRAME ACCOMMODATING FIVE BUNSEN BURNER TESTS: HORIZONTAL, VERTICAL 20 MM, VERTICAL 125 MM, VERTICAL THIN FILM, AND HORIZONTAL FOAMED MATERIAL. THE SYSTEM IS EQUIPPED WITH THREE DIGITAL TIMERS PROVIDING 0.1-SECOND RESOLUTION, CONTROLLED VIA A REMOTE UNIT. THE INTEGRATED GAS CONTROL SYSTEM FEATURES AN ELECTRICAL SHUT-OFF SOLENOID, LOCAL FLOW METER, AND A PRESSURE REGULATOR WITH A GAUGE. ADDITIONAL FEATURES INCLUDE A FLAME CONFIRMATION KIT (ASTM D5207), AN INTERIOR INSPECTION LIGHT, AND A VARIABLE SPEED EXHAUST BLOWER WITH A SLIDING DAMPER. INTERIOR DIMENSIONS ARE 122 CM W X 112 CM H X 60 CM D, AND EXTERIOR DIMENSIONS ARE 122 CM W X 140 CM H X 61 CM D. THE BENCH WEIGHT IS 163 KG. ELECTRICAL REQUIREMENTS ARE EITHER 120V, 60HZ, 12A OR 230V, 50HZ, 6A. TESTING REQUIRES TECHNICAL GRADE METHANE AT 20-40 PSI.
