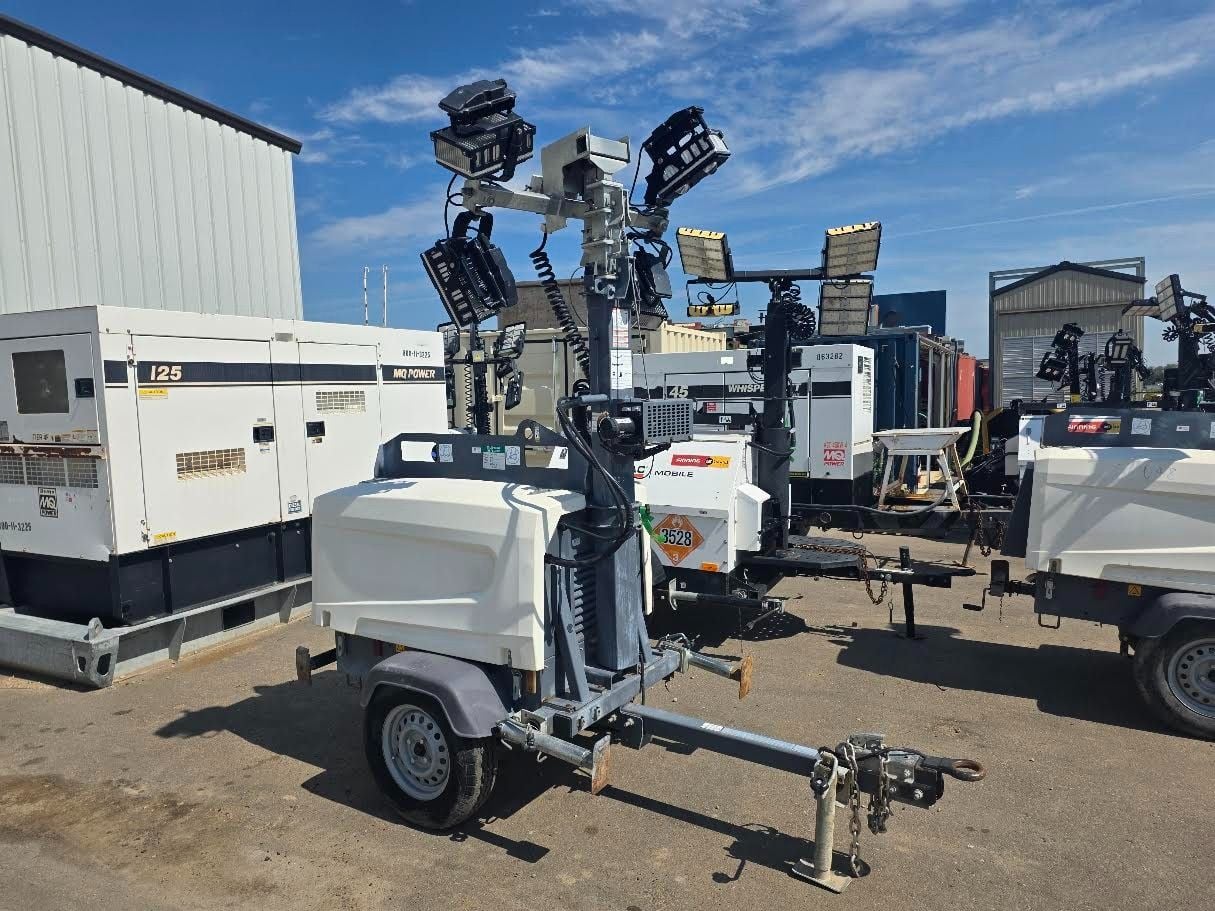

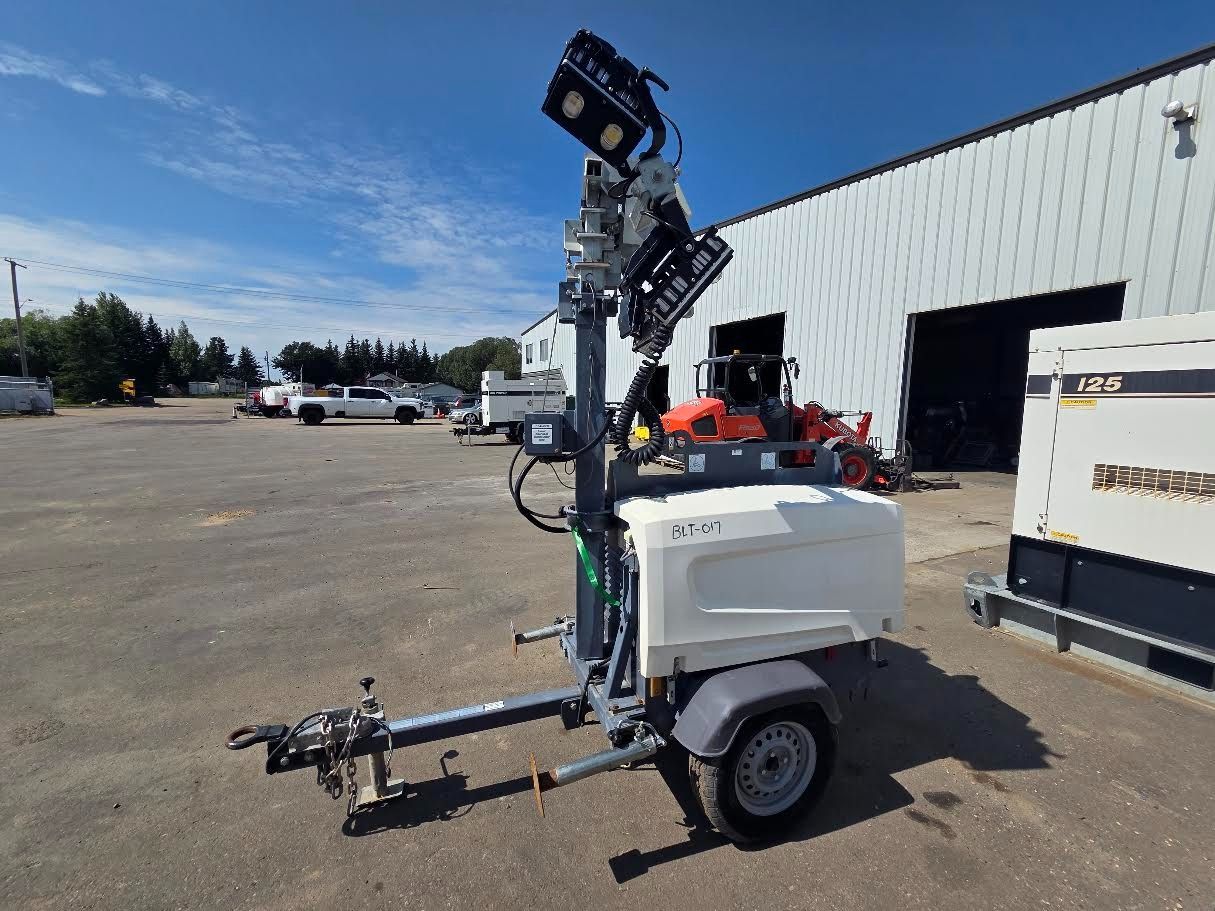

Atlas Copco #HiLight-V5, 3 KW light tower, LED, 4 x 350 W floodlights, 25' mast, Kubota Z482 diesel engine, 28 gal. fuel tank, 2020

$5,475 USD

Request Formal Quote

2020
Lights Units HiLight V5+ S

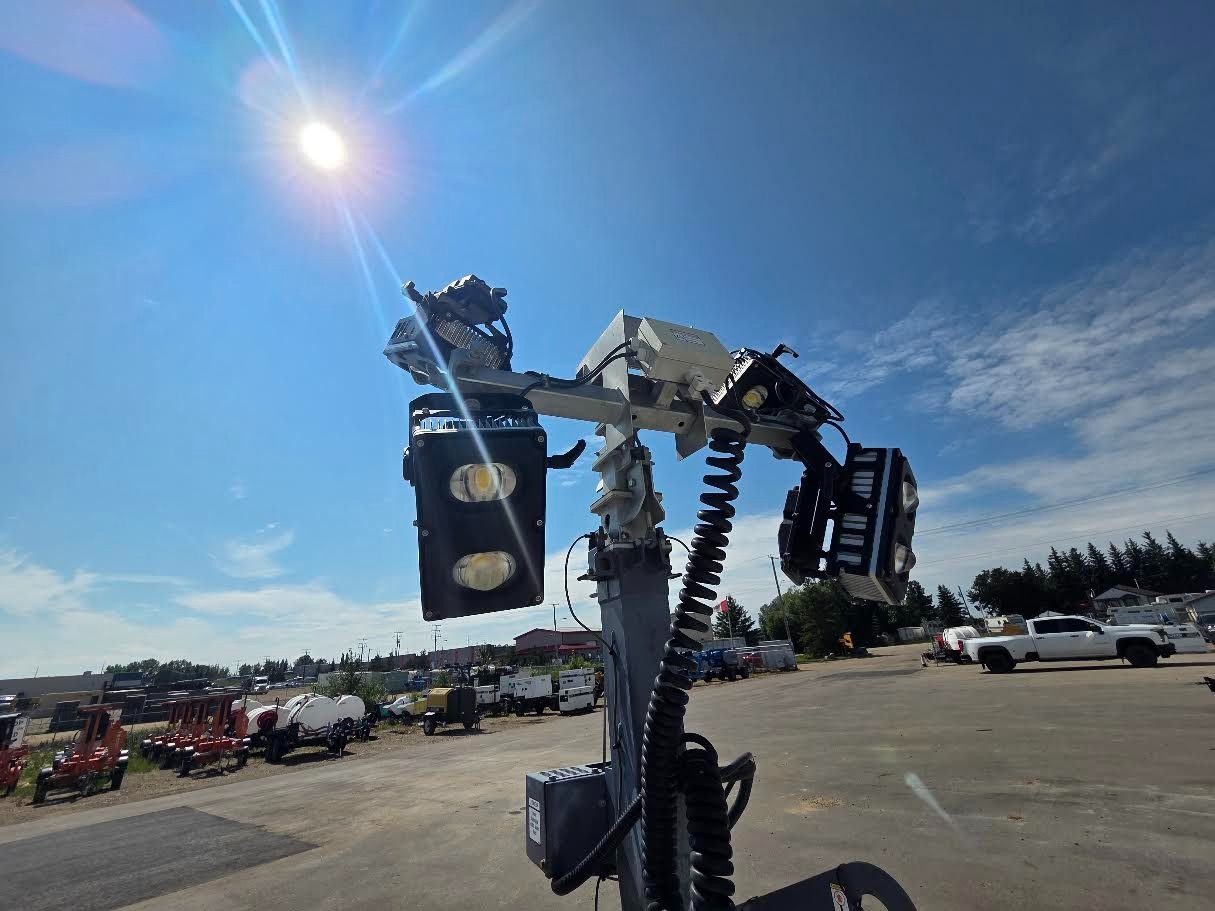

Floodlights Metal Led
Wattage W 4 x 350
Luminous Flex Lumen 4 x 38,500
Mast Units HiLight V5+ S
Type Manual vertical, 5 section
Rotation Degree 360
Maximum height ft (m) 25 (7.5)
Maximum speed wind mph (kph) 51 (80)
Mast Units HiLight V5+ S
Type DOT US Compliant Unibody trailer with 4 point leveling system
Base Frame Spillage free
Enclosure/doors Gull-wing
Dimensions and weight Units HiLight V5+ S
Dimensons in transport Up-righ Towbar (L x W x H) in (m) 77 x 48 x 102 (1.92 x 1.22 x 2.59)
Dimentions in transport - Towed (L x W x H) in (m) 110 x 48 x 102 (2.79 x 1.22 x 2.59)
Weight lb (kg) 1,768 (802

Rated frequency Hz 60
Rated voltage VAC 120 - 240
Rated power (PRP) kW 2.8
Operating temperature (min/max) °F (°C) -13 / 122
(-25 / 50)
Sound power Level (LwA) dB(A) 86
Sound pressure Level (LwA) at 7m dB(A) 63
Engine Units HiLight V5+ S

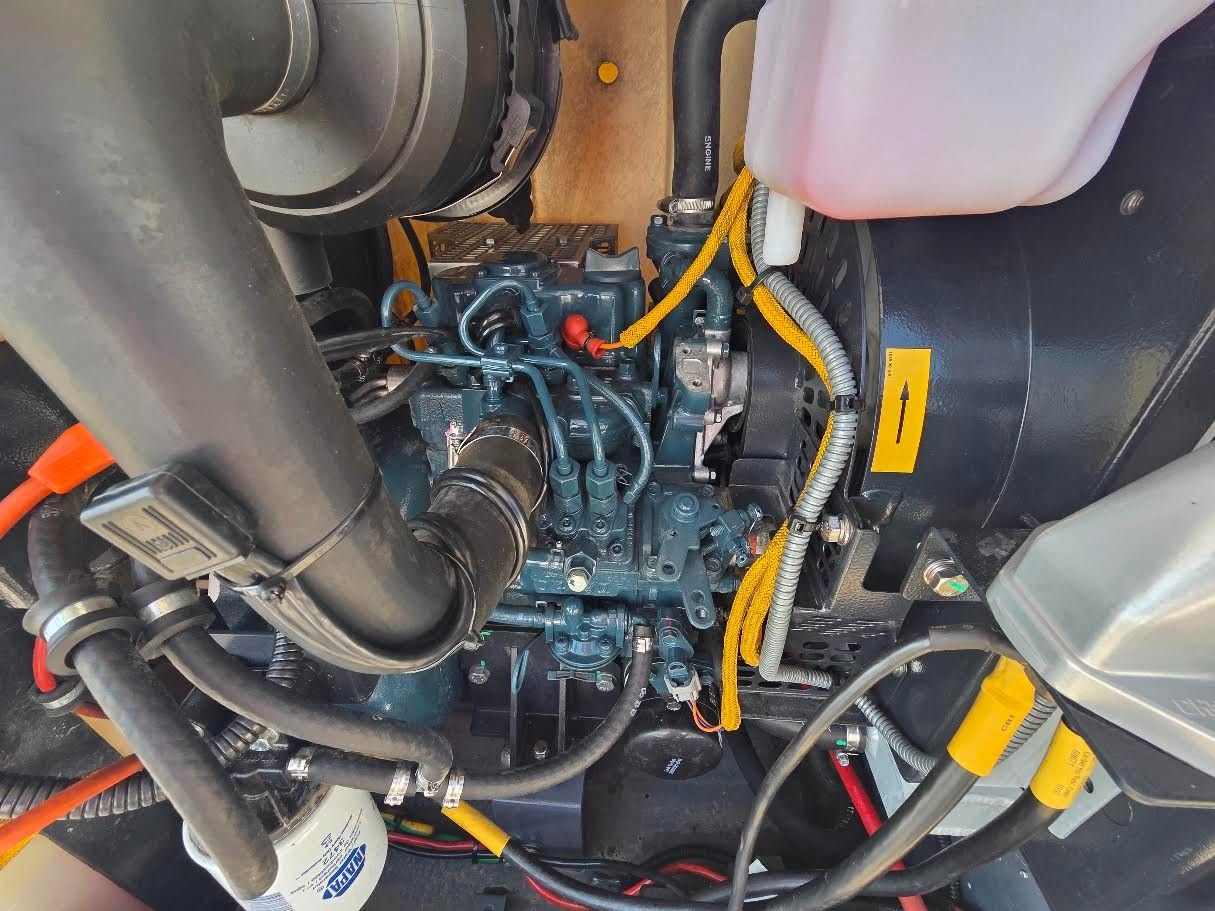

Model Kubota Z482
Speed rpm 1800
Rated net output (PRP) kW 3.63
Coolant water
Number of cylinders 2
Alternator Units HiLight V5+ S
Model Meccalte LT3N/75
Rated output kVA 4.5
Insulation / Enclosure protection class / IP H / 21
Fuel Consumption Units HiLight V5+ S
Fuel tank capacity gallon 28
Autonomy h 150
Power Output Units HiLight V5+ S
Maximum Power Output W 2,400
Outlets 120 VAC, 20A, GFCI Duplex (NEMA 5-20R) 240VAC, 30A, TL (NEMA L6 30R)
Main creaker (rated current) A 10
Available Outlets Power(W) Lights OFF
Lights ON 1,200 / 2,400
500 / 1,000
