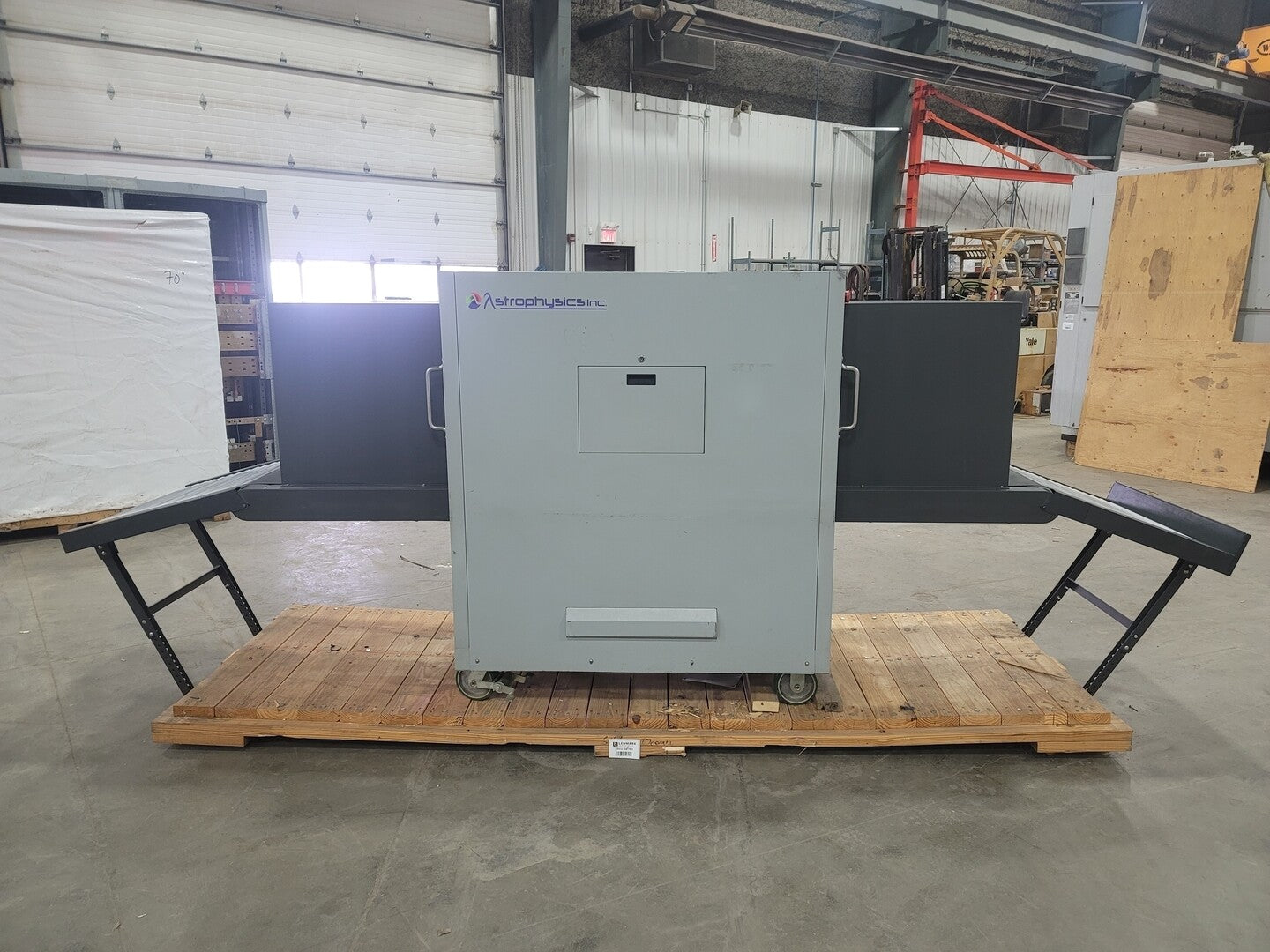

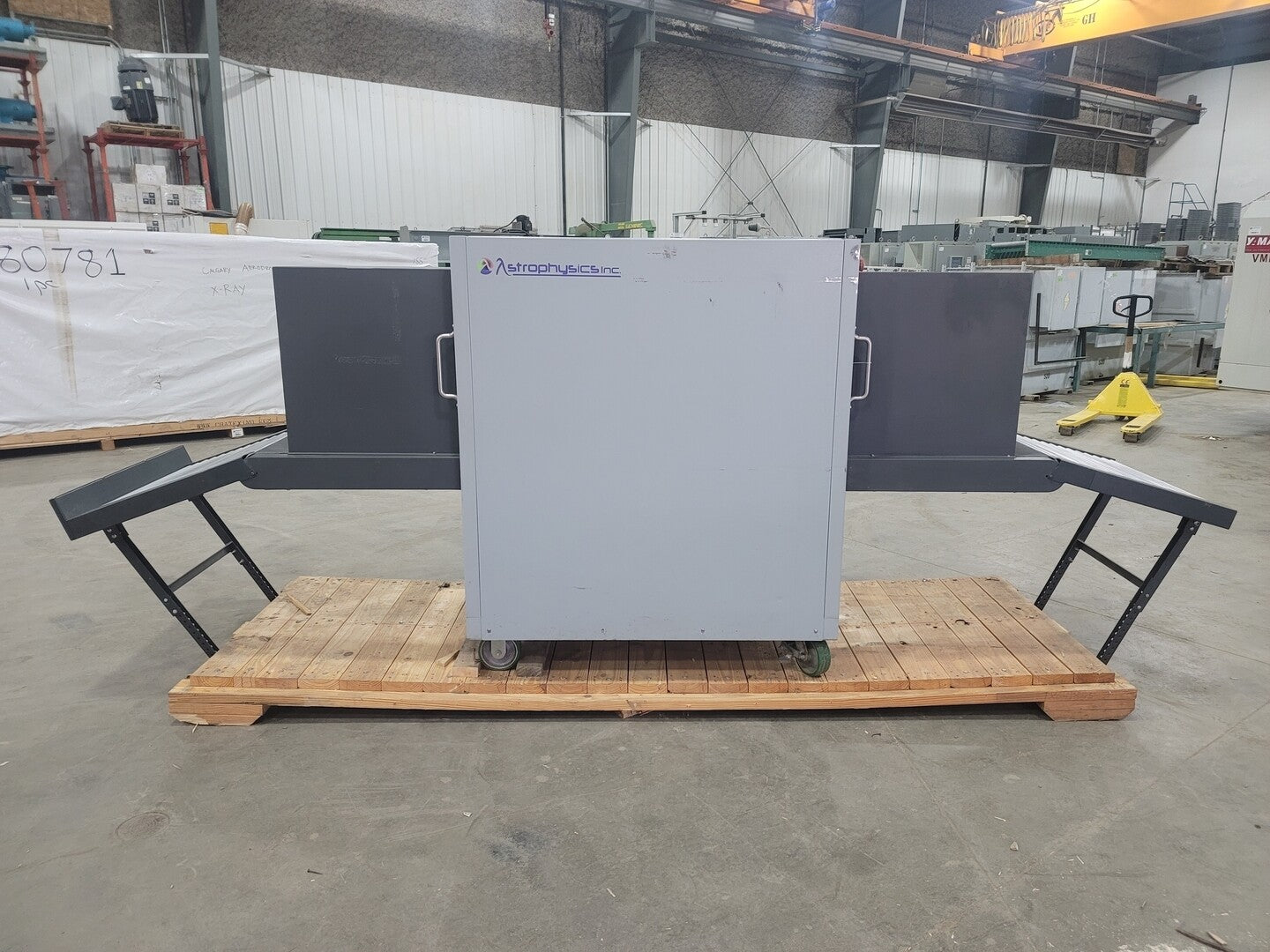

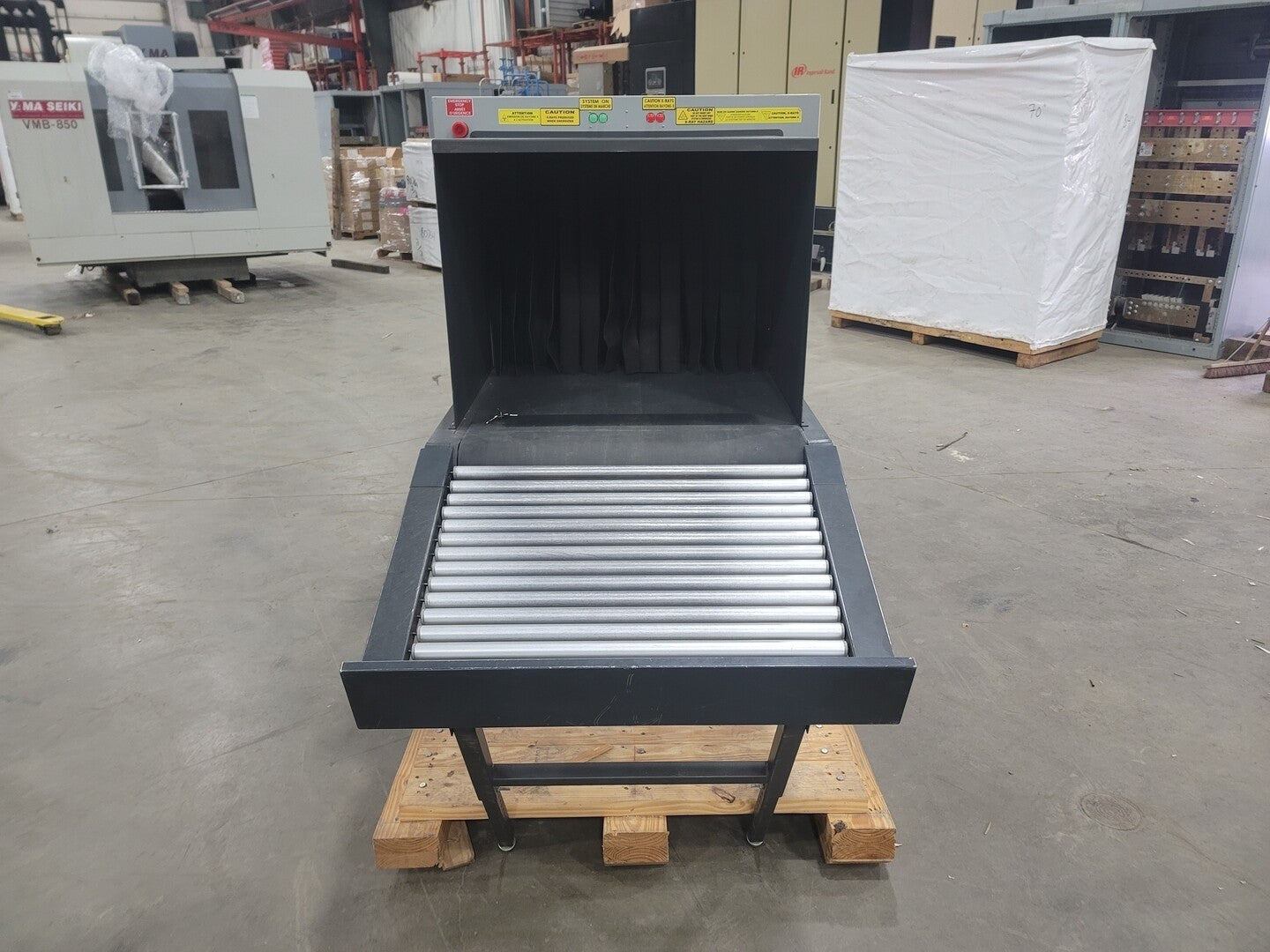

Astrophysics #XIS-7858, Checkpoint Security Baggage and Parcel Inspection, 110 V, 6 Color Imaging, Image Review, 2010

$9,295 USD

Request Formal Quote

SKU: 80783
Model: XIS-7858
Year: 2010
Condition: Used
S/N: ASTJD180MM339
Made In: UNITED STATES
Dimensions: 69.00 (H) x 48.00 (W) x 153.00 (L) inches
Additional Description:
General:-

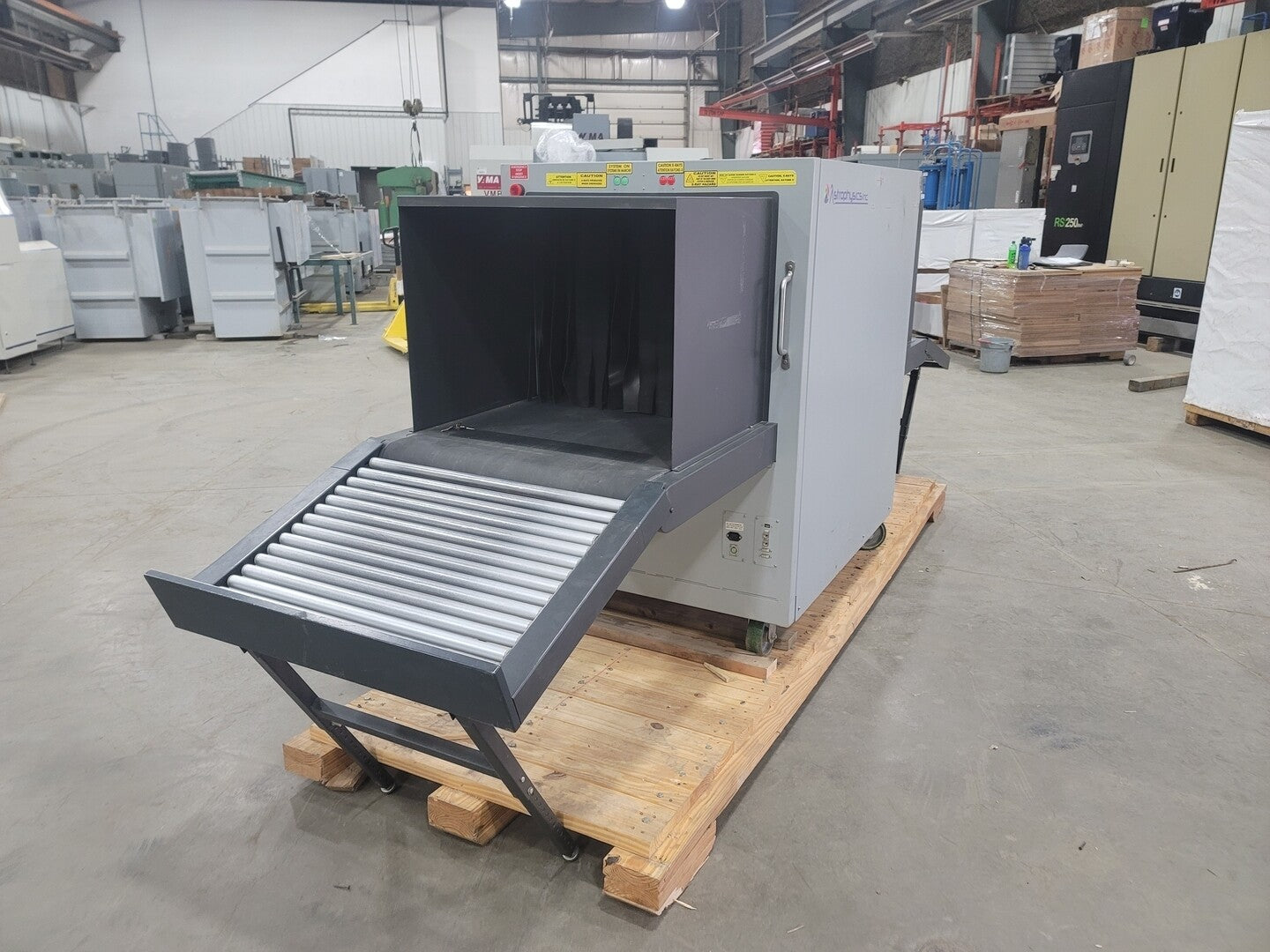

Tunnel Size: 30.6" W x 22.8" H
Dimensions: 90.3" L x 39.6" W x 55.1" H

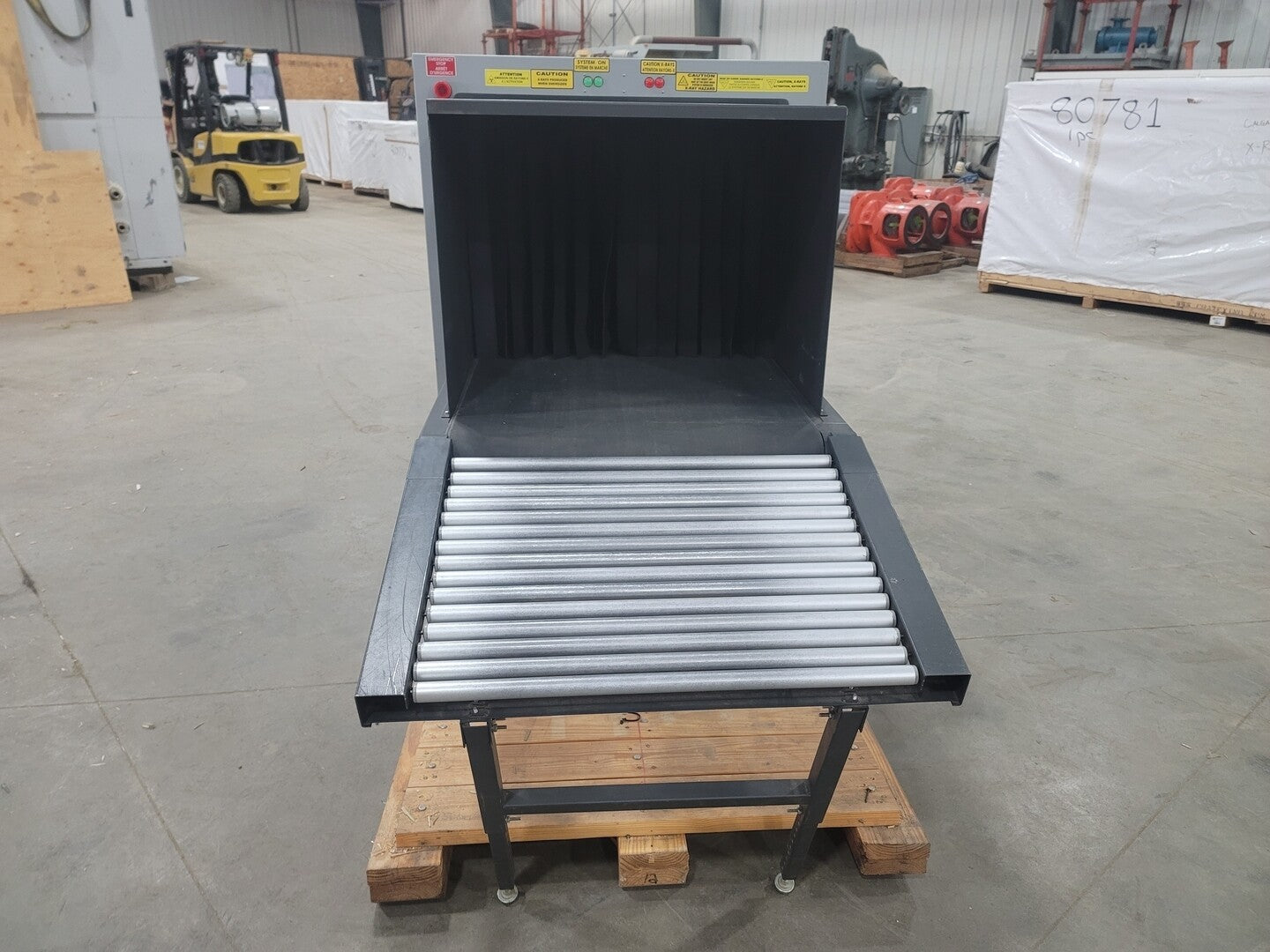

Conveyor Speed: 23 cm/s (45 ft/min) Forward or Reverse
Conveyor Height: 27.2" from floor
Conveyor Capacity: 165 kg (364 lb) Evenly Distributed Load
Construction: Custom Steel Frame / Panels
Technical:-
Sensitivity: 40 AWG Typical, 38 AWG Standard
Steel Penetration: 39 mm Typical, 37 mm Standard
Spatial Penetration: 1.0 mm Horizontal, 1.0 m Vertical
Contrast Sensitivity: 24 Visible Levels, 4096 Gray Level
X-Ray Generator & Image Performance:-
Voltage: 180 kV, Operating at 165 kV
Tube Current: 1.2 mA
Cooling: Sealed Di-Electric Oil Bath with Forced Air
Duty Cycle: 100%, No Warm-Up Procedure Required
Beam Direction: Diagonally Upward
Detector: 1664 Channels in an L-Shaped Array
Computer & Video:-
Platform: Windows OS
Backup: Uninterruptible Power Supply (UPS) Computer Operation

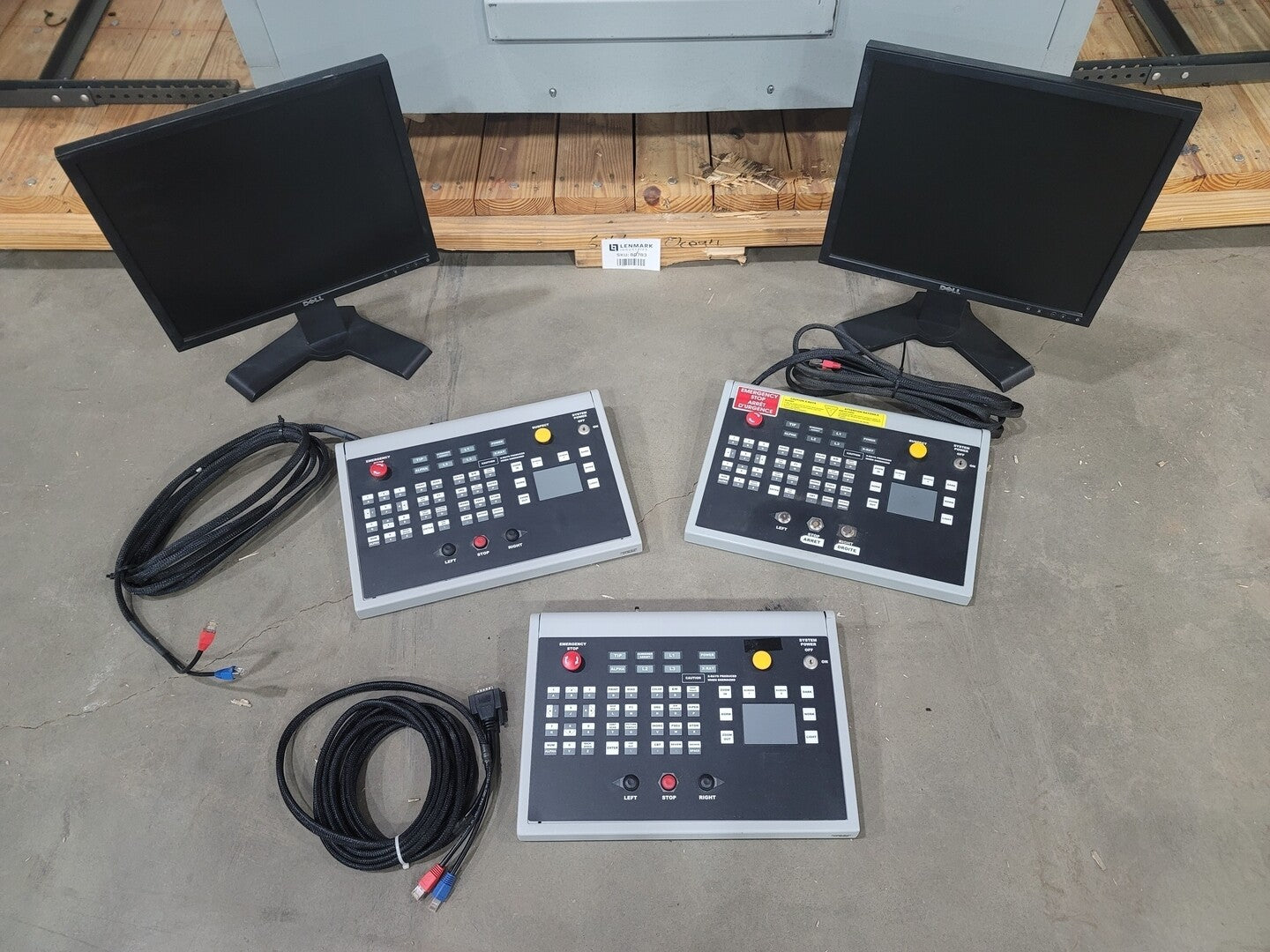

Display Type: Dual 19" Flat Panel Color Monitors
Display Resolution: 1280 x 1024; 24 Bit/ Pixel color
Environmental:-
Operating Temperature: 0 deg. C to 40 deg. C/ 32 deg. F to 104 deg. F
Storage Temperature: -20 deg. C to 60 deg. C/ -4 deg. F to 140 deg. F
Humidity: Up to 95% Non-Condensing

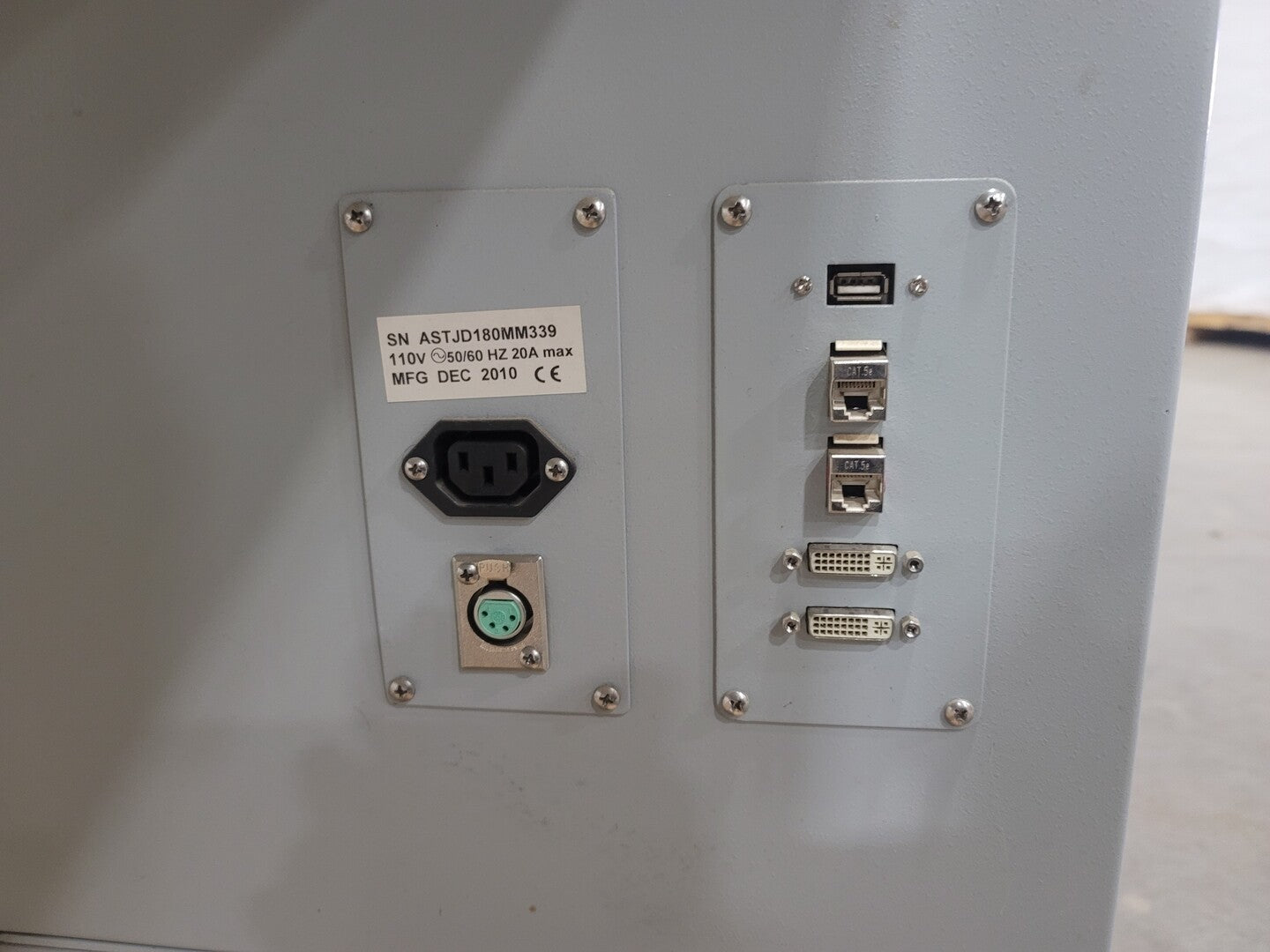

Electrical:-
System Power:
- 110 VAC +/-10% 50/60 Hz, 15 Amp max
- 220 VAC +/-10% 50/60 Hz, 10 Amp max
