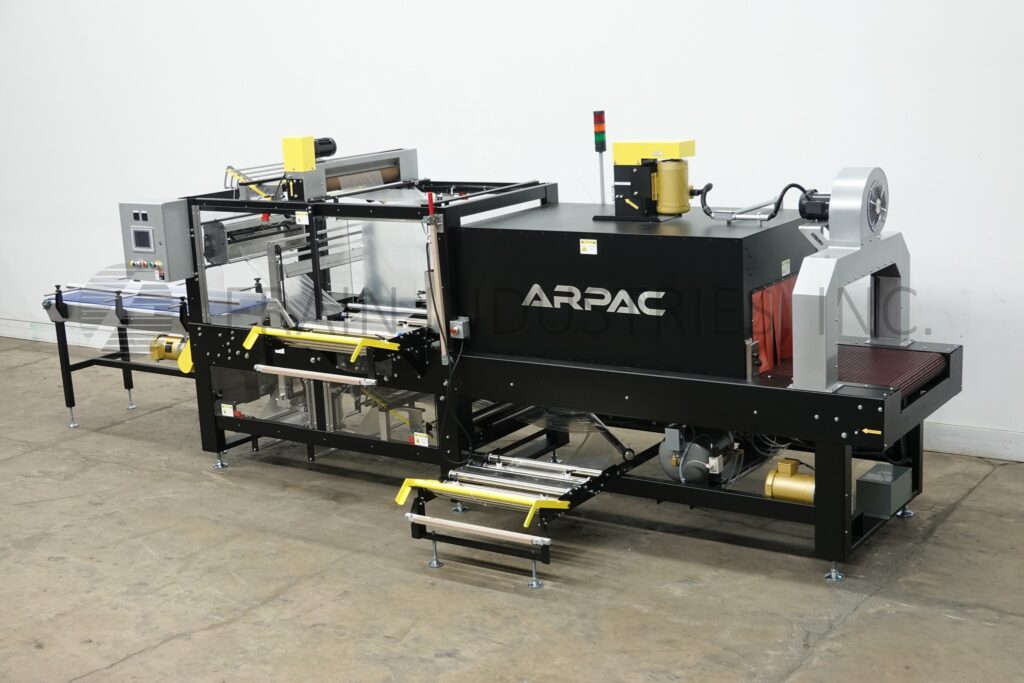

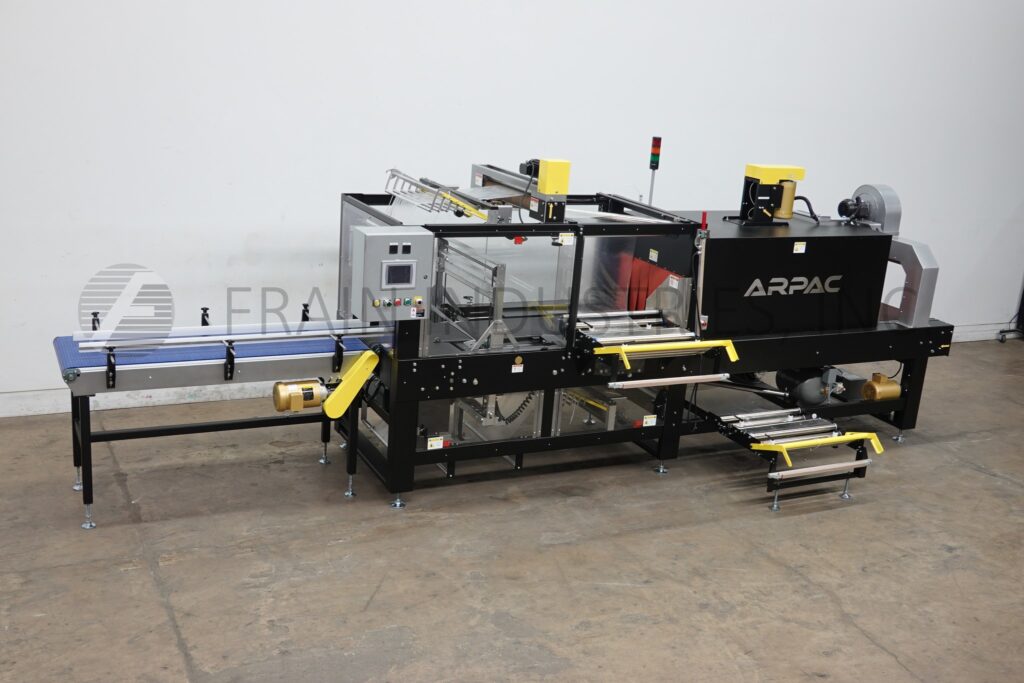

Arpac #45TW-28, inline, intermittent motion, bundler and integrated shrink tunnel, Allen-Bradley controller with PanelView operator interface and color touch screen

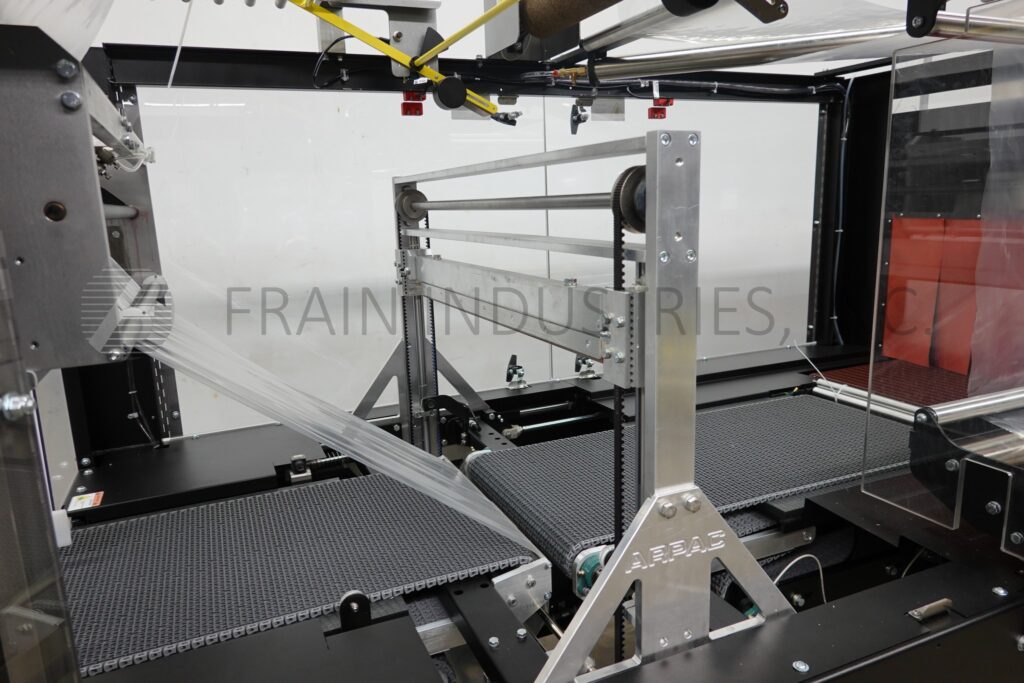

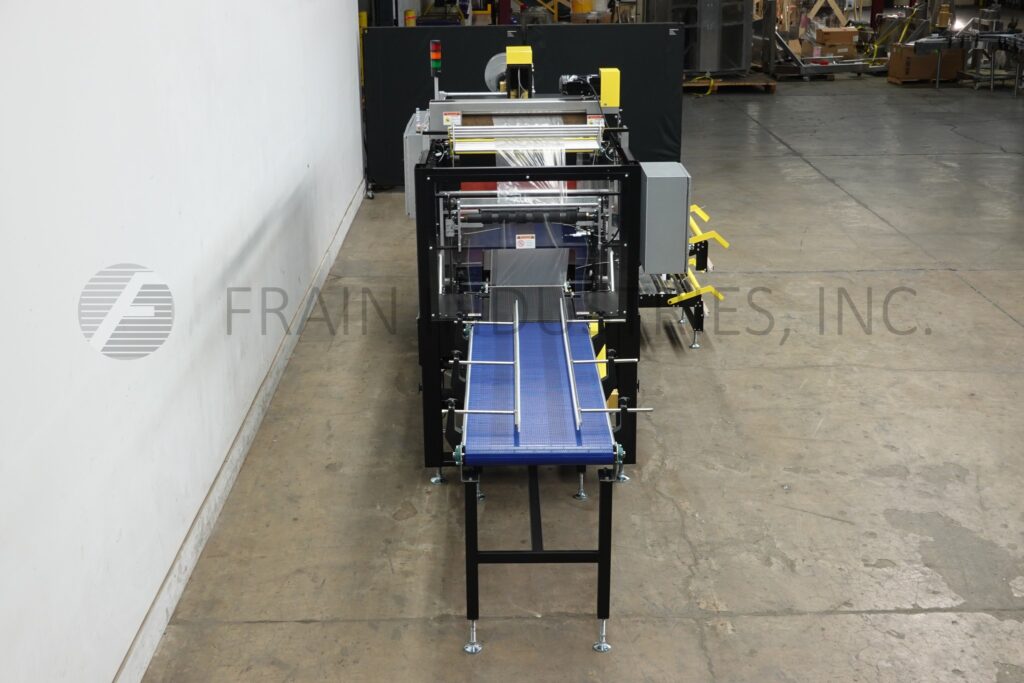

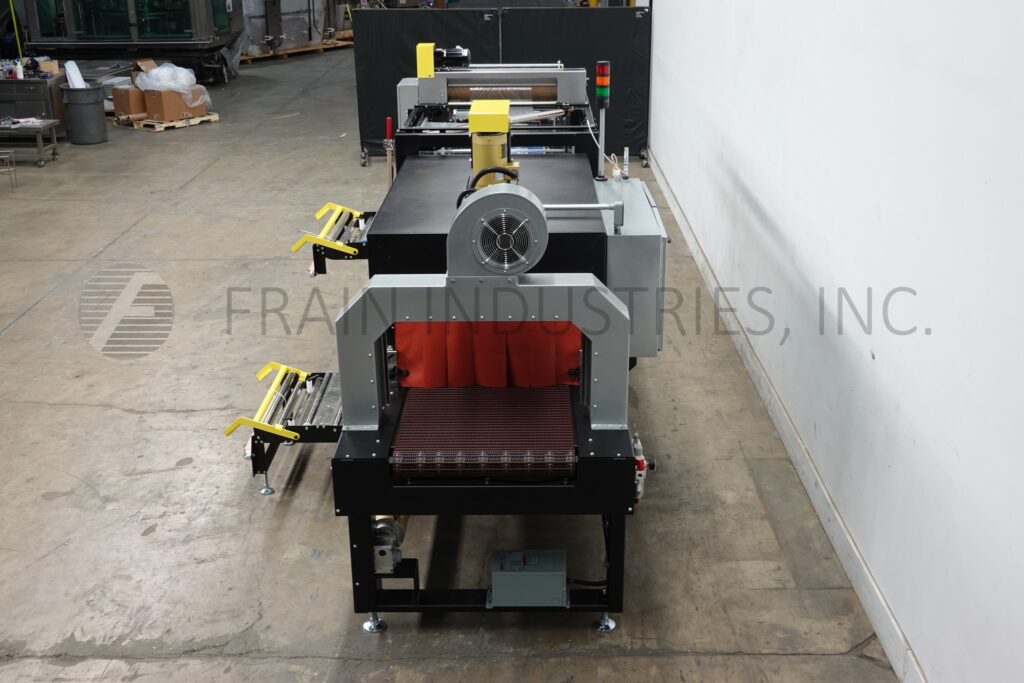

Arpac, Model 45TW-28, inline, intermittent motion, bundler and integrated shrink tunnel.Equipped with 70" long x 24" wide in feed conveyor, 29" wide seal jaw with 12" vertical travel, side mounted film racks and splice station, 66" long x 17" wide transfer conveyor through seal and into single zone shrink tunnel with 29" wide flex link conveyor and 28” in width x 16" in height aperture and 70" long chamber, top mounted blower motor and cooling blower at discharge. Allen-Bradley controller with PanelView operator interface and color touch screen, message display and self-diagnostics, low film alert, bypass mode – allows product to pass through the machine without being wrapped and without heating the tunnel. Mounted on heavy duty frame with status light bar and interlocked safety guarding. Speed dependent on materials, application and machie configuration. Film rolls up to 28" in width; and 14" OD on 6" core.

OAD: 262"L x 80"W x 88"H
