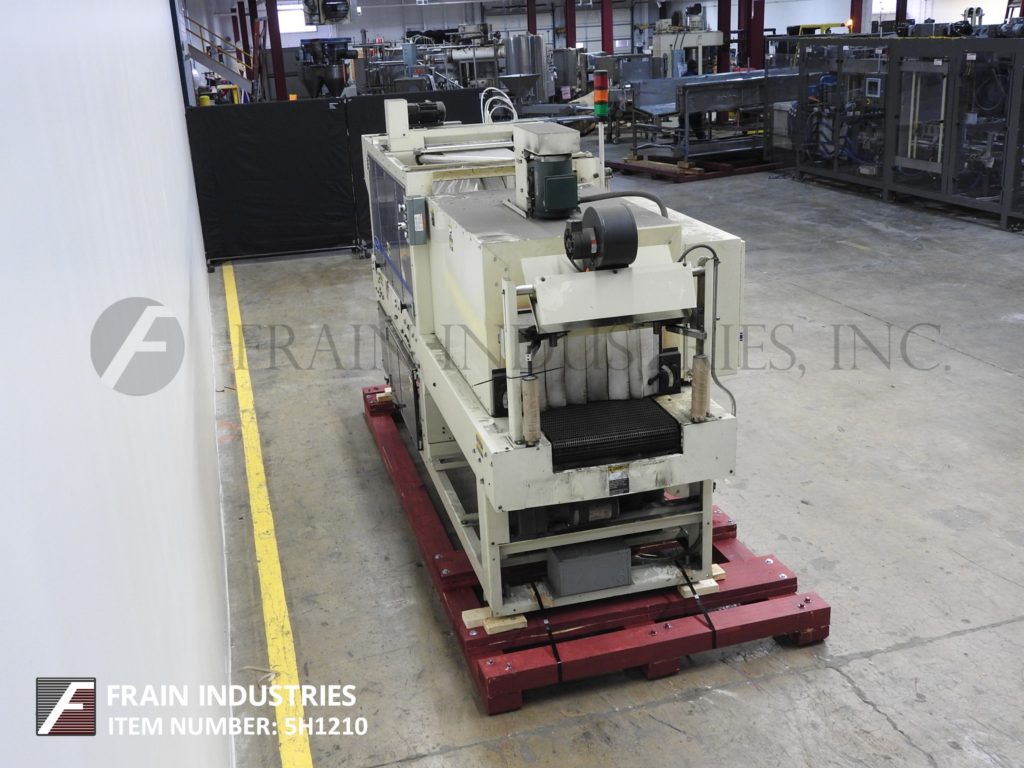

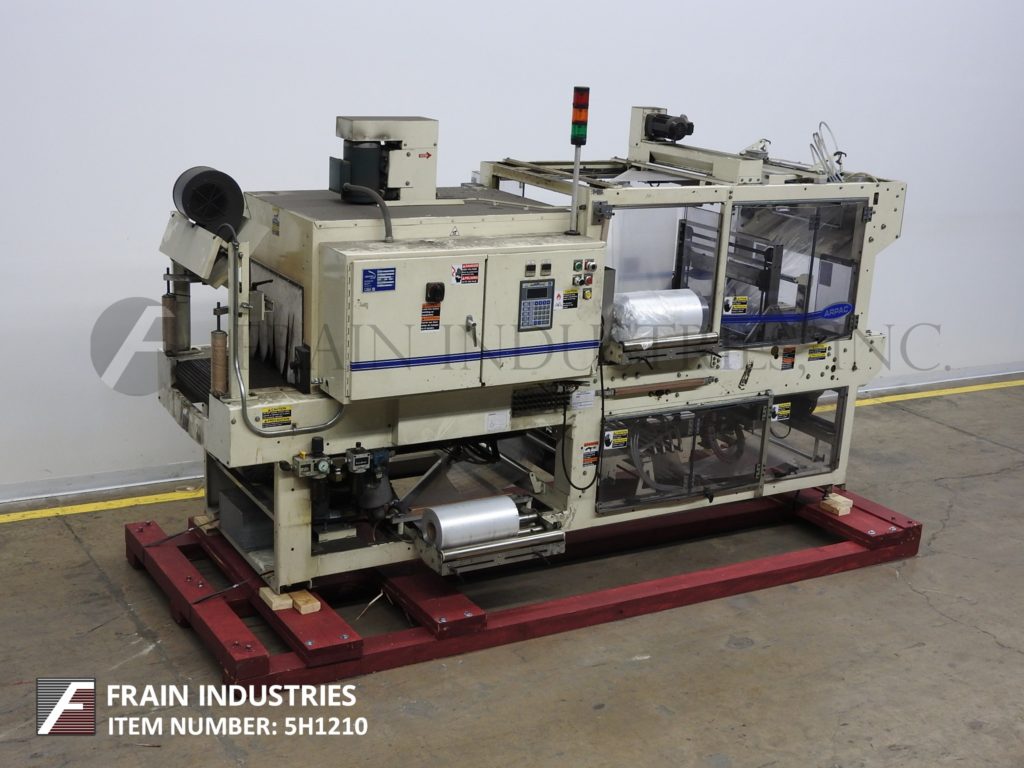

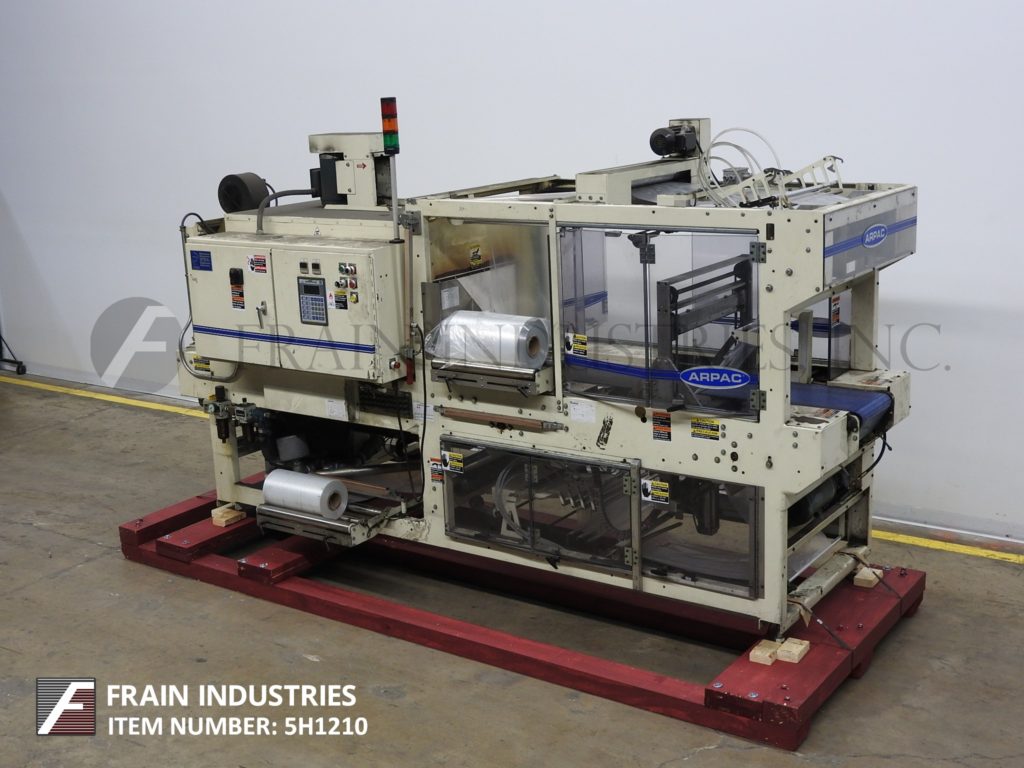

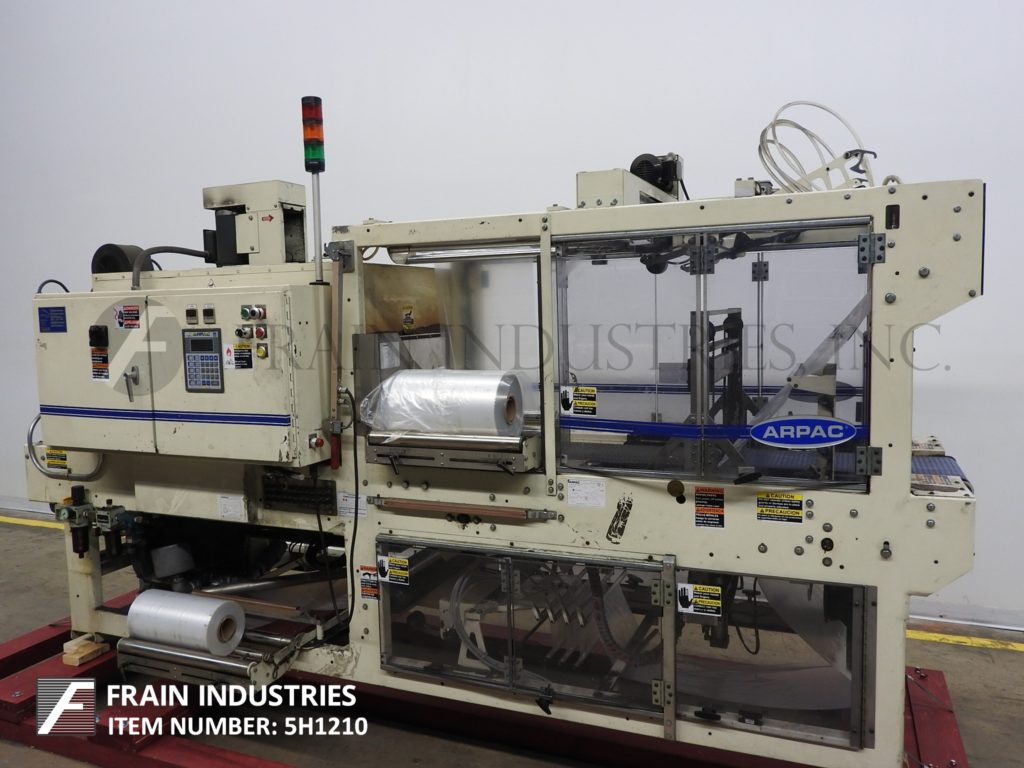

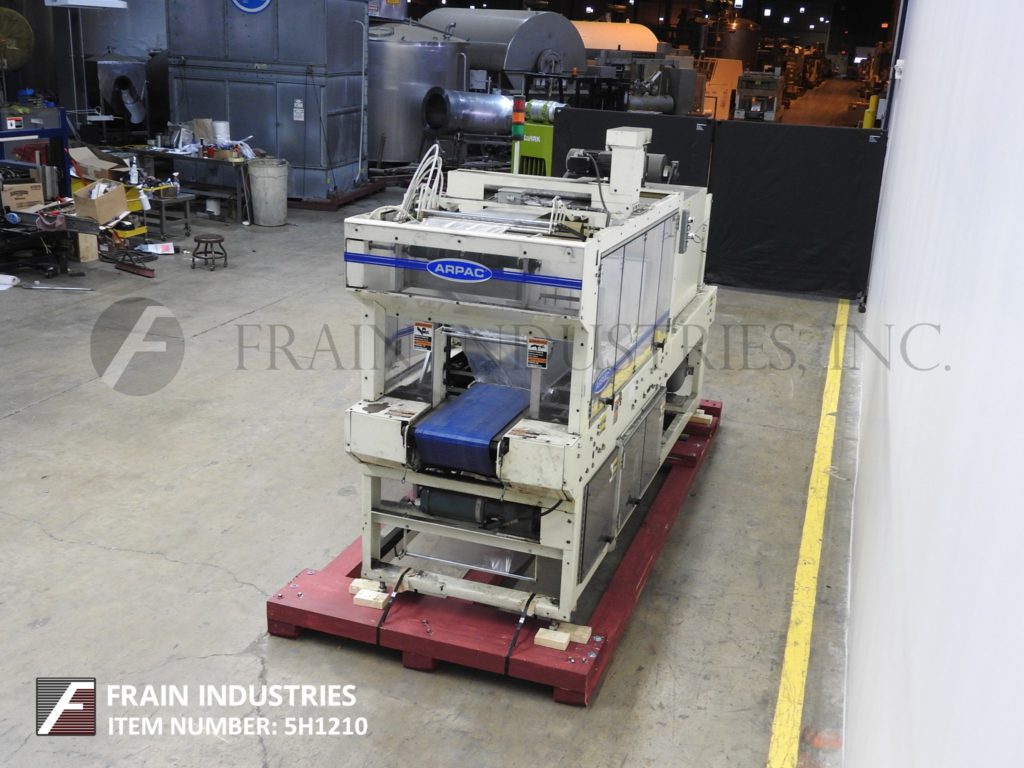

Arpac #55GI-20CX, inline, continuous motion, shrink bundler, 10-55 bundles per minute

Arpac, Model 55GI-20CX, Inline, continuous motion, shrink bundler. Rated from 10 to 55 bundles per minute – depending on materials, application and machine configuration. Equipped with 13" wide x 26" long in feed conveyor, (2) 21" wide film roll holders with film splicing stations, 21" wide walking beam seal jaws with 11" vertical travel and 13" wide x 36" long transfer conveyor to shrink tunnel. 50" long single zone shrink tunnel has 20” wide x 16" high total aperture, 70" long x 20½" wide Intralox product conveyor, cooling fan and roller side compression on discharge. Control panel with AB controller, touch pad controls with readout, start / stop / e-stop / manual seal push button controls and digital temperature controls for seal bar and tunnel. Mounted on heavy duty base frame.

OAD: 144"L x 55"W x 88"H
