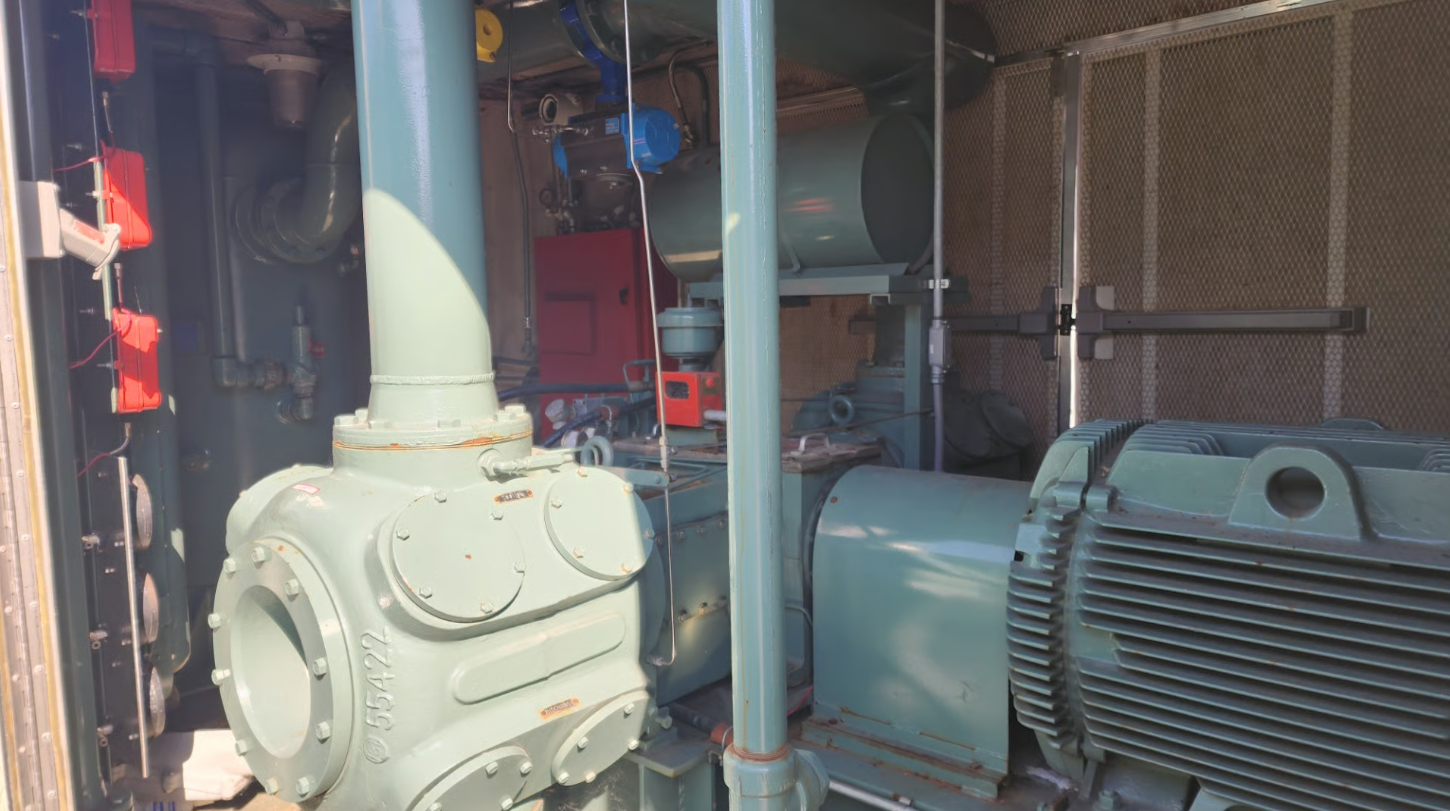

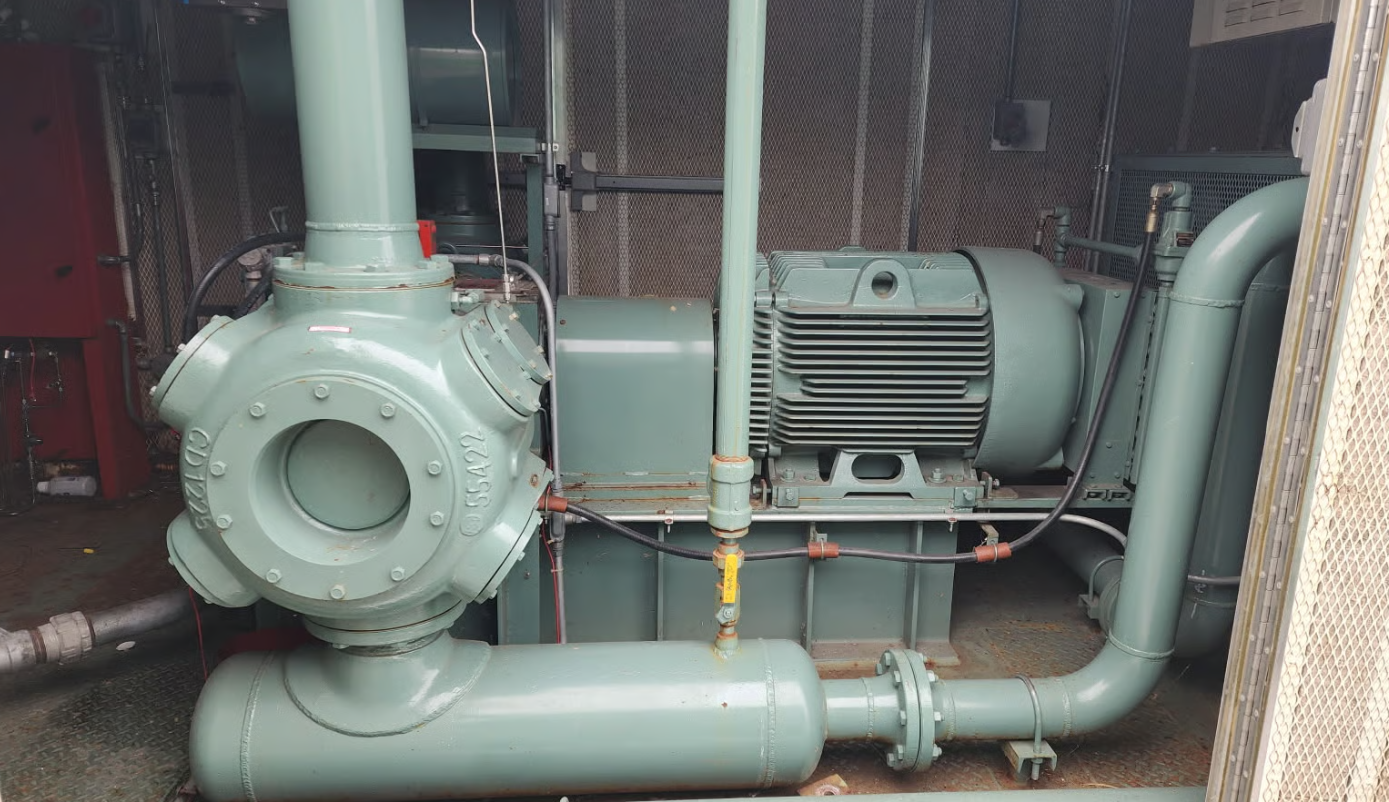

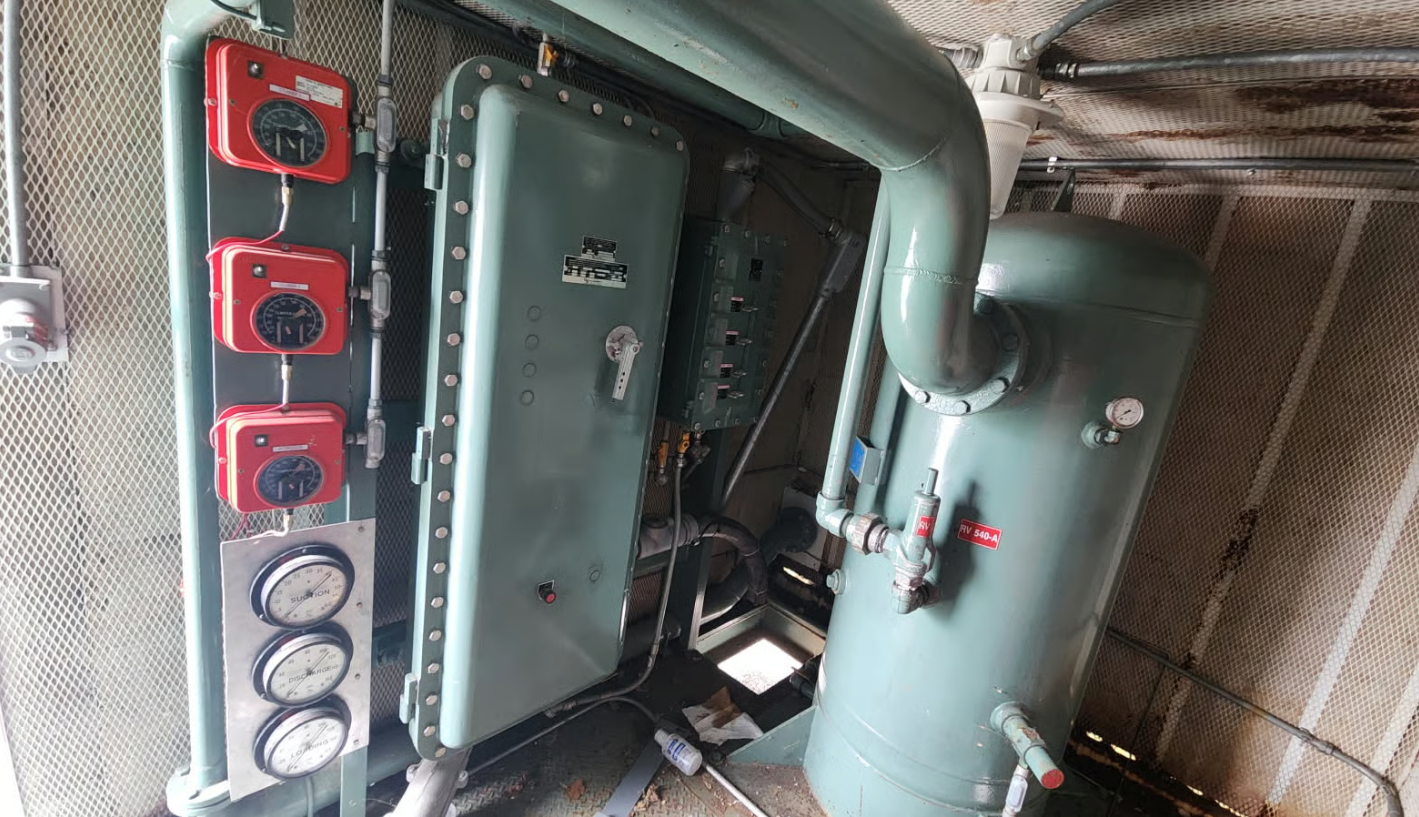

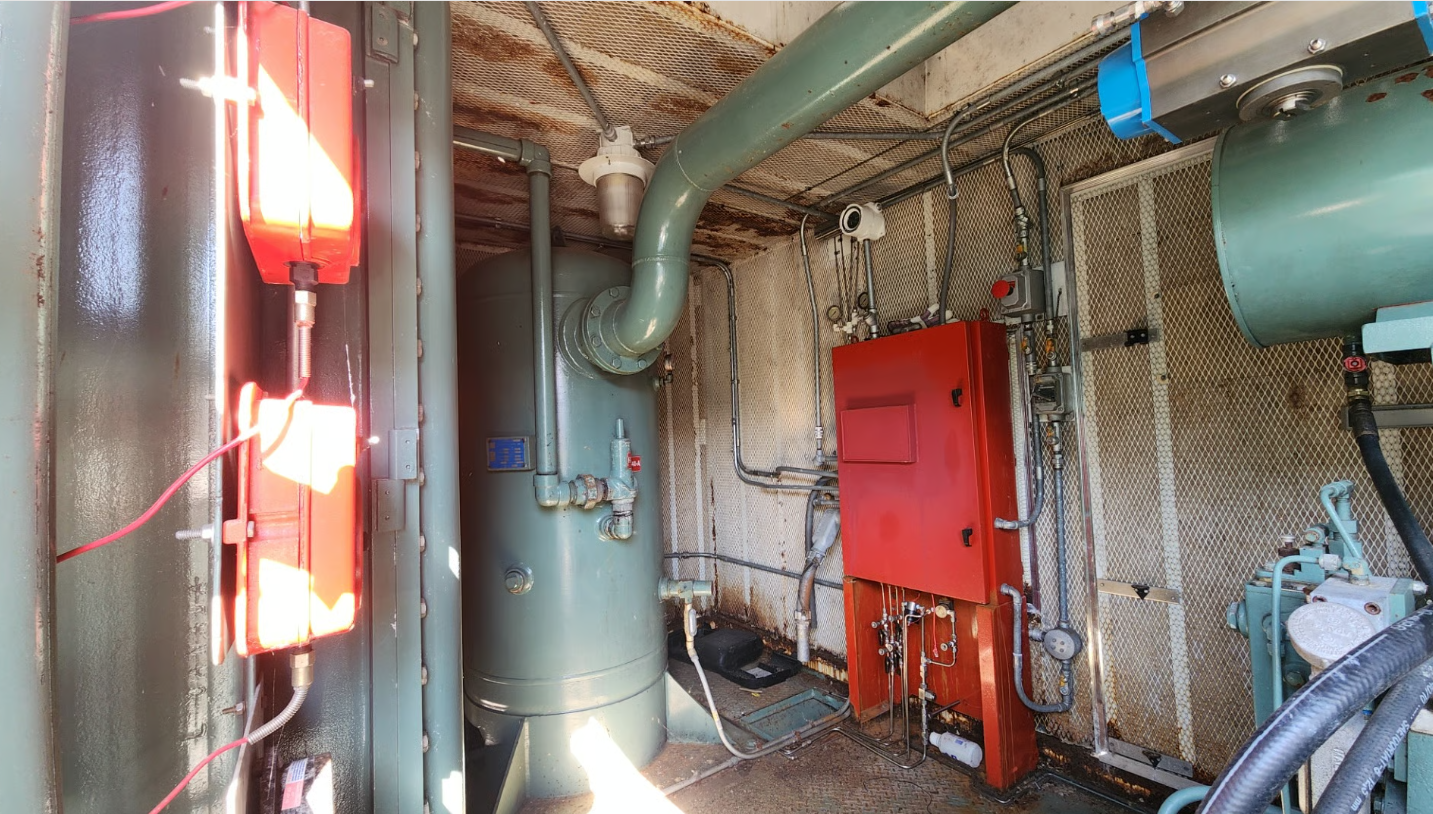

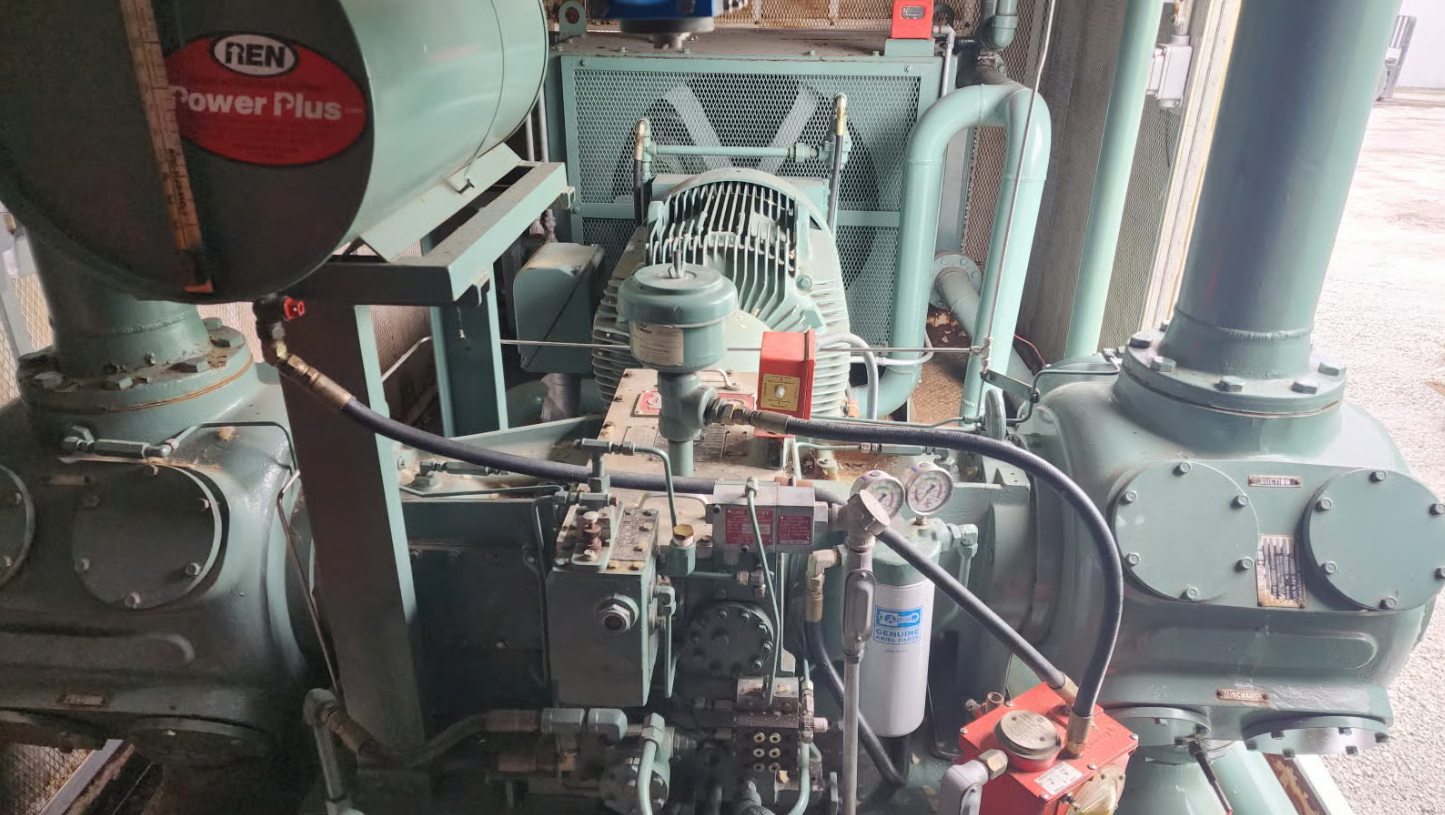

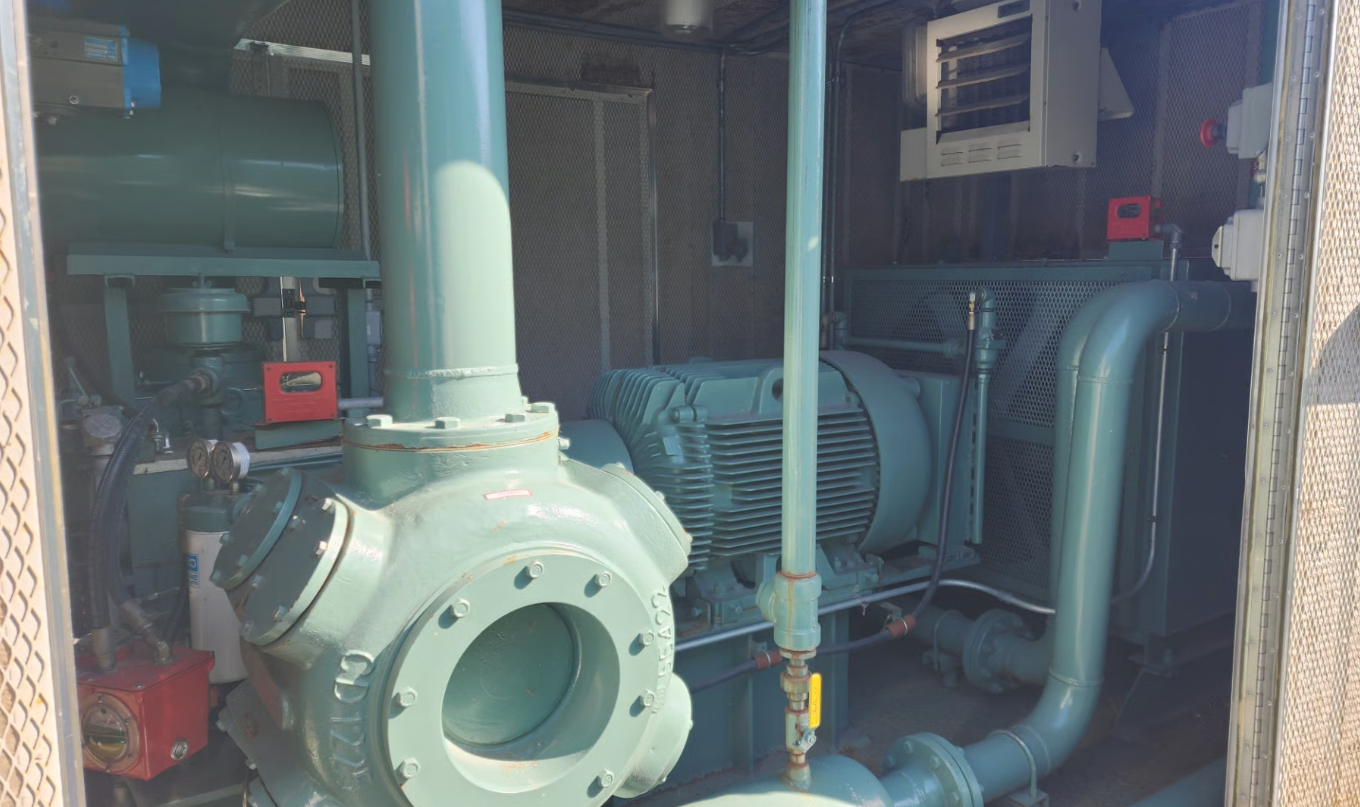

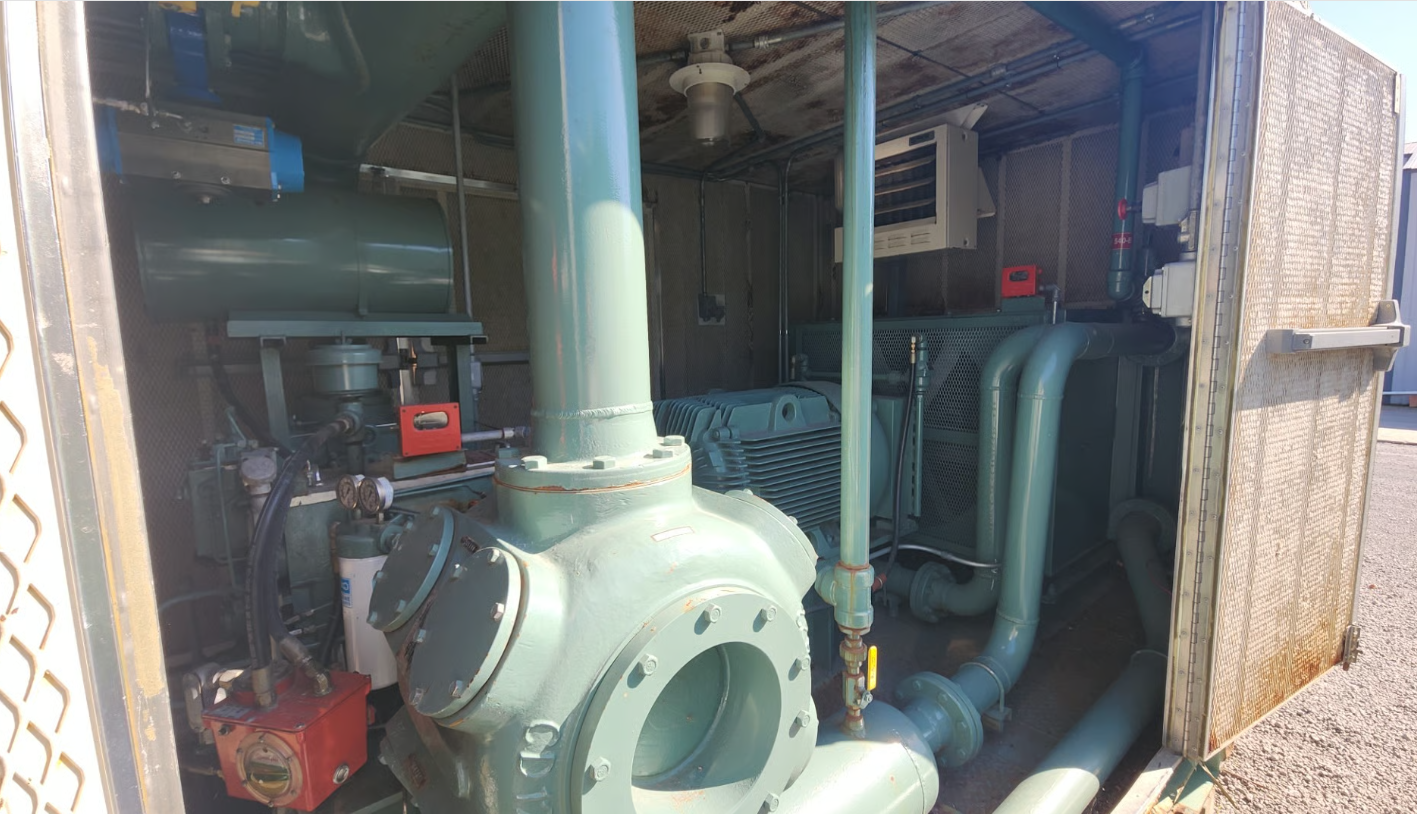

Used 125HP Ariel JGP/2 Gas Compressor Package. -Electronic controls were removed. -Very Low Hour Gas Compression Package
GAS COMPRESSOR ELECTRIC DETAILS: TOTAL HOURS: 215
YEAR: 1996
MOTOR: Manufacturer: Baldor SUPER E HP: 125 TE RPM: 1780 Frame: 444T Ser: 796C-1100 Volts: 460 Hertz: 60 Amps: 1414 CODE: H CLASS: F Service: 1.15 SF

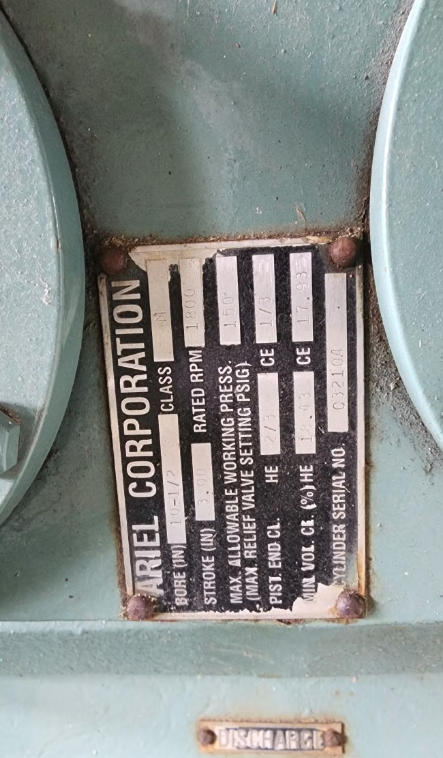

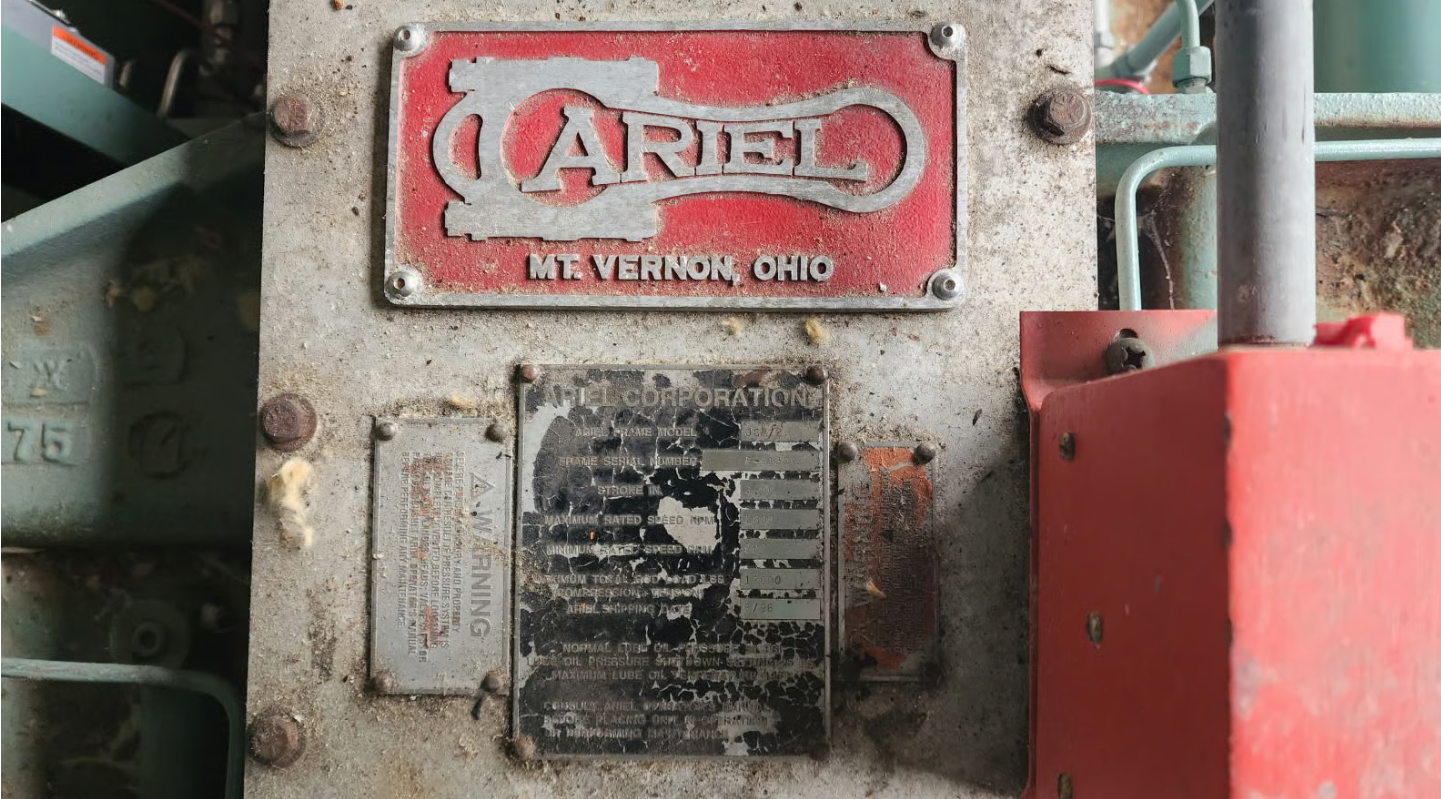

COMPRESSOR: Manufacturer: Ariel Model: JGP/2 Frame Serial: F-11399 Stroke: 3.00 Maximum Speed: 1800 RPM Minimum Speed: 900 RPM Maximum Total Rod Load: 12000 Ariel Shipping Date: 8/1996 CYLINDER: Bore 10 1/2 Stroke: 3.00 Max Allowable Working Pressure: 150 Class M Pist End Cl: HE 2/3 CE 1/3 Min Vol CL % HE: 18.43 CE 17.93 Serial Numbers: C32103 C32104
DIMENSIONS: 268" L x 101" W x 106" T Weight: 29,000 lbs
