Arc Specialties, LP pipe inspection system for dye penetrant testing, 40' pipe length, 2015

NOTE: SPECIFICATIONS AS WRITTEN BY ARC SPECIALTIES
PROCESS: LP DYE PENETRANT TESTING
DYE: FLUORESCENT
MAXIMUM PIPE LENGTH: 40'

LP PIPE INSPECTION:

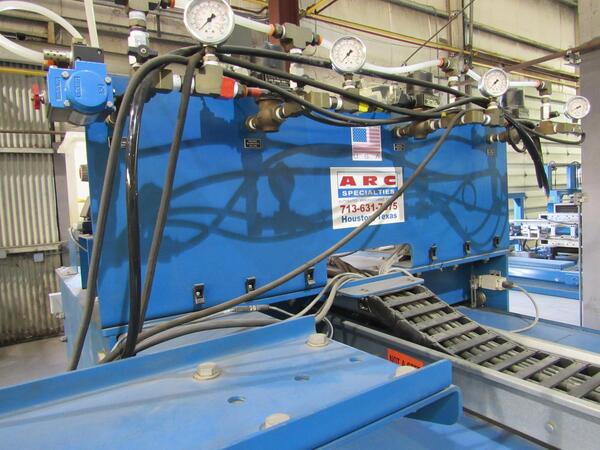

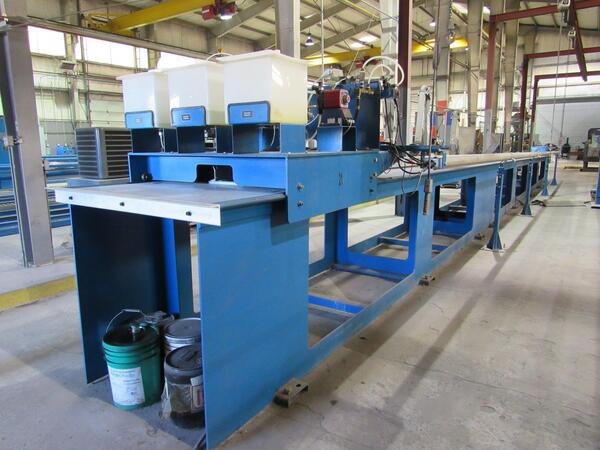

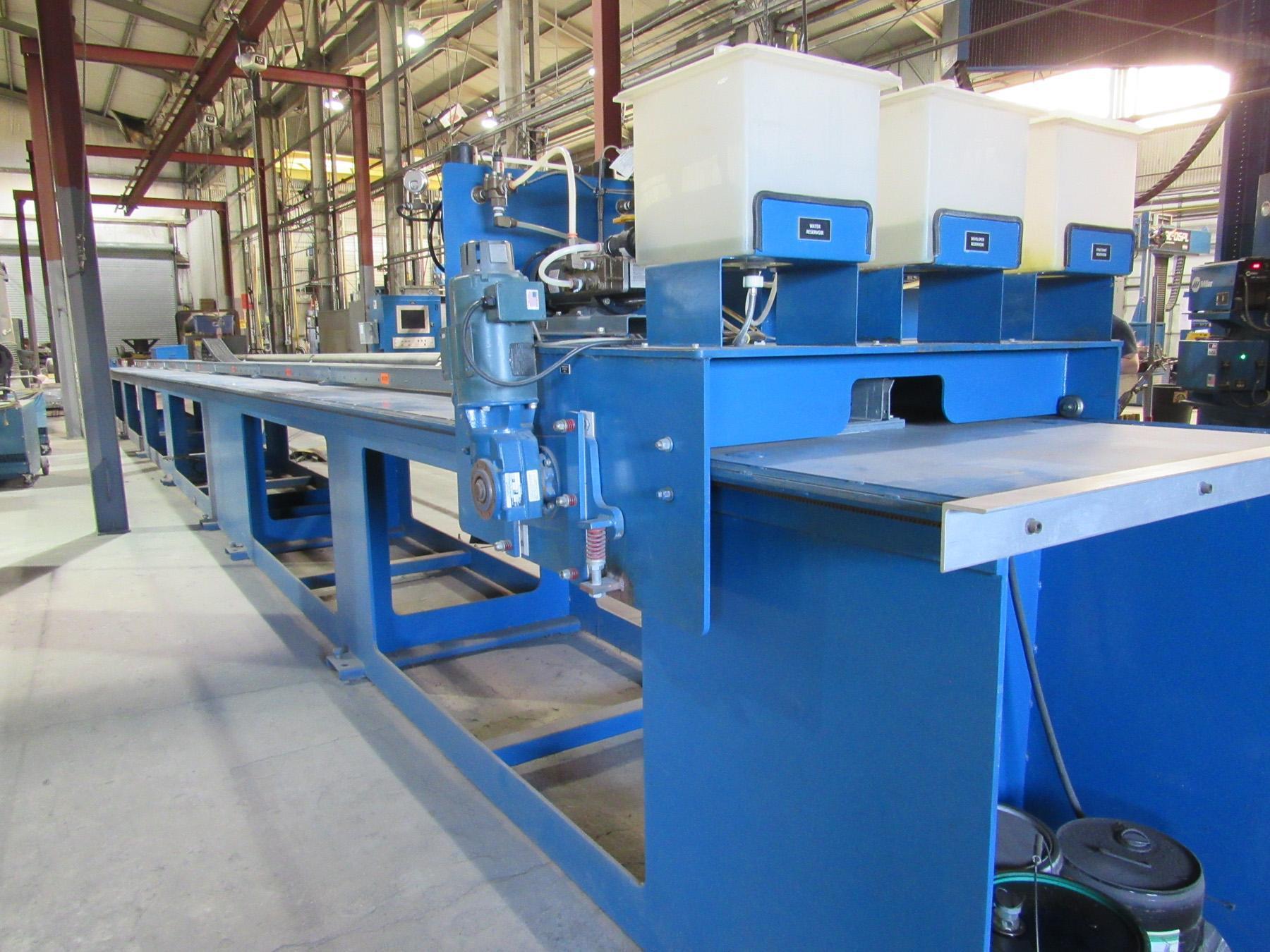

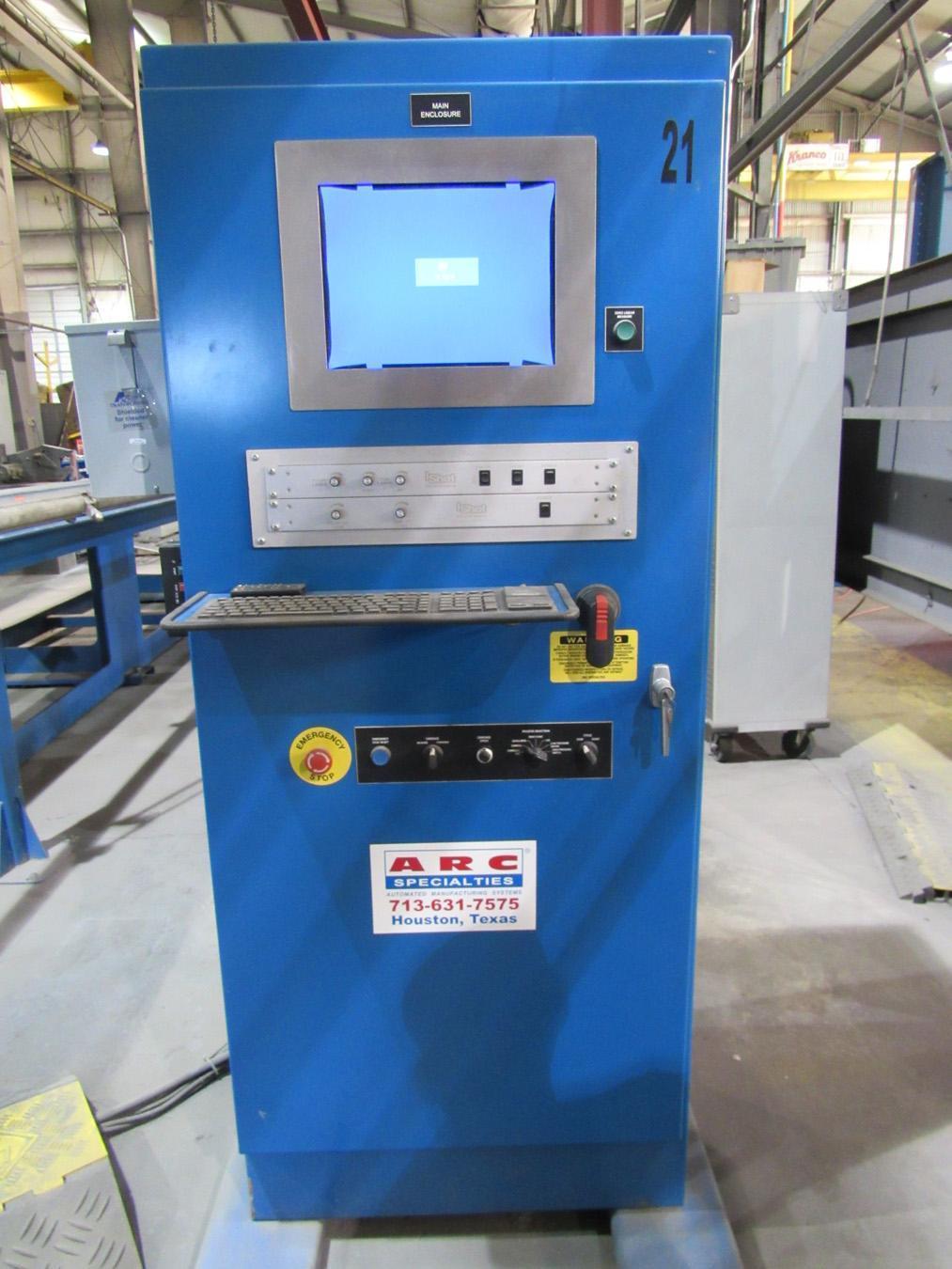

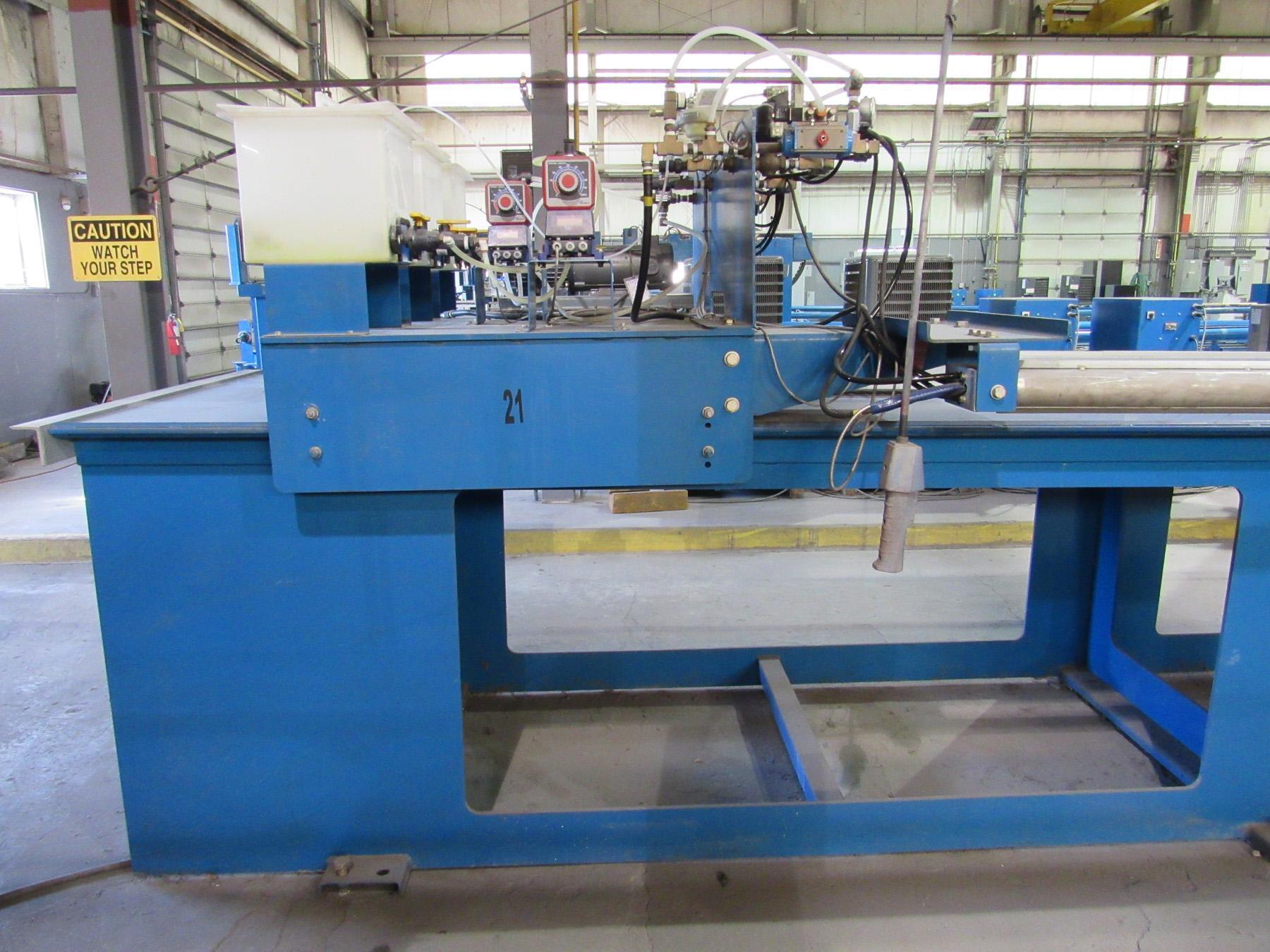

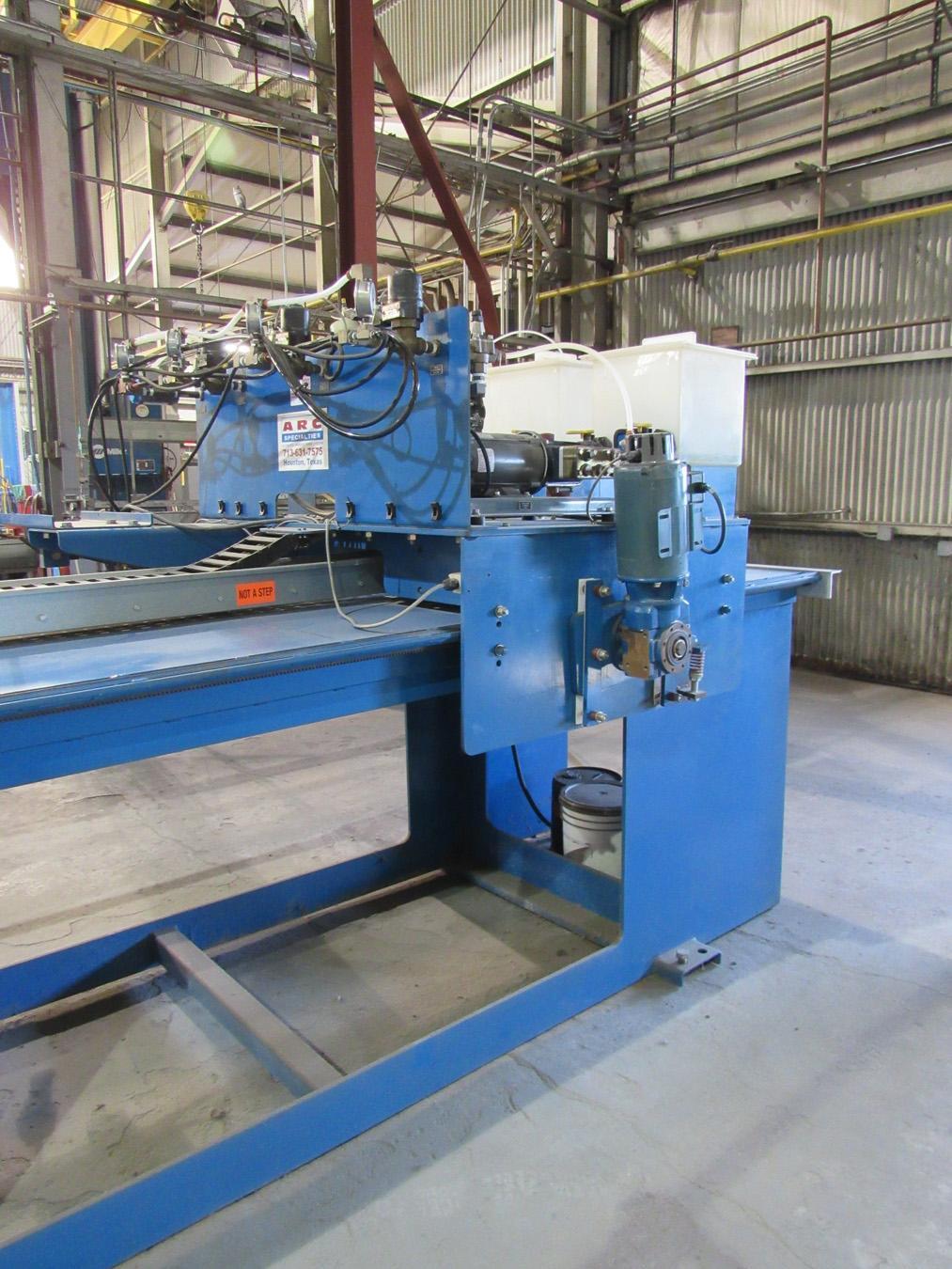

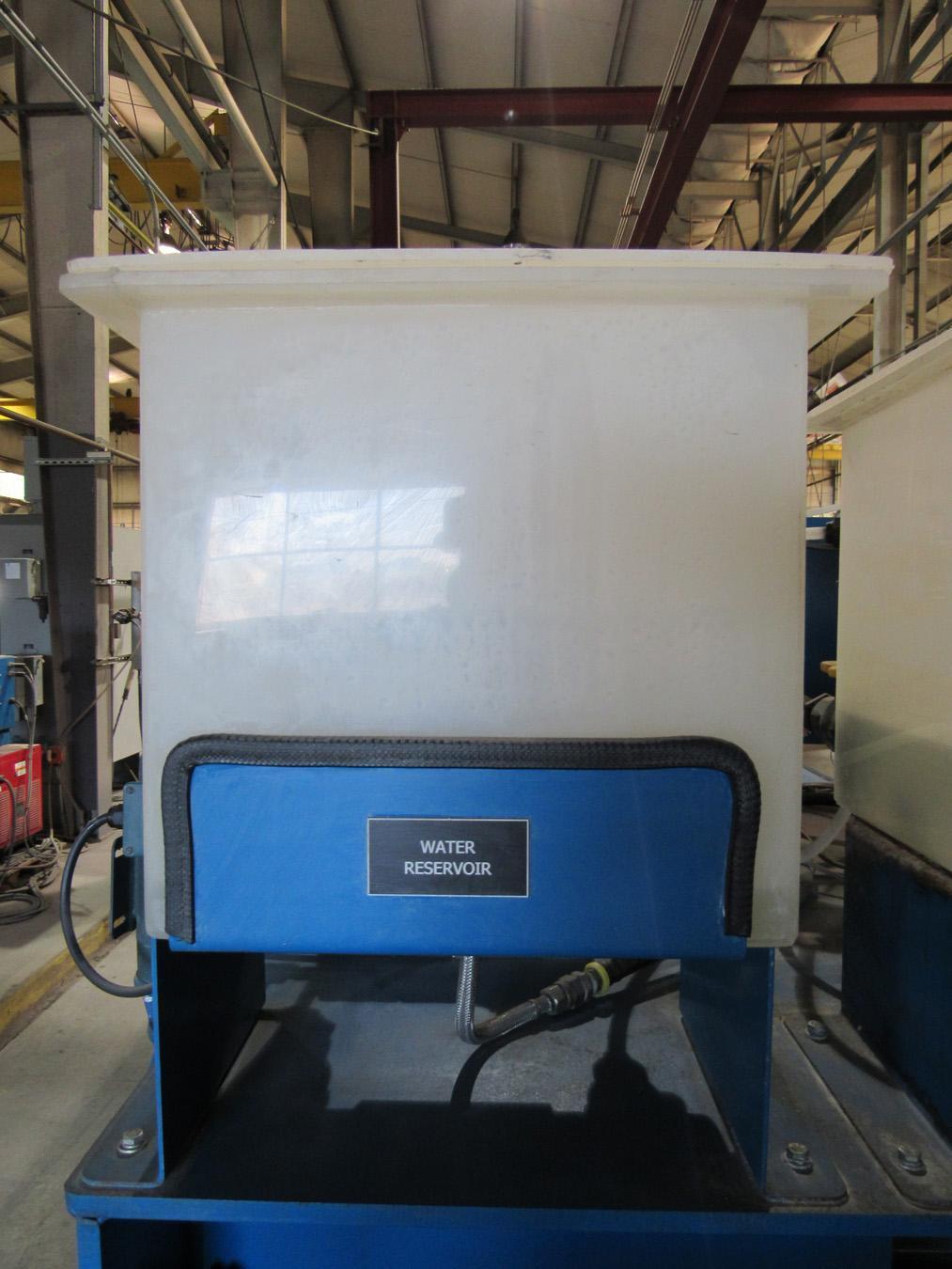

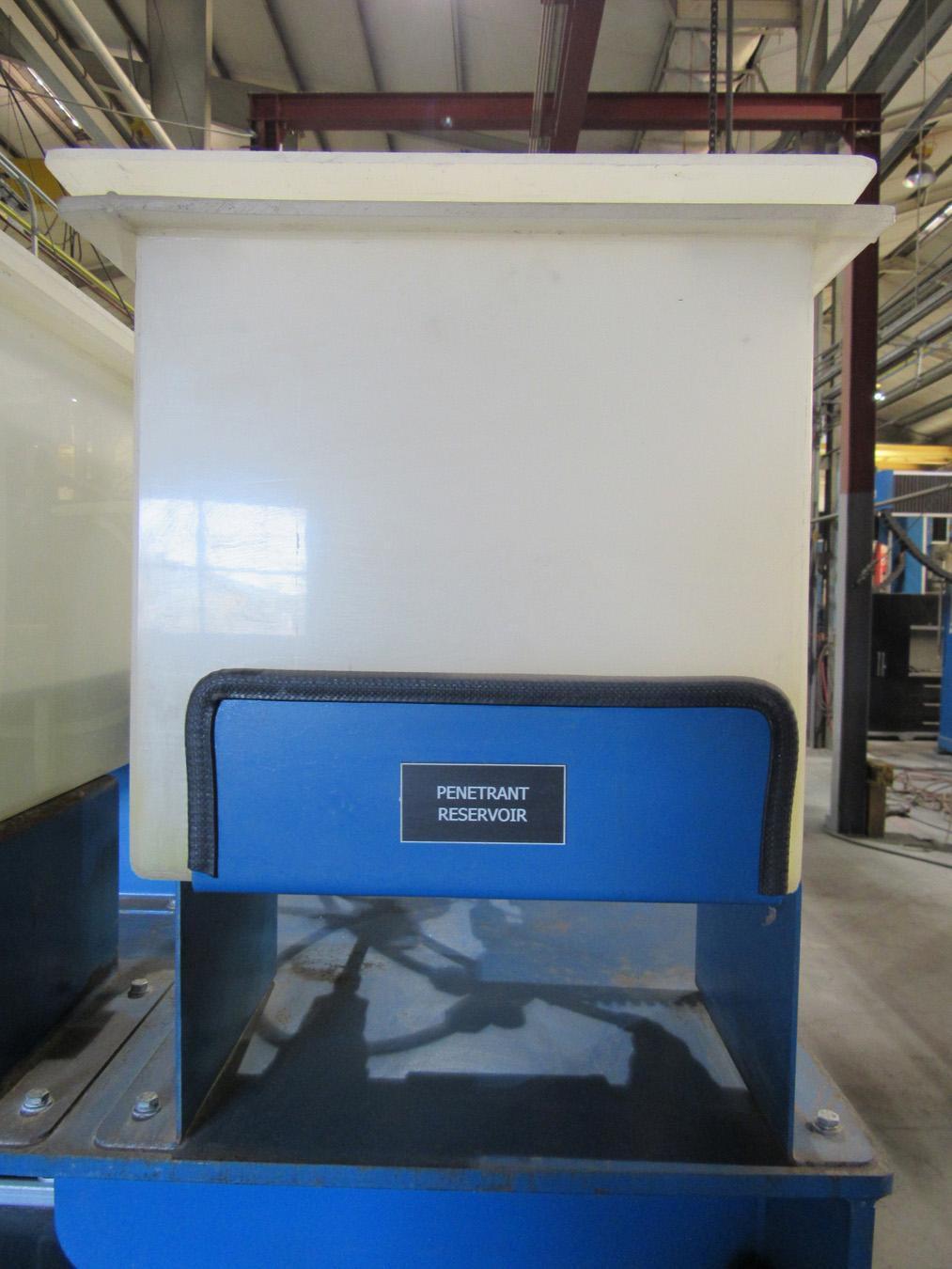

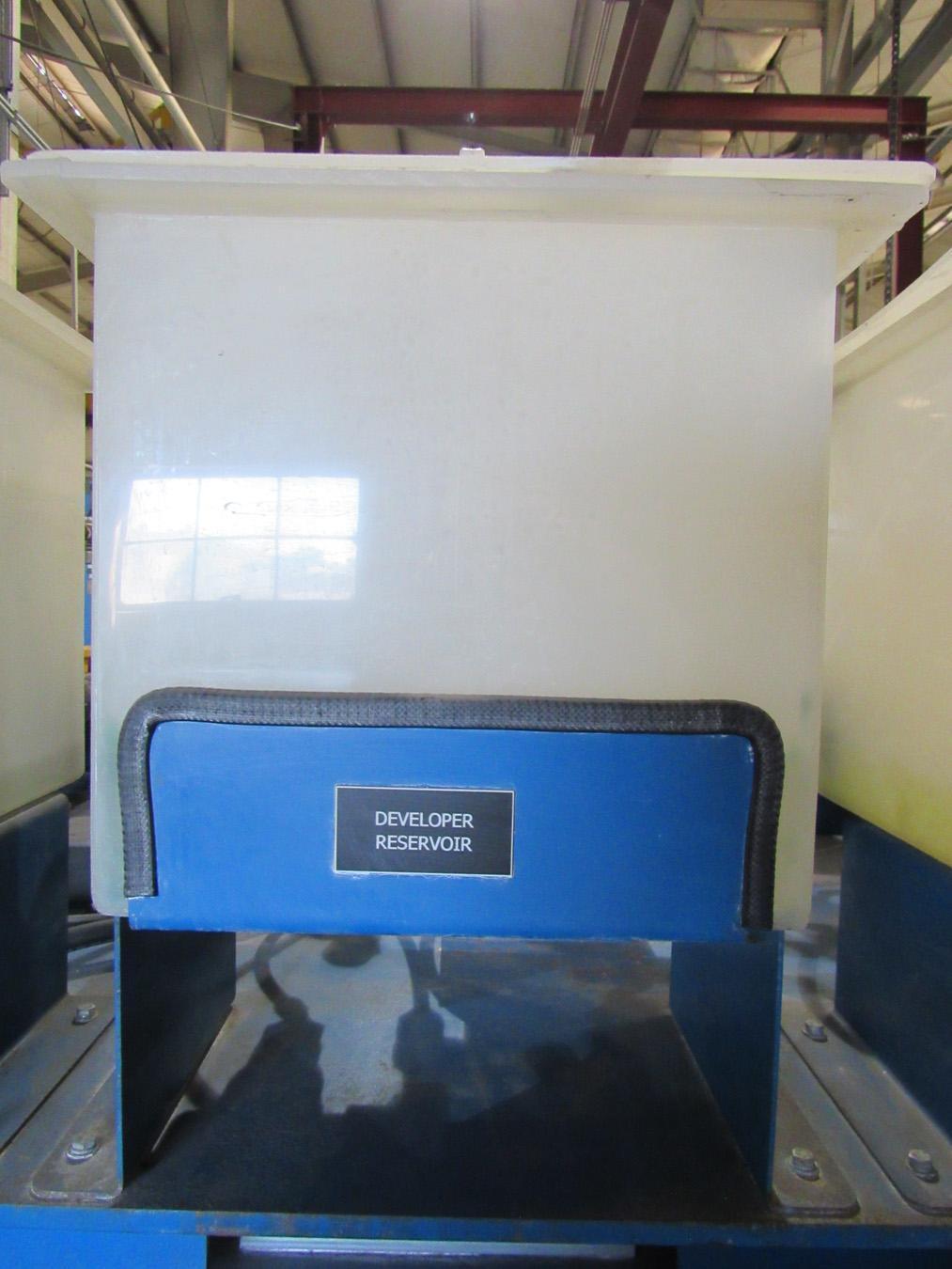

The dye-penetrate will have a steel structure with guide ways to allow the head assembly carriage to move along while testing. The test head assembly mount is secured to the machine cart that travels on track to enter inside the part. The machine cart has testing equipment mounted to it such as the tanks and manifolds. The part will need to be rotated by turning rolls. (Provided by customer) The system will need to have one driver turning roll assembly that is stationary and connected to the test head assembly support base. The test head assembly support base has a mating cut out that the head assembly mount drives into to steady and support itself while the head assembly carriage travels through the part during the testing process. The head assembly support base also has an end stop roller to prevent walking of the housing. The idler roller assembly is adjustable along a track for different lengths. All of the listed equipment will be on a skid base track that will extend to the head assembly support base. The electrical enclosure and fluid equipment is placed beside the machine for accessibility.

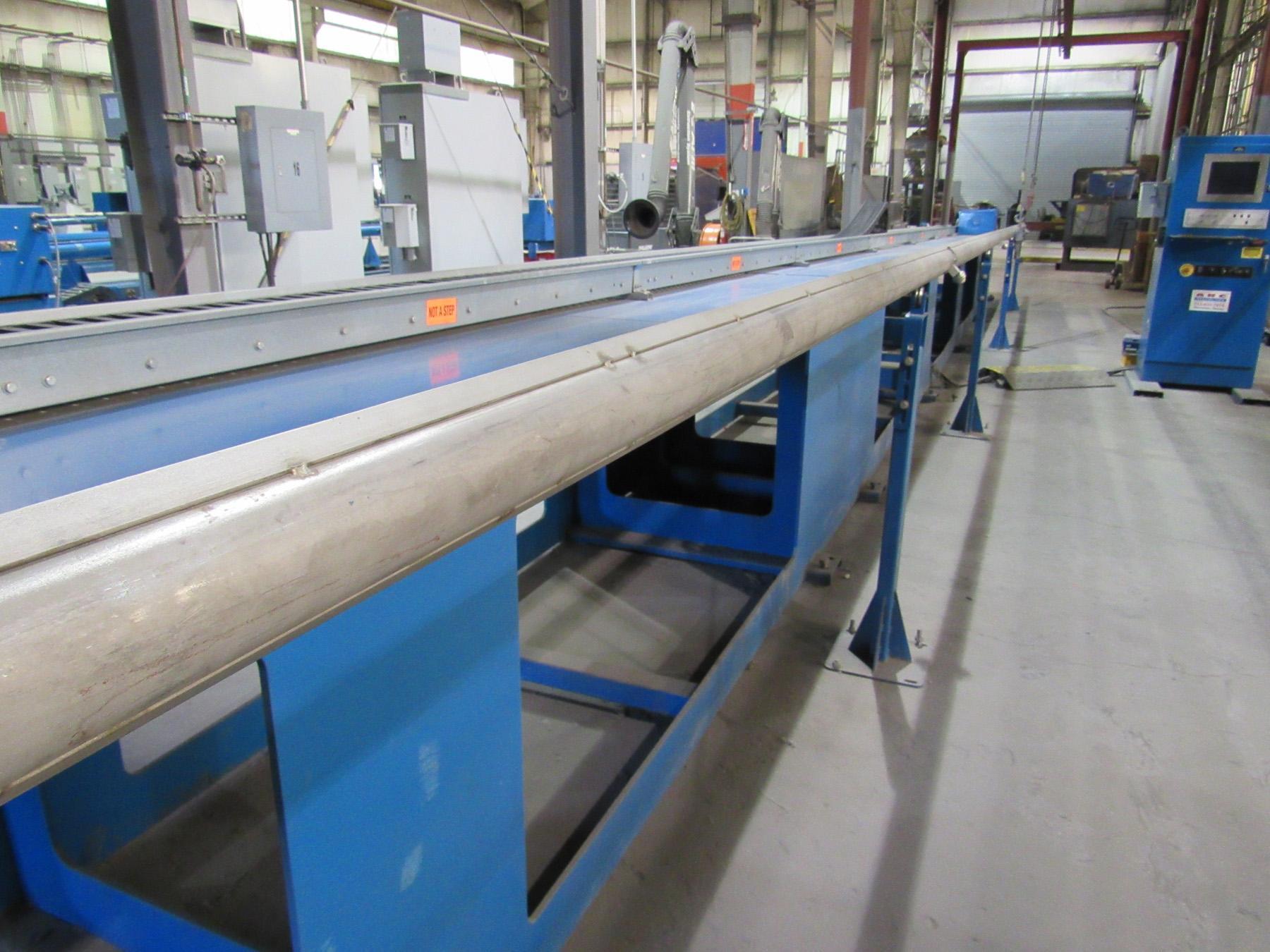

SKID BASE TRACK AND CARRIAGE:
