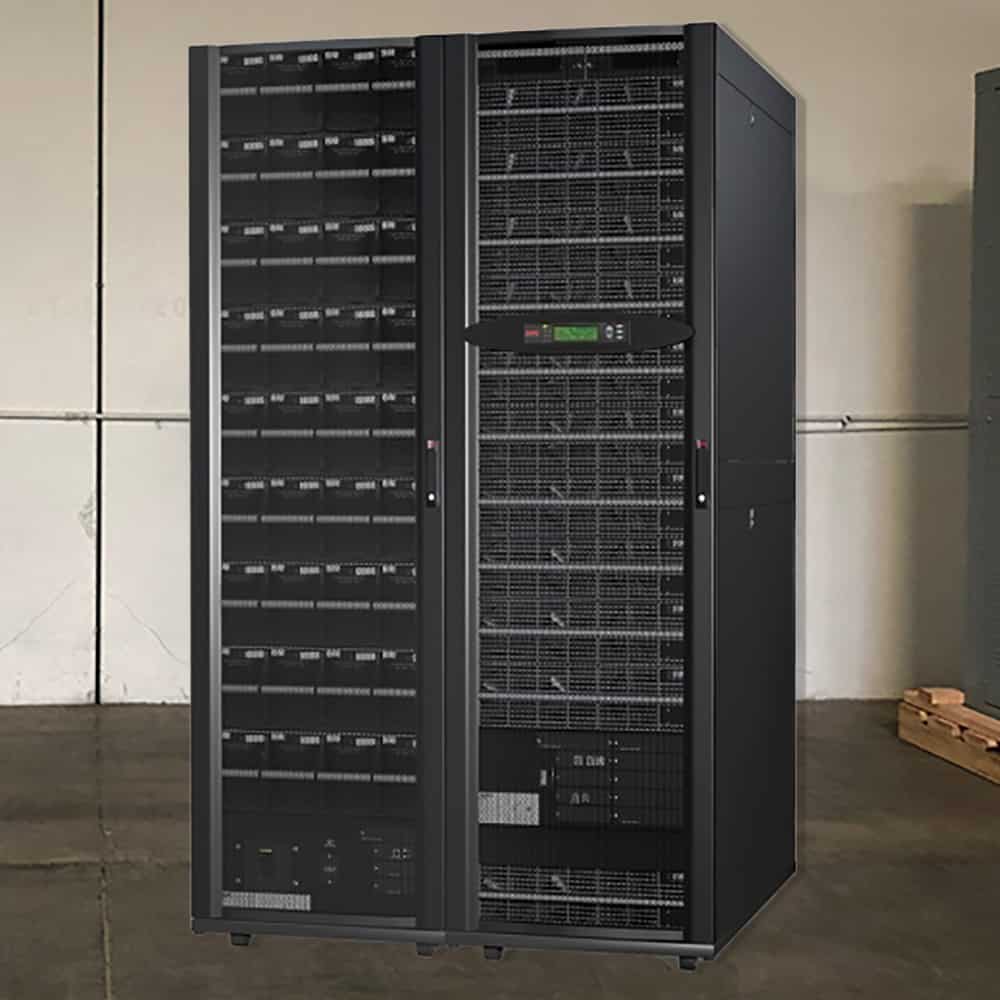

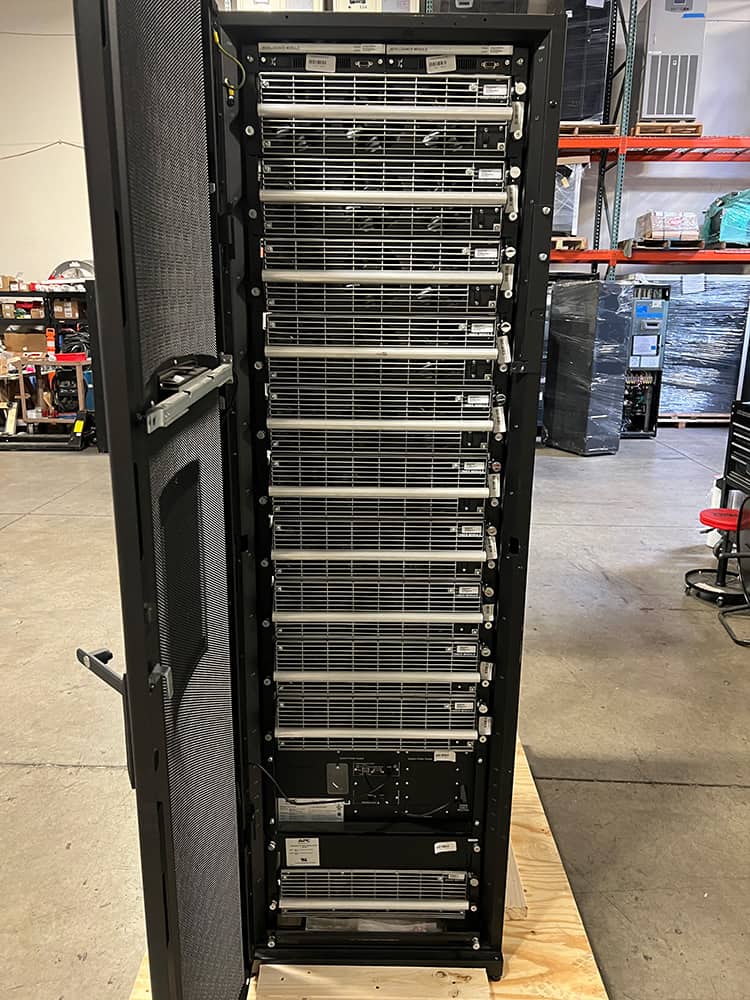

100.0 KVA APC Symmetra PX model SY100K100F, uninterruptible power supplies system

Symmetra PX 3-Phase 100kW , 208V (Refurbished)

Model: SY100K100F

The APC Symmetra PX is a world class, redundant, scalable, power protection system designed to cost effectively provide high levels of availability. Seamlessly integrating into today’s state-of-the-art data center designs, the Symmetra PX is a true modular system. Made up of dedicated and redundant modules–power, intelligence, battery and bypass, all engineered into a design that is easily and efficiently serviceable, this architecture can scale power and runtime as demand grows or as higher levels of availability are required. Symmetra PX serves as the core power train that drives APC InfraStruXure® systems for small and medium data centers but can also power individual “zones” of larger data centers. Highly manageable, the Symmetra PX features self-diagnostic capabilities and standardized modules which mitigate the risk of human error resulting in increased overall data center reliability.

Input

Bypass- Built-in Static Bypass

Nominal Input Voltage: 208V 3PH

Input Frequency: 50/60 Hz +/- 5 Hz (auto sensing)

Input Connections: Hard Wire 5-wire (3PH + N + G)

Input voltage range for main operations: 177 – 240V

Output

Output Power Capacity: 100 kW / 100 kVA

Max Configurable Power: 100 kW / 100 kVA

Nominal Output Voltage: 120V,208V,208V 3PH

Output Voltage Distortion: Less than 5% at full load

Output Frequency (sync to mains): 57 – 63 Hz for 60 Hz nominal

Crest Factor: Unlimited

Waveform Type: Sine wave

Output Connections: (1) Hard Wire 5-wire (3PH + N + G). (1) Screw Terminals
