For Sale by KD Machinery
Description

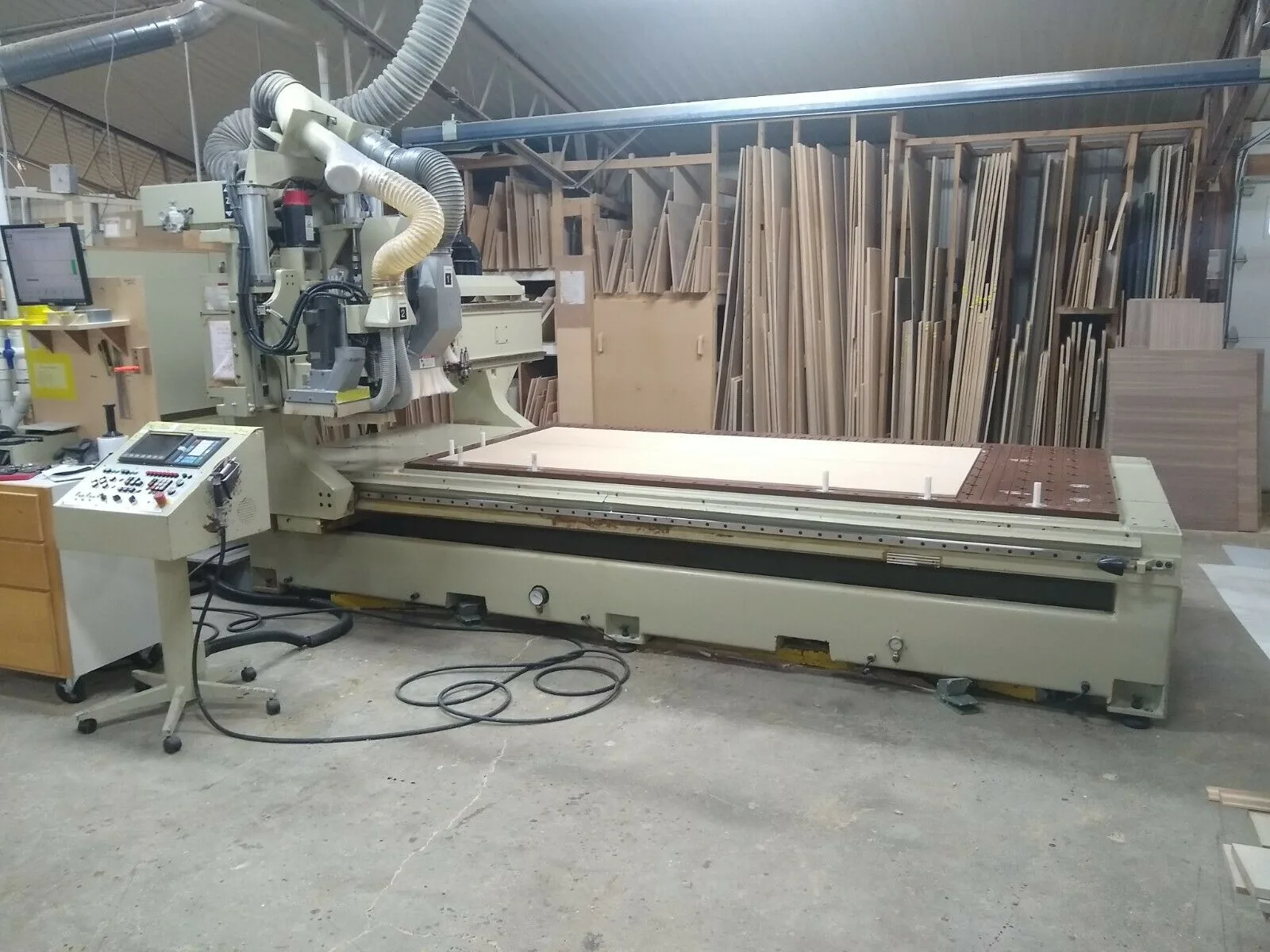

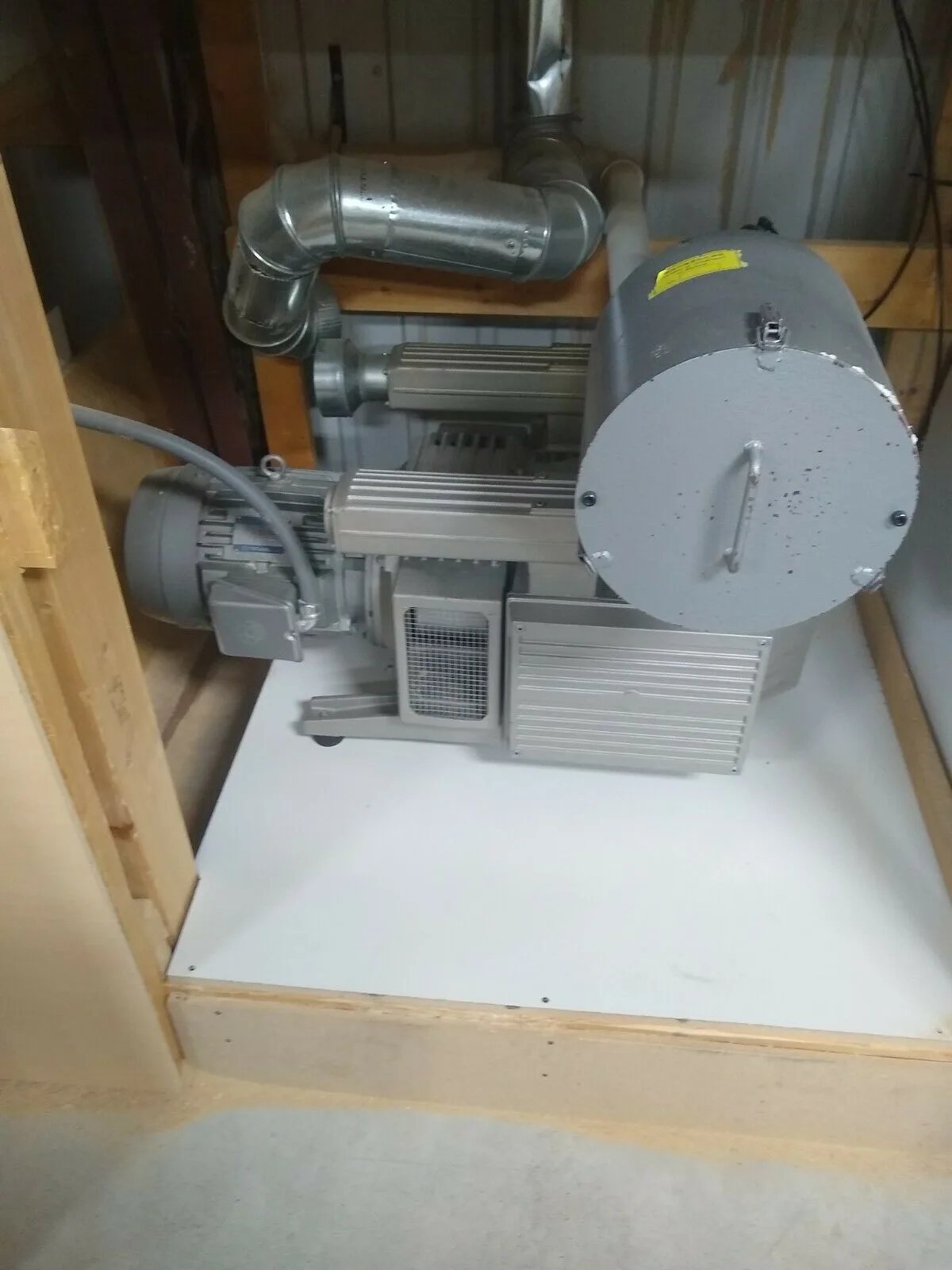

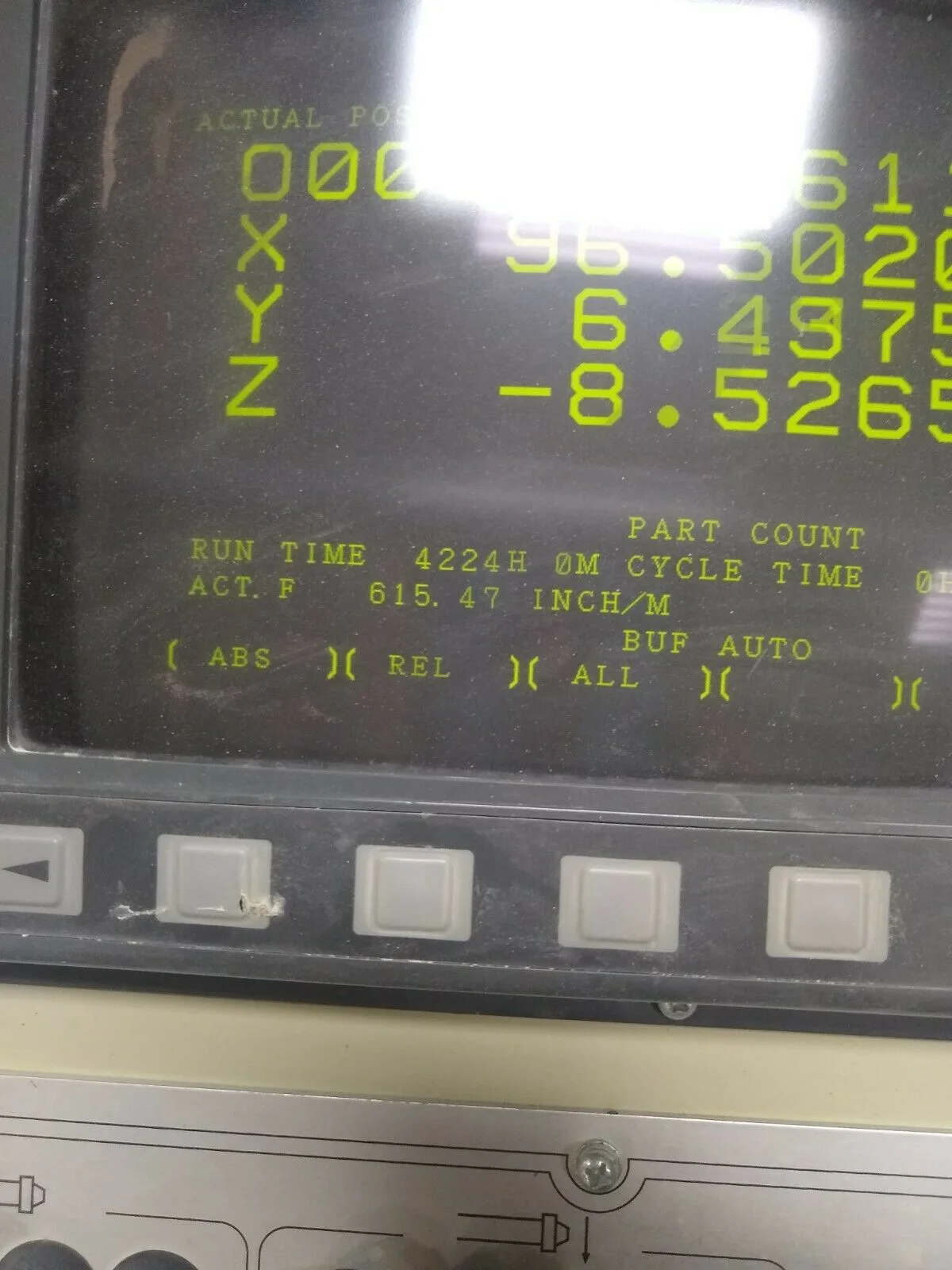

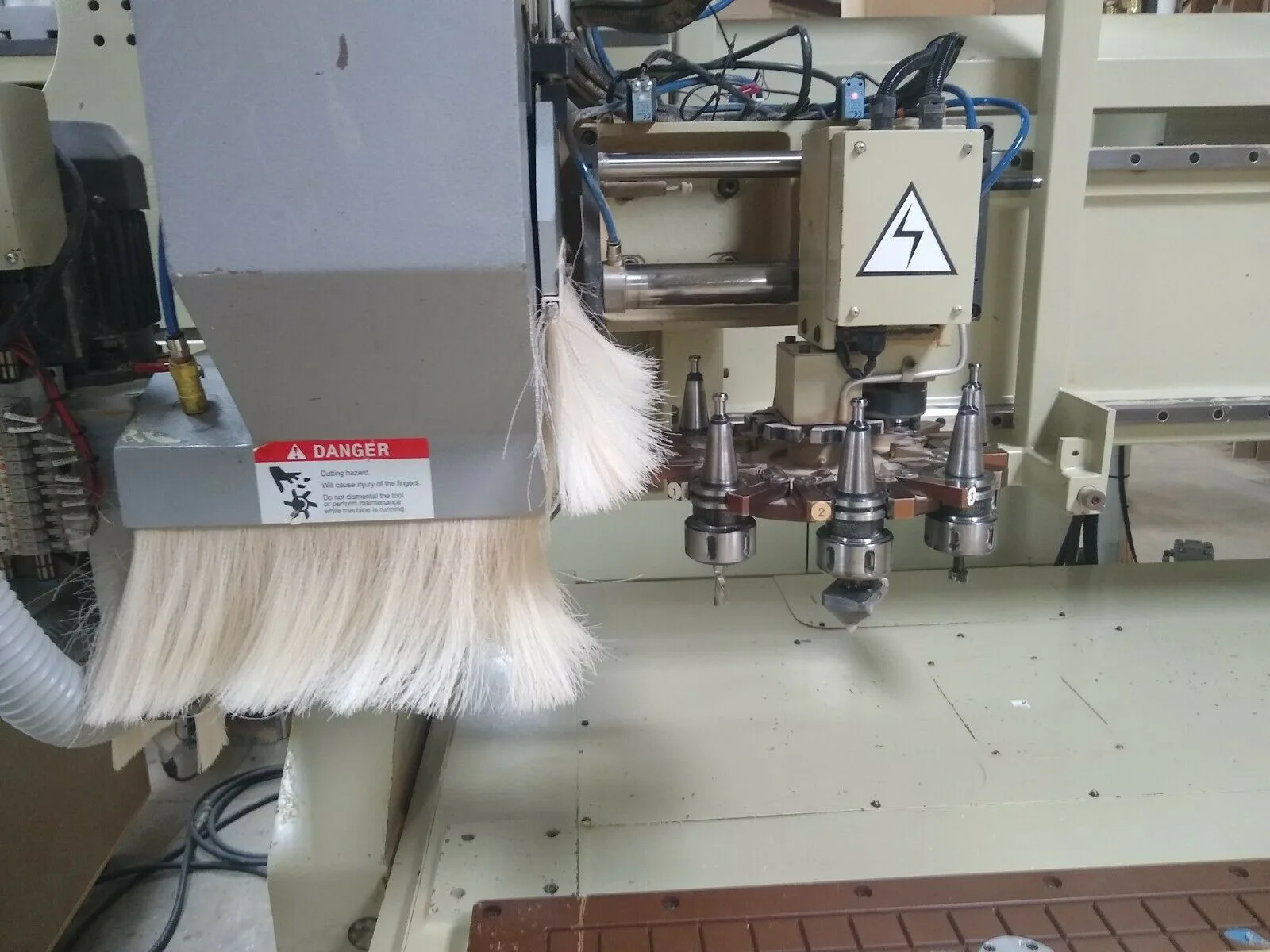

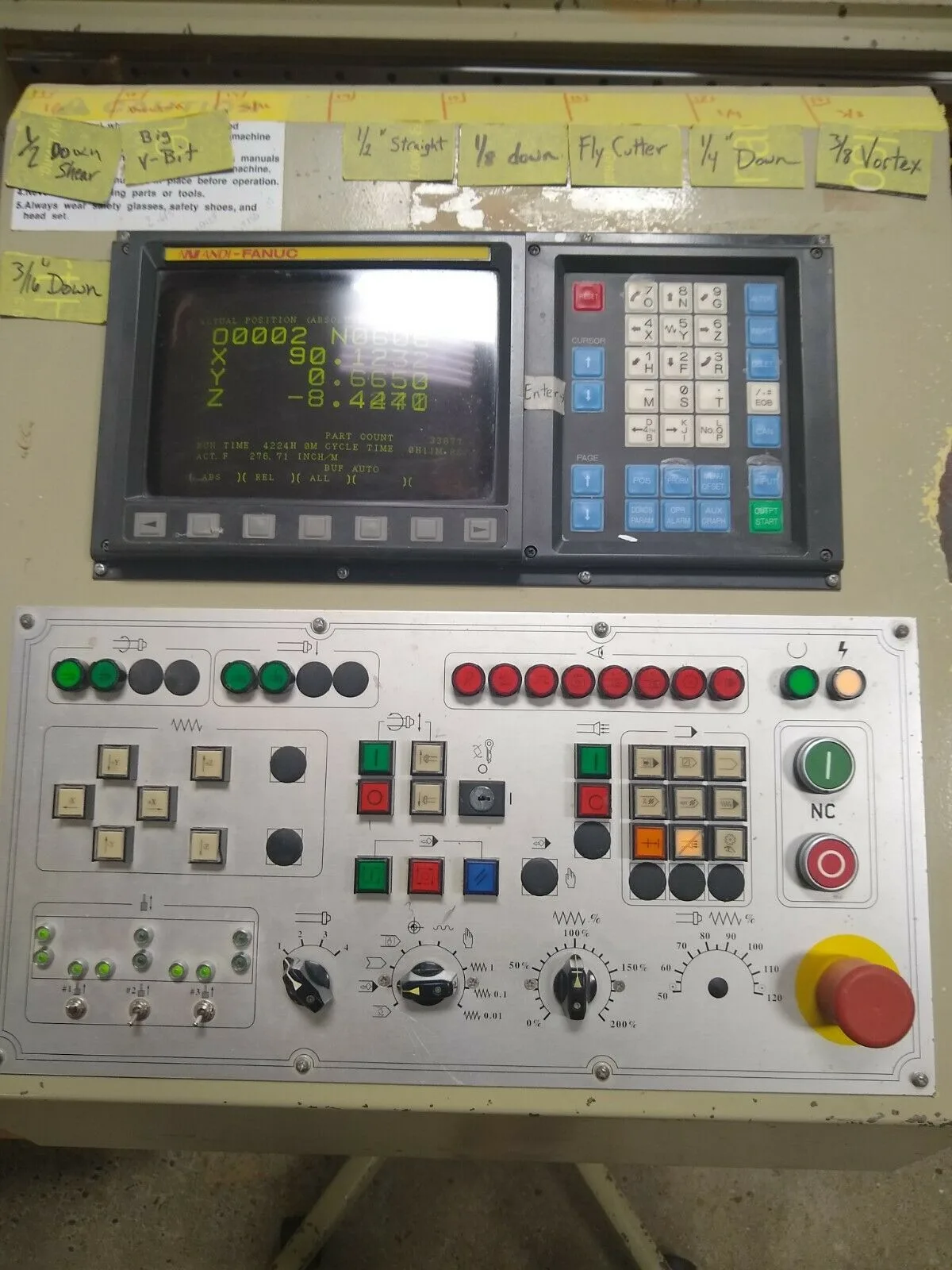

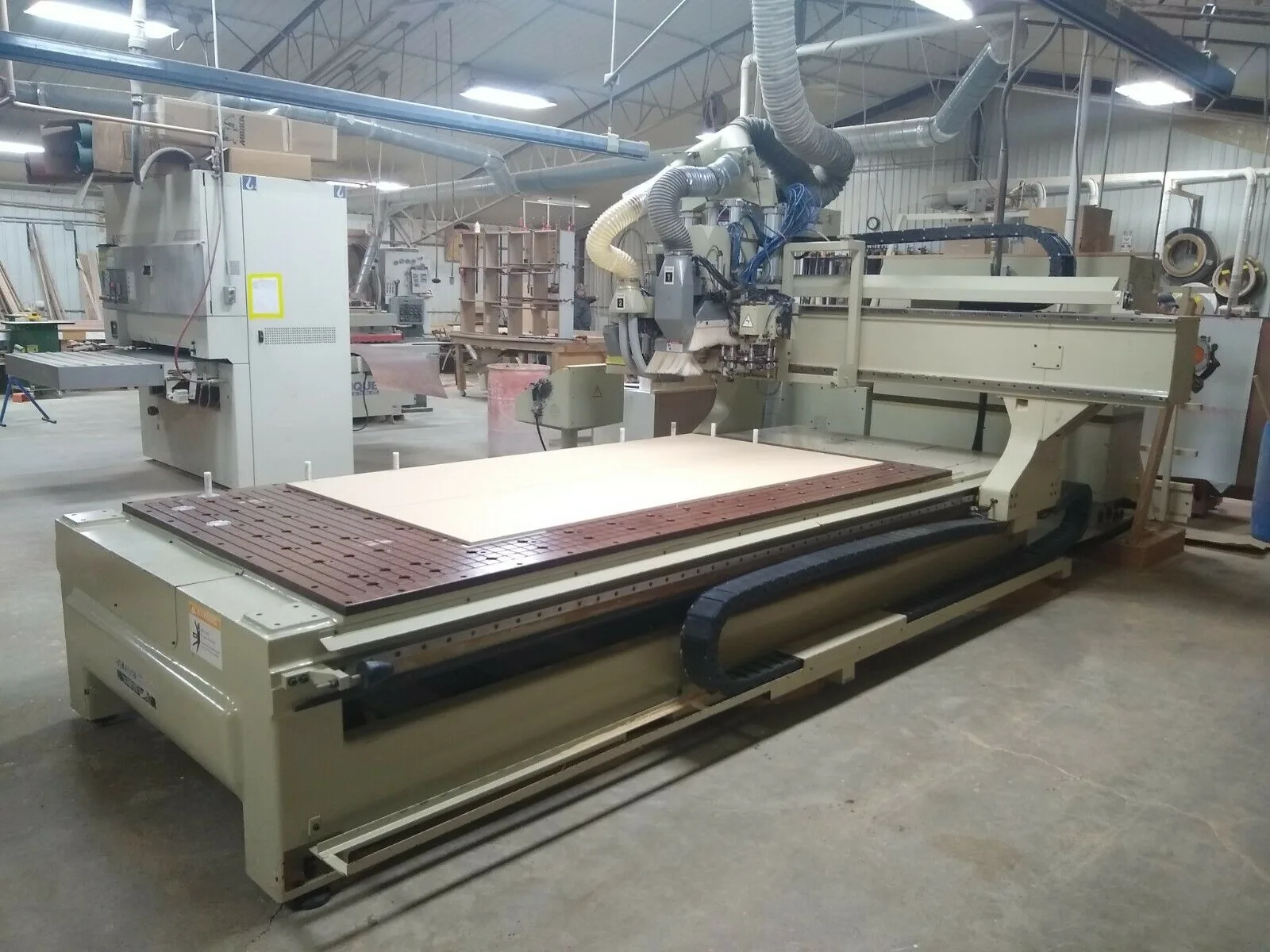

Used Anderson Stratos SUP CNC Router for Sale. This 3 axis machine has a 120″ x 60″ table with vacuum hold down, 8.0″ of Z-axis travel, and a 10 HP spindle rated to 18,000 RPM with an ISO-30 taper. Tool changes are handled by an (8) position carousel style ATC, and the router also carries a (9) spindle boring block. Control is a Fanuc 0M-C with a 9″ CRT screen display and RS-232 interface in a separate free-standing control cabinet. Also included: a 9 HP Becker VTLF 250 vacuum pump, a variety of ISO-30 toolholders and a tool prep fixture, Micro DNC 2D drip-feeding hardware, and a custom dust collection shoe that allows ATC operation. Power: 480VAC 3-phase, 31 Amp for the router; 220V 3-phase delta, 26 Amp for the pump. 4,300 hours, currently in operation and available for inspection under power. See more used CNC routers, then
| Table Width | 60" |
|---|---|
| Table Length | 120" |
| Number of Axis | 3 Axis |
| Spindle Motor | 10 hp Spindle |
| Spindle Speed | 18,000 RPM |
| Tool Changer | (8) Carousel Style ATC |
| Control | Fanuc 0M-C |
| Table Hold Down | Vacuum Hold Down |
| Z-Axis Travel | 8.0" |
| Boring Block | (9) Spindle Boring Block |
| Power Requirement | 480VAC 3-phase, 31 Amp for the Router, 220V 3-phase delta, 26 Amp for the Vacuum Pump |
| Hours | 4,300 hours |
| Taper Size | ISO-30 |
