Description

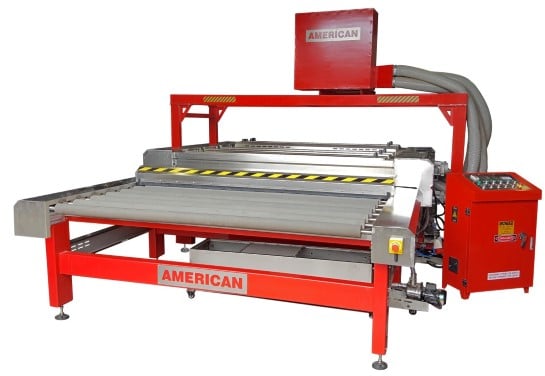

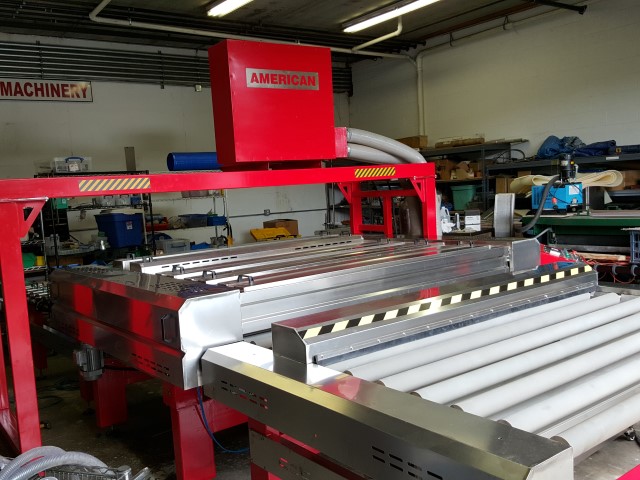

AMERICAN 84 Stainless Steel Horizontal Glass Washer
Technical Specification:
Variable Speed up to 26 FPM (Faster speeds are possible)
Glass Thickness: 0-3/4
Minimum glass size: 8x 16
Modular and User Friendly
Stainless Steel Wash, Rinse and Dryer sections
Heavy Duty Aluminum Frame Support
Exterior Conveyor Supports are Powder Coated
Stainless Steel Pre-Wash Section
Low-E Glass Brushes
Specially Designed Air Knives
25HP High Pressure Blower
Line Drive Conveyor
4 Post Screw Jack Lift Top Up to 14 Max Height
Digital Display for Glass Thickness Easily Adjusted
Water Lines & Electric Lines are Quick Disconnect
Washer is set up for DI water
Independent and Movable Stainless Steel Water Tanks
Thermostat Controlled Immersion Water Heater
Low Water Level Safety Switch
Electrics According to Customer specifications: 480V, 3Phase, 60Hz
Size Dimensions Weight KW
84 17x10x9 10,000lbs 24
DESCRIPTION
This stainless steel glass washing machine is suitable for different thicknesses of glass 0-3/4in. Cleaning and drying is automatic; horizontal transmission; 6 brushes; 4 special air knives for drying, temperature control, variable speed conveyor. Glass thickness digitally controlled by 4 screw jack lift top. Glass comes out dry without the need to run the glass at an angle.
Call us with any questions: 814-807-4545
Technical Specification:
Variable Speed up to 26 FPM (Faster speeds are possible)
Glass Thickness: 0-3/4
Minimum glass size: 8x 16
Modular and User Friendly
Stainless Steel Wash, Rinse and Dryer sections
Heavy Duty Aluminum Frame Support
Exterior Conveyor Supports are Powder Coated
Stainless Steel Pre-Wash Section
Low-E Glass Brushes
Specially Designed Air Knives
25HP High Pressure Blower
Line Drive Conveyor
4 Post Screw Jack Lift Top Up to 14 Max Height
Digital Display for Glass Thickness Easily Adjusted
Water Lines & Electric Lines are Quick Disconnect
Washer is set up for DI water
Independent and Movable Stainless Steel Water Tanks
Thermostat Controlled Immersion Water Heater
Low Water Level Safety Switch
Electrics According to Customer specifications: 480V, 3Phase, 60Hz
Size Dimensions Weight KW
84 17x10x9 10,000lbs 24
DESCRIPTION
This stainless steel glass washing machine is suitable for different thicknesses of glass 0-3/4in. Cleaning and drying is automatic; horizontal transmission; 6 brushes; 4 special air knives for drying, temperature control, variable speed conveyor. Glass thickness digitally controlled by 4 screw jack lift top. Glass comes out dry without the need to run the glass at an angle.
Call us with any questions: 814-807-4545
